Ultra High Efficiency Hydraulic Filter 126-1818, 1261818
The 126-1818 can replace Fleetguard HF35554, Baldwin BT9362-MPG, Donaldson P179343, Case 254353A1.
+8618144082725
Part Number:SP212799 Part Type:Fuel Filter Element Brand:Liugong Replacement MOQ:60pcs Compatibility:Liugong Equipment.
Part Number:13074774 Part Type:Air Filter Kit Brand:Weichai Replacement MOQ:20pcs
Part Number:G130097(Mounting Band P013722,Cover Assembly P538259,Clip P776033) Part Type:Air Filter Assembly Brand:Donaldson Replacement MOQ:20pcs
Part Number:TM720D-400 Part Type:Reverse Osmosis Element Brand:Toray Replacement MOQ:60pcs
Part Number:03254375 Part Type:Cabin Air Filter Brand:Manitowoc Replacement MOQ:20pcs
Part Number:6B924 Part Type:Pleated Air Filter MERV Rating:8 Brand:Air Handler Replacement MOQ:20pcs
Vacuum Oil Purifier with Complete Accessories The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification. Technical Specifications Product Type Vacuum Oil Purifier Accessories Complete Accessories Included Flow Rate 50 L/min Working Pressure 0.6 MPa Vacuum Level ≤ -0.095 MPa Residual Water Content 5–10 ppm Residual Air Content ≤ 0.2% First-Stage Filtration 100 μm Second-Stage Filtration 10–20 μm Third-Stage Filtration 1–3 μm Voltage 380 V AC Frequency 50 Hz Phase Three Phase Motor Power 36 kW Heating Power 24 kW Control System PLC Control Efficient Vacuum Dehydration and Degassing The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment. Three-Stage Precision Filtration The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination. Powerful Heating and High Processing Capacity Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications. PLC Automatic Control The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification. ...

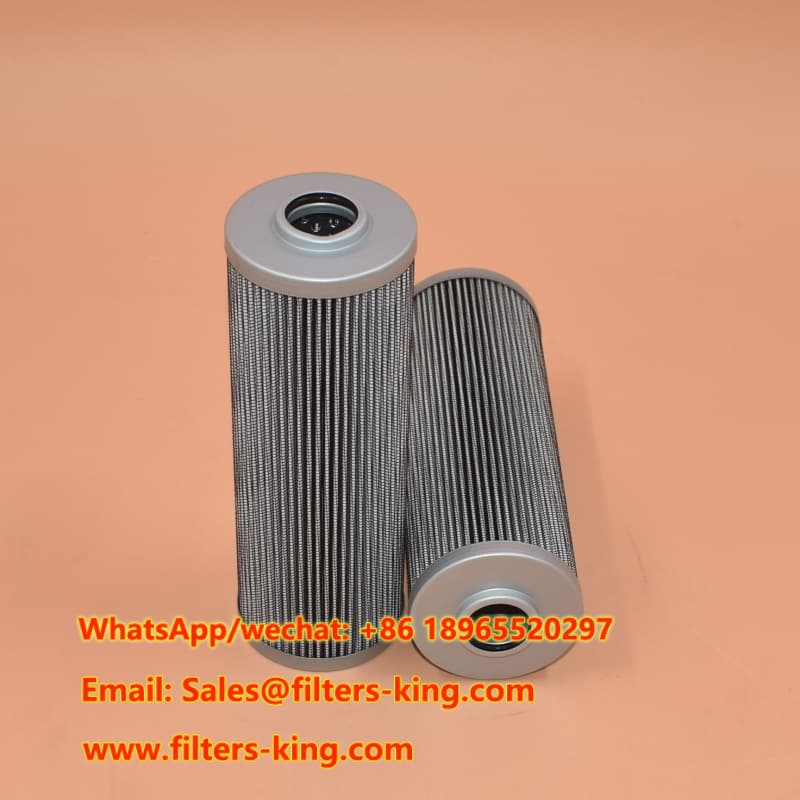

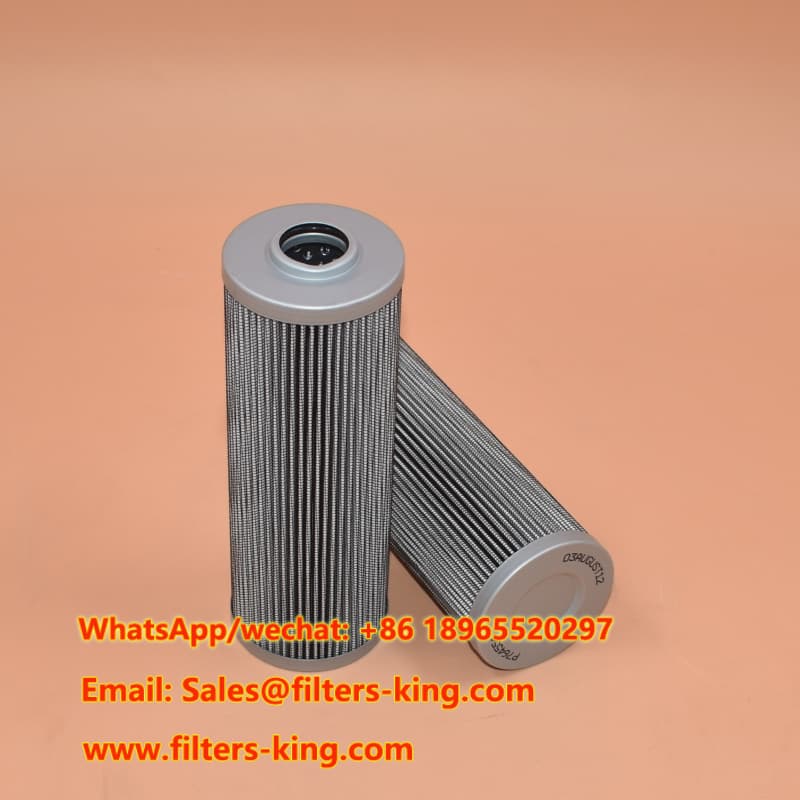

The P764554 Hydraulic Filter is a replacement hydraulic filter element designed for agricultural machinery, construction equipment, transmission systems and industrial hydraulic applications. With an outer diameter of 2.74 inches (69.5 mm), an inner diameter of 1.00 inch (25.3 mm), and a length of 7.87 inches (200 mm), this filter provides a practical replacement solution for professional maintenance programs.
This filter is supplied as a Donaldson replacement and is cross-referenced with widely used part numbers such as Fleetguard HF35320, Baldwin PT9395-MPG, Hifi SH52707, Mann HD722, JCB 32925801 and New Holland 47108105. Public catalog data also identifies P764554 as the Donaldson hydraulic cartridge associated with Fendt F916100600010.
The filter element is designed to help remove damaging contaminants from hydraulic fluid before they circulate through sensitive components. Cleaner hydraulic oil can help support stable system operation and reduce the risk of premature wear on pumps, valves and other hydraulic components.
For maintenance teams and aftermarket distributors, accurate filter dimensions are important when selecting a replacement. The P764554 is manufactured to the specified dimensional range of 69.5 mm outside diameter, 25.3 mm inside diameter and 200 mm length, making it suitable for applications using the corresponding filter configuration.
A properly matched hydraulic filter element helps maintain fluid cleanliness while supporting consistent hydraulic performance. The P764554 can be used as an aftermarket replacement option for customers looking for a dependable high flow hydraulic filter element for equipment maintenance and replacement programs.
| Parameter | Specification |
|---|---|
| Part Number | P764554 |
| Part Type | Hydraulic Filter Element |
| Brand | Donaldson Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 2.74 inch (69.5 mm) |
| Inner Diameter | 1.00 inch (25.3 mm) |
| Length | 7.87 inch (200 mm) |
| Application | Hydraulic and Transmission Systems |
| Supply Type | Aftermarket Replacement |
The P764554 has multiple cross-reference numbers used across agricultural, construction and industrial equipment markets. Cross-reference information should be verified against the original filter, equipment model and dimensional requirements before ordering. Public reference data lists P764554 alongside HF35320, PT9395-MPG, SH52707 and HD722, among others.
| Brand | Cross Reference Part Number |
|---|---|
| AGCO | 72425778, 72311028 |
| Baldwin | PT9395-MPG |
| Case IH | 192000000000, 1922002807051, 192200280705 |
| Claas | 11419810, 0011419810 |
| Fendt | F916100500010, F916100600010 |
| Fleetguard | HF35320 |
| Hifi | SH52707 |
| JCB | 32925801 |
| Landini | 6530780A2 |
| Mann | HD722 |
| New Holland | 47108105 |
| TRP DAF | 1535230 |
| Wix | D09A10GAV |
This replacement element is suitable for professional maintenance applications where the corresponding P764554 configuration is specified. Cross-reference data indicates applications across brands including Fendt, Case IH, JCB, New Holland, Massey Ferguson-related equipment and other agricultural machinery.
For distributors and repair specialists, this makes the P764554 a useful construction equipment hydraulic filter and agricultural equipment replacement option. It can also serve customers maintaining hydraulic and transmission systems where a compatible cartridge-style filter is required.
CHINA EVERLASTING PARTS CO., LIMITED supplies aftermarket filtration products for distributors, wholesalers, filter retailers and professional service companies. With a MOQ of 60 pcs for this model, customers can purchase P764554 replacement filters for regular maintenance stock, regional distribution and aftermarket sales programs.
We also welcome OEM and ODM projects. Customers can contact our sales team for product specifications, packaging requirements, private-label projects, bulk purchasing and filter sourcing solutions.
★★★★★
“The cross-reference information made it easy for our purchasing team to identify the replacement filter. The dimensions matched our maintenance requirement.”
Ethan Caldwell
Purchasing Manager – Agricultural Equipment Distributor
★★★★★
“We were looking for a reliable aftermarket hydraulic element for our service inventory. The bulk supply option and clear specifications helped us plan our purchase.”
Naomi Fletcher
Aftermarket Service Coordinator – Equipment Repair Company
★★★★★
“The product cross-reference list is useful when serving customers who use different filter brands. It gives our sales team more options when sourcing replacement elements.”
Marcus Whitaker
Wholesale Operations Manager – Filter Parts Supplier
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators and Filter Assemblies. We support OEM and ODM services for customers seeking aftermarket filtration solutions and customized filter programs.
For wholesale pricing, availability, cross-reference confirmation or OEM/ODM inquiries, please contact our sales team:
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
The 126-1818 can replace Fleetguard HF35554, Baldwin BT9362-MPG, Donaldson P179343, Case 254353A1.
The 102-2828 is equivalent to Fleetguard HF6551, Baldwin BT8853-MPG, CAT 156-0214, Case N14232, John Deere RE39390. Part Number:102-2828, 1022828 Part Name:Hydraulic Filter Brand:Caterpillar
The Hydraulic Filter HF6003 Cross Reference BT526-10 P161267 HC-7935 LFH4935,Application For Blaw Knox PF35. PF500(John Deere 6414D eng). Bobcat Melroe 540-13112(Kohler K582S eng). 542B(Ford VSG411 eng). Ingersoll Rand P100AWD; P110AWD. P100AWF; P100WF; P125AWF; P125WF. P100BWD; P100CWD; P110BWD
The Hydraulic Filter 56202447 SH55295V For Sandvik LH307.
The HF6205 is equivalent to Baldwin B262, Donaldson P763577, Atlas Copco 1619-3771.
The Hydraulic Filter HF6327 Fleetguard Cross Reference BT8937 P550363 SP9274.
