The HF6205 is equivalent to Baldwin B262, Donaldson P763577, Atlas Copco 1619-3771.

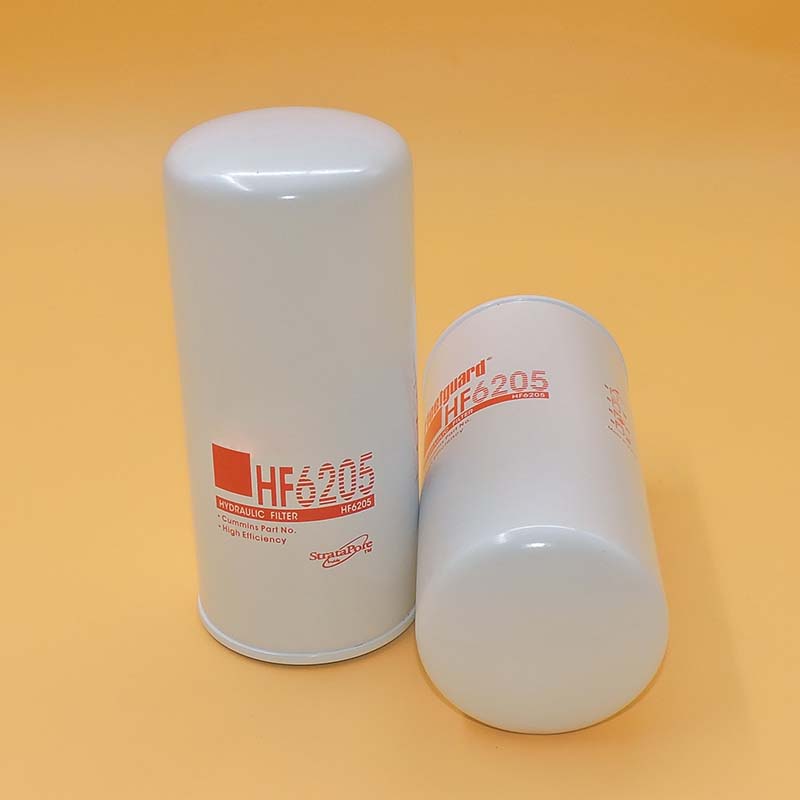

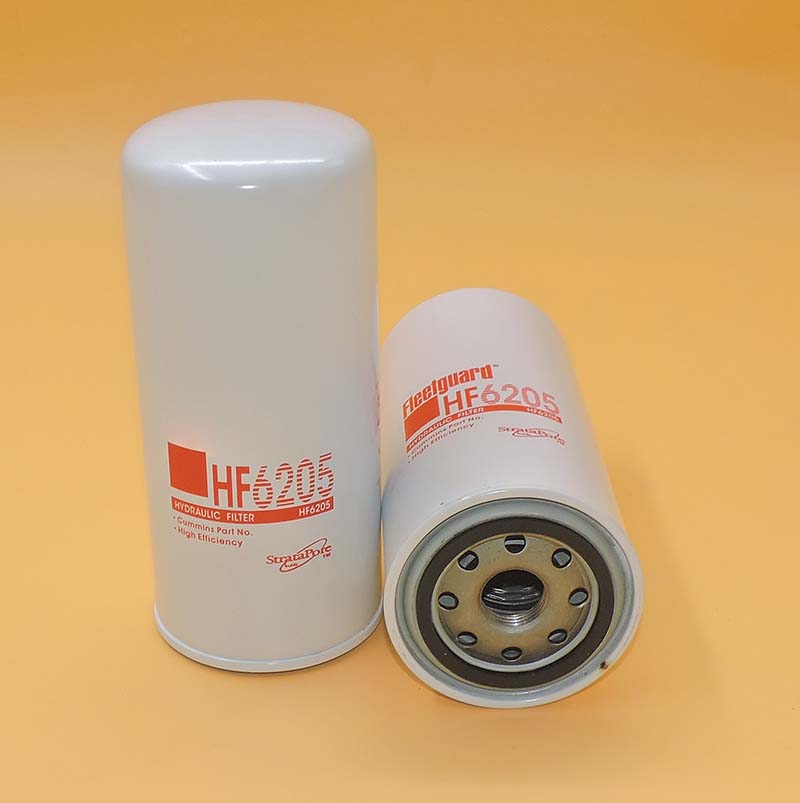

Genuine Fleetguard Hydraulic Filter HF6205
Cross Reference:
Baldwin B262
Donaldson P763577
Atlas Copco 1619-3771
Mann W962/14
Sakura HC-6217
Wix 51818, 51820
Yanmar 11959335100, 119593-35100
The HF6205 Parameter：
|
Part Number |
HF6205 |
|
Parts Name |
Hydraulic Filter |
|
Brand |
Fleetguard |
|
Overall Height |
210.5 mm |
|
Largest OD |
93.5 mm |
|
Seam OD |
93.5 mm |
|
Gasket OD |
70 mm |
|
Gasket ID |
62 mm |
|
Thread Size |
1-12 UNF-2B |
The HF6205 Features：
The function of hydraulic filter is to filter various impurities in hydraulic system. The main sources are the mechanical impurities remaining in the hydraulic system after cleaning, such as water rust, cast sand, welding slag, iron chips, coatings, paint skins and cotton chips, and impurities that enter the hydraulic system externally.
Customer customization:
We are filter manufacturer, we have our own filter factory, we can produce filter according to customer samples , design drawing or other specially request.
The HF6205 Application：
|
Equipment |
Engine |
|
ATLAS COPCO-XAS 32-----Construction/Mining-- |
DEUTZ AG-BF4M1008-- |
|
ATLAS COPCO-XAS 65D-----Construction/Mining-- |
DEUTZ AG-F3L1011F-- |
|
ATLAS COPCO-XAS 96D-----Construction/Mining-1999 |
DEUTZ AG-F3M1011F-- |
|
ATLAS COPCO-XASS 30-----Construction/Mining-- |
ATLAS COPCO-F1L511D-- |
|
ATLAS COPCO-GA 75-----Construction/Mining-2000 |
----- |
|
ATLAS COPCO-GX 11-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 808-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XR 210-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XASS 55-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XRS 350-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 75-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
|
ATLAS COPCO-GA 50VSD---350000-Construction/Mining-2004 |
----- |
|
ATLAS COPCO-XAS 80-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
|
ATLAS COPCO-XA 60-----Construction/Mining-- |
DEUTZ AG-F2L912-- |
|
ATLAS COPCO-GA 1407-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 80-----Construction/Mining-- |
DEUTZ AG-F6L912-- |
|
ATLAS COPCO-GA 5-----Construction/Mining-1998 |
----- |
|
ATLAS COPCO-GX 5-----Construction/Mining-- |
----- |
|
ATLAS COPCO-H232-----Construction/Mining-- |
DEUTZ AG-DEUTZ-- |
|
ATLAS COPCO-GA 608-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 610-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 110-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 40-----Construction/Mining-- |
DEUTZ AG-F2L511D-- |
|
ATLAS COPCO-XASS 45-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 160-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 15-----Construction/Mining-1992 |
----- |
|
ATLAS COPCO-XAS 65-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-GA 75 TP-----Construction/Mining-- |
ATLAS COPCO-1LA6-228-2AB-- |
|
ATLAS COPCO-GA 410-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 350-----Construction/Mining-- |
DEUTZ AG-F8L413F-- |
|
ATLAS COPCO-GA 37-----Construction/Mining-1994 |
----- |
|
ATLAS COPCO-GA 45-----Construction/Mining-1995 |
----- |
|
ATLAS COPCO-XAS 90 DD-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 125 D---209142-Construction/Mining-- |
----- |
|
ATLAS COPCO-XASS 125-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 45 DD-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XRH 350D-----Construction/Mining-- |
DEUTZ AG-F10/12L413F-- |
|
ATLAS COPCO-XASS 40 DD-----Construction/Mining-- |
DEUTZ AG-DEUTZ-- |
|
ATLAS COPCO-GA 132 TP-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XASS 36-----Construction/Mining-- |
YANMAR-3TNE68-- |
|
ATLAS COPCO-GA 75-----Construction/Mining-1994 |
----- |
|
ATLAS COPCO-GA22C---255000-Construction/Mining-- |
----- |
|
ATLAS COPCO-XASS 80-----Construction/Mining-- |
DEUTZ AG-F6L912-- |
|
ATLAS COPCO-XR 350-----Construction/Mining-- |
----- |
|
ATLAS COPCO-ROC F6-----Construction/Mining-- |
MERCEDES-BENZ-MERCEDES-- |
|
ATLAS COPCO-XA 97-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 125-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 15-----Construction/Mining-1993 |
----- |
|
ATLAS COPCO-GX 7-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 708-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 45---360 000-Construction/Mining-1998 |
----- |
|
ATLAS COPCO-GA 55-----Construction/Mining-1996 |
----- |
|
ATLAS COPCO-XAS 66-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-GA 22-----Construction/Mining-1992 |
----- |
|
ATLAS COPCO-GA 507-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 26-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 125 D-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 96 DD-----Construction/Mining-- |
DEUTZ AG-F4M-- |
|
ATLAS COPCO-XAS 430 D-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 80DD-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
|
ATLAS COPCO-XRS 210D-----Construction/Mining-- |
DEUTZ AG-F6L413F-- |
|
ATLAS COPCO-XAS 35 DD-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-GA18 (FF)-----Construction/Mining-2000 |
----- |
|
ATLAS COPCO-GA 55-----Construction/Mining-2000 |
----- |
|
ATLAS COPCO-GA 75-----Construction/Mining-1995 |
----- |
|
ATLAS COPCO-GA 807-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 45-----Construction/Mining-- |
DEUTZ AG-F2L1011-- |
|
ATLAS COPCO-XA 75-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
|
ATLAS COPCO-XAS 47-----Construction/Mining-- |
DEUTZ AG-F2M2011-- |
|
ATLAS COPCO-XAS 55-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XRS 210-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 75-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XAS 85-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
|
ATLAS COPCO-XA 30-----Construction/Mining-- |
ATLAS COPCO-F1L511D-- |
|
ATLAS COPCO-XA 50-----Construction/Mining-- |
DEUTZ AG-F2L511D-- |
|
ATLAS COPCO-XA 55-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 1107-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 1308-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 15-----Construction/Mining-1995 |
----- |
|
ATLAS COPCO-GA 607-----Construction/Mining-- |
----- |
|
ATLAS COPCO-STS71DD-----Construction/Mining-- |
DEUTZ AG-F6L912-- |
|
ATLAS COPCO-GA 55-----Construction/Mining-1994 |
----- |
|
ATLAS COPCO-GA 111-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XASS 50-----Construction/Mining-- |
DEUTZ AG-F2L511D-- |
|
ATLAS COPCO-XAS 3747-----Construction/Mining-2007 |
KUBOTA-D1105-E-- |
|
ATLAS COPCO-XA 350DD-----Construction/Mining-1980 |
DEUTZ AG-F8L413F-- |
|
ATLAS COPCO-XA 40 DD-----Construction/Mining-- |
DEUTZ AG-DEUTZ-- |
|
ATLAS COPCO-HRHS 350 D-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 210D-----Construction/Mining-1980 |
DEUTZ AG-BF6L913-- |
|
ATLAS COPCO-XAS 55 DD-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XRS 350D-----Construction/Mining-- |
DEUTZ AG-F10/12L413F-- |
|
ATLAS COPCO-XAS 75 DD-----Construction/Mining-- |
DEUTZ AG-F3L1011-- |
|
ATLAS COPCO-XATS156S3B-----Construction/Mining-2015 |
DEUTZ AG-TCD3.6 L4-- |
|
ATLAS COPCO-XAS 75 D-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 36-----Construction/Mining-- |
YANMAR-3TNE68-- |
|
ATLAS COPCO-XASS 60-----Construction/Mining-- |
DEUTZ AG-F2L912-- |
|
ATLAS COPCO-XAS 50-----Construction/Mining-- |
DEUTZ AG-F2L511D-- |
|
ATLAS COPCO-GA22 FF-----Construction/Mining-2000 |
----- |
|
ATLAS COPCO-XAS 96-----Construction/Mining-- |
DEUTZ AG-DEUTZ-- |
|
ATLAS COPCO-GA 230-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 160-----Construction/Mining-- |
DEUTZ AG-F6L912-- |
|
ATLAS COPCO-GA 707-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 55-----Construction/Mining-1995 |
----- |
|
ATLAS COPCO-GA 100-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 110-----Construction/Mining-1999 |
----- |
|
ATLAS COPCO-GA 122-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XA 50 D-----Construction/Mining-- |
----- |
|
ATLAS COPCO-GA 237-----Construction/Mining-- |
----- |
|
ATLAS COPCO-XAS 120-----Construction/Mining-- |
DEUTZ AG-F4L912-- |
|
ATLAS COPCO-GA 11-----Construction/Mining-1995 |
----- |
|
ATLAS COPCO-GA 11-----Construction/Mining-2000 |
----- |
|
ATLAS COPCO-XA 230-----Construction/Mining-- |
DEUTZ AG-BF6L913-- |
|
ATLAS COPCO-GA 37-----Construction/Mining-1993 |
----- |
|
ATLAS COPCO-GA 45-----Construction/Mining-1993 |
----- |
|
ATLAS COPCO-XAS 85DD/ RR-----Construction/Mining-- |
DEUTZ AG-F3L912-- |
