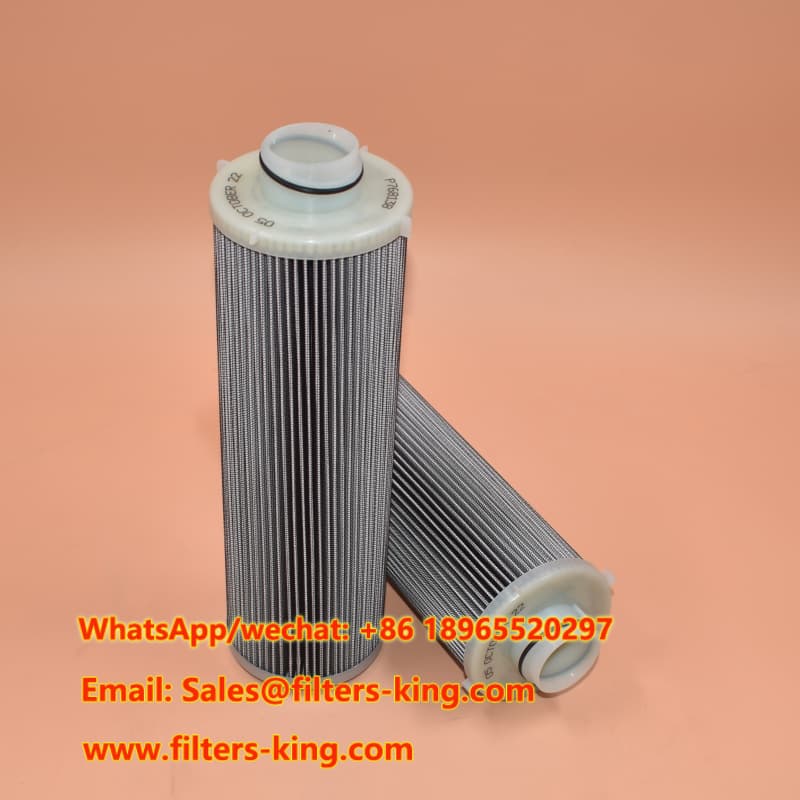

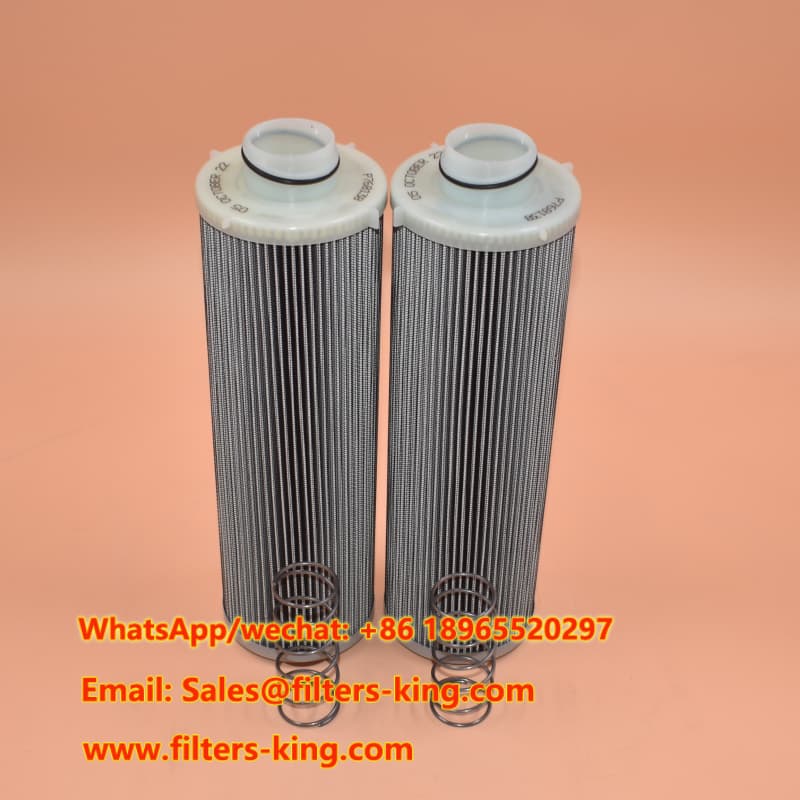

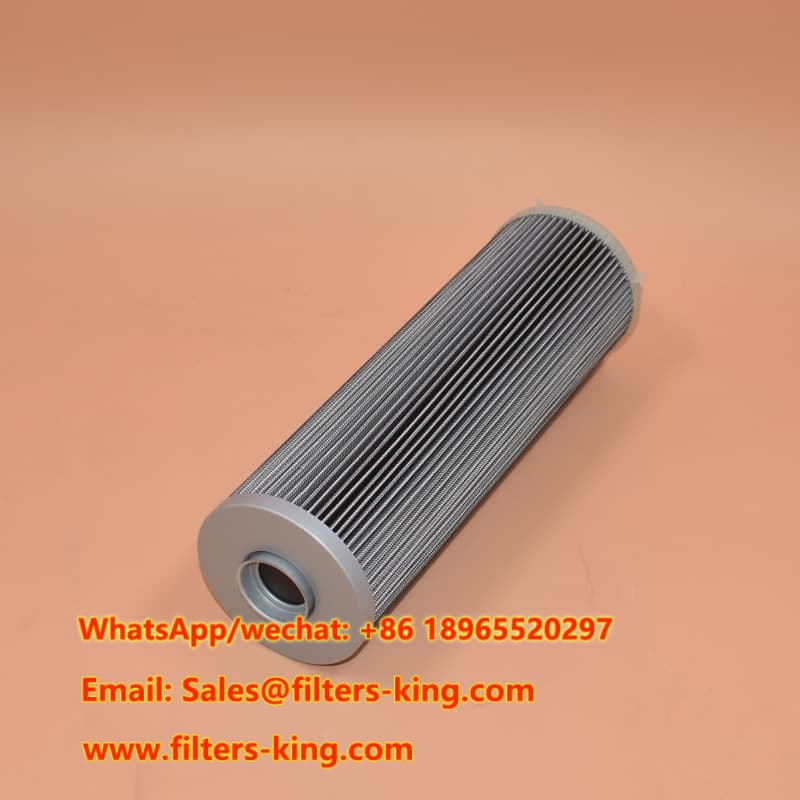

The P768138 Hydraulic Filter Change is an aftermarket replacement hydraulic filter element designed for agricultural equipment applications. It is identified as a Donaldson replacement and is commonly cross-referenced with AGCO 4381314M1, HIFI SH66345, and SF HY90990. Public product data also confirms P768138 as a cartridge-style hydraulic filter used on selected Massey Ferguson and Valtra tractor models.
With a 95 mm outer diameter and 329 mm overall length, this filter is suitable for buyers who need a reliable replacement element for hydraulic oil filtration. The dimensional information also makes it useful when performing a Donaldson Hydraulic Filter By Size search before purchasing replacement stock.
This hydraulic filter element is designed for hydraulic oil filtration in demanding agricultural machinery. Its cylindrical cartridge construction provides a practical replacement solution for distributors, repair shops, and filter retailers that need consistent aftermarket supply. The 36.5 mm inner diameter, 95 mm outer diameter, and 329 mm overall length provide key dimensional references for purchasing and installation checks.
For buyers searching for a Donaldson Hydraulic Filter Cross Reference, P768138 can be identified through several commonly listed equivalent numbers. AGCO 4381314M1 is listed as the OEM reference, while SH66345 and HY90990 are also found in aftermarket cross-reference databases. :contentReference[oaicite:2]{index=2}
Our P768138 replacement is supplied for professional B2B applications rather than individual consumer use. With an MOQ of 60 pieces, it is suitable for wholesalers, filter retailers, aftermarket parts distributors, and agricultural equipment service providers that need regular replacement-filter inventory.
| Parameter | Specification |
|---|---|
| Part Number | P768138 |
| Part Type | Hydraulic Filter Element |
| Brand | Donaldson Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 3.74 in (95 mm) |
| Outer Diameter 2 | 4.19 in (106.5 mm) |
| Inner Diameter | 1.44 in (36.5 mm) |
| Inner Diameter 2 | 1.87 in (47.6 mm) |
| Length | 11.75 in (298.5 mm) |
| Overall Length | 12.95 in (329 mm) |
| Minimum Operating Temperature | -4 °F (-20 °C) |
| Brand | Cross Reference Number |
|---|---|
| Donaldson Replacement | P768138 |
| AGCO | 4381314M1 |
| HIFI Filter | SH66345 |
| SF Schupp | HY90990 |
Cross-reference numbers are provided to help professional buyers identify equivalent filter applications. Independent product databases list P768138 together with 4381314M1 and SH66345, while HY90990 is also listed as an equivalent reference in aftermarket catalogs. :contentReference[oaicite:4]{index=4}
The P768138 hydraulic filter is listed for selected Massey Ferguson and Valmet & Valtra agricultural tractors. Verified public application references include Massey Ferguson 8727, 8730, 8732, 8735 and 8737, as well as Valtra S274, S294, S324, S354, S374 and S394. :contentReference[oaicite:5]{index=5}
| Equipment Brand | Compatible Models |
|---|---|
| Massey Ferguson | 8727, 8730, 8732, 8735, 8737 |
| Valmet & Valtra | S274, S294, S324, S354, S374, S394 |
Hydraulic filtration is important for protecting hydraulic components from contaminants carried by hydraulic oil. A suitable replacement element can support cleaner oil circulation and help maintain dependable operation of hydraulic systems. The P768138 format is particularly relevant to agricultural machinery service and aftermarket maintenance programs where replacement elements are regularly required.
For distributors managing several filter references, dimensional identification can simplify purchasing. Instead of searching only by part number, buyers can compare outer diameter, inner diameter, length, and application. This makes the product suitable for Donaldson Hydraulic Filter By Size searches and aftermarket inventory planning.
CHINA EVERLASTING PARTS CO., LIMITED supports professional buyers looking for standard replacement filters as well as customized filtration solutions. Our product range covers air filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air dryers, breather filters, ventilation filters, air oil separators and filter assemblies.
For customers with private-label requirements, packaging requirements, special specifications, or long-term supply programs, we can discuss OEM and ODM hydraulic filter solutions. This gives wholesalers, filter stores and aftermarket distributors more flexibility when developing their own product lines.
★★★★★
“The cross-reference information made it easy for our purchasing team to match the filter with our existing inventory. The packaging and wholesale service were also convenient.”
— Ethan Caldwell
Purchasing Manager, Agricultural Parts Distributor
★★★★★
“We needed an aftermarket hydraulic filter with a clear part-number reference. The P768138 replacement was a good fit for our wholesale product range.”
— Marcus Whitfield
Aftermarket Parts Buyer, Filter Retailer
★★★★★
“The supplier provided useful specifications and cross-reference details before order confirmation. This helped our service team identify the correct replacement element.”
— Nolan Pierce
Service Procurement Specialist, Equipment Service Company
