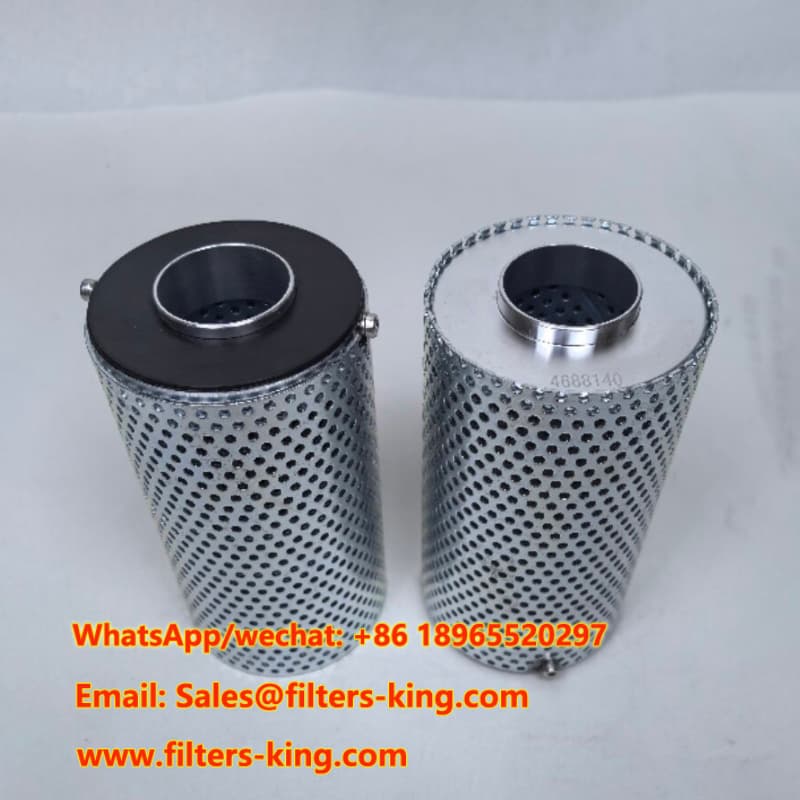

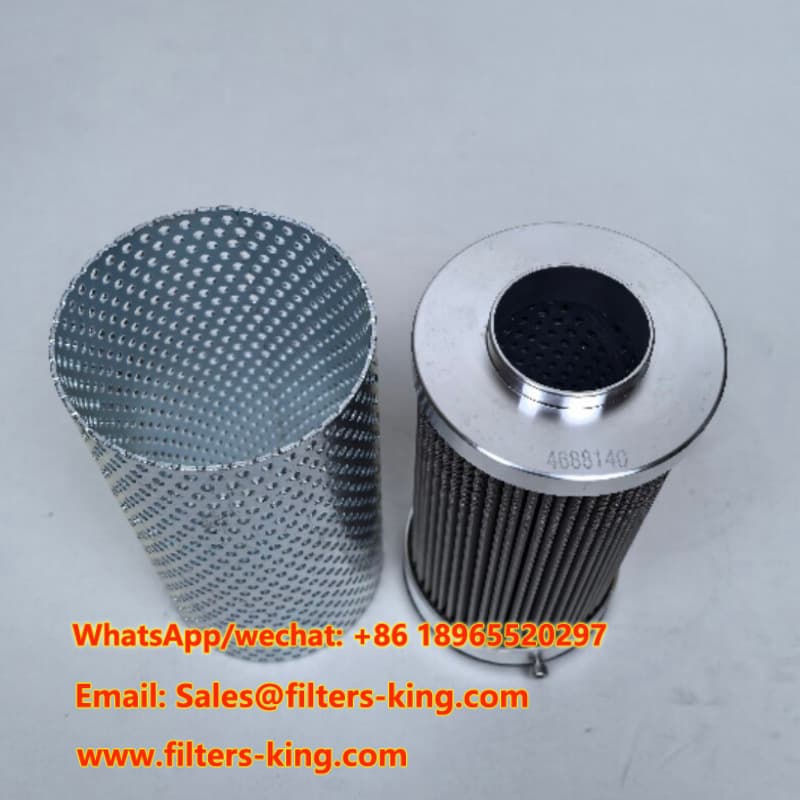

The Hydraulic Filter 4688140 is a replacement hydraulic filter element developed for heavy-duty Hitachi excavators and construction equipment. It is also referenced by Hitachi part number 4253230 and can be cross-checked with aftermarket numbers including Baldwin PT23560, Fleetguard HF29151, and HiFi SH60430. Public cross-reference information confirms these numbers as corresponding hydraulic filter applications.
Designed for demanding equipment maintenance environments, this filter helps remove contaminants from hydraulic oil before they can affect sensitive hydraulic components. It is suitable for professional maintenance programs, aftermarket replacement supply, and bulk purchasing by retailers, wholesalers, filter shops, and after-sales service providers.
Hydraulic systems in large excavators operate under demanding working conditions. Dust, metal particles, and other contaminants can enter hydraulic oil during operation or maintenance. A properly matched filter element helps control these contaminants and supports cleaner hydraulic fluid circulation.
This product is identified by 4688140 and is also associated with Hitachi 4253230. It can be used as a reference when sourcing an aftermarket replacement for selected Hitachi excavator hydraulic filtration applications. Always verify the original part number, filter dimensions, and equipment configuration before ordering.
For distributors and service companies, choosing a Cost Effective Hydraulic Filter Replacement can help control routine maintenance costs while maintaining a consistent supply of replacement elements. With a minimum order quantity of 60 pieces, this model is suitable for wholesale purchasing and inventory planning.
| Item | Specification |
|---|---|
| Part Number | 4688140 |
| Alternative Part Number | 4253230 |
| Part Type | Hydraulic Filter Element |
| Brand Reference | Hitachi Replacement |
| Largest Outside Diameter | 3.31 inch / 84.00 mm |
| Height | 6.40 inch / 162.50 mm |
| Largest End Inside Diameter | 1.50 inch / 38.00 mm |
| Gasket Outside Diameter | 3.23 inch / 82.00 mm |
| MOQ | 60 pcs |
For purchasing and replacement identification, the following part numbers can be used as cross-reference information. Cross-reference numbers should be verified against the original filter and equipment before bulk purchasing.
| Reference | Part Number |
|---|---|
| Hitachi | 4688140 |
| Hitachi | 4253230 |
| Baldwin | PT23560 |
| Fleetguard | HF29151 |
| HiFi Filter | SH60430 |
This Hydraulic Filter for Construction Equipment is specified for selected Hitachi EX-series excavators, including:
Public application references also identify 4253230 as a hydraulic strainer/filter application on EX1800 and EX1800-2 machines. Because equipment configurations can vary by model, serial number, and hydraulic system position, buyers should confirm the original part number and dimensions before placing an order.
When an original part number is unavailable, Hydraulic Filter By Size can be an effective starting point for product identification. The 4688140 replacement element has an outside diameter of approximately 84 mm, a height of 162.5 mm, an inside diameter of 38 mm, and a gasket outside diameter of 82 mm. These measurements can help purchasing teams compare replacement options and reduce the risk of ordering an incorrectly sized filter.
The filter is manufactured according to a defined dimensional specification for selected heavy-duty hydraulic applications, with a compact cylindrical design and controlled sealing dimensions.
Accurate dimensions and multiple cross-reference numbers make product identification easier for distributors and maintenance suppliers. The replacement format also supports aftermarket sourcing for machines where regular hydraulic filtration service is required.
For retailers, wholesalers, and after-sales service companies, a dependable replacement supply can simplify maintenance planning, reduce purchasing delays, and help maintain an appropriate inventory of commonly requested hydraulic filter elements.
Independent published cross-reference data connects 4688140 and 4253230 with PT23560, HF29151, and SH60430. Fleetguard application information also lists Hitachi 4253230 and 4688140 with the EX1800 and EX1900 series, providing useful verification for professional buyers. :contentReference[oaicite:2]{index=2}
CHINA EVERLASTING PARTS CO., LIMITED supports Custom Hydraulic Filter, OEM, and ODM requirements for professional buyers. If you need a replacement filter based on an existing part number, dimensions, filter media, application, or sample, our team can discuss the required specifications and production requirements.
This service is especially useful for filter distributors, retailers, filter shops, and after-sales service providers that need stable aftermarket supply, private-label solutions, or replacement elements for specific construction equipment applications.
