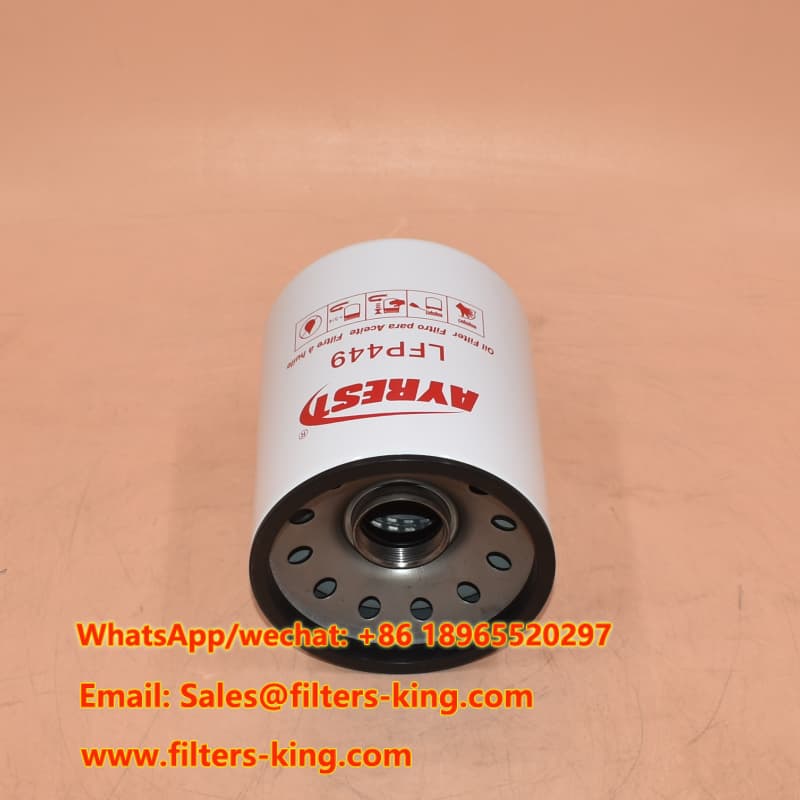

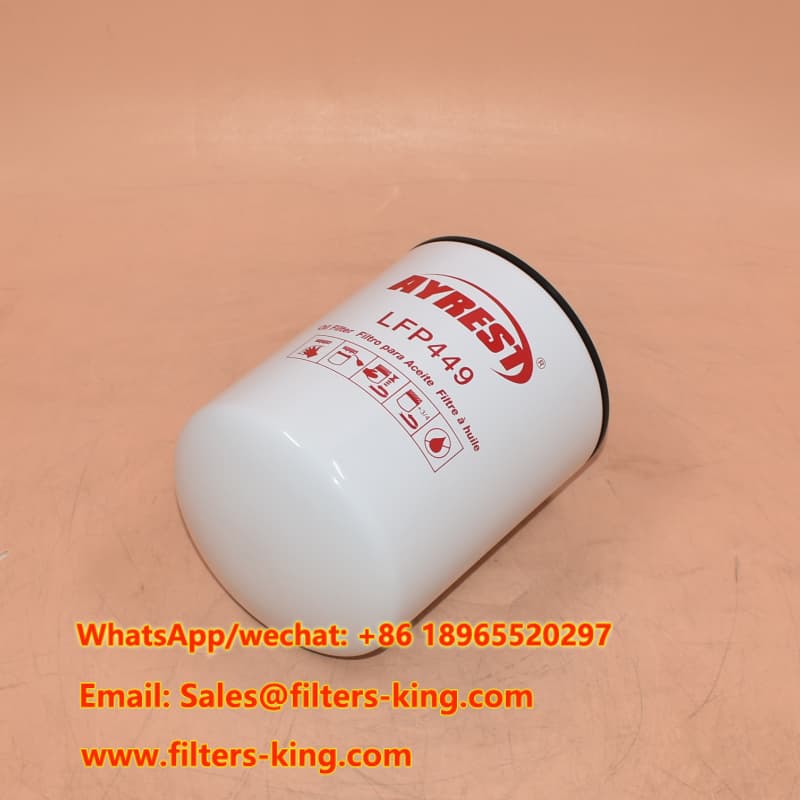

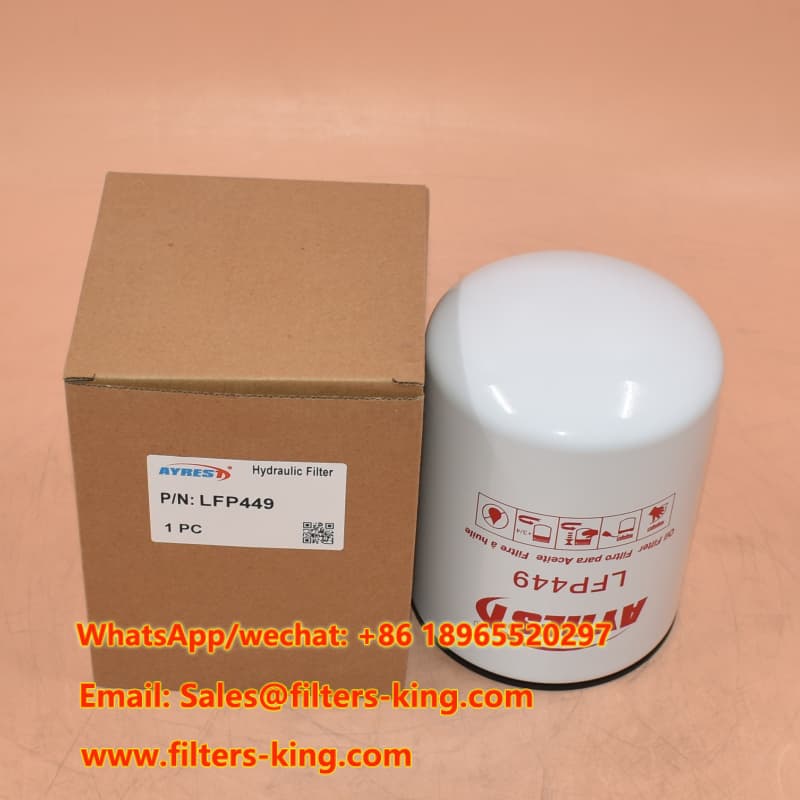

The LFP449 Hydraulic Filter is a high-performance Spin-On Hydraulic Filter designed for heavy-duty hydraulic systems used in agricultural equipment, construction machinery, and industrial applications. Manufactured according to OEM standards, this filter provides excellent dirt holding capacity, stable oil flow, and long service life.
This Aftermarket Hydraulic Filter is compatible with Case WD1203, WD1903, WD2303, WDX1701, WDX1902, and WDX2302 equipment. It is an ideal replacement for original hydraulic filters while offering a more competitive cost for distributors, wholesalers, filter retailers, and aftermarket service companies.
| Parameter | Details |
|---|---|
| Part Number | LFP449 |
| Part Type | Hydraulic Spin-on Filter |
| Brand | Luberfiner Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 5.05 inch (128.2 mm) |
| Length | 7.19 inch (182.7 mm) |
| Thread Size | 1 1/2-16 UN |
| Gasket OD | 5.10 inch (129.6 mm) |
| Gasket ID | 4.80 inch (122 mm) |
| Compatibility | Case WD1203 WD1903 WD2303 WDX1701 WDX1902 WDX2302 |
AG Chem Equipment AG709666 709666 708476
Agco 738355 928766 7972730 020493R1 20493R1
Atlas Copco 9772040013
Baldwin BT8840-MPG
Case IH BU4430011 R25511 R25844 D80538 A165029
Caterpillar 773058 2237809 773022 342499 342449 6E5534 8J1660 9T5664 8J1600 4T6788
Clark Equipment 6552449 65111280
Donaldson P550388
Dynapac 499349 4700223478 223478
Fleetguard HF6710
Ford SFD18498 D5NNF914A 262546
Gardner Denver 2115371 2116110 2115939
Gehl 63459
General Motors 25011184 25011183
Hengst HY217W
Hifi SH 56760
Hyster S00812813 3000349
Hydac MFE160102 MF1602 160MA010P
Ingersoll-Rand 57587196 38480455 54587196 59587916 59309203 10353985
JLG Industries 2120164
John Deere F122930 MG636843 GG17032375 GG17032373 AT58368 AT44696 AR44696
Kobelco K5003
Mann W13012
Massey Ferguson 1075951M1
New Holland 262546 591567 V15801
Vermeer 82494003 27080011
Volvo 46652608 85114078
Wix 51759
The LFP449 Hydraulic Filter is widely used in hydraulic systems for:
CHINA EVERLASTING PARTS CO., LIMITED specializes in producing high quality aftermarket filters with stable performance and competitive pricing. Our professional production system ensures every hydraulic filter meets strict quality control standards before delivery.
We support OEM and ODM customization services for distributors, wholesalers, and filter brands worldwide. Bulk orders receive professional packaging solutions and stable lead times.
"The filtration quality is excellent and fits our Case equipment perfectly. Very stable supplier for hydraulic filters."
— Michael R., USA
"Good replacement for original Luberfiner hydraulic filters. Fast delivery and reliable packaging."
— David K., Canada
"We purchased bulk quantities for our aftermarket filter business. Excellent quality and competitive pricing."
— Ahmed S., UAE
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filter Assemblies.
We provide reliable OEM and ODM services for global customers and focus on delivering high-performance filtration products for industrial and heavy equipment applications.
