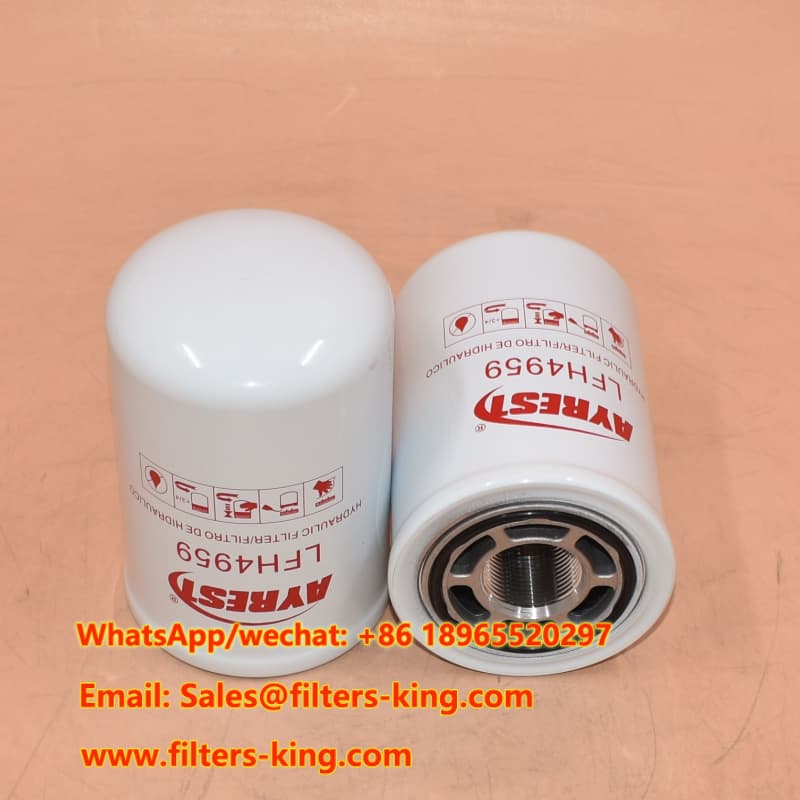

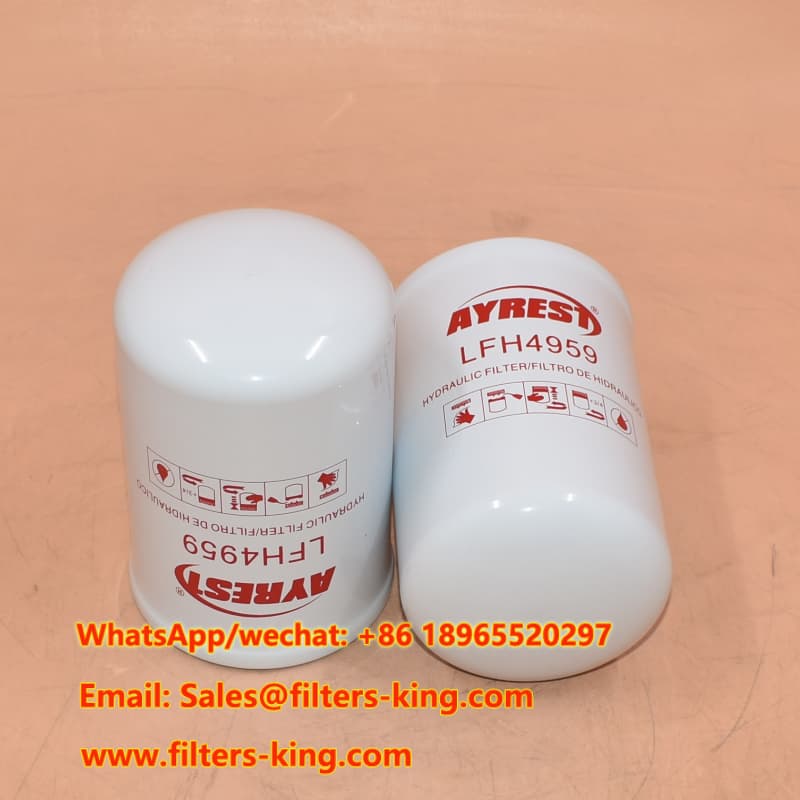

The LFH4959 Hydraulic Filter 6661248 is a high-performance hydraulic spin-on filter designed for mini excavators, skid steer loaders, and compact construction equipment. This Luberfiner Hydraulic Filter replacement provides stable filtration efficiency, excellent dirt-holding capacity, and long service life for demanding hydraulic systems.
Manufactured by CHINA EVERLASTING PARTS CO., LIMITED, this OEM standard hydraulic filter is widely used as a Bobcat Hydraulic Filter Cross Reference solution for professional aftermarket distributors, wholesalers, retailers, and equipment service providers.
| Parameter | Details |
|---|---|
| Part Number | LFH4959 |
| Part Type | Hydraulic Spin-on Filter |
| Brand | Luberfiner Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 5.97 inch (151.64 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.48 inch (63 mm) |
Compatible with Bobcat 220, 225, 325, 325D, 328, 328D, 328G, 329, 331, 331D, 331E, 763H, 773G, 873G, A220, A300, E17, S100, S130, S160, S205, T190, T200, T2250, T320, V417 and more.
Baldwin BT8840-MPG
Bobcat 6661248
Caterpillar 3I0566 902900 9O2900 1446691
Clark Equipment 6630977 6661248 2786616
Donaldson P164375
Dynapac 4700373675
Eppensteiner 50SL80DK10 50SL80DH10SLS000P
Fairey Arlon CG46CC16
Fleetguard HF6552 HF6550
Hifi SH66375
Hyster T3006174
John Deere RE69054 LVA10419 AN203010 AM879740
Mann WH945/2
New Holland 48131202 87707948 51668345 87682682 920019190 87707947 87588814
Thermo King 664917
Vermeer 81902001
Wix 51455
Our Universal Hydraulic Filter is manufactured under strict quality control standards to ensure reliable filtration performance for hydraulic systems. The filter media effectively removes contaminants, protects hydraulic pumps and valves, and helps extend equipment service life.
This Mini Excavator Hydraulic Filter is an ideal replacement choice for construction equipment maintenance companies, machinery dealers, filter distributors, and aftermarket wholesalers looking for cost-effective and durable filtration solutions.
We also provide OEM and ODM services for global B2B customers. Customized packaging, private labels, and bulk purchasing solutions are available according to your business needs.
