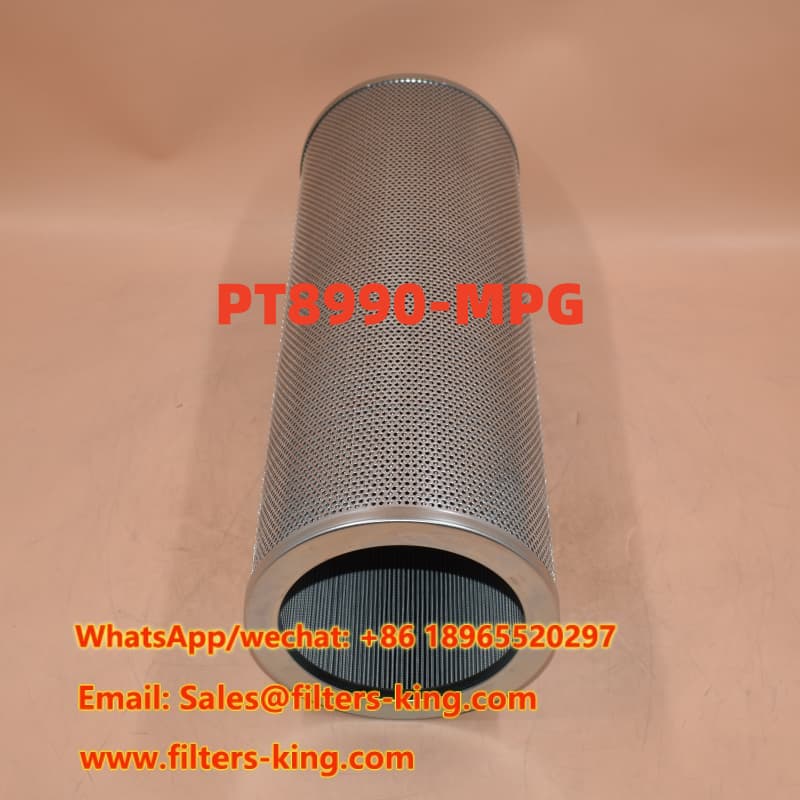

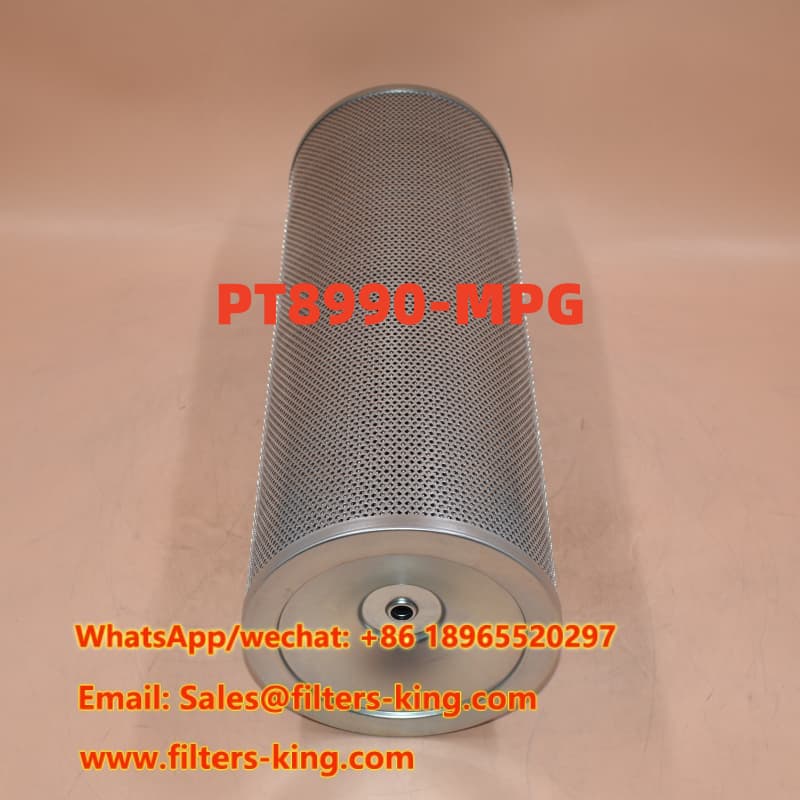

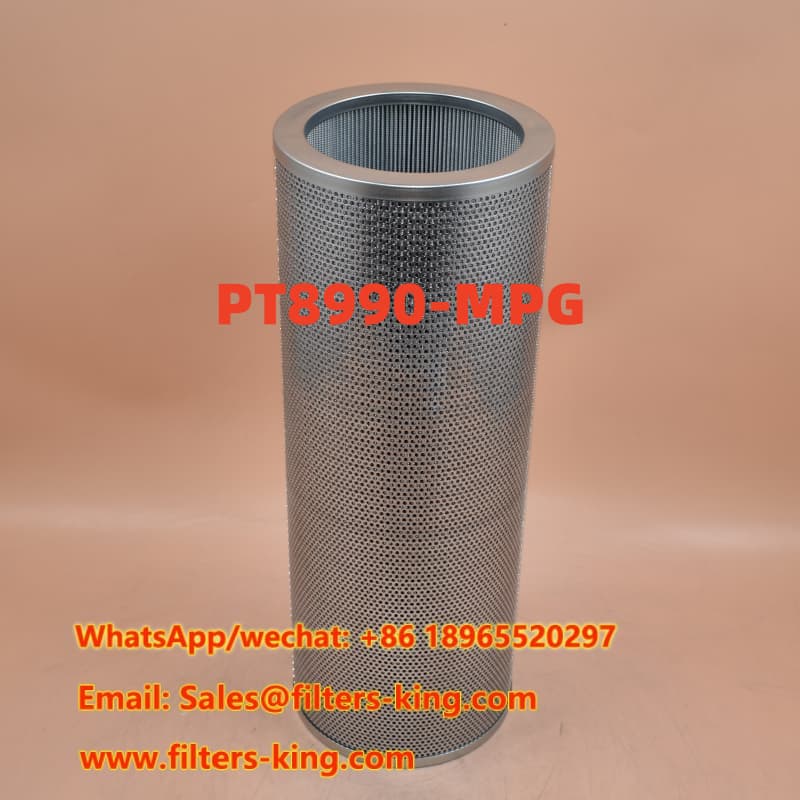

The Universal Hydraulic Filter PT8990-MPG is an aftermarket hydraulic filter element designed for professional equipment maintenance, hydraulic system service, and replacement filter supply. It is a practical choice for retailers, wholesalers, filter stores, and after-sales service providers looking for a reliable replacement option with multiple cross-reference numbers. This model is listed as a Baldwin replacement and can be cross-referenced with HIFI SH53016, Fleetguard HF7966, and other commonly used hydraulic filter numbers. Public filter catalogs also identify PT8990-MPG, HF7966, and SH53016 as related replacement references.
The PT8990-MPG replacement element is developed for hydraulic filtration applications where clean hydraulic fluid is important for stable equipment operation. Its filtration structure helps remove unwanted particles from hydraulic oil and supports the protection of pumps, valves, cylinders, and other hydraulic components.
Buyers can use this model when searching by original or replacement reference numbers. The supplied cross-reference list includes Baldwin PT8990-MPG, HIFI SH53016, Fleetguard HF7966, MP Filtri MR8502A10A, SF Schupp HY 2850, and other numbers. HIFI's catalog confirms SH53016 as a hydraulic filter and shows compatibility with Atlas, Benati, Kalmar, Krupp and other equipment families.
With a minimum order quantity of 60 pieces, this product is suited to distributors and commercial buyers rather than individual users. It can be supplied as an aftermarket hydraulic filter for regular service inventory, maintenance orders, equipment repair projects, and filter replacement programs.
CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM cooperation. If you need a custom hydraulic filter based on size, filtration requirements, application, packaging, or private-label needs, our sales team can discuss the available customization options and production requirements.
| Specification | Details |
|---|---|
| Part Number | PT8990-MPG |
| Part Type | Hydraulic Filter |
| Brand Type | Baldwin Replacement |
| Length | 21.46 inch / 545.00 mm |
| Largest OD | 7.99 inch / 203.00 mm |
| Overall Height | 21.46 inch / 545.00 mm |
| Largest End ID | 6.18 inch / 157.00 mm |
| Gasket OD | 0.72 inch / 18.24 mm |
| MOQ | 60 pcs |
The following cross-reference numbers are provided for professional lookup and purchasing purposes. Public catalog data also identifies PT8990-MPG with several of the same replacement references, including Fleetguard HF7966, Fairey Arlon TXW12CC10, MP Filtri MR8502A10A, Kalmar K1001060H and SF Schupp HY2850.
| Brand | Cross Reference Part Number |
|---|---|
| Atlas | 3613596 4653972 |
| Atlas Weyhausen | 4653972 |
| Benati | 1816138 |
| Fairey Arlon | TXW12CC10 TXW12GDL10 |
| Fiat Hitachi | 151816138 |
| Fleetguard | HF7966 |
| HIFI Filter | SH53016 |
| Krupp | 551981 |
| Kalmar | K1001060H |
| MP Filtri | MR8502A10A |
| SF Schupp | HY 2850 |
For professional filter sourcing, checking the hydraulic filter by size can help narrow down suitable replacement options when the original part number is unavailable. The PT8990-MPG family is a large hydraulic element with an overall length of approximately 545 mm and a largest outside diameter of approximately 203 mm. These dimensions align closely with published specifications for PT8990-MPG and SH53016.
Hydraulic filtration is important in material-handling equipment because hydraulic oil carries contaminants through pumps, valves, cylinders, and other components. The PT8990-MPG cross-reference family includes Kalmar K1001060H, which is associated with professional material-handling equipment applications. The filter can therefore be considered when sourcing a replacement for applicable forklift or industrial hydraulic systems, subject to confirming the original part number and installation specifications.
