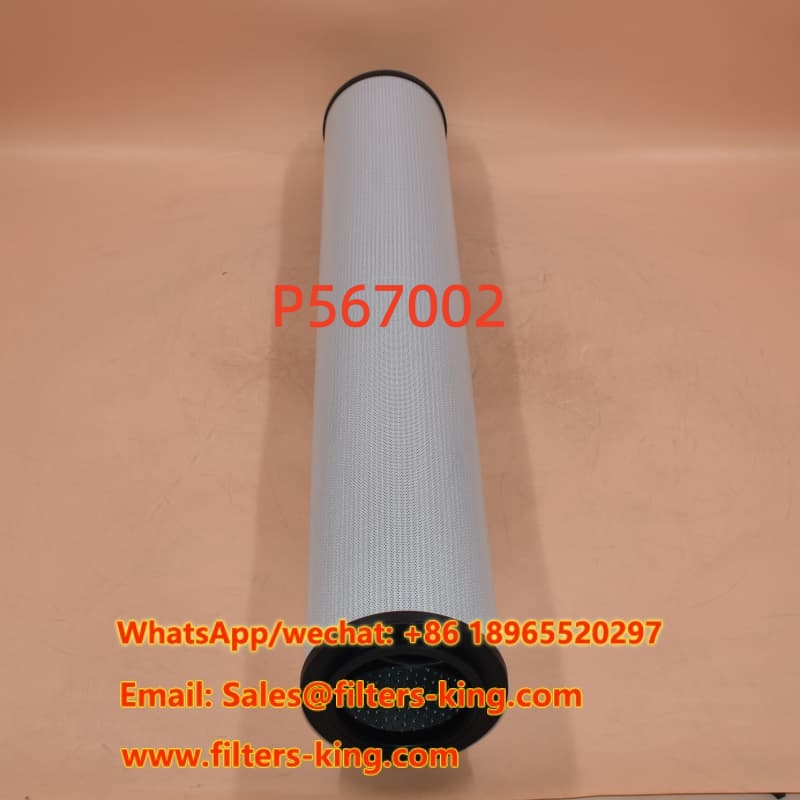

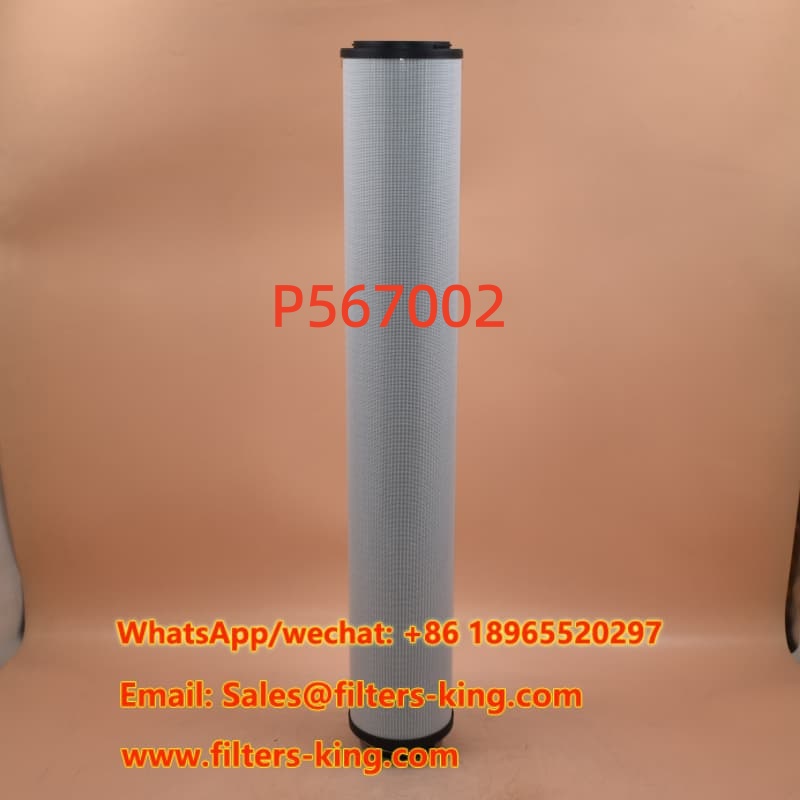

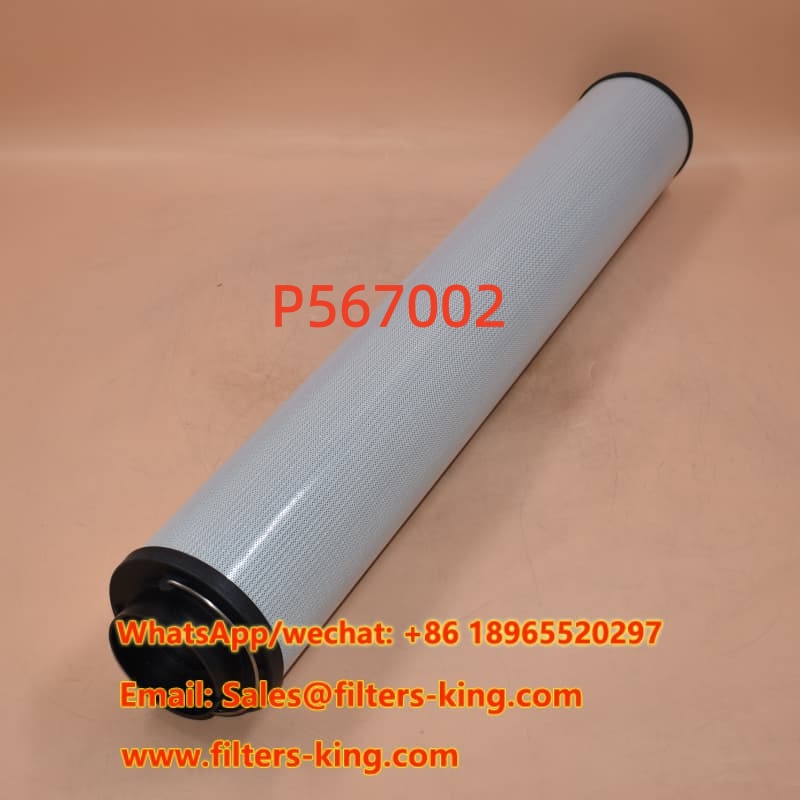

The P567002 Hydraulic Filter is a high-quality replacement cartridge designed for hydraulic filtration applications where stable contamination control, accurate dimensions, and reliable filtration performance are important. This filter is offered by CHINA EVERLASTING PARTS CO., LIMITED as an OEM and ODM solution for professional distributors, filter retailers, hydraulic service companies, wholesalers, and industrial parts suppliers.
The P567002 reference is associated with a Donaldson DT hydraulic filter cartridge. Public product information identifies the P567002 as a synthetic-media hydraulic filter with an 8 micron rating at Beta 1000. Its published dimensions are approximately 5.72 inches outside diameter, 3.78 inches inside diameter, and 36.18 inches overall length, making dimensional matching an important part of replacement selection.
The P567002 replacement filter uses synthetic filter media and is designed for hydraulic oil filtration. Proper hydraulic filtration helps control particles and other contaminants that can affect pumps, valves, cylinders, actuators, and other hydraulic components. A correctly matched filter can help maintain cleaner hydraulic fluid and support consistent system operation.
For professional buyers, filter dimensions are often just as important as the part number. This P567002 replacement is manufactured according to the specified outside diameter, inside diameter, length, and gasket dimensions. Buyers searching for a Hydraulic Filter By Size can use these measurements to compare the filter with their existing cartridge before placing a bulk order.
CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM projects for customers who need private-label packaging, customized filter specifications, product identification, or long-term supply programs. With a standard MOQ of 60 pieces for this product, the P567002 replacement is suitable for wholesalers, filter shops, distributors, and after-sales service providers.
| Parameter | Specification |
|---|---|
| Part Number | P567002 |
| Part Type | Hydraulic Filter |
| Application Type | Hydraulic System Filtration |
| Replacement Reference | Donaldson P567002 |
| Filter Media | Synthetic Media |
| Filtration Rating | 8 µm at Beta 1000 |
| Outer Diameter | 5.72 inch (145.2 mm) |
| Inner Diameter | 3.78 inch (96 mm) |
| Length | 36.18 inch (919 mm) |
| Gasket ID | 3.73 inch (94.8 mm) |
| MOQ | 60 pcs |
| Service | OEM / ODM / Bulk Supply |
The following part numbers are supplied as cross-reference information for professional filter buyers. Cross-reference numbers are provided for identification and replacement research. Always compare dimensions, filtration requirements, sealing configuration, and application requirements before installation.
| Brand | Cross Reference Part Number |
|---|---|
| Argo | V3149353 |
| Baldwin | PT23104-MPG |
| Donaldson | P567002 |
| Fleetguard | ST1276 |
| Hifi | SH 74132 |
| Hydac | 1263064, 2600R005BN3HC, 2600R005BN4HC, 2600R005BNHC |
| Pall | HC2295FCN36H, HC2295FKN36H, HC2296FCN36H50, HC2296FKN36H50 |
| Parker | 934571 |
| SF Schupp | HY13412 |
| Wix | R44D05GV |
A hydraulic system depends on clean fluid to support reliable operation. Contamination can contribute to wear and performance problems in sensitive hydraulic components. Choosing a properly matched replacement cartridge helps buyers maintain filtration performance while reducing the risk of incorrect fitment.
For distributors and service companies, this product also provides a practical Alternative to Hydraulic Filter sourcing strategy. Instead of relying on a single supply channel, professional buyers can use dimensional specifications and cross-reference information to identify suitable replacement options for their customers.
The product is also suitable for businesses searching for a Custom Hydraulic Filter. OEM and ODM support allows customers to discuss packaging, labeling, specifications, and supply requirements for their own markets.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our product range includes Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators, and Filter Assemblies.
We focus on supplying replacement filtration products for international B2B customers. OEM and ODM cooperation is welcome, especially for distributors and companies that need stable product quality, private-label solutions, customized specifications, or long-term supply.
"The dimensional information made it easy for our purchasing team to compare the replacement cartridge with our existing hydraulic filter."
— Ethan Caldwell, Hydraulic Parts Distributor
Example testimonial for website template use.
"The cross-reference information is useful for our service business. We can quickly check several part numbers before requesting a bulk quotation."
— Marissa Bennett, Industrial Aftermarket Buyer
Example testimonial for website template use.
"OEM and ODM support gives us more flexibility when we need customized packaging and a stable replacement filter supply."
— Trevor Whitmore, Filter Retail Chain Manager
Example testimonial for website template use.
Yes. P567002 is identified as a DT hydraulic filter cartridge. Public product information lists synthetic filter media and an 8 µm filtration rating at Beta 1000.
Yes. The standard MOQ for this product is 60 pieces. Wholesale buyers, distributors, filter stores, and after-sales service companies are welcome to request a quotation.
Yes. We welcome OEM and ODM projects and can discuss customized packaging, labeling, specifications, and supply requirements according to the customer's project.
Please provide your current filter part number, equipment information, and dimensions. Our team can help compare the outside diameter, inside diameter, length, gasket dimensions, and other available specifications before an order is confirmed.
