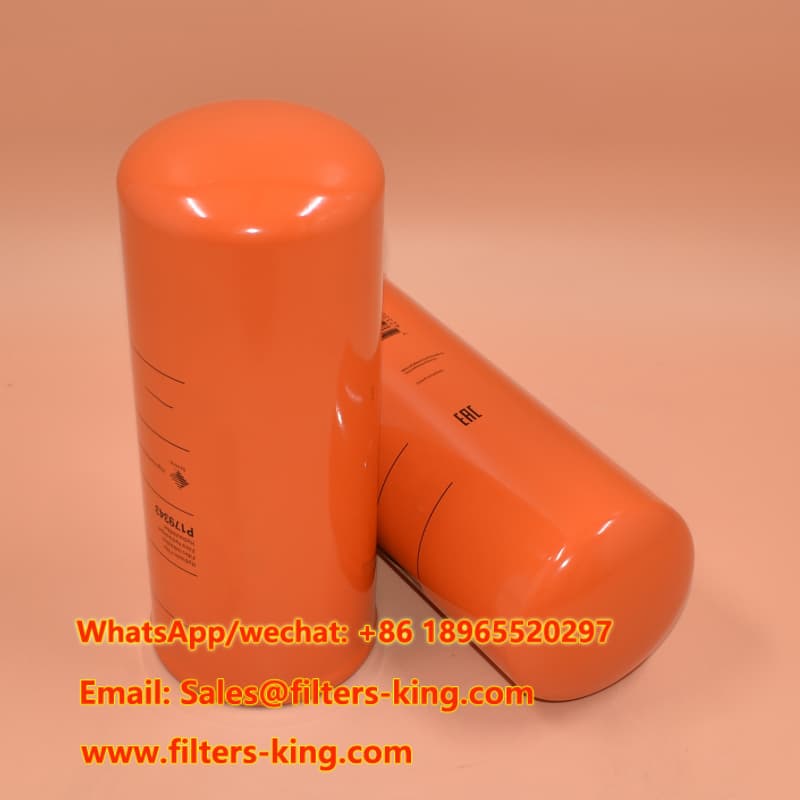

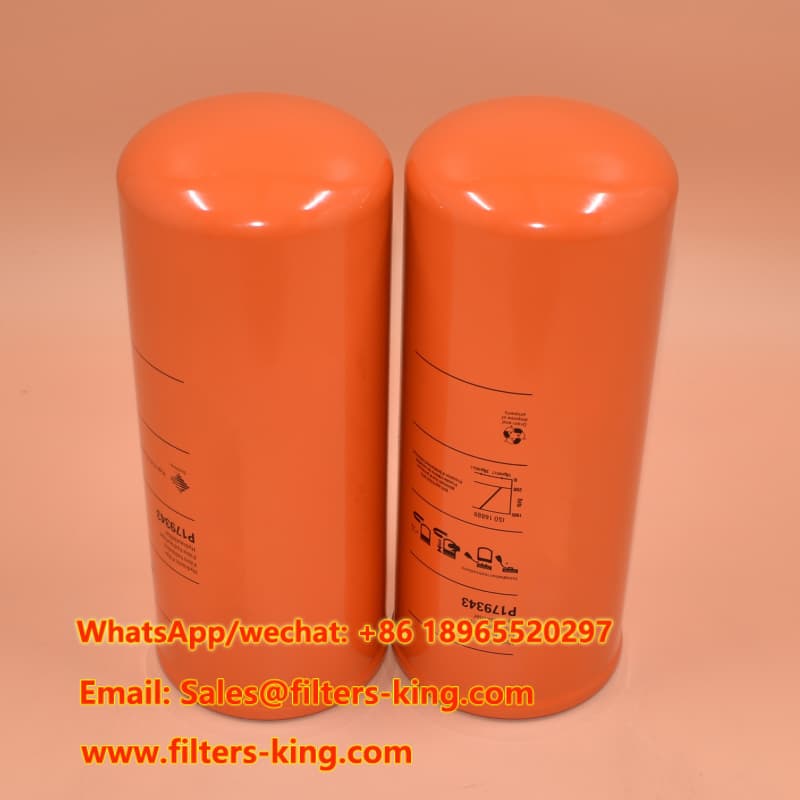

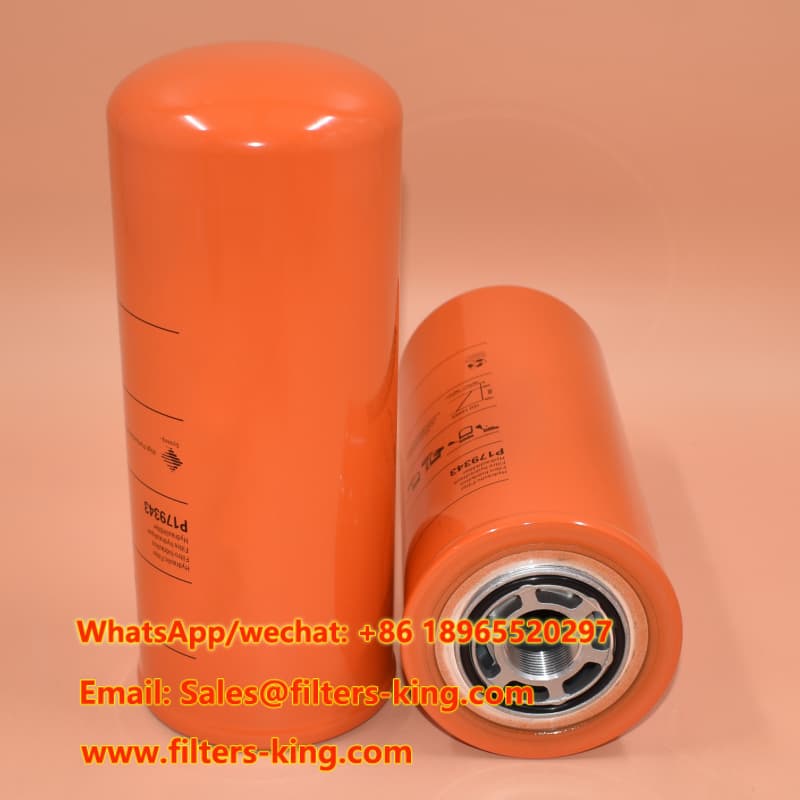

The P179343 hydraulic filter is an aftermarket replacement option for buyers sourcing spin-on hydraulic filtration products for industrial machinery, agricultural equipment, construction machinery, and heavy-duty applications. It is designed for buyers who need a practical replacement solution with clear specifications and cross-reference information.
CHINA EVERLASTING PARTS CO., LIMITED supplies replacement filters for wholesalers, retailers, aftermarket service providers, and filter distributors. We support bulk orders, OEM/ODM cooperation, and customized purchasing requirements to help B2B customers manage inventory and sourcing costs.
Use the following specifications when checking compatibility, preparing a purchase order, or comparing replacement filters. Confirm the complete application requirements before ordering.
| Parameter | Specification |
|---|---|
| Part Number | P179343 |
| Filter Type | Hydraulic Filter, Spin-On |
| Replacement Reference | Donaldson P179343 |
| Outer Diameter | 4.76 in (121 mm) |
| Thread Size | 1 3/8-12 UN |
| Length | 11.63 in (295.4 mm) |
| Gasket Outer Diameter | 2.76 in (70.15 mm) |
| Gasket Inner Diameter | 2.48 in (63 mm) |
| MOQ | 60 pcs |
The P179343 replacement filter gives distributors and maintenance suppliers another sourcing option for compatible hydraulic filtration applications. A clearly identified part number helps purchasing teams compare products, organize inventory, and reduce confusion when handling repeat orders. Buyers should verify fitment and performance requirements for the intended equipment before placing an order.
The spin-on design supports routine filter replacement when the filter and mounting assembly are compatible. For service providers, a suitable replacement can simplify maintenance planning and help reduce unnecessary delays caused by incorrect parts. Always follow the equipment manufacturer's service instructions and use the correct installation procedure.
Cross-reference information helps wholesalers and filter shops identify potential alternatives across several established part-number systems. Matching the correct reference before ordering can make stock planning more efficient and help purchasing teams respond to customer requests with greater confidence.
With an MOQ of 60 pieces, this product is intended for business purchasing rather than individual retail orders. Our team can discuss order quantities, packaging preferences, and OEM/ODM requirements. For custom hydraulic filter projects, provide drawings, samples, target specifications, or an existing part number for evaluation.
Use the following list to check potential cross-reference numbers for P179343. Cross-reference records can vary between catalogs and equipment applications. A matching number is a starting point for verification, not a guarantee that every listed part is interchangeable in every hydraulic system.
| Brand | Cross Reference Part Numbers |
|---|---|
| AGCO | 534045D1 |
| Baldwin | BT8432-MPG |
| Case IH | 86989733 84226263 86991559 47131181 84226272 47131178 48142232 431588A1 85825356 47131182 D149921 254353A1 87404986 |
| Caterpillar | 6E6407 6E6408 |
| Fleetguard | HF35305 |
| Hengst | HY363W |
| HiFi Filter | SH 66143 |
| John Deere | AT129775 |
| Mann | WH1263 |
| New Holland | 85825356 86991559 86989733 86018758 84226272 84226263 48142232 47131178 48139857 435141A1 51575620 |
| Sakura | HC-55480 |
| SF Schupp | SPH12538 |
| Steyr | 47131181 |
| Volvo | 11809003 11809003P1 VOE11809003 |
| Wix | 51863 |
Cross-reference tip: If your required number is not listed, contact our sales team with the original part number, equipment model, and available filter dimensions. We can help review the information before you finalize your order.
When an existing filter number is unavailable or difficult to identify, a dimensional comparison can help narrow down suitable replacement options. Our team welcomes inquiries about a Custom Hydraulic Filter for aftermarket distribution, maintenance programs, and industrial filtration projects.
For a Hydraulic Filter By Size inquiry, prepare the outer diameter, overall length, thread specification, gasket dimensions, and the original part number where possible. Also share the equipment make and model, hydraulic system requirements, and any available filtration-performance specifications. These details help establish whether a proposed replacement is suitable for the application.
Custom requests are subject to technical review, material availability, tooling requirements, and order quantity. We confirm feasibility and quotation details after reviewing the application information. Dimensional similarity alone does not establish equivalent filtration efficiency, pressure capability, or service life.
An Aftermarket Hydraulic Filter is a sourcing option for buyers who need replacement parts for equipment servicing, inventory replenishment, and ongoing maintenance contracts. This product can be evaluated for compatible industrial machinery, agricultural equipment, construction machinery, and other systems that specify P179343 or a verified equivalent.
For an Industrial Hydraulic Filter purchase, buyers should consider more than the part number. Thread compatibility, seal fit, operating pressure, flow conditions, filtration rating, fluid compatibility, and the manufacturer's maintenance recommendations are important selection factors. Check the application documentation before substituting any filter.
Our B2B supply service is designed for retailers, aftermarket service companies, wholesalers, and filter stores that require repeatable product identification and bulk purchasing support. Contact us for current pricing, packaging options, production lead time, and availability. Final delivery arrangements depend on order quantity and confirmed production conditions.
A proper Hydraulic Filter Change schedule helps support hydraulic system cleanliness and equipment reliability. Follow the equipment manufacturer's service interval and inspect the system according to its maintenance instructions. Severe operating conditions, contamination, and unusual pressure changes may require additional inspection by a qualified technician.
Correct filter selection and maintenance can help control fluid contamination and support the protection of hydraulic components. Actual results depend on the system design, operating environment, fluid condition, and the suitability of the selected filter.
We supply multiple filter categories, helping B2B buyers consolidate sourcing for different equipment and maintenance requirements.
We welcome discussions about private-label packaging, product customization, and other OEM/ODM requirements, subject to technical review.
The stated MOQ for P179343 is 60 pieces. Contact us to discuss your target quantity and purchasing schedule.
Share original part numbers and equipment details so our team can help review potential replacement options.
We work with distributors, retailers, filter stores, and service providers seeking ongoing aftermarket filter supply.
Yes. P179343 is identified as a spin-on hydraulic filter. Check the specifications and equipment documentation to confirm suitability for your application.
Start with the original part number, then compare the cross-reference list, thread size, overall dimensions, sealing arrangement, and required filtration performance. Contact us if you need help reviewing a potential replacement.
We welcome OEM/ODM and customization inquiries. Please provide drawings, samples, specifications, or the original filter number so our team can evaluate the request.
The MOQ provided for P179343 is 60 pieces. Please contact our sales team to confirm the quotation and terms for your order.
Follow the equipment manufacturer's recommended service interval and inspection procedure. Where applicable, use system indicators and maintenance records to determine when replacement is needed.
★★★★★
