This hydraulic filter is commonly identified through the Mann Hydraulic Filter Cross Reference W13018 and can also be cross-referenced with several widely used filter part numbers, including Baldwin BT8931, Donaldson P171622, Hifi SH63206, Rexroth R928046516 and other equivalent references. Cross-reference information should always be checked against the original filter dimensions, thread and application before ordering.
One of the main advantages of W13018 is its wide cross-reference coverage. For purchasing teams, a clear part-number relationship can make sourcing easier and reduce the time required to identify replacement filtration products. The W13018 reference is associated with Baldwin BT8931, Donaldson P171622, Hifi SH 63206, Massey Ferguson 4212017M1, MP Filtri CS150/M60, Rexroth R928046516, SF Schupp SPH 18069, Stauff SFC5860E, UFI 8001500, Wix A05A60T and Woodgate WGH9184.

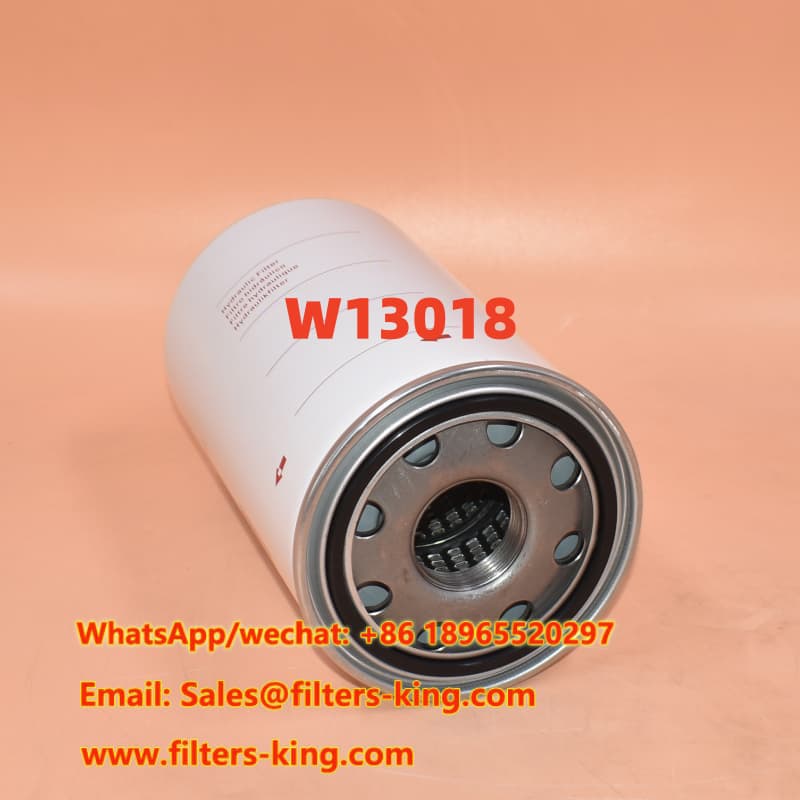

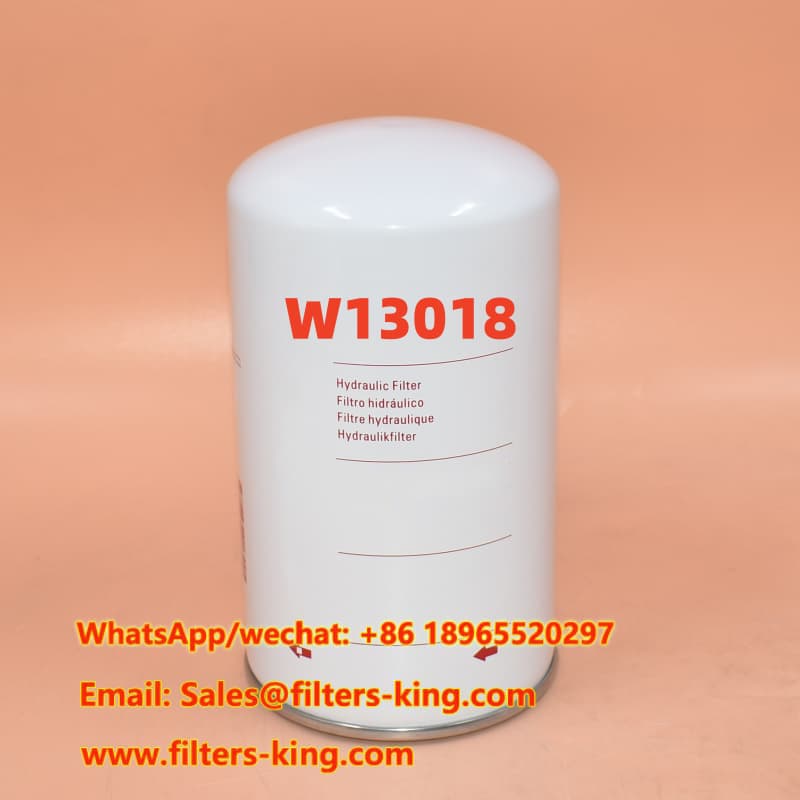

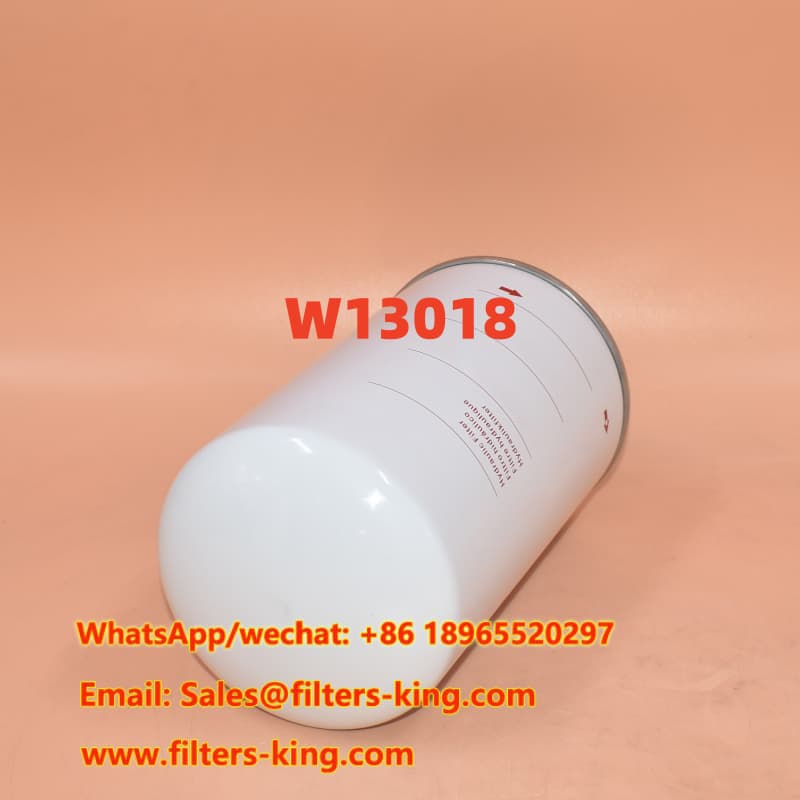

The filter has an outer diameter of 4.96 inches (126 mm), a length of 8.90 inches (226 mm), and a 1 1/4 BSP/G thread. The gasket dimensions are 4.21 inches (107 mm) outside diameter and 3.82 inches (97 mm) inside diameter. These dimensions provide useful reference points when performing a hydraulic filter change or checking replacement compatibility. Independent product data for W13018 also lists a length of approximately 227 mm and an outside diameter of approximately 127 mm.
For businesses that need an Aftermarket Hydraulic Filter, W13018 provides a practical alternative sourcing option. It is suitable for businesses that need to maintain regular inventory while controlling purchasing costs. With an MOQ of 60 pieces, it can support wholesale purchasing, maintenance stock and distributor supply programs.
| Parameter | Specification |
|---|---|
| Part Number | W13018 |
| Part Type | Hydraulic Filter |
| Brand / Reference | Mann Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 4.96 inch (126 mm) |
| Thread Size | 1 1/4 BSP/G |
| Length | 8.90 inch (226 mm) |
| Gasket OD | 4.21 inch (107 mm) |
| Gasket ID | 3.82 inch (97 mm) |
| Brand / Manufacturer | Cross Reference Number |
|---|---|
| Baldwin | BT8931 |
| Donaldson | P171622 |
| Hifi | SH 63206 |
| Massey Ferguson | 4212017M1 |
| MP Filtri | CS150/M60, CS150/M60A |
| Rexroth | R928046516 |
| SF Schupp | SPH 18069 |
| Stauff | SFC5860E |
| UFI | 8001500 |
| Wix | A05A60T |
| Woodgate | WGH9184 |
In addition to standard replacement products, CHINA EVERLASTING PARTS CO., LIMITED supports Custom Hydraulic Filter solutions for distributors and service companies. OEM and ODM cooperation can help customers develop private-label filtration products, customized packaging and application-specific filter solutions according to project requirements.
For wholesale customers, customization can be useful when different markets require different packaging, labels or product identification. Our team can also discuss filter specifications, order quantities and replacement requirements before production.
The W13018 cross-reference family is also used in searches for Low Pressure Hydraulic Filter applications. Before selecting a replacement, buyers should confirm the original filter's operating conditions, connection type, dimensions, filtration requirements and equipment manufacturer's recommendations. A correct filter change should always be based on technical compatibility rather than part-number matching alone.
For maintenance teams, replacing a hydraulic filter at the appropriate service interval helps maintain clean hydraulic fluid and supports reliable operation of pumps, valves, actuators and other hydraulic components. The correct replacement filter can also help reduce contamination-related maintenance problems.
Sample Review – Ethan McAllister, Hydraulic Parts Distributor
“The cross-reference information makes it easier for our purchasing team to identify replacement filters. The W13018 specification is clear and suitable for our aftermarket inventory.”
Sample Review – Sofia Bennett, Equipment Service Company
“We needed a reliable hydraulic filter supplier for regular maintenance orders. The detailed dimensions and 60-piece MOQ make this product convenient for our purchasing process.”
Sample Review – Marcus Ellington, Filter Wholesale Buyer
“The multiple cross-reference numbers are useful when our customers provide different original part numbers. We can quickly compare the information before ordering.”
Yes. W13018 is identified as a hydraulic filter for hydraulic oil filtration applications. Independent supplier data also identifies MANN W13018 as a hydraulic filter for off-highway applications.
The commonly listed Donaldson cross reference is P171622. Other cross references include Baldwin BT8931, Hifi SH63206 and Rexroth R928046516.
The MOQ supplied for this product is 60 pieces. Buyers requiring larger quantities can contact our sales team for project-specific pricing and supply arrangements.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our product range includes Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators and Filter Assemblies. We also welcome OEM and ODM cooperation for customers with customized filtration requirements.
Our business is focused on providing practical filtration solutions for retailers, after-sales service providers, wholesalers and filter stores. By offering cross-reference support, replacement products and customized solutions, we aim to help professional buyers simplify sourcing and maintain a dependable filter supply chain.
