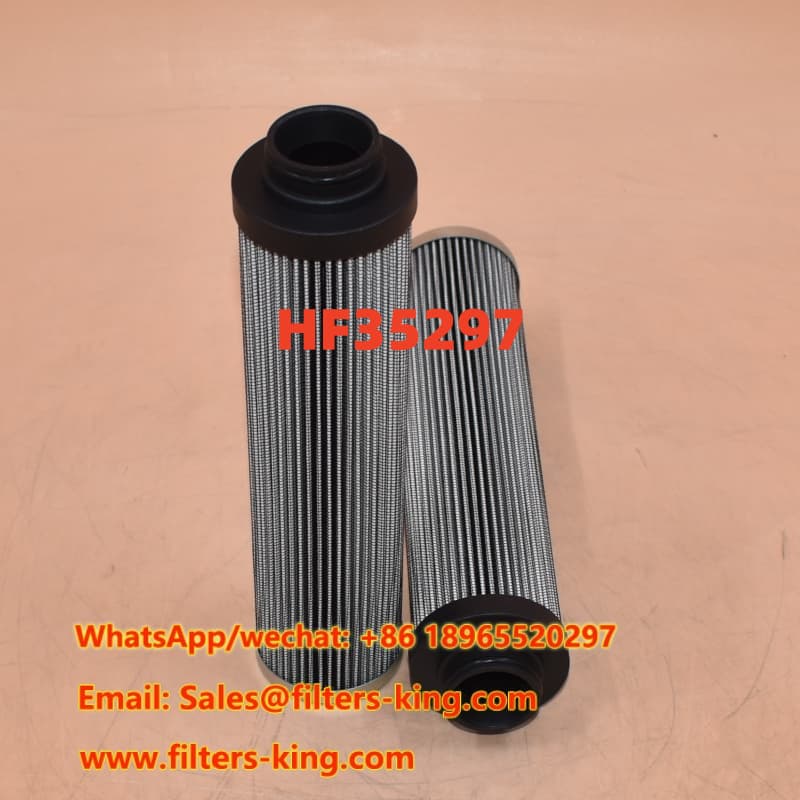

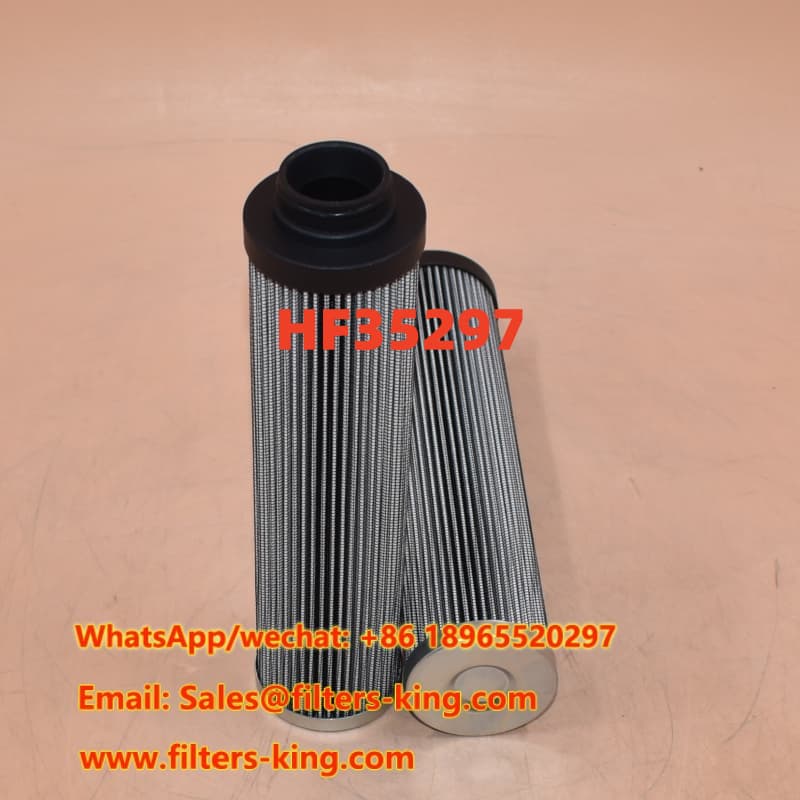

The OEM Hydraulic Filter HF35297 is a replacement hydraulic filter designed for professional filtration applications. This Fleetguard replacement filter is suitable for distributors, wholesalers, filter stores, retailers, and after-sales service companies that need a reliable source of replacement filtration products. With a long cartridge design and carefully controlled dimensions, HF35297 is a practical choice for hydraulic filter replacement and bulk procurement.
For buyers researching a Fleetguard Hydraulic Filter Cross Reference, HF35297 can be cross-referenced with several commonly listed aftermarket and replacement part numbers, including Baldwin PT8458-MPG, Donaldson P170084, Filtrec D721G10A, Hifi SH51315, Parker 925837 / G01315 / GO1315, and Wix D02B10GAV. Cross-reference information should always be checked against the actual equipment and filter dimensions before ordering.
| Parameter | Specification |
|---|---|
| Part Number | HF35297 |
| Part Type | Hydraulic Filter |
| Brand | Fleetguard Replacement |
| Largest End Inside Diameter | 0.98 inch / 25.00 mm |
| Largest Outside Diameter | 2.36 inch / 60.00 mm |
| Gasket Outside Diameter | 1.46 inch / 37.20 mm |
| Height | 9.67 inch / 245.50 mm |
| Gasket Inside Diameter | 1.30 inch / 33.05 mm |
| MOQ | 60 pcs |
The following part numbers are provided as cross-reference information for professional purchasing and replacement research. Public catalog sources associate HF35297 with Baldwin PT8458-MPG and other hydraulic filter references. Some commercial catalogs may list related or alternative Fleetguard numbers, so buyers should verify dimensions, gasket configuration, filtration requirements, and application before final purchase.
| Brand | Cross Reference Part Number |
|---|---|
| Baldwin | PT8458-MPG |
| Donaldson | P170084 |
| Filtrec | D721G10A |
| Fleetguard | HF35297 |
| Hifi | SH51315 |
| Parker | 925837, G01315, GO1315 |
| Wix | D02B10GAV |
For procurement teams comparing a Hydraulic Filter By Size, dimensional matching is an important part of the replacement process. HF35297 has a 60.00 mm largest outside diameter, 25.00 mm largest end inside diameter, 37.20 mm gasket outside diameter, 33.05 mm gasket inside diameter, and 245.50 mm height. These dimensions can help purchasing teams narrow down replacement options when the original part number is unavailable or when multiple brands are being compared.
For a Hydraulic Filter Replacement, buyers should not rely on part number matching alone. Confirm the filter's physical dimensions, sealing configuration, filtration requirements, flow direction, operating conditions, and equipment application before placing a production order. Cross-reference charts are useful for identification, but they should be treated as purchasing guidance rather than a substitute for application verification.
For distributors and filter stores with special requirements, we also support Custom Hydraulic Filter solutions. OEM and ODM cooperation is available for buyers who need customized dimensions, filtration media, sealing materials, packaging, labels, or other product specifications. Our goal is to provide a flexible supply solution for recurring B2B orders rather than a one-time retail purchase.
★★★★★ James Carter – Hydraulic Parts Distributor
“HF35297 replacement filters have been a practical addition to our hydraulic filter range. The dimensional information makes purchasing and customer matching much easier.”
★★★★★ Kevin Mitchell – Industrial Filter Store
“We needed a dependable aftermarket option for regular filter orders. The communication was clear, and the product specifications were easy for our team to verify.”
★★★★★ Andrew Wilson – Equipment After-Sales Service Company
“The cross-reference information helped our purchasing team identify suitable replacement options for hydraulic maintenance projects. The 60-piece MOQ also works well for our inventory planning.”
Is HF35297 a Fleetguard replacement filter?
Yes. This product is supplied as a Fleetguard HF35297 replacement for B2B hydraulic filtration applications.
What is the MOQ for HF35297?
The MOQ is 60 pieces, making this product suitable for wholesalers, distributors, filter stores, retailers, and service companies.
What are the main HF35297 cross-reference numbers?
Commonly listed references include Baldwin PT8458-MPG, Donaldson P170084, Filtrec D721G10A, Hifi SH51315, Parker 925837 / G01315 / GO1315, and Wix D02B10GAV. Always verify application and dimensions before ordering.
Can you provide a custom hydraulic filter?
Yes. OEM and ODM services are available for qualified B2B customers requiring customized hydraulic filtration products.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer specializing in a wide range of filtration products. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We support OEM and ODM cooperation and provide filtration solutions for international B2B customers.
Our product range is designed to support different purchasing models, including aftermarket replacement, wholesale distribution, filter-store supply, equipment maintenance, and customized filtration projects. We focus on clear product specifications, cross-reference support, stable supply, and professional communication to help business customers manage their filter purchasing efficiently.
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
Looking for an HF35297 Hydraulic Filter Replacement or a Fleetguard Hydraulic Filter Cross Reference?
Send us your required quantity, application, part number, or filter dimensions. Our team can help you confirm the available replacement option and discuss wholesale, OEM, ODM, or Custom Hydraulic Filter requirements.
