Ultra High Efficiency Hydraulic Filter 126-1818, 1261818
The 126-1818 can replace Fleetguard HF35554, Baldwin BT9362-MPG, Donaldson P179343, Case 254353A1.
+8618144082725
Part Number:SP212799 Part Type:Fuel Filter Element Brand:Liugong Replacement MOQ:60pcs Compatibility:Liugong Equipment.
Part Number:13074774 Part Type:Air Filter Kit Brand:Weichai Replacement MOQ:20pcs
Part Number:G130097(Mounting Band P013722,Cover Assembly P538259,Clip P776033) Part Type:Air Filter Assembly Brand:Donaldson Replacement MOQ:20pcs
Part Number:TM720D-400 Part Type:Reverse Osmosis Element Brand:Toray Replacement MOQ:60pcs
Part Number:03254375 Part Type:Cabin Air Filter Brand:Manitowoc Replacement MOQ:20pcs
Part Number:6B924 Part Type:Pleated Air Filter MERV Rating:8 Brand:Air Handler Replacement MOQ:20pcs
Vacuum Oil Purifier with Complete Accessories The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification. Technical Specifications Product Type Vacuum Oil Purifier Accessories Complete Accessories Included Flow Rate 50 L/min Working Pressure 0.6 MPa Vacuum Level ≤ -0.095 MPa Residual Water Content 5–10 ppm Residual Air Content ≤ 0.2% First-Stage Filtration 100 μm Second-Stage Filtration 10–20 μm Third-Stage Filtration 1–3 μm Voltage 380 V AC Frequency 50 Hz Phase Three Phase Motor Power 36 kW Heating Power 24 kW Control System PLC Control Efficient Vacuum Dehydration and Degassing The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment. Three-Stage Precision Filtration The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination. Powerful Heating and High Processing Capacity Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications. PLC Automatic Control The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification. ...

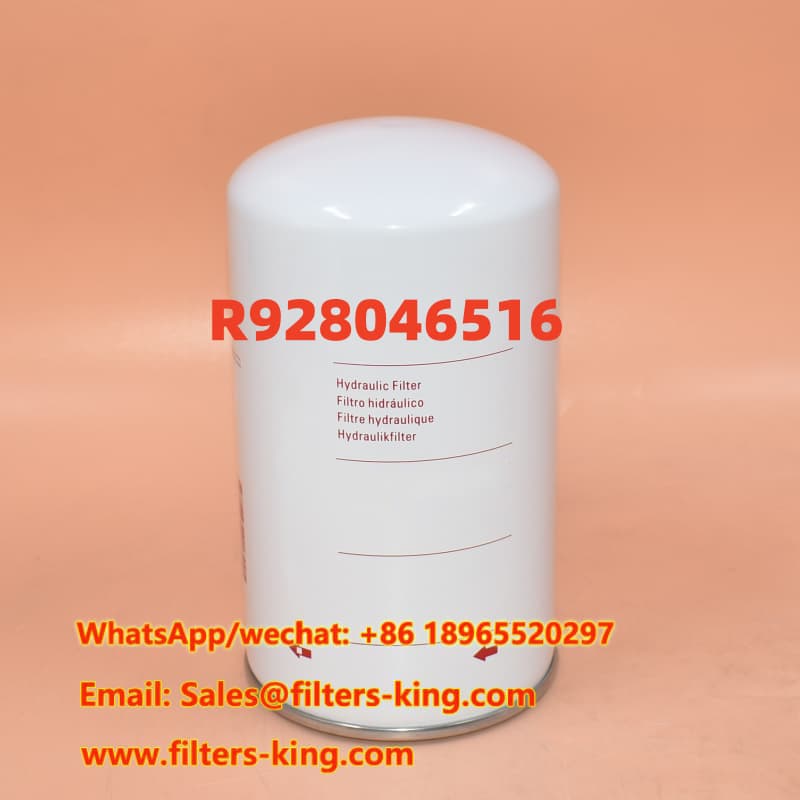

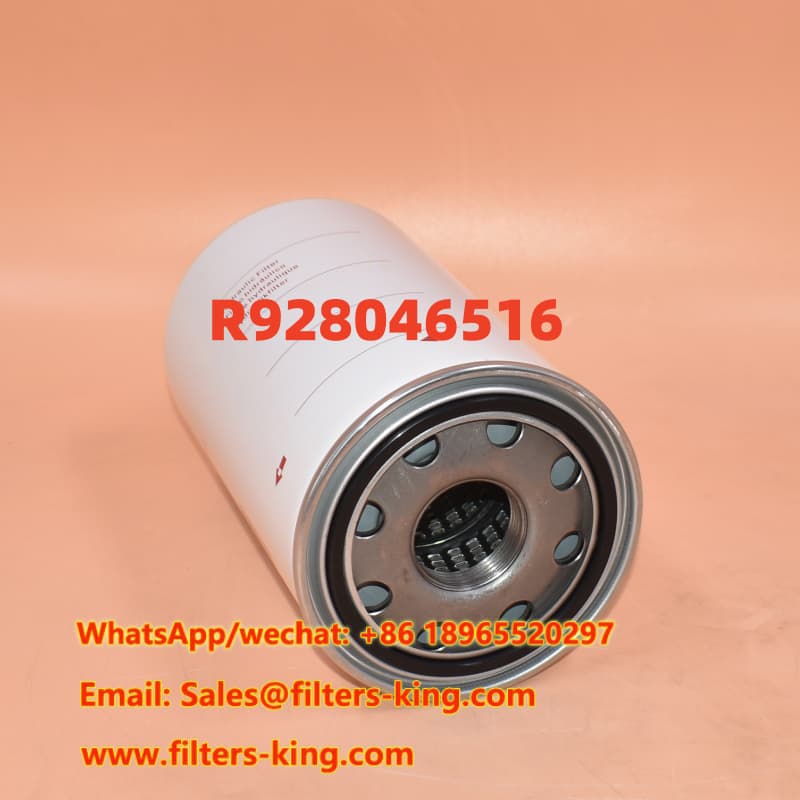

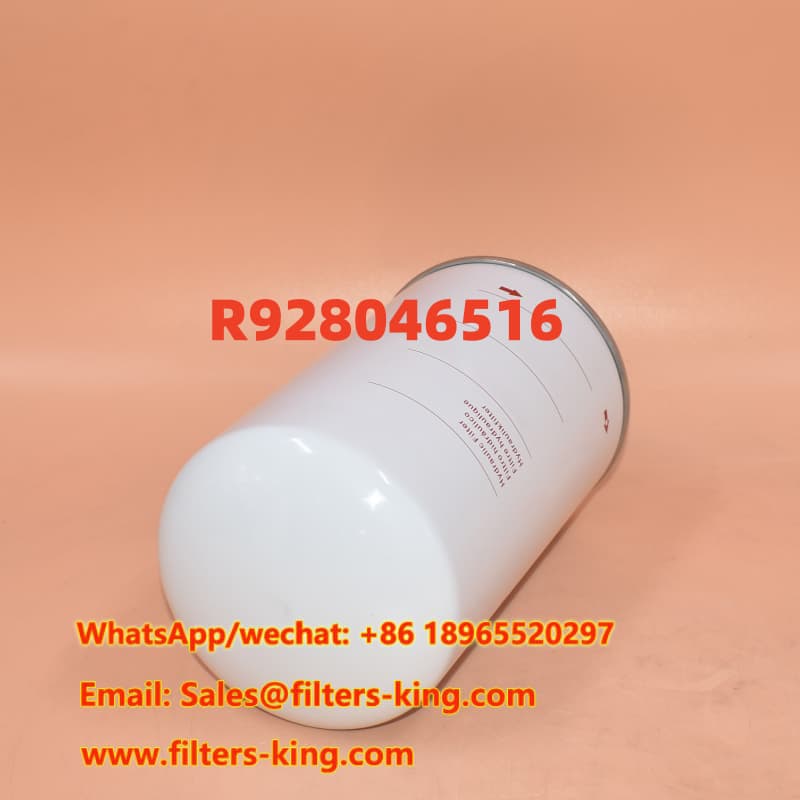

The R928046516 Hydraulic Filter is an aftermarket filtration solution designed for industrial hydraulic systems and equipment requiring a reliable replacement for the Rexroth reference number R928046516. This filter is also identified with the Rexroth 80.130 VS60-S00-0-M filter element reference in public product catalogs. It is suitable for professional buyers who need stable quality, accurate dimensions, and dependable supply for hydraulic maintenance and aftermarket distribution.
With an outer diameter of 126 mm (4.96 inch), a length of 226 mm (8.90 inch), and a 1 1/4 BSP/G thread, this replacement filter is manufactured for applications where dimensional compatibility is important. The product is available with a minimum order quantity of 60 pieces, making it suitable for retailers, wholesalers, filter stores, and hydraulic service companies.
The filter is produced according to the supplied dimensional specifications, including a 126 mm outer diameter, 226 mm overall length, and 1 1/4 BSP/G connection. Accurate dimensions help distributors and maintenance teams select replacement filters more efficiently and reduce the risk of ordering an incorrectly sized component.
Hydraulic systems depend on clean fluid to protect pumps, valves, cylinders, and other precision components. A properly selected filter helps remove harmful particulate contamination from hydraulic oil before contaminants can contribute to component wear. This makes the R928046516 replacement a practical option for routine hydraulic filtration maintenance.
This product is designed for professional procurement rather than individual consumer use. With an MOQ of 60 pieces, it can support inventory planning for filter distributors, hydraulic repair companies, retailers, wholesalers, and filter shops. Buyers can also discuss private-label packaging, product customization, and OEM/ODM requirements with our sales team.
| FABE Element | Product Value |
|---|---|
| Feature | 126 mm outer diameter, 226 mm length and 1 1/4 BSP/G thread. |
| Advantage | Accurate replacement dimensions support easier cross-reference and purchasing decisions. |
| Benefit | Helps distributors reduce sourcing difficulty and maintain hydraulic filter inventory. |
| Evidence | The R928046516 reference is listed with the Rexroth 80.130 VS60-S00-0-M filter element, while multiple industry catalogs also list cross-reference numbers including SH63206, W13018 and CS150M60A. |
| Parameter | Specification |
|---|---|
| Part Number | R928046516 |
| Part Type | Hydraulic Filter |
| Brand | Rexroth Replacement |
| Outer Diameter | 4.96 inch (126 mm) |
| Thread Size | 1 1/4 BSP/G |
| Length | 8.90 inch (226 mm) |
| Gasket OD | 4.21 inch (107 mm) |
| Gasket ID | 3.82 inch (97 mm) |
| MOQ | 60 pcs |
For purchasing and inventory management, cross-reference numbers can help buyers identify alternative filtration options. The following numbers are supplied as cross-reference information for R928046516:
| Brand / Manufacturer | Reference Number |
|---|---|
| Baldwin | BT8931 |
| Hifi | SH 63206 |
| Mann | W13018 |
| Massey Ferguson | 4212017M1 |
| MP Filtri | CS150/M60, CS150/M60A |
| Rexroth | R928046516 |
| SF Schupp | SPH 18069 |
| Stauff | SFC5860E |
| UFI | 8001500 |
| Wix | A05A60T |
| Woodgate | WGH9184 |
For distributors and filter brands that require a private-label solution, we provide Custom Hydraulic Filter and OEM/ODM services. Buyers can discuss customized labels, packaging, filtration media, dimensions, and production requirements according to their application and market needs.
Our flexible manufacturing capability allows professional buyers to source replacement filters under their own brand strategy. This can be useful for wholesalers and filter shops that want to build a broader aftermarket product range without managing their own filter production facility.
An Aftermarket Hydraulic Filter can provide an economical sourcing option for maintenance companies and distributors that need consistent replacement parts. R928046516 is particularly useful when buyers are looking for a replacement based on part number and physical specifications rather than purchasing only through the original equipment channel.
The product is supplied with an MOQ of 60 pieces, making it appropriate for regular stocking programs. Retailers can use the product for replacement sales, while wholesalers and service providers can purchase larger quantities for maintenance contracts and regional distribution.
Hydraulic filtration requirements vary according to system design, installation position, fluid type, pressure, temperature, and contamination level. Buyers considering this product for a Low Pressure Hydraulic Filter application should confirm the complete hydraulic circuit specifications before installation.
This replacement filter can be considered for industrial hydraulic filtration programs where its dimensions, connection type, sealing dimensions, and filtration requirements match the original application. For technical selection, customers are encouraged to provide the original filter number, equipment model, drawings, or detailed dimensions.
Elena Marlowe – Hydraulic Parts Distributor, USA
“The R928046516 cross-reference information makes purchasing much easier for our sales team. The dimensions are clear and the MOQ works well for our inventory planning.”
Gareth Whitmore – Industrial Service Supplier, UK
“We needed an aftermarket hydraulic filter with a specific BSP/G thread. The specification support helped us confirm the correct replacement before placing our order.”
Matteo Rinaldi – Filter Wholesaler, Italy
“The product is a practical addition to our hydraulic filter range. The cross-reference list gives our customers more ways to identify the replacement they need.”
R928046516 is a Rexroth hydraulic filter reference number. Public filter catalogs identify it with the Rexroth 80.130 VS60-S00-0-M filter element. Always confirm the complete specifications before ordering.
The supplied specifications are 126 mm outer diameter, 226 mm length, 1 1/4 BSP/G thread, 107 mm gasket OD, and 97 mm gasket ID.
The minimum order quantity is 60 pieces. Buyers with larger stocking requirements can contact our sales team to discuss volume orders and customized supply programs.
Yes. We welcome OEM and ODM projects and can discuss customized filtration products, branding, packaging, and production requirements for qualified B2B customers.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filter manufacturer serving international B2B customers. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators, and Filter Assemblies. We also welcome OEM and ODM cooperation.
Our goal is to provide reliable filtration solutions for retailers, after-sales service providers, wholesalers, and professional filter stores. By combining a broad product range with cross-reference support and customized manufacturing services, we help customers build efficient and competitive aftermarket filter supply chains.
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
If you are looking for an R928046516 hydraulic filter replacement, need a cross-reference quotation, or want to develop a custom hydraulic filter program, please send us your required part numbers, quantities, dimensions, and application details. Our sales team will help you confirm the most suitable filtration solution.
