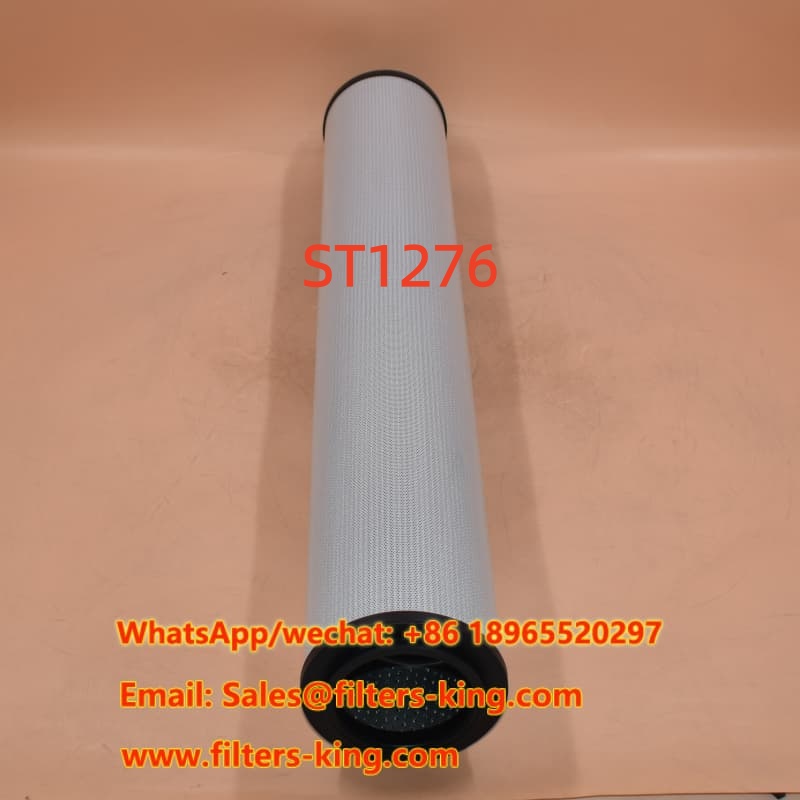

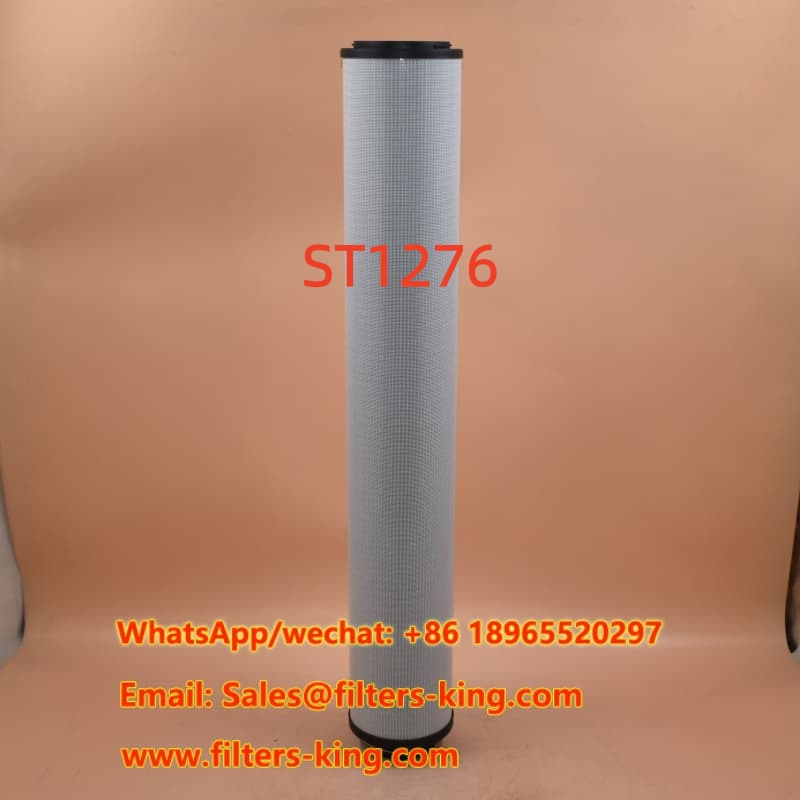

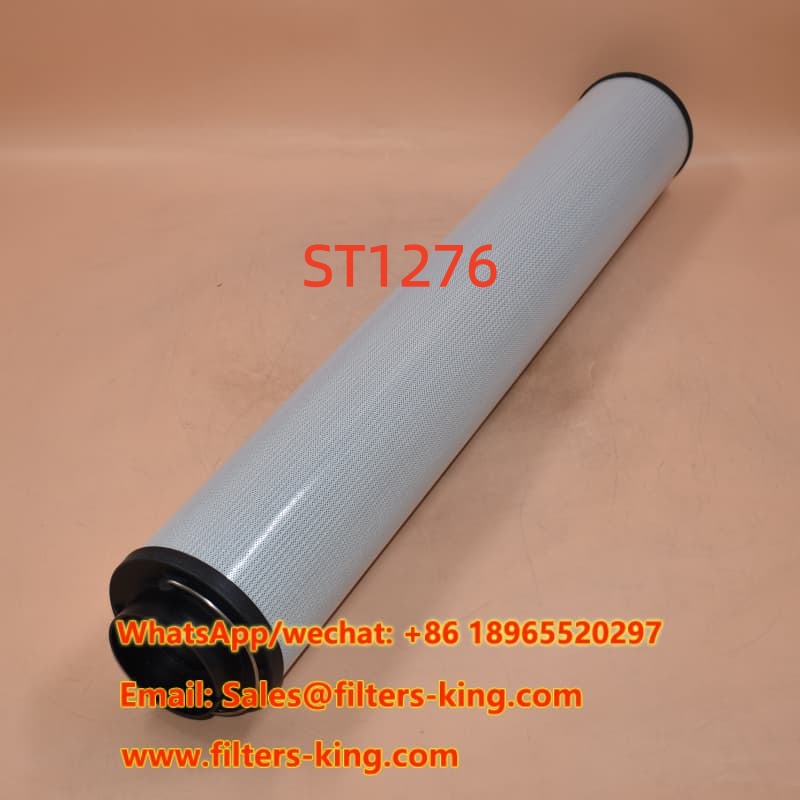

The Hydraulic System Filter ST1276 is a high-quality aftermarket hydraulic filtration solution developed for buyers who need a reliable replacement for existing hydraulic filter elements. With an outer diameter of 5.72 inches (145.2 mm) and a length of 36.18 inches (919 mm), this filter is designed for applications requiring a large-format hydraulic filtration element.
This product is supplied as a Fleetguard ST1276 replacement and can also be referenced against several Argo, Baldwin, Donaldson, Hifi, Hydac, Pall, Parker, SF Schupp and Wix part numbers. For distributors, retailers, aftermarket service companies and filter shops, the cross-reference information provides a convenient starting point when sourcing an alternative hydraulic filter.
Hydraulic systems depend on clean fluid to protect pumps, valves, actuators and other precision components. Contamination can contribute to wear, pressure loss and unexpected maintenance requirements. A properly matched replacement filter helps support cleaner hydraulic fluid and stable system operation.
The ST1276 replacement is designed for B2B buyers looking for a practical Alternative to Hydraulic Filter products from major filtration brands. Its large cylindrical format makes it suitable for customers searching for a Hydraulic Filter By Size, especially when the original part number is unavailable or when a more cost-effective aftermarket supply option is required.
ST1276 replacement dimensions are clearly defined, including the outer diameter, inner diameter, length and gasket ID. This makes the product easier for professional buyers to compare with an existing filter.
Multiple cross-reference numbers simplify aftermarket sourcing. Instead of searching only by one brand number, purchasing teams can compare the required dimensions and reference numbers before placing an order.
Distributors and wholesalers can expand their hydraulic filter product range while maintaining a practical aftermarket replacement option. Filter shops can also use the dimensional information to help identify suitable replacement elements.
The product specification is based on the supplied ST1276 replacement dimensions and the cross-reference list provided for this product. Before ordering, buyers should confirm the complete filter specifications against the equipment manufacturer's requirements, including filtration performance, sealing configuration and installation conditions.
| Parameter | Specification |
|---|---|
| Product Name | Hydraulic System Filter ST1276 |
| Part Number | ST1276 |
| Part Type | Hydraulic Filter |
| Product Type | Fleetguard Replacement |
| Outer Diameter | 5.72 inch (145.2 mm) |
| Inner Diameter | 3.78 inch (96 mm) |
| Length | 36.18 inch (919 mm) |
| Gasket ID | 3.73 inch (94.8 mm) |
| MOQ | 60 pcs |
| Service | OEM / ODM / Custom Hydraulic Filter |
The following part numbers are provided as aftermarket cross-reference information for purchasing and product identification. Buyers should verify dimensions and application requirements before installation.
| Brand | Reference Part Numbers |
|---|---|
| Argo | V3149353 |
| Baldwin | PT23104-MPG |
| Donaldson | P567002 |
| Fleetguard | ST1276 |
| Hifi | SH 74132 |
| Hydac | 1263064, 2600R005BN4HC, 2600R005BNHC |
| Pall | HC2295FCN36H, HC2295FKN36H, HC2296FCN36H50, HC2296FKN36H50 |
| Parker | 934571 |
| SF Schupp | HY13412 |
| Wix | R44D05GV |
CHINA EVERLASTING PARTS CO., LIMITED provides Hydraulic Filter OEM ODM and customized filtration solutions for professional B2B customers. If you cannot find the exact replacement filter in our standard range, you can provide a sample, drawing, part number or dimensional requirements for evaluation.
Our Custom Hydraulic Filter service can support customers who need specific dimensions, filtration configurations, private-label packaging or aftermarket replacement solutions. This service is particularly useful for wholesalers, filter distributors and equipment aftermarket suppliers that need consistent products under their own purchasing specifications.
As a professional filter manufacturer, CHINA EVERLASTING PARTS CO., LIMITED focuses on supplying replacement filtration products for industrial and heavy-duty applications. Our product range covers air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators and filter assemblies.
For B2B buyers, our focus is not only on individual filter supply but also on stable sourcing, replacement compatibility, OEM/ODM cooperation and customized product development.
"The dimensional information made it much easier for our purchasing team to compare replacement options. The product is a good fit for our aftermarket hydraulic filter range."
— Elena Marquez, Aftermarket Parts DistributorSample testimonial for website template.
"We needed a large hydraulic filter replacement with clear cross-reference information. The supplier provided useful technical details and responsive B2B service."
— Marcus Bennett, Hydraulic Service SupplierSample testimonial for website template.
"The OEM and custom filter options are valuable for our wholesale business. We can discuss requirements based on part numbers and filter dimensions."
— Sofia Turner, Industrial Filter WholesalerSample testimonial for website template.
ST1276 is offered as an aftermarket replacement option. Please compare the dimensions, sealing configuration and required filtration specifications with your existing filter before installation.
Yes. Customers can provide the outer diameter, inner diameter, length, gasket dimensions, part number or a sample. Our team can evaluate the requirements and recommend a suitable replacement or customized solution.
The standard MOQ for this product is 60 pieces. Please contact our sales team if you have special purchasing requirements.
Yes. We welcome OEM and ODM projects and can discuss customized hydraulic filter requirements based on drawings, samples, specifications or target applications.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators and Filter Assemblies.
We support both standard replacement filter supply and OEM / ODM cooperation. Our goal is to provide professional filtration solutions for distributors, wholesalers, retailers, filter shops and aftermarket service companies.
