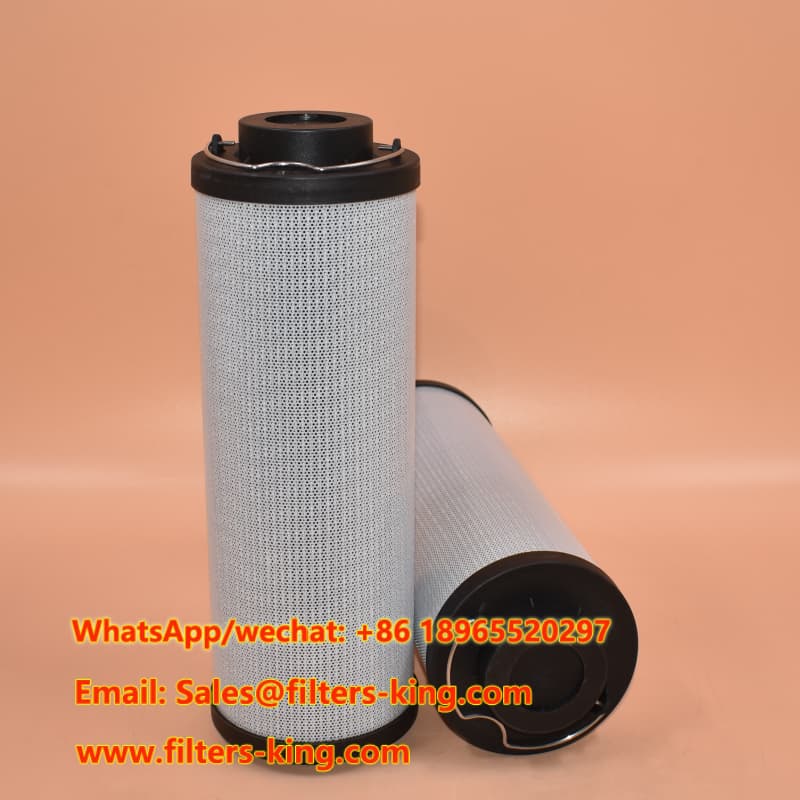

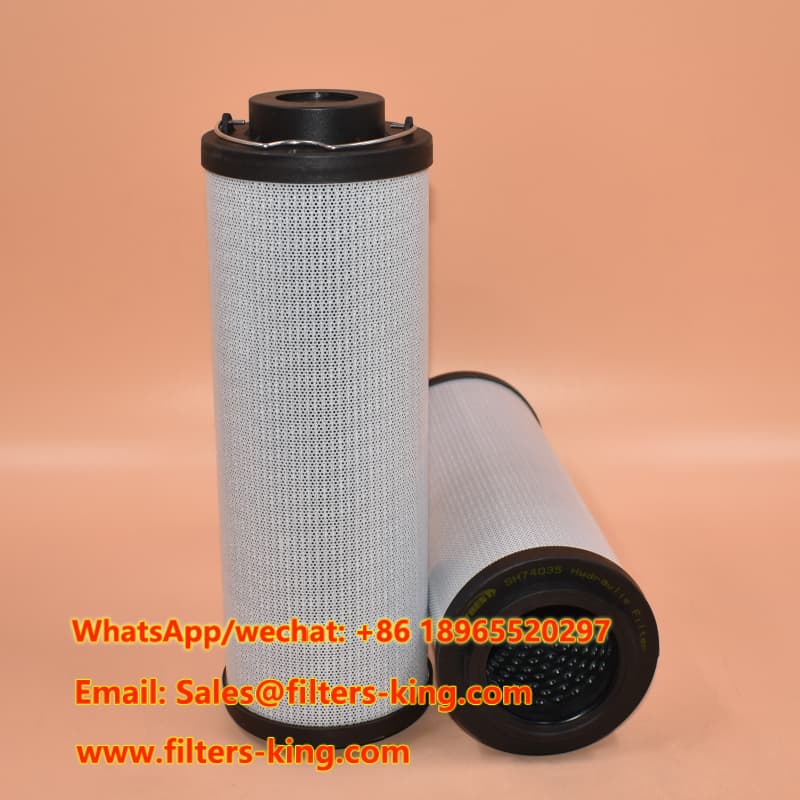

The SH74035 hydraulic filter is a replacement filter element designed for hydraulic filtration applications where clean hydraulic oil and reliable system protection are important. It is a practical choice for distributors, filter retailers, aftermarket service companies, and industrial parts wholesalers looking for a consistent replacement solution. The SH74035 is commonly cross-referenced with part numbers from brands such as Donaldson, Fleetguard, HYDAC, Pall, Parker, Rexroth, and other filtration suppliers. Public cross-reference sources list SH74035 together with references including Donaldson P566988, Fleetguard HF6900, HYDAC 1263018, Parker PR3327, and WIX R73E20GV.
Built for B2B replacement demand, this universal hydraulic filter can help procurement teams simplify sourcing across multiple equivalent part numbers. Its cylindrical filter design and specified sealing dimensions make it suitable for applications that require a compatible replacement element. Always compare the original filter number, dimensions, filtration requirements, and equipment documentation before ordering.
The filter element is designed to support the removal of contaminants from hydraulic oil. Cleaner fluid can help protect sensitive hydraulic components and support stable system operation. This makes the product suitable for maintenance programs where filtration quality and repeatable replacement are important.
The SH74035 format is used across demanding hydraulic filtration applications. It is suitable for buyers who need a heavy duty hydraulic filter replacement for industrial equipment, mobile machinery, and hydraulic systems. Its 333 mm overall length and 113.9 mm outer diameter provide a useful dimensional reference for purchasing teams.
A broad cross-reference list allows wholesalers and service companies to search by the part number already used in their inventory. This can reduce sourcing time when customers request an alternative to an existing filter. Cross-reference data should be verified against the application before installation.
With a minimum order quantity of 60 pieces, this product is positioned for commercial purchasing rather than individual replacement needs. We support bulk hydraulic filters for industrial use, helping distributors, filter stores, wholesalers, and aftermarket service providers maintain regular stock.
| Item | Specification |
|---|---|
| Part Number | SH74035 |
| Part Type | Hydraulic Filter Element |
| Brand | Hifi Replacement |
| Outer Diameter | 4.48 inch (113.9 mm) |
| Inner Diameter | 2.70 inch (68.6 mm) |
| Length | 13.11 inch (333 mm) |
| Gasket ID | 2.60 inch (66 mm) |
| MOQ | 60 pcs |
The following numbers are provided for cross-reference and purchasing identification. Public catalog data confirms several of these equivalents, including P566988, HF6900, HY13240, 1263018, HD12882, PR3327, and R73E20GV.
| Brand | Cross Reference Part Numbers |
|---|---|
| Comex | H0660RN16 H0660RN2016 |
| Digoema | DGMH4023 |
| Donaldson | P566988 |
| Eppensteiner | 30TR660H20LLLA |
| Fleetguard | HF6900 |
| Hydac | 1263018 1272696 308495 660R020BN3HC 0660R020BN2HC 0660R020BN4HC |
| Internormen | 20660R20VG30HCSP 307621 |
| Kramer | 1000002077 |
| Neuson | 1101502 |
| Pall | HC2285FCT12H HC2285FKT12H HC2286FCT12H50 HC2286FKT12H50 |
| Parker | PR3327 |
| Rexroth | R928017587 R928017591 R928017597 |
| SF Schupp | HY 13240 |
| Stauff | RE160G20B |
| Wacker Neuson | 1101502 |
| Wismet | WHE28278 |
| Wix | R73E20GV |
| Woodgate | WGHH66020RB |
SH74035 can be considered for hydraulic filtration replacement programs in industrial and mobile equipment. Published product data associates this filter family with hydraulic systems and equipment applications including Neuson and Wacker Neuson machinery.
★★★★★ John — Wholesale Buyer
“The cross-reference information made it easier for our purchasing team to match the hydraulic filter with our existing inventory requirements.”
Example/template testimonial for marketing use.
★★★★★ Mark — Filter Distributor
“We were looking for a replacement option that could be purchased in bulk. The SH74035 specification and MOQ were easy for our team to review.”
Example/template testimonial for marketing use.
★★★★★ Daniel — After-Sales Service Manager
“Having multiple cross-reference numbers available helps us handle replacement requests from different equipment customers more efficiently.”
Example/template testimonial for marketing use.
SH74035 is a Hifi replacement hydraulic filter element used for hydraulic oil filtration. It is commonly cross-referenced with several aftermarket and OEM-equivalent part numbers.
Commonly listed cross references include Donaldson P566988, Fleetguard HF6900, HYDAC 1263018, Parker PR3327, Mann HD12882, SF Schupp HY13240, Stauff RE160G20B, and WIX R73E20GV.
It can serve as a replacement option across applications using compatible specifications and cross-reference numbers. However, “universal” does not mean every hydraulic system is compatible. Buyers should verify dimensions, filter rating, sealing arrangement, and application requirements before installation.
The MOQ is 60 pieces, making the product suitable for distributors, wholesalers, filter stores, retailers, and after-sales service companies.
Yes. China Everlasting Parts supports OEM and ODM filter projects. Contact our sales team with your filter number, specifications, quantity, and packaging requirements for further discussion.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving the global aftermarket and B2B filtration market. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators, and Filter Assemblies. We also welcome OEM and ODM projects for customers with specific product, packaging, or application requirements.
Our customers include retailers, after-sales service providers, wholesalers, and filter stores. We focus on replacement filtration solutions that help professional buyers maintain inventory and respond to equipment maintenance requirements.
