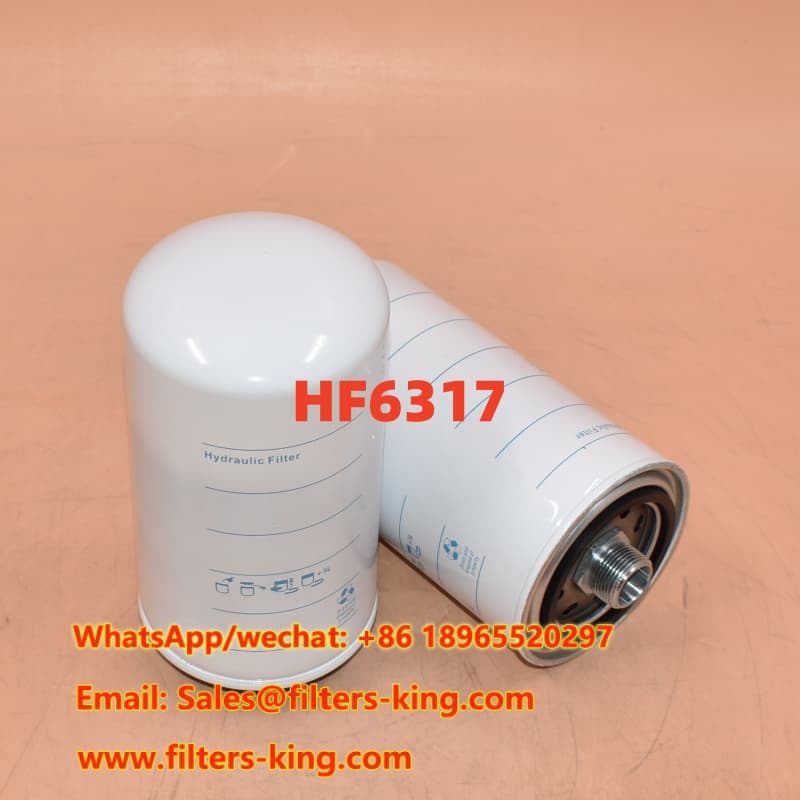

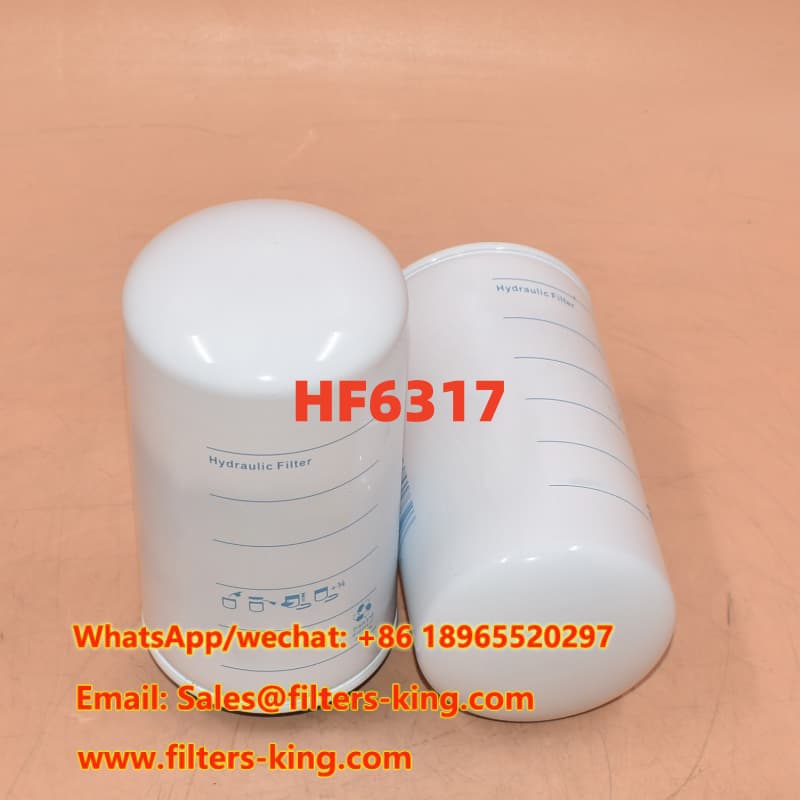

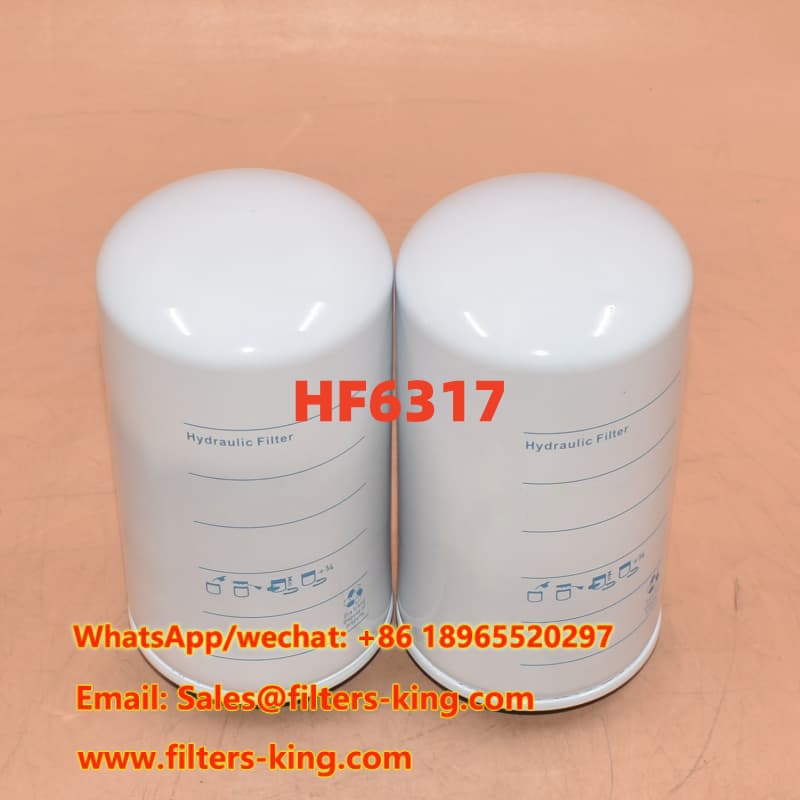

The HF6317 Hydraulic Filter is a Fleetguard replacement filter designed for hydraulic systems used in construction, industrial, agricultural, and heavy-duty equipment. It helps remove harmful contaminants from hydraulic oil and supports stable system operation, component protection, and longer service intervals. For distributors, wholesalers, filter stores, and after-sales service providers, this filter provides a practical solution for regular maintenance and hydraulic filter replacement programs.
Our HF6317 replacement is manufactured for professional aftermarket supply. It is suitable for buyers who need consistent filtration performance, reliable supply, and flexible purchasing support. With OEM and ODM capabilities, CHINA EVERLASTING PARTS CO., LIMITED can also develop customized hydraulic filter solutions according to application and purchasing requirements.
The filter media is designed to capture particles and contaminants from hydraulic oil before they can circulate through sensitive hydraulic components. This filtration function helps maintain cleaner working fluid and supports dependable hydraulic system performance.
As a Fleetguard replacement option, HF6317 provides a practical aftermarket choice for routine maintenance and replacement requirements. It can help professional parts suppliers serve customers looking for a dependable alternative to the original filter.
Hydraulic systems in excavators, loaders, agricultural machinery, material-handling equipment, and industrial machines can operate under demanding conditions. A properly selected hydraulic filter helps reduce contamination-related risks and supports the working life of hydraulic components.
With a minimum order quantity of 60 pieces, HF6317 is suitable for wholesalers, distributors, filter stores, retailers, and equipment service companies. OEM and ODM services are available for customers requiring customized specifications, packaging, or filter development.
| Specification | Details |
|---|---|
| Part Number | HF6317 |
| Part Type | Hydraulic Filter |
| Brand Type | Fleetguard Replacement |
| Height | 8.29 inch / 210.50 mm |
| Gasket Inside Diameter | 2.44 inch / 62.00 mm |
| Seam Outside Diameter | 3.68 inch / 93.50 mm |
| Thread Size | M24 X 1.5-6H EXT |
| Largest Outside Diameter | 3.68 inch / 93.50 mm |
| Gasket Outside Diameter | 2.76 inch / 70.00 mm |
| MOQ | 60 pcs |
When sourcing a replacement filter, cross-reference information can help purchasing teams identify alternative part numbers for the same or comparable filter application. The following references are provided as a purchasing lookup guide. Buyers should confirm dimensions, thread specifications, application, and installation requirements before ordering.
| Brand | Reference Part Numbers |
|---|---|
| Baldwin | BT739 |
| Case IH | Z99380A1 S300650 99380A1 1203438H1 299380A1 S301612 185161A1 |
| Caterpillar | 5544809 |
| Claas | 3419210 |
| Cummins | 299380A1 |
| Demag | 97932773 77732173 |
| Doosan | MX501990 94749039 |
| Dynapac | 4700922586 |
| Guangxi Liugong Machinery | 53C1530 SP100275 |
| Hengst | HG18WD03 |
| Hifi | SH 56367 |
| Hitachi | 76048328 79109089 AT168989 4286837 4230376 |
| Hyundai | 4644138 |
| JCB | 4801601 |
| John Deere | AT168989 AT159247 PMHF6317 AT140030 AT102377 |
| Kalmar | 800819041 |
| Komatsu | BW252116 42Y15H0S92 |
| Liebherr | 571931508 5005092 500509208 |
| Luberfiner | LFH8595 |
| Mahle Knecht | HC11 |
For professional buyers searching for a hydraulic filter by size, the HF6317 specification provides useful identification points. The outside diameter, height, gasket dimensions, and M24 X 1.5 thread can be compared with the filter currently installed on the equipment. Size matching is especially important when selecting aftermarket filters because similar-looking hydraulic filters may use different sealing or connection dimensions.
If you are unsure whether HF6317 is suitable for your application, send us your existing filter part number, dimensions, equipment model, or filter photograph. Our sales team can help check the available reference information before quotation.
CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM hydraulic filter projects for distributors and equipment service companies. We can work with customer drawings, samples, specifications, packaging requirements, and application information. This makes the product suitable not only for standard replacement orders but also for private-label and customized aftermarket programs.
★★★★★
“The cross-reference information made it easier for our purchasing team to identify the required replacement filter. Communication and order handling were straightforward.”
— Daniel Brooks, Parts Distributor
★★★★★
“We needed a dependable aftermarket hydraulic filter for our maintenance customers. The product specifications and B2B ordering process were clear and convenient.”
— Ethan Mitchell, Equipment Service Company
★★★★★
“The filter range and customization options are useful for our wholesale business. We can discuss part numbers, packaging, and order quantities directly with the supplier.”
— Marcus Turner, Hydraulic Filter Wholesaler
HF6317 is a hydraulic filter part number. The filter is offered by CHINA EVERLASTING PARTS CO., LIMITED as a Fleetguard replacement option for professional aftermarket applications.
The listed cross-reference numbers can be used as a purchasing lookup guide. Buyers should confirm the original application, dimensions, thread, sealing details, and equipment requirements before placing an order.
The standard MOQ is 60 pieces. Please contact us for specific requirements or customized orders.
Yes. OEM and ODM hydraulic filter projects are welcome. Customers can provide specifications, drawings, samples, branding, or packaging requirements for evaluation.
Send us the filter part number, equipment model, dimensions, or a clear product photograph. Our team can review the available information and provide a quotation based on your requirements.
