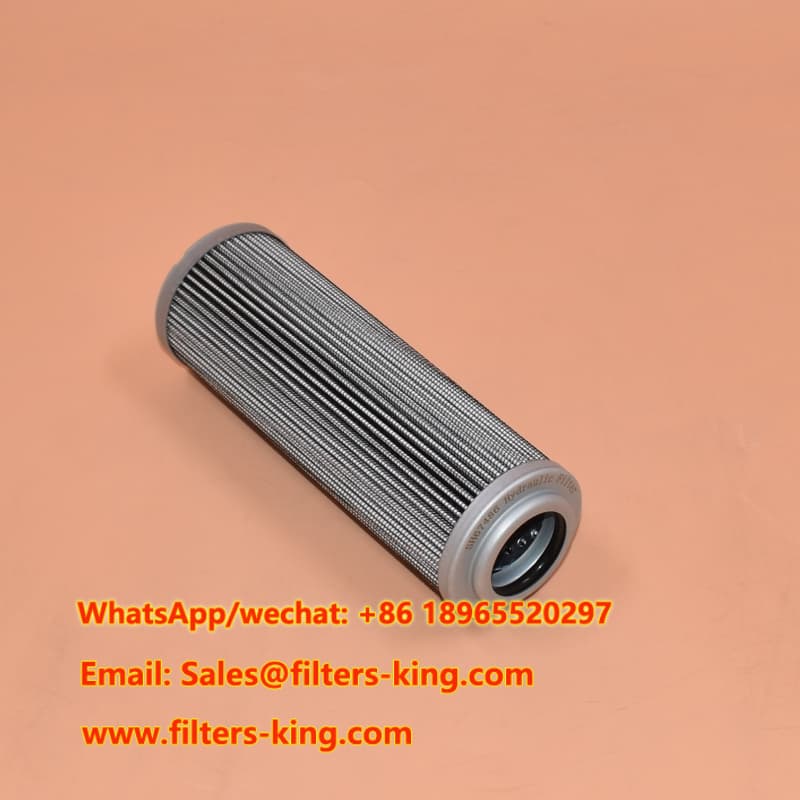

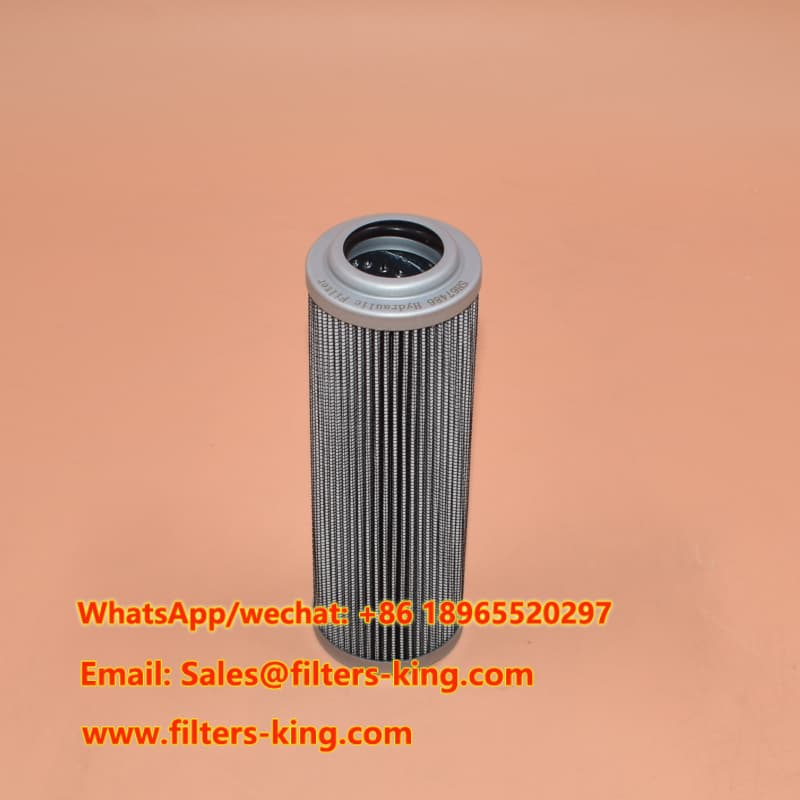

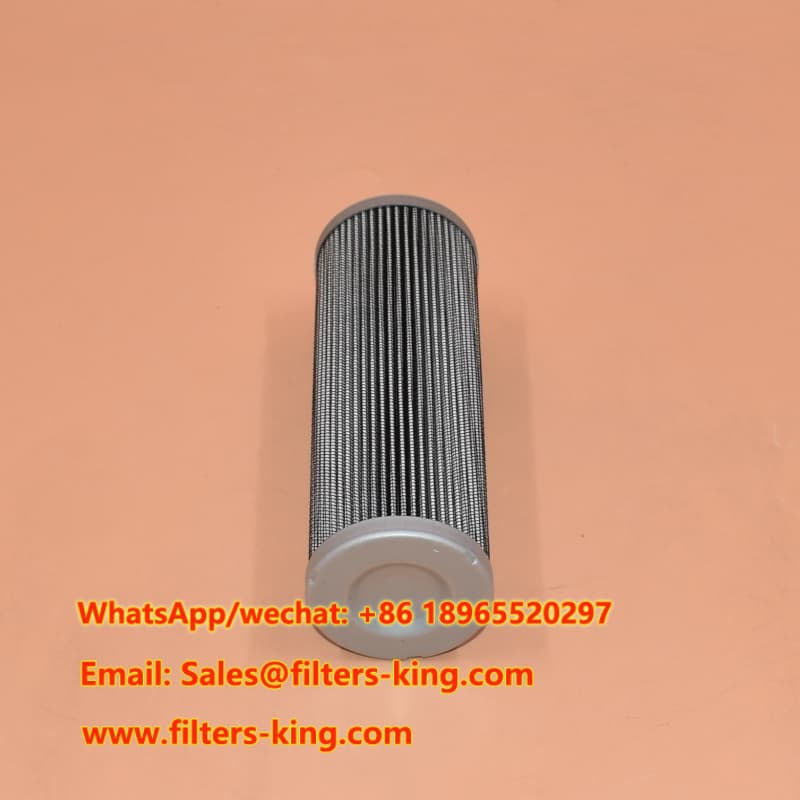

The SH67486 Heavy Duty Hydraulic Filter Cartridge is an aftermarket replacement option for businesses sourcing hydraulic filtration products for equipment maintenance, spare parts distribution, and industrial supply. CHINA EVERLASTING PARTS CO., LIMITED provides filter solutions for wholesalers, retailers, filter shops, and aftermarket service providers.
With clearly defined dimensions and multiple cross-reference numbers, this hydraulic filter element helps purchasing teams identify potential replacement options and organize inventory requirements. OEM and ODM inquiries are welcome for businesses seeking customized filtration products and packaging solutions.
| Specification | Details |
|---|---|
| Product Name | Heavy Duty Hydraulic Filter Cartridge |
| Part Number | SH67486 |
| Filter Type | Hydraulic Filter Element |
| Brand Reference | HIFI Filter Replacement |
| Outer Diameter | 2.36 inches (60 mm) |
| Inner Diameter | 1.35 inches (34.2 mm) |
| Length | 6.89 inches (175 mm) |
| Minimum Order Quantity | 60 pieces |
| Customization | OEM and ODM inquiries welcome |
| Brand | Cross Reference Part Number |
|---|---|
| Donaldson | P561349 |
| EPE | 2.0015H10SLA000P, 2.0015H10XLA000P |
| Hainzl | 1596561 |
| Hartl | 1200035 |
| Hydac | 1298857, 7.0015D10BN4 |
| Parker | 939776Q |
| Rexroth | R928006269 |
| SF Schupp | HY 11947 |
| Wix | D22A10EV |
Easy part number identification: The SH67486 designation and related cross-reference numbers help buyers narrow their search for replacement filter elements. This makes product identification more convenient for inventory managers and aftermarket parts distributors.
Practical dimensional reference: The specified outer diameter, inner diameter, and length allow buyers to compare the element with an existing filter before ordering. Checking these measurements helps reduce the risk of purchasing an incorrectly sized component.
Commercial purchasing support: With a minimum order quantity of 60 pieces, this product is offered for B2B sourcing. Wholesale buyers can contact our sales team to discuss order quantities, pricing, packaging, and purchasing schedules.
OEM and ODM options: Businesses seeking customized products can submit their drawings, samples, technical requirements, or packaging preferences for review. Customization is subject to technical feasibility and order confirmation.
For filter retailers, repair companies, and distributors, a clear sourcing process can save time and support better stock planning. Product dimensions and cross-reference data provide a starting point for comparing replacement options, while direct communication with a supplier helps clarify outstanding technical questions before an order is placed.
Before selecting an element, verify filtration efficiency, micron rating, filter media, pressure limits, fluid compatibility, sealing materials, and operating conditions against the original equipment requirements. These technical values have not been supplied for this listing and should not be assumed.
When searching for a Hydraulic Filter By Size, start by measuring the outer diameter, inner diameter, and overall length. Also check the end-cap design, sealing surfaces, installation direction, and any internal support components. Similar dimensions alone do not guarantee equivalent filtration performance or pressure resistance.
If you cannot confirm whether SH67486 matches your application, send our team the original part number, equipment model, measurements, and available technical documentation. This information helps us review your requirements before you proceed with purchasing.
CHINA EVERLASTING PARTS CO., LIMITED welcomes inquiries for a Custom Hydraulic Filter and other replacement filtration products. Customers can provide drawings, physical samples, required dimensions, application details, branding requirements, and expected quantities for evaluation.
Our product range includes air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators, and filter assemblies. We support B2B customers looking for replacement parts for distribution, maintenance, and aftermarket sales.
“Clear product identification and detailed dimensional information make it easier for our purchasing team to compare replacement filter options. We value responsive communication when checking part numbers and order requirements.”
“For an aftermarket parts business, accurate reference information is important. Having the dimensions and cross-reference numbers together helps us review potential replacement products before placing an order.”
“We look for suppliers that understand wholesale purchasing and can discuss OEM or ODM requirements. Having a direct contact for product questions makes the sourcing process more straightforward.”
SH67486 is listed as a HIFI Filter replacement hydraulic filter element. Review the product specifications and cross-reference table to help identify a potential replacement.
The MOQ for SH67486 is 60 pieces. Contact our sales team for current pricing and order details.
Listed references include Donaldson P561349, EPE 2.0015H10SLA000P, EPE 2.0015H10XLA000P, Hainzl 1596561, Hartl 1200035, Hydac 1298857 and 7.0015D10BN4, Parker 939776Q, Rexroth R928006269, SF Schupp HY 11947, and Wix D22A10EV. Confirm compatibility before ordering.
Yes. OEM and ODM inquiries are welcome. Send your specifications, drawing or sample details, packaging requirements, and estimated quantity for evaluation.
Contact our sales team by WhatsApp, WeChat, or email. Include the part number SH67486, required quantity, destination country, and any technical questions to help us respond to your request.
CHINA EVERLASTING PARTS CO., LIMITED is a professional filter supplier serving business customers in the filtration aftermarket. Our main product categories include air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators, and filter assemblies.
We welcome OEM and ODM inquiries from retailers, wholesalers, filter shops, and aftermarket service providers. Our team can discuss product identification, cross-reference checks, customization requirements, and bulk purchasing needs to help customers select suitable products for their business.
