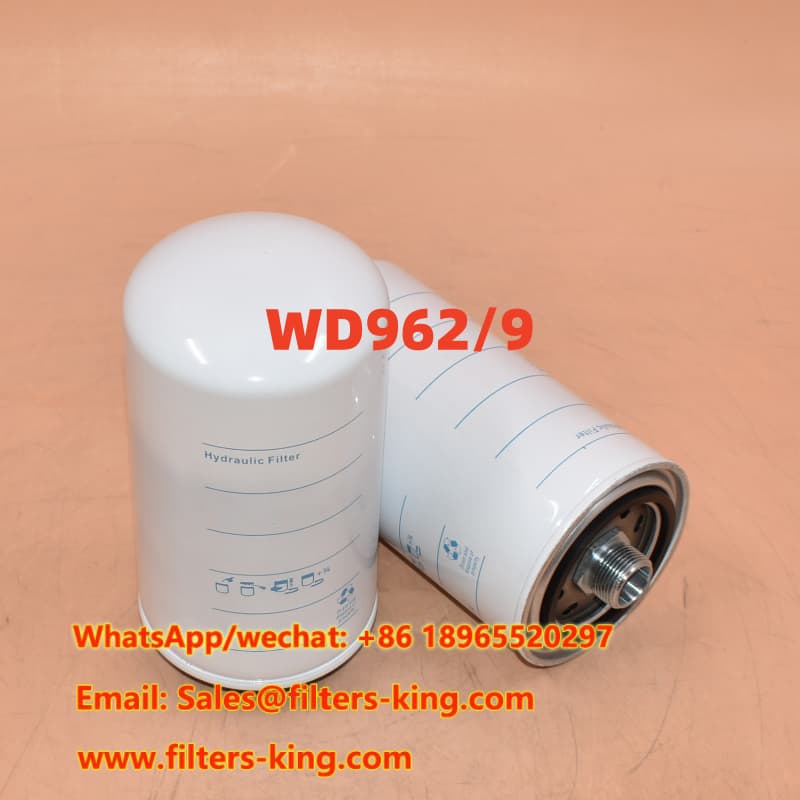

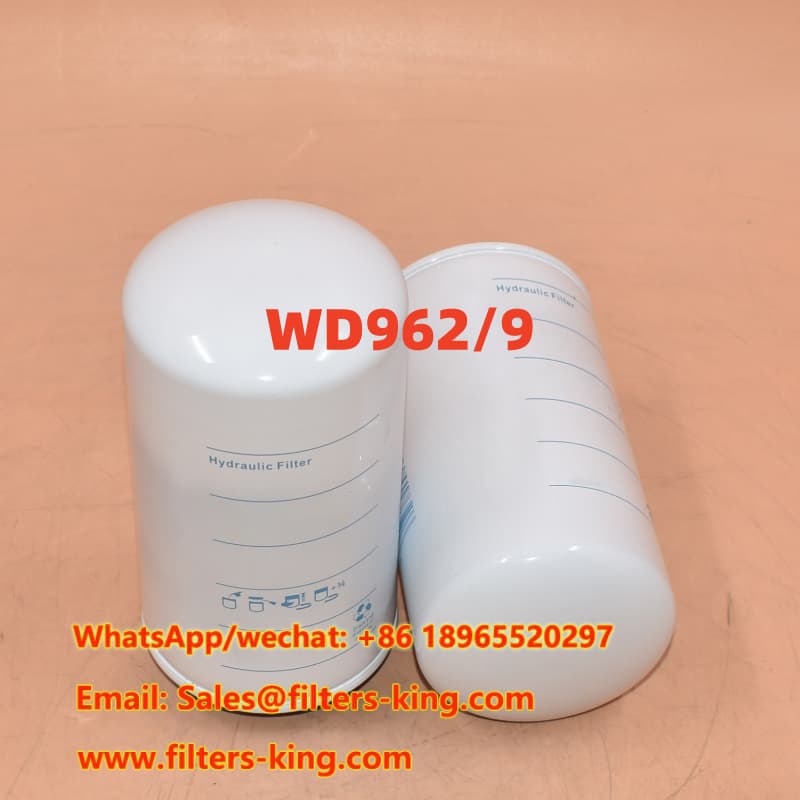

The Custom Hydraulic Filter WD962/9 WD9629 is an aftermarket replacement solution designed for professional filter distributors, wholesalers, retailers, filter stores, and equipment service companies. This filter uses an M24 x 1.5 mounting thread and is supplied as a replacement option for a wide range of hydraulic, transmission, construction, agricultural, and industrial equipment applications. Its broad cross-reference coverage makes it easier for B2B buyers to identify a suitable replacement from an existing part number.
For buyers researching a Mann Hydraulic Filter Cross Reference, this model can be checked against commonly used replacement numbers such as Baldwin BT739, Fleetguard HF6317, Luberfiner LFH8595, Wix 51290, Hifi SH 56367, Hengst HG18WD03, and other application-specific references. Public MANN information also identifies WD 962/9 applications in hydraulic transmission systems for equipment from brands including CASE, Hyundai, JCB, John Deere, Komatsu, Liugong, New Holland, and ZF.
| Parameter | Specification |
|---|---|
| Part Number | WD962/9 / WD9629 |
| Product Type | Hydraulic Filter |
| Brand | MANN Replacement |
| Outer Diameter | 3.82 inch (97 mm) |
| Thread Size | M24 x 1.5 |
| Length | 7.13 inch (181 mm) |
| MOQ | 60 pcs |
| Supply Type | Aftermarket Replacement / OEM / ODM |
| Brand | Cross Reference Part Numbers |
|---|---|
| Baldwin | BT739 |
| Case IH | Z99380A1 S300650 99380A1 1203438H1 299380A1 S301612 185161A1 |
| Caterpillar | 5544809 |
| Claas | 3419210 |
| Cummins | 299380A1 |
| Dynapac | 4700922586 |
| Fleetguard | HF6317 |
| Guangxi Liugong Machinery | 53C1530 SP100275 |
| Hengst | HG18WD03 |
| Hifi | SH 56367 |
| Hitachi | 76048328 79109089 AT168989 4286837 4230376 |
| Hyundai | 4644138 |
| JCB | 4801601 |
| John Deere | AT168989 AT159247 PMHF6317 AT140030 AT102377 |
| Kalmar | 800819041 |
| Komatsu | BW252116 42Y15H0S92 |
| Liebherr | 571931508 5005092 500509208 |
| Luberfiner | LFH8595 |
| Mahle Knecht | HC11 |
| New Holland | 76040228 47698894 84160469 |
| Orenstein & Koppel | 7380578 378487510 1499397 |
| Poclain | Q1750567 |
| Sakura | HC-2701 |
| SF Schupp | SPH 21010 |
| Sullair | 46701 |
| Wix | 51290 |
| Zettelmeyer | 2288868 22888683 2288863 2282693 |
| ZF | 501212459 750131060 750131053 750131033 750131013 50131013 501210683 |
Buyers often search for a Hydraulic Filter By Size when the original part number is unavailable. For this custom WD962/9 replacement, the supplied outside diameter is 97 mm, the thread is M24 x 1.5, and the length is 181 mm. These dimensions can help purchasing teams compare inventory, confirm installation space, and screen potential replacement options. Always verify the complete mounting and sealing configuration before placing a bulk order.
The cross-reference family covers applications associated with construction equipment, wheel loaders, material handling equipment, agricultural machinery, industrial systems, and transmission or hydraulic circuits. Public MANN application information includes CASE Construction, Hyundai Construction, JCB, Liugong, Lindner tractors, and ZF WG transmission applications.
CHINA EVERLASTING PARTS CO., LIMITED supports buyers looking for an OEM Hydraulic Filter or an Aftermarket Hydraulic Filter program. We can support standard replacement orders as well as private-label and customized requirements. Buyers can provide a part number, sample, drawing, dimensions, or application information for product matching and sourcing evaluation. This makes the product suitable for distributors that need repeat supply, retailers building replacement inventory, and service companies that need dependable filter availability.
Daniel Brooks — Purchasing Manager, Heavy Equipment Parts Distributor
“The cross-reference information made it easier for our purchasing team to match replacement filter requirements and manage our aftermarket inventory.”
Example/template testimonial for website use.
Andrew Mitchell — Service Director, Construction Equipment Aftermarket Company
“Having several reference numbers available is useful for our service team because customers often identify filters by different brands or machine part numbers.”
Example/template testimonial for website use.
Kevin Turner — Owner, Industrial Filter Wholesale Company
“The product is a practical option for our aftermarket filter program. The OEM and ODM support is also helpful when developing customized product lines.”
Example/template testimonial for website use.
Q: What is the part number of this hydraulic filter?
A: The supplied replacement part number is WD962/9, also written as WD9629.
Q: What is the mounting thread?
A: The supplied specification is M24 x 1.5.
Q: What is the MOQ?
A: The standard MOQ is 60 pieces.
Q: Can you provide OEM or private-label production?
A: Yes. OEM and ODM services are available for qualified B2B projects.
Q: Can I order according to size instead of part number?
A: Yes. Buyers can provide dimensions, thread information, samples, drawings, or application details for a replacement evaluation.
