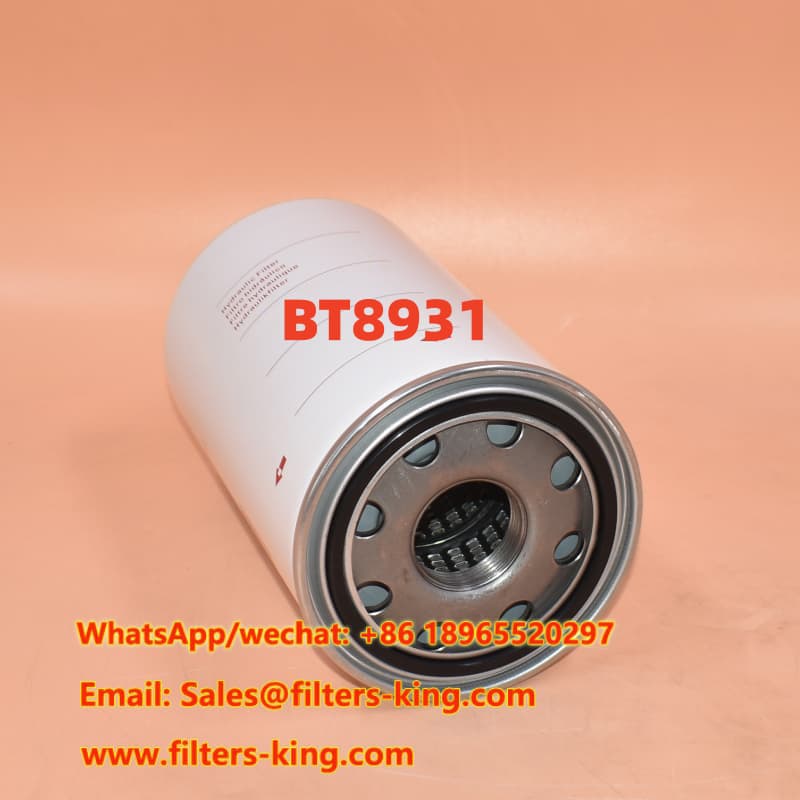

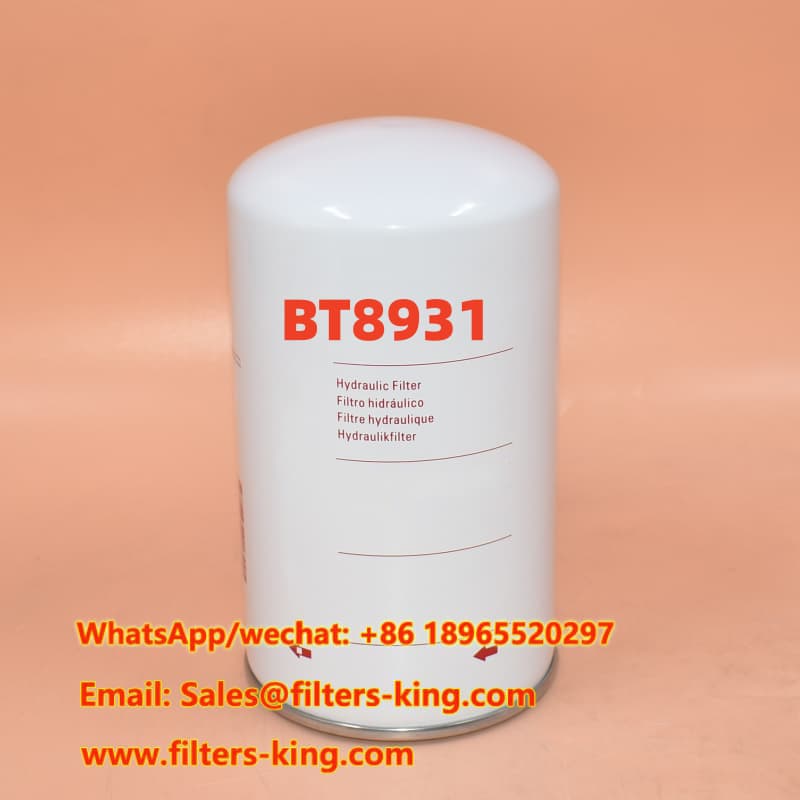

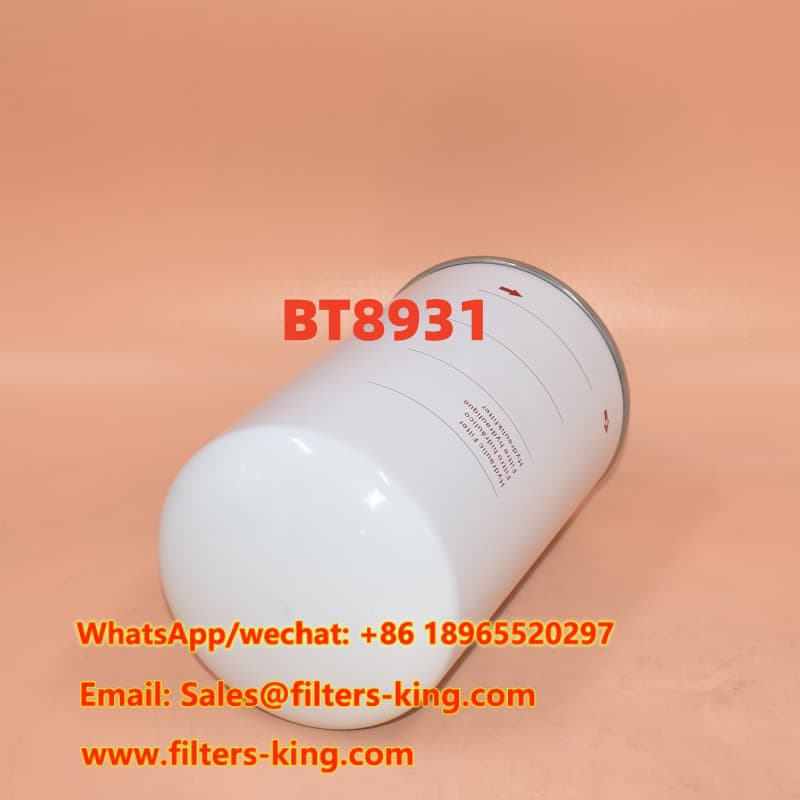

The BT8931 OEM Hydraulic Filter Aftermarket is a high-quality replacement solution designed for hydraulic filtration applications where reliable contamination control, correct fitment, and stable supply are important.
| Item | Specification |
|---|---|
| Part Number | BT8931 |
| Part Type | Hydraulic Filter |
| Brand Reference | Baldwin Replacement |
| Filter Construction | Spin-On |
| Media | Wire Mesh |
| Outer Diameter | 4.96 inch (126 mm) |
| Thread Size | 1 1/4 BSP/G |
| Length | 8.90 inch (226 mm) |
| Gasket OD | 4.21 inch (107 mm) |
| Gasket ID | 3.82 inch (97 mm) |
| MOQ | 60 pcs |
| Reference Brand | Reference Part Number |
|---|---|
| Donaldson | P171622 |
| Hifi | SH 63206 |
| Mann | W13018 |
| Massey Ferguson | 4212017M1 |
| MP Filtri | CS150/M60, CS150/M60A |
| Rexroth | R928046516 |
| SF Schupp | SPH 18069 |
| Stauff | SFC5860E |
| UFI | 8001500 |
| Wix | A05A60T |
| Woodgate | WGH9184 |
When a purchasing team does not have the original part number, dimensional matching can provide a practical starting point. This model has an outer diameter of approximately 126 mm, a length of approximately 226 mm, a 1 1/4 BSP/G thread, and gasket dimensions of approximately 107 mm OD × 97 mm ID. These dimensions are also consistent with publicly listed specifications for the P171622 cross-reference family.
However, size alone should not be used as the final basis for filter replacement. Buyers should also confirm the thread, sealing surface, filter media, installation position, flow direction, bypass requirements, and equipment application before placing an order.
The wire-mesh configuration provides a durable filtration structure for suitable hydraulic applications. Public product data identifies this cross-reference family as a wire-mesh filter with a 60-micron rating, making it suitable for applications specified for this type of filtration.
Our Aftermarket Hydraulic Filter is positioned for filter retailers, wholesalers, maintenance companies, and equipment service providers that need dependable replacement products without being restricted to a single supply channel. A MOQ of 60 pcs supports regular stocking and wholesale purchasing.
CHINA EVERLASTING PARTS CO., LIMITED provides OEM Hydraulic Filter and Custom Hydraulic Filter services. Buyers can discuss private-label requirements, packaging, specifications, filter media, dimensions, and production quantities with our sales team. This makes the product suitable for distributors that need both standard replacement numbers and customized filtration solutions.
Ethan Caldwell — Filter Distributor
“The dimensional information made it easier for our purchasing team to verify the replacement before ordering. The packaging and part identification were also convenient for warehouse handling.”
Example testimonial for website presentation.
Sofia Bennett — Hydraulic Service Company
“The cross-reference list helped us quickly compare the filter with numbers already used by our customers. It is a practical option for aftermarket hydraulic filter sourcing.”
Example testimonial for website presentation.
Marcus Whitmore — Industrial Parts Wholesaler
“We were looking for a replacement filter with a specific BSP/G thread and large spin-on body. The technical dimensions made product matching much more straightforward.”
Example testimonial for website presentation.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our product range includes Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators, and Filter Assemblies. We also welcome OEM and ODM projects.
For retailers, aftermarket service providers, wholesalers, and filter stores, our focus is on consistent product specifications, practical cross-reference support, flexible sourcing, and long-term cooperation. If you need a standard replacement or are developing a private-label filtration program, our team can discuss your requirements.
