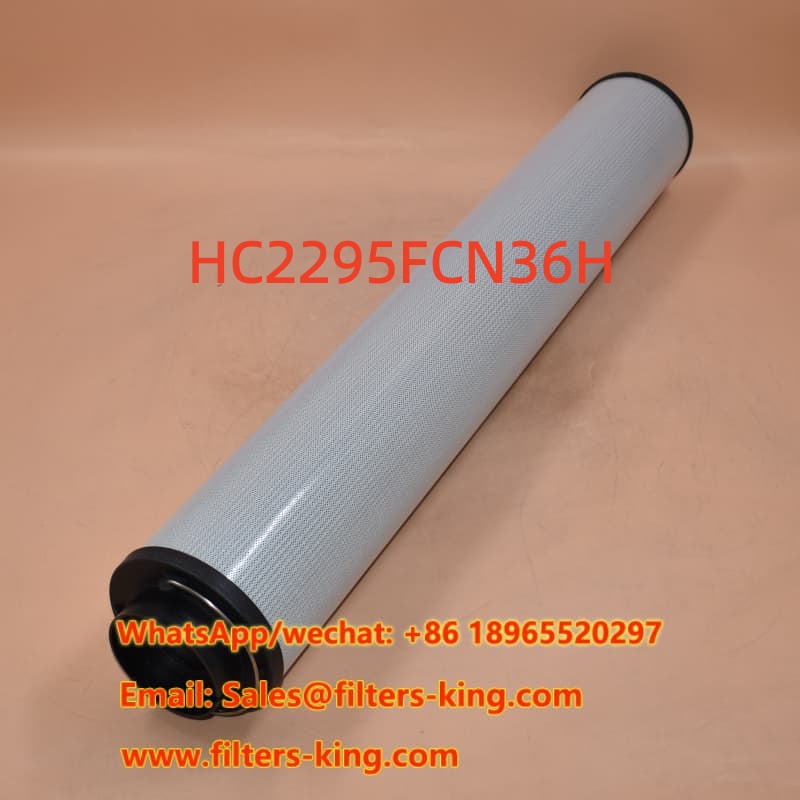

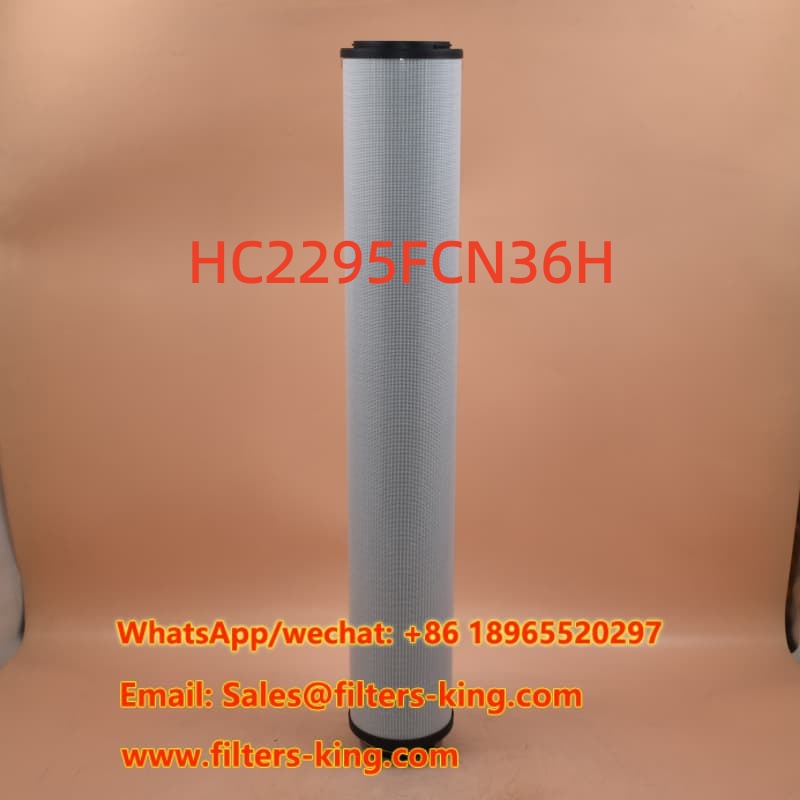

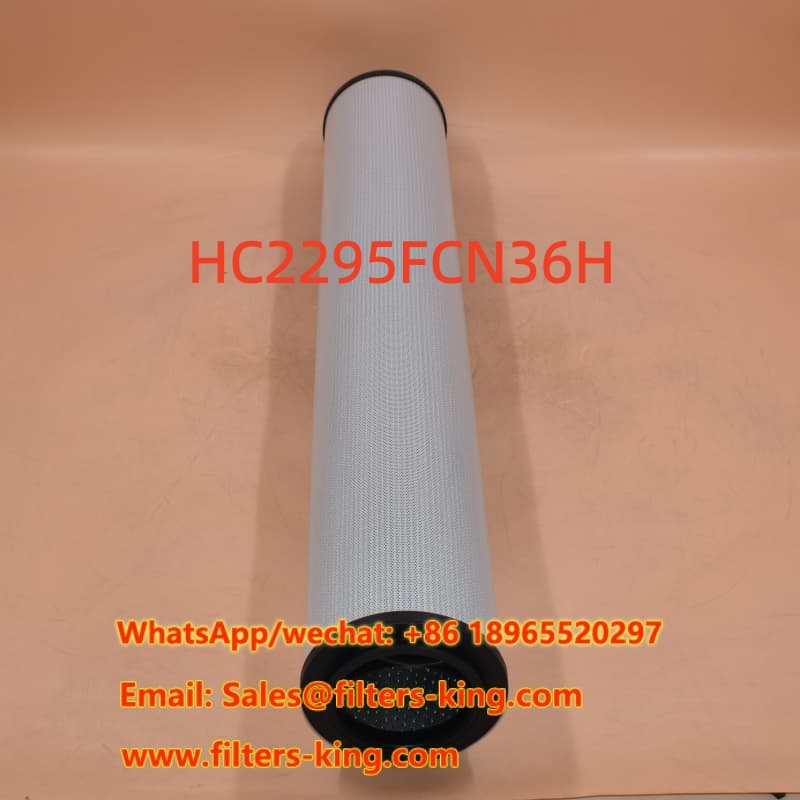

Alternative to Hydraulic Filter HC2295FCN36H HC2295FKN36H

The Alternative to Hydraulic Filter HC2295FCN36H HC2295FKN36H is a replacement hydraulic filter element developed for B2B customers looking for a dependable alternative for industrial hydraulic filtration systems. With a large 36.18-inch length, 5.72-inch outer diameter and 3.78-inch inner diameter, this filter is designed for applications that require a long filter element and stable contamination control.

This product is offered as a Pall replacement hydraulic filter and can be supplied for retailers, aftermarket distributors, hydraulic service companies, filter shops and industrial maintenance suppliers. The reference numbers HC2295FCN36H and HC2295FKN36H are widely used in hydraulic filter cross-reference systems. Publicly available replacement data also connects this filter family with Donaldson P567002, Hydac 1263064 and 2600R005BNHC, Parker 934571, Hifi SH74132 and Wix R44D05GV.

Technical Specifications

Pall Hydraulic Filter Cross Reference

When purchasing a replacement element, checking the Pall Hydraulic Filter Cross Reference is an efficient way to identify alternative part numbers. The HC2295FCN36H and HC2295FKN36H family is associated with several hydraulic filtration references across different manufacturers. Cross-reference databases list Donaldson P567002, Hydac 1263064 and 2600R005BNHC, Parker 934571, Hifi SH74132, Stauff RE600G05B and Wix R44D05GV among related replacement numbers. :contentReference[oaicite:3]{index=3}

Hydraulic Filter By Size

For distributors and maintenance companies, searching for a Hydraulic Filter By Size can be more effective when the original part number is unavailable. This element has an outer diameter of 145.2 mm, an inner diameter of 96 mm, an overall length of 919 mm and a gasket inner diameter of 94.8 mm. These measurements provide a practical starting point for identifying a replacement element.

However, size alone should not be used as the only basis for replacement. Filter media, filtration efficiency, flow direction, end-cap construction, gasket design, bypass configuration and housing requirements should also be checked. Published specifications for related elements show that this filter family is commonly offered with a 5-micron configuration and outside-in flow, although the exact specification can vary by suffix and manufacturer.

Features, Advantages, Benefits & Evidence

Feature: This replacement element uses a large-format hydraulic filter design with approximately 919 mm length and 145.2 mm outside diameter. The supplied dimensions make it suitable for buyers who need to match a long hydraulic filter element by physical size.

Advantage: The extensive cross-reference list makes product identification easier for aftermarket buyers. Instead of searching only by one manufacturer number, procurement teams can compare references such as HC2295FCN36H, HC2295FKN36H, P567002, 1263064, SH74132 and 934571.

Benefit: Retailers, wholesalers and filter shops can use one replacement source to support multiple customer inquiries. OEM and ODM production also allows buyers to develop their own replacement filter range, packaging and private-label products.

Evidence: Independent filtration references identify HC2295FCN36H and HC2295FKN36H within the same broader cross-reference family as P567002, 2600R005BNHC, 934571, SH74132 and R44D05GV.

Hydraulic System Filter Applications

A reliable Hydraulic System Filter helps control particulate contamination in hydraulic oil and supports the operating condition of pumps, valves, cylinders and other hydraulic components. This replacement element is intended for professional hydraulic filtration applications where the correct dimensions and filter configuration are required.

It can be considered for industrial hydraulic equipment, hydraulic power units, heavy machinery, manufacturing systems, mobile equipment and aftermarket maintenance programs. Before ordering, buyers should compare the original filter dimensions and technical requirements with the replacement element.

Hydraulic Filter OEM ODM & Custom Service

CHINA EVERLASTING PARTS CO., LIMITED provides Hydraulic Filter OEM ODM services for global B2B customers. Our manufacturing capability covers hydraulic filters, air filters, oil filters, fuel filters, fuel water separators, air oil separators, breather filters and filter assemblies.

For customers with their own product specifications, we can discuss a Custom Hydraulic Filter project based on an original sample, technical drawing, part number or dimensional requirements. Customization can be discussed for filter media, dimensions, seals, packaging, labeling and other product requirements.

This service is especially suitable for filter distributors, aftermarket wholesalers, filter shops and hydraulic service companies that need stable supply for recurring orders or private-label programs.

Designed for B2B Filter Buyers

• Retailers: Build a replacement filter product range for hydraulic equipment customers.
• Aftermarket Service Providers: Source replacement elements according to original part numbers and dimensions.
• Wholesalers: Purchase hydraulic filters in bulk for regional distribution.
• Filter Shops: Match replacement elements using part numbers, dimensions and cross-reference information.

Customer Testimonials

Frequently Asked Questions

Q1: What is the Pall Hydraulic Filter Cross Reference for HC2295FCN36H?
A: Commonly listed cross-reference numbers include HC2295FKN36H, HC2296FCN36H50, HC2296FKN36H50, Donaldson P567002, Hydac 1263064, Hydac 2600R005BNHC, Parker 934571, Hifi SH74132 and Wix R44D05GV. Cross-reference data should always be confirmed against the actual filter and application.

Q2: Can I order this filter by size?
A: Yes. The supplied dimensions are 145.2 mm OD, 96 mm ID, 919 mm length and 94.8 mm gasket ID. Buyers can provide their original filter dimensions or sample for compatibility confirmation.

Q3: Do you provide Hydraulic Filter OEM ODM service?
A: Yes. We welcome OEM, ODM and private-label hydraulic filter projects. Please provide your part number, drawing, sample, quantity and customization requirements.

Q4: What is the MOQ?
A: The MOQ for this product is 60 pcs. For customized products, MOQ can be discussed according to the specifications and production requirements.

Q5: How can I confirm whether this is the correct replacement?
A: Send us your current filter part number, dimensions, application information or a clear product photo. Our team can compare the available cross-reference and dimensional information before quotation.
