Aftermarket Hydraulic Filter HG18WD03

Part Number:HG18WD03
Part Type:Hydraulic Filter
Brand:Hengst Replacement
MOQ:60pcs
  • Details

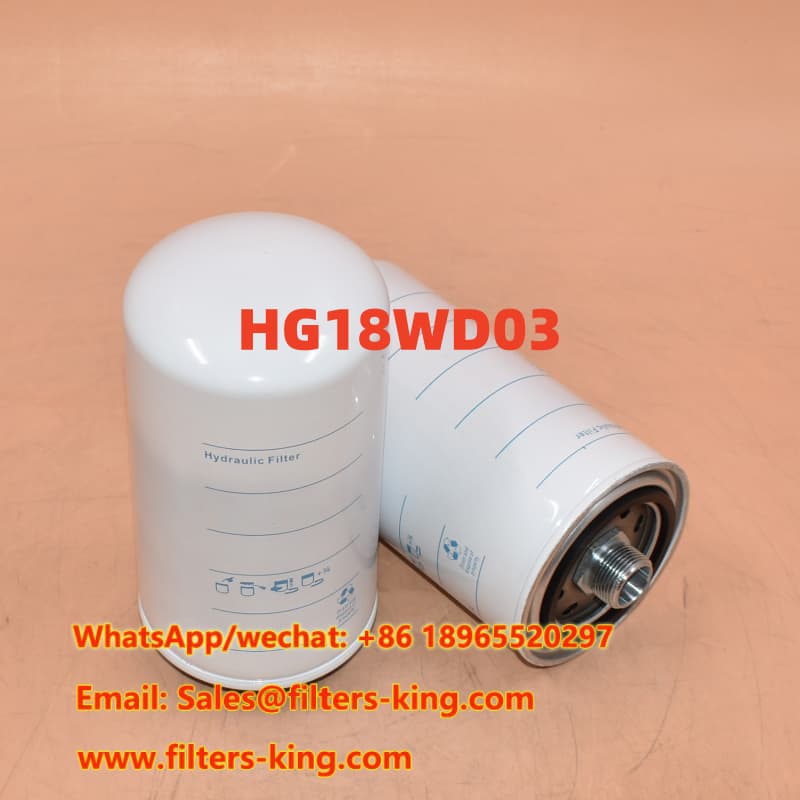

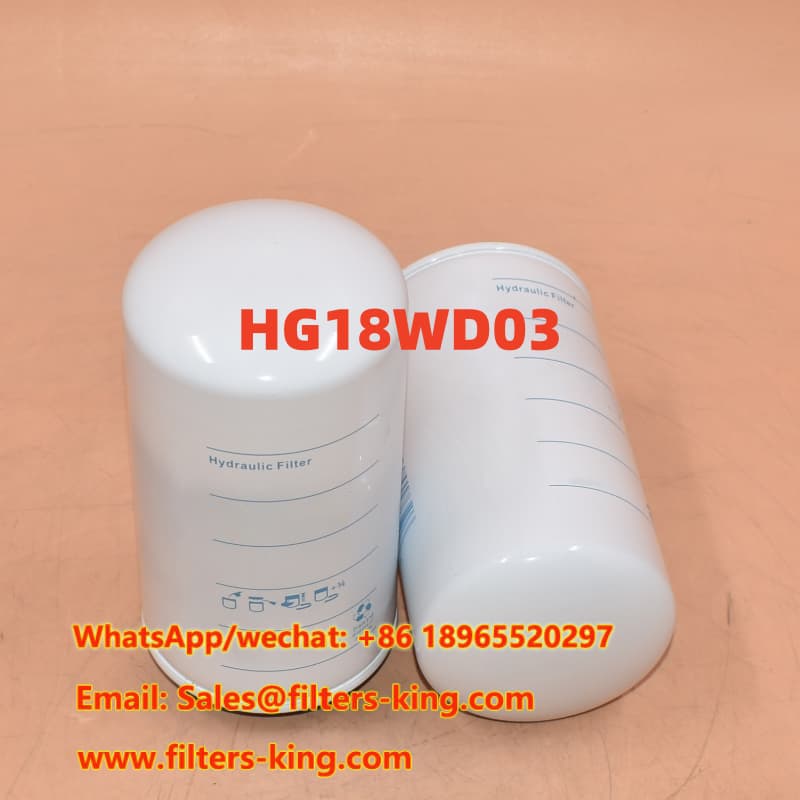

Aftermarket Hydraulic Filter HG18WD03


The Aftermarket Hydraulic Filter HG18WD03 is designed for heavy duty filtration applications where clean hydraulic fluid and reliable equipment operation are important. This replacement filter is suitable for professional buyers looking for a dependable alternative to Hengst-type filter applications. It is available for wholesale supply with a minimum order quantity of 60 pieces and supports aftermarket, OEM and custom filter programs.

For buyers searching for a Hengst Hydraulic Filter Cross Reference, HG18WD03 can be matched with multiple widely used filter references, including Baldwin BT739, Fleetguard HF6317, Luberfiner LFH8595, Mahle HC11 and Mann WD962/9. Always compare the filter dimensions, thread, sealing surface and application before ordering.


Key Features and Benefits

  • Heavy Duty Construction: Built for demanding equipment environments where stable filtration performance is required.
  • Reliable Hydraulic Filtration: Helps reduce unwanted contaminants in hydraulic systems and supports cleaner fluid circulation.
  • Wide Cross-Reference Coverage: Suitable for procurement teams comparing multiple aftermarket and equipment filter references.
  • Wholesale Friendly: A 60-piece MOQ makes the product suitable for distributors, filter stores, repair businesses and aftermarket parts suppliers.
  • OEM and Custom Support: Filter specifications, packaging and branding can be discussed for qualified OEM and ODM projects.
  • Easy Part Number Lookup: The extensive reference list helps buyers identify possible replacement options before placing an order.


Technical Specifications

Specification Details
Part Number HG18WD03
Part Type Hydraulic Filter
Brand Hengst Replacement
Outer Diameter 3.82 inch (97 mm)
Thread Size M24 x 1.5
Length 7.13 inch (181 mm)
MOQ 60 pcs


Hydraulic Filter Cross Reference

This HG18WD03 replacement is commonly searched alongside several hydraulic and transmission filter references. The following cross-reference list is provided for identification and purchasing assistance. Buyers should verify application and physical specifications before final installation.

Brand Reference Numbers
Baldwin BT739
Case IH Z99380A1 S300650 99380A1 1203438H1 299380A1 S301612 185161A1
Caterpillar 5544809
Claas 3419210
Cummins 299380A1
Demag 97932773 77732173
Doosan MX501990 94749039
Dynapac 4700922586
Fleetguard HF6317
Guangxi Liugong Machinery 53C1530 SP100275
Hifi SH 56367
Hitachi 76048328 79109089 AT168989 4286837 4230376
Hyundai 4644138
JCB 4801601
John Deere AT168989 AT159247 PMHF6317 AT140030 AT102377
Kalmar 800819041
Komatsu BW252116 42Y15H0S92
Liebherr 571931508 5005092 500509208
Luberfiner LFH8595
Mahle Knecht HC11
Mann WD962/9
New Holland 76040228 47698894 84160469
Orenstein & Koppel 7380578 378487510 1499397


Hydraulic Filter By Size

For professional filter sourcing, searching Hydraulic Filter By Size can be an effective way to narrow down replacement options. For HG18WD03, buyers should check the 97 mm outer diameter, M24 x 1.5 thread and 181 mm length together with the sealing and mounting configuration. Matching only one dimension is not enough to confirm compatibility.

Our team can also compare customer samples, drawings, old filter labels and part numbers to identify a suitable replacement. This is particularly useful for filter stores and aftermarket distributors managing multiple equipment brands.


OEM Hydraulic Filter and Custom Hydraulic Filter Service

In addition to standard aftermarket filters, CHINA EVERLASTING PARTS CO., LIMITED supports OEM Hydraulic Filter and Custom Hydraulic Filter projects. Buyers can provide a sample, drawing, filter reference or equipment information for evaluation. Custom packaging, private labeling and production requirements can also be discussed for long-term wholesale programs.

The company focuses on stable supply for B2B customers rather than individual retail orders. With a 60-piece MOQ, this filter is suitable for distributors, wholesalers, repair companies, filter stores and aftermarket parts businesses that need repeat purchasing and consistent product specifications.


Why Choose China Everlasting Parts?

  1. Professional Filter Manufacturing: We focus on filtration products for industrial and heavy equipment applications.
  2. Wide Product Range: Our products include air filters, oil filters, fuel filters, hydraulic filters, fuel water separators, breather filters, air dryers and air oil separators.
  3. Cross-Reference Support: Our team can help buyers compare part numbers and application information.
  4. OEM/ODM Capability: Custom products, private labels and packaging solutions are available.
  5. B2B Supply Focus: We support wholesalers, retailers, filter stores and aftermarket service providers with bulk orders.


B2B Customer Testimonials

★★★★★

James Carter — Heavy Equipment Parts Distributor

“The cross-reference information made it easier for our purchasing team to identify the replacement filter for our customers.”

★★★★★

Ryan Mitchell — Filter Store Manager

“The bulk ordering option and clear part-number references fit our aftermarket purchasing workflow well.”

★★★★★

Daniel Brooks — Equipment Service Supplier

“The team responded quickly to our filter inquiry and provided useful information for our replacement program.”


Frequently Asked Questions

Q1: What is the HG18WD03 hydraulic filter used for?

It is an aftermarket filter designed for professional equipment filtration applications. Buyers should confirm the filter reference, dimensions and application before ordering.

Q2: What is the MOQ for this filter?

The standard MOQ is 60 pieces.

Q3: Can you provide a Hengst Hydraulic Filter Cross Reference?

Yes. We can help compare HG18WD03 with commonly searched references such as BT739, HF6317, LFH8595, HC11 and WD962/9, subject to application and specification verification.

Q4: Do you support OEM and custom hydraulic filters?

Yes. OEM, ODM, private labeling and custom filter projects are welcome. Please send your sample, drawing, specifications or required part number for evaluation.


Company Introduction

CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator and Filters Assembly.

We work with retailers, wholesalers, filter stores, aftermarket parts suppliers and after-sales service providers. OEM and ODM projects are welcome, and our team can support product matching, cross-reference inquiries, bulk supply and custom filtration requirements.


Contact Information

Send us your part number, filter size, equipment model or sample. Our team can help check the available replacement, cross-reference information and OEM/custom options.

Contact us for wholesale pricing and filter sourcing support.

WhatsApp / WeChat: +86 18965520297


WhatsApp / WeChat: +86 18144082725

Email: Sales@filters-king.com
