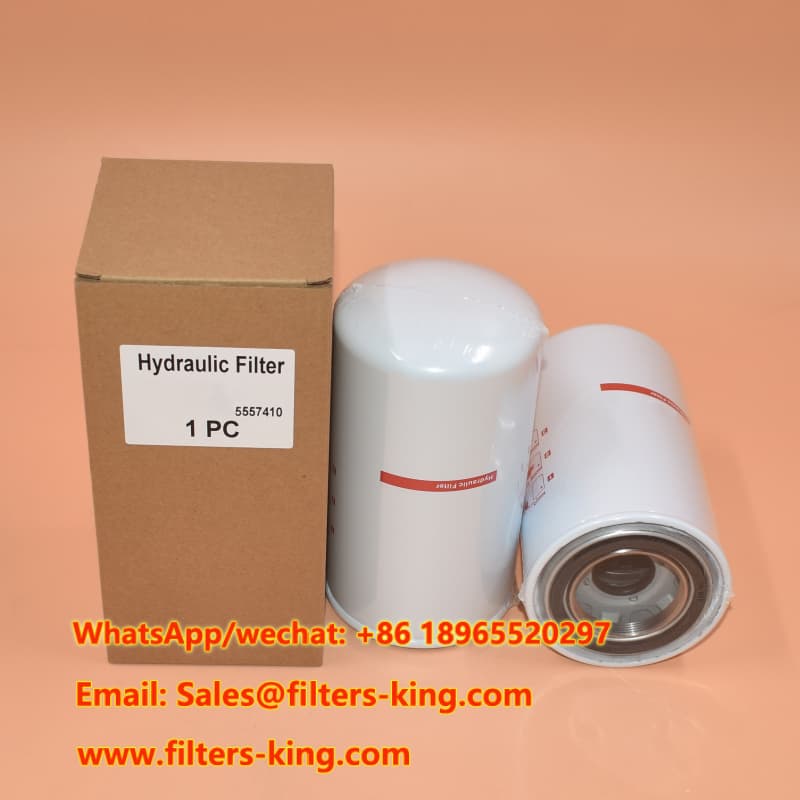

The 557410 Hydraulic Filter is a spin-on hydraulic filtration solution designed for construction equipment, industrial machinery, material handling equipment, and other hydraulic systems. Manufactured as a WIX replacement filter, it provides a practical aftermarket option for distributors, wholesalers, filter stores, maintenance companies, and equipment service providers.
For buyers searching for a reliable Wix Hydraulic Filter Cross Reference, this part number can be cross-referenced with a wide range of commonly used replacement numbers, including Donaldson P550445, Fleetguard HF28857, Baldwin BT8832, Baldwin BT8833, HIFI SH63622, and other applications. Public cross-reference catalogs also list 557410 alongside multiple Clark, Hyster, Daewoo, Grove, Hyundai, Volvo, and other equipment-related numbers.
| Specification | Details |
|---|---|
| Part Number | 557410 |
| Part Type | Hydraulic Filter |
| Brand | WIX Replacement |
| Filter Style | Spin-On Hydraulic Filter |
| Outer Diameter | 3.68 inch (93.5 mm) |
| Thread Size | 2-16 UN |
| Length | 6.81 inch (173 mm) |
| Gasket OD | 2.76 inch (70 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| MOQ | 60 pcs |
The 557410 number is useful when sourcing replacement hydraulic filters across multiple equipment and filter brands. Published cross-reference information associates this filter family with Donaldson P550445, Fleetguard HF28857, Baldwin BT8832/BT8833, HIFI SH63622, Clark 247052, Hyster 1315621 and 246265, Daewoo 44749044, Grove 9414991819, Ingersoll-Rand 247052, PPM H2650573, Taylor 3939002, Tec-Fil PSH236/PSH326, VME MO247052 and other numbers.
Important: Cross-reference numbers are provided for identification and sourcing assistance. Buyers should confirm dimensions, thread, gasket specifications, equipment requirements, and application before ordering.
| Brand | Reference Numbers |
|---|---|
| Atlas Copco | 5112280563 |
| Baldwin | BT8832 |
| Benati | 3214308, 3214743 |
| Clark Equipment | 243054, 246264, 247052, 24702 |
| Daewoo | 44749044 |
| Donaldson | P550445 |
| Eaton Yale & Towne | 8504241 |
| Fiat | 75286525 |
| Fiat Hitachi | 46547797 |
| Fleetguard | HF28857 |
| Grove | 9414991819 |
| Hengst | H454W |
| HIFI Filter | SH63622 |
| Hyster | 246265, 1315621 |
| Hyundai | 1262081X |
| Ingersoll-Rand | 247052 |
| John Deere | AT154383 |
| Kalmar | 247052 |
| Mack | 5839HF28857 |
| PPM | H2650573 |
| Sany | 60077980, 60016394 |
| SF Schupp | SP9252 |
| Taylor Tools | 3939002 |
| Tec-Fil | PSH326 |
| VME | M0247052, MO247052 |
| Volvo | MO247052, M0247052, 247052, VOE247052 |
This replacement filter is suitable for sourcing programs involving construction equipment and hydraulic machinery where a compatible spin-on filtration solution is required. It can be considered by distributors serving loaders, forklifts, material handling equipment, and other machines using compatible hydraulic filter specifications.
For a Construction Equipment Hydraulic Filter purchase, correct fitment is essential. The thread size, gasket dimensions, outside diameter, and overall length should be checked against the existing filter before bulk purchasing. This approach helps reduce installation problems and unnecessary returns.
Hydraulic systems in industrial machines depend on clean hydraulic fluid for reliable operation. A suitable filtration component can help control particulate contamination and support hydraulic system maintenance. The 557410 replacement is therefore suitable for B2B buyers looking for an Industrial Machine Hydraulic Filter for maintenance and replacement programs.
CHINA EVERLASTING PARTS CO., LIMITED provides aftermarket filter sourcing for professional buyers. In addition to standard replacement numbers, we support OEM Hydraulic Filter Aftermarket projects, private-label requirements, packaging customization, and product development based on customer specifications.
If your business requires a Custom Size Hydraulic Filter, our team can evaluate drawings, samples, dimensions, filtration requirements, packaging needs, and target applications. This makes the product suitable for wholesalers, retailers, filter shops, service providers, and distributors seeking a stable long-term supply partner.
Construction Equipment Parts Distributor
“[Insert verified customer testimonial about product fit, cross-reference support, delivery, or repeat orders.]”
Hydraulic Filter Wholesaler
“[Insert verified customer testimonial about aftermarket quality, packaging, MOQ, or wholesale service.]”
Industrial Maintenance Service Provider
“[Insert verified customer testimonial about application support, product consistency, or long-term cooperation.]”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filter manufacturer and supplier serving international B2B customers. Our main product range includes Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filter Assembly products. We also welcome OEM and ODM projects and can provide customized filtration solutions according to customer requirements.
If you are looking for a 557410 Hydraulic Filter replacement for wholesale, retail, equipment maintenance, or aftermarket distribution, please contact our sales team for pricing, availability, cross-reference confirmation, packaging options, and OEM/ODM requirements.
