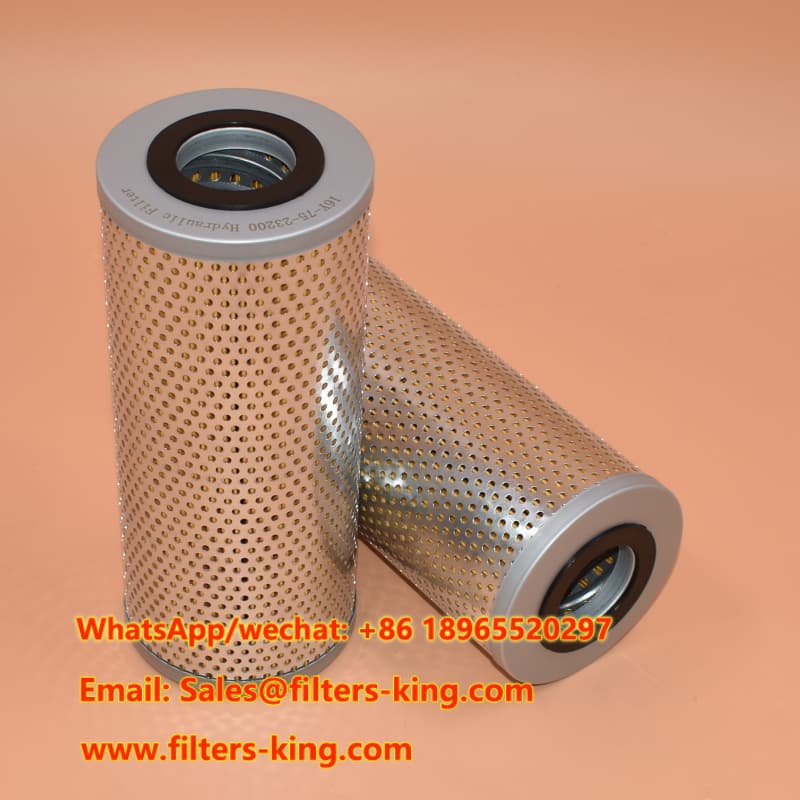

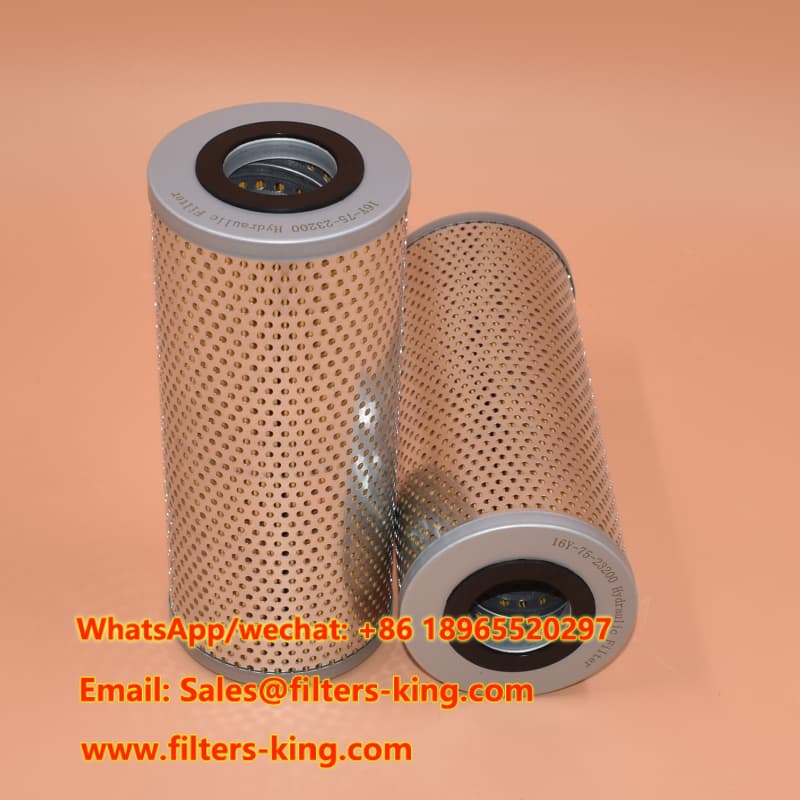

The 16Y-75-23200 Hydraulic Filter is designed as a high performance replacement filter element for Shantui construction equipment. It is widely used in bulldozers and heavy machinery including Shantui SD16, SD22, SD32, TY220, TY230 and TY320 models. This hydraulic oil filter helps remove contaminants from hydraulic oil, protecting hydraulic components and improving equipment operating stability.
Compared with standard replacement filters, the 16Y-75-23200 hydraulic filter offers reliable filtration efficiency and consistent quality. The filter structure is optimized to maintain proper oil flow while capturing dust, metal particles and other impurities inside hydraulic systems.
For distributors, repair companies and filter retailers, this OEM standard hydraulic filter provides a cost-effective solution with stable supply capability. Our production process follows strict quality control procedures to ensure every filter meets professional aftermarket requirements.
| Item | Specification |
|---|---|
| Part Number | 16Y-75-23200 / 16Y-752-3200 |
| Product Type | Hydraulic Oil Filter Element |
| Brand Replacement | Shantui Replacement |
| Application | Shantui SD16 SD22 SD32 TY220 TY230 TY320 |
| Outer Diameter | 98 mm |
| Inside Diameter | 43 mm |
| Height | 234 mm |
| MOQ | 60 pcs |
| Brand | Part Number |
|---|---|
| Caterpillar | 9Y4520 |
| Donaldson | P551158 |
| Fleetguard | HF6072 |
| General Motors | 25012551 |
| HiFi Filter | SH 56122 |
| Komatsu | 1754911580 |
This heavy duty hydraulic filter is suitable for construction equipment maintenance applications. It is an ideal choice for hydraulic filter distributors, aftermarket parts suppliers, equipment repair companies and professional filter shops looking for reliable replacement filtration products.
