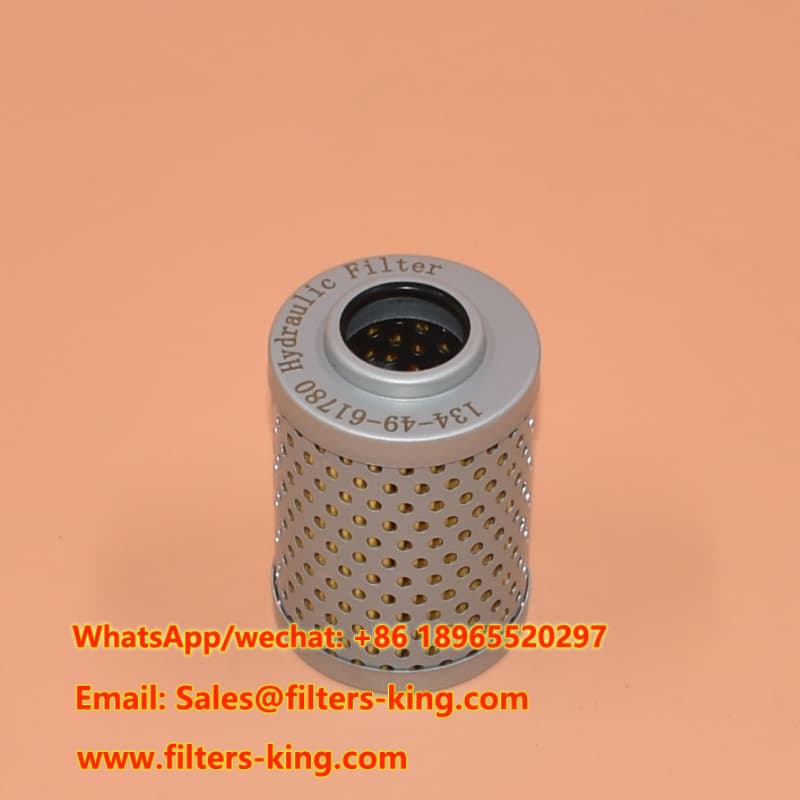

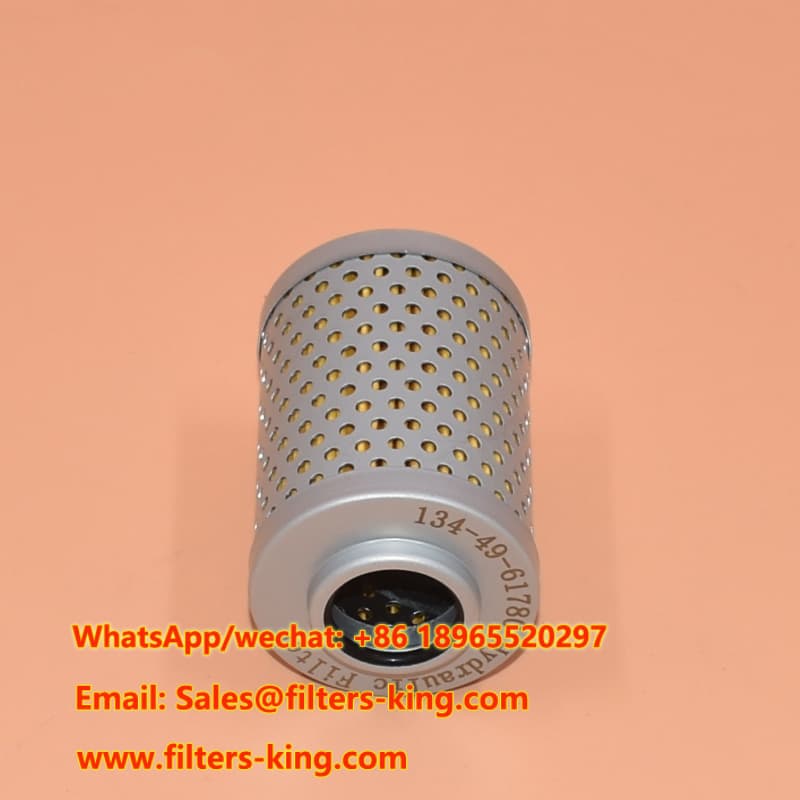

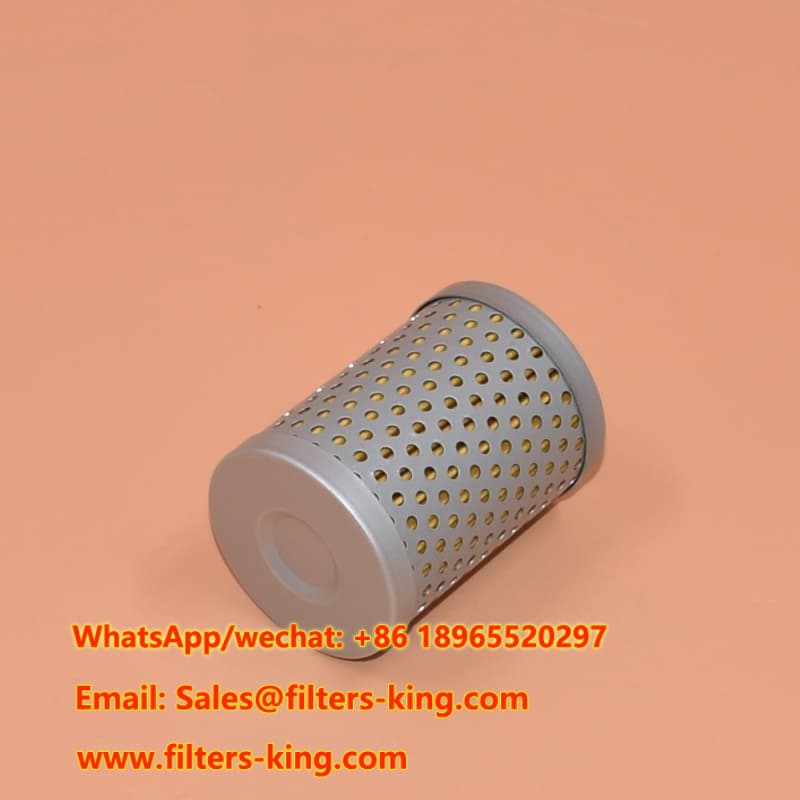

134-49-61780 Hydraulic Filter is a high-quality replacement filter designed for Komatsu D85ESS-2 bulldozers. It is developed to provide reliable hydraulic system protection by removing contaminants, metal particles, and impurities from hydraulic oil. This Komatsu Hydraulic Filter replacement helps maintain hydraulic system cleanliness, improve component service life, and ensure stable machine operation under demanding working conditions.
CHINA EVERLASTING PARTS CO., LIMITED supplies professional aftermarket filtration solutions for construction equipment, industrial machinery, and heavy-duty applications. We manufacture various filters including Air Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filter Assembly. OEM and ODM services are available to meet different customer requirements.
134-49-61780 Hydraulic Filter Element Replacement is manufactured with advanced filtration materials and precise production technology. The filter element provides excellent dirt-holding capacity and stable filtration performance, making it suitable for harsh environments such as construction sites, mining operations, and industrial applications.
Compared with standard filter elements, this High Pressure Hydraulic Oil Filter provides improved contamination control and longer operating stability. The optimized filter media allows hydraulic oil to pass smoothly while capturing harmful particles that may damage expensive hydraulic components.
For distributors, wholesalers, and aftermarket service providers, 134-49-61780 offers a reliable sourcing option with consistent quality, competitive pricing, and OEM replacement compatibility. It is an ideal choice for customers looking for a Heavy Duty Hydraulic Filter solution.
| Item | Specification |
|---|---|
| Part Number | 134-49-61780 |
| Product Type | Hydraulic Filter |
| Brand | Komatsu Replacement |
| Application | Komatsu Bulldozer D85ESS-2 |
| Outer Diameter | 52 mm |
| Inside Diameter | 23 mm |
| Height | 78 mm |
| MOQ | 60 pcs |
134-49-61780 Hydraulic Filter is interchangeable with the following filter numbers:
| Brand | Cross Reference Number |
|---|---|
| Baldwin | PT8341 |
| Case IH | KHJ1493, 151552A1 |
| Caterpillar | 964592, 997352, 966431 |
| Donaldson | P551347 |
| Fleetguard | HF35456 |
| HiFi | SH 60027 |
| Hitachi | L687 |
| Wix | 57105 |
| Yanmar | 17252773970 |
This hydraulic filter element is widely used for construction equipment, bulldozers, industrial machines, and heavy-duty hydraulic systems. It is suitable for professional maintenance companies, equipment dealers, hydraulic repair shops, filter distributors, and aftermarket suppliers.
The High Flow Hydraulic Filter Element design ensures stable oil circulation and effective contamination removal, helping customers reduce maintenance costs and improve equipment reliability.
"Excellent quality hydraulic filter. The replacement fit perfectly on our Komatsu equipment. Fast delivery and professional service."
— Heavy Equipment Distributor, USA
"We have purchased hydraulic filters regularly for our aftermarket business. Stable quality and competitive pricing make this supplier reliable."
— Filter Wholesale Customer, Europe
"The filter performance is very good. It helps our customers maintain construction machines with confidence."
— Machinery Service Provider, Middle East
