RS4629 Air Filter OEM ODM

Part Number:RS4629
Part Type:Air Filter
Brand:Baldwin Replacement
MOQ:20pcs
  • Details

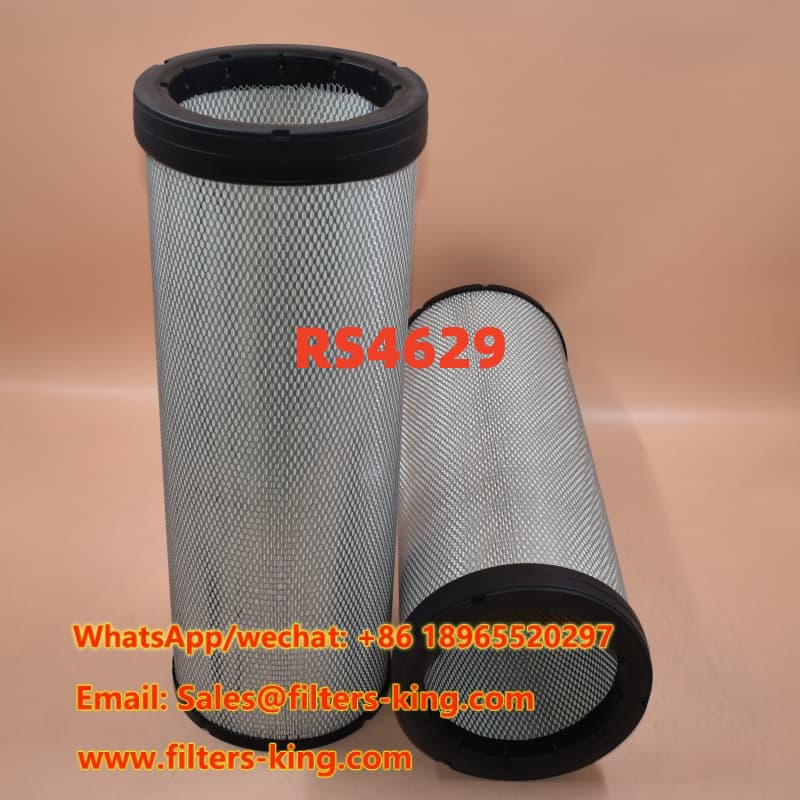

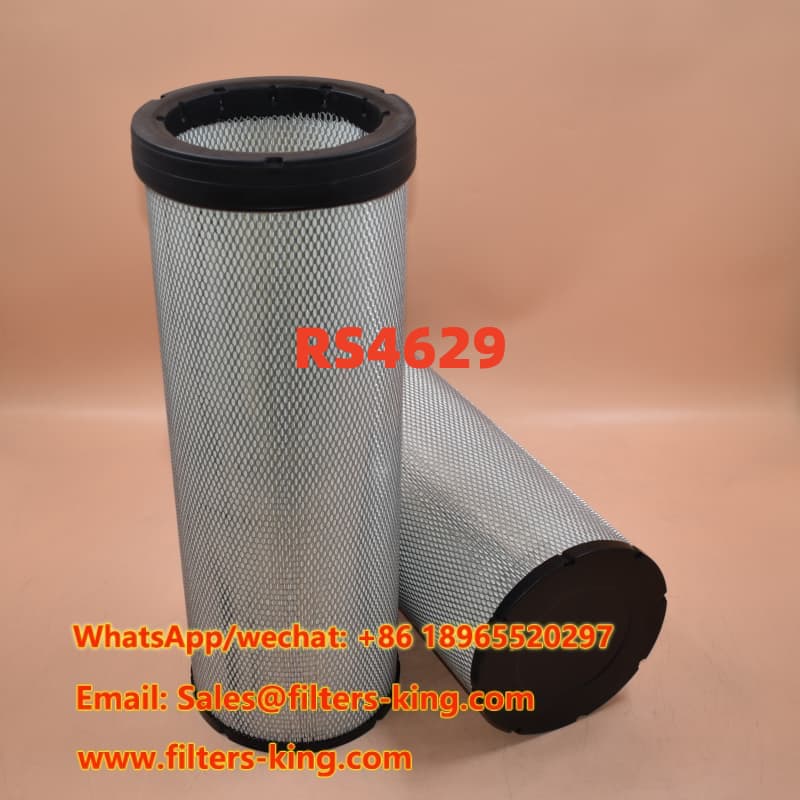

RS4629 Air Filter OEM ODM for Heavy Duty Equipment


The RS4629 Air Filter is a Baldwin replacement air filter designed for professional maintenance, aftermarket distribution, and heavy equipment service applications. As an OEM Engine Air Filter replacement option, it helps protect engine air intake systems from dust, dirt, and airborne contaminants. This product is suitable for retailers, wholesalers, filter stores, and after-sales service providers that need a dependable replacement filter with consistent supply. It can also be supplied under OEM and ODM programs for customers who need customized packaging, branding, or product specifications.


Key Product Features


Reliable Engine Air Protection

The filter media is designed to provide effective contaminant capture for engine air intake systems. Cleaner intake air helps reduce the amount of abrasive dust reaching sensitive engine components, supporting stable equipment operation and routine maintenance.

Heavy Duty Application Support

This Heavy Duty Equipment Air Filter is positioned for demanding equipment environments where filtration reliability and replacement availability are important. The RS4629 reference is associated with applications from equipment and engine brands including Caterpillar, Case IH, New Holland, Sandvik, Volvo, Bell, Doosan, Dynapac, and other industrial equipment manufacturers.

Durable and Cost-Efficient Replacement

A dependable replacement filter can help service teams maintain planned maintenance schedules and reduce unnecessary equipment downtime. The RS4629 replacement is developed for professional aftermarket supply, making it suitable for distributors that require repeat-order support and stable product quality.

OEM ODM and Custom Air Filter Service

CHINA EVERLASTING PARTS CO., LIMITED supports Custom Air Filter projects for qualified B2B customers. OEM and ODM services can support customized labels, packaging, product identification, and other project requirements. This gives wholesalers and filter stores more flexibility when developing private-label or regional replacement filter programs.


Technical Specifications

Specification Details
Part Number RS4629
Part Type Air Filter
Brand Baldwin Replacement
Overall Length 24.57 inch (624 mm)
Outer Diameter 9.09 inch (230.9 mm)
Inner Diameter 6.94 inch (176.3 mm)
Length 24.57 inch (624 mm)
MOQ 20 pcs


Baldwin Air Filter Cross Reference

For procurement teams searching for a Baldwin Air Filter Cross Reference, RS4629 is commonly cross-referenced with multiple aftermarket and equipment part numbers. Cross-reference numbers should be checked against the application, filter design, and required dimensions before ordering.

Brand Cross Reference Part Numbers
Atlas Copco 1606663504
Bell Equipment 221378
Case IH 84819118 87417043 87417041 84530498
Caterpillar 4256237 2466085 2465010
Cetco Inc. 867010442
Compair 4311311 CZ4311322
Cummins CDD001428
Doosan MX511952
Dresser 867010486
Dynapac 4700950172
FG Wilson 160428
Fleetguard AF26208
Grove 9304220010
Guascor 7650285
Hengst E1697LS
New Holland 6901180 87417043 84818003 84530498 87417045 84819118 84432504
Sandvik 6307061 504774 56023053
Volvo 21386706 56025291 VOE56025291


Common Aftermarket Cross References

Brand Part Number
Baldwin RS4629
Donaldson P781102 P922483 G180031 G180035 G180038
Fleetguard AF26208
Hengst E1697LS
HIFI Filter SA16354
Luber-Finer LAF5569
MANN+HUMMEL CF23550 CF235502
Sakura A7626 A7627S
WIX 42848 542848


Why Choose Our RS4629 Air Filter

1. B2B-Focused Supply: MOQ starts from 20 pcs, supporting retailers, wholesalers, filter stores, and service companies.

2. Broad Cross Reference: Multiple common part numbers make product identification and aftermarket sourcing easier.

3. OEM ODM Support: Custom branding and packaging programs are available for qualified business customers.

4. Professional Filter Manufacturing: Our product range covers air, oil, fuel, hydraulic, fuel-water separator, breather, air dryer, and other filtration products.

5. Flexible Replacement Programs: Suitable for recurring procurement, aftermarket distribution, equipment maintenance, and filter replacement projects.


Application and Target Customers

The RS4629 replacement is suitable for B2B customers supplying heavy equipment maintenance and aftermarket filtration products. Typical customer groups include filter retailers, wholesalers, filter stores, equipment after-sales service providers, maintenance companies, and industrial replacement-parts distributors. It can be used as a replacement reference for equipment applications associated with Caterpillar, Case IH, New Holland, Sandvik, Volvo, Bell, Doosan, Dynapac, and other compatible equipment platforms. Always verify the application and dimensions before placing an order.


B2B Customer Testimonials


★★★★★

“The cross-reference information makes it easier for our purchasing team to identify replacement filters for different equipment customers.”

— Ethan Brooks, Purchasing Manager, Industrial Filter Distributor

Example testimonial template

★★★★★

“The 20-piece MOQ is practical for our filter store because we can test demand without holding excessive inventory.”

— Marcus Reed, Aftermarket Parts Buyer, Equipment Service Company

Example testimonial template

★★★★★

“We were looking for an OEM ODM supplier for our replacement filter program, and the customization support is useful for our distribution business.”

— Daniel Foster, Sourcing Director, Heavy Equipment Parts Wholesaler

Example testimonial template



Frequently Asked Questions


What is the RS4629 Air Filter?

RS4629 is a Baldwin replacement air filter reference used across a range of heavy equipment and industrial applications. It is also cross-referenced with several aftermarket and equipment part numbers.

What is the Fleetguard equivalent to RS4629?

Fleetguard AF26208 is a commonly listed cross-reference for Baldwin RS4629.

Can you provide OEM or ODM air filters?

Yes. CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM filter programs, including customized product and packaging requirements for qualified B2B customers.

What is the MOQ for RS4629?

The standard MOQ for this RS4629 replacement air filter is 20 pcs.
