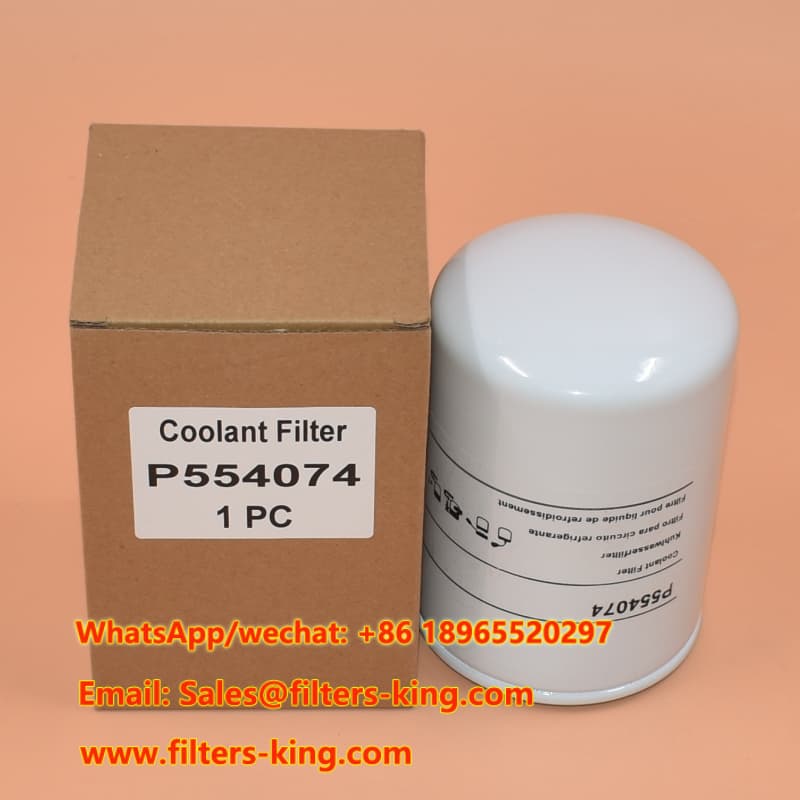

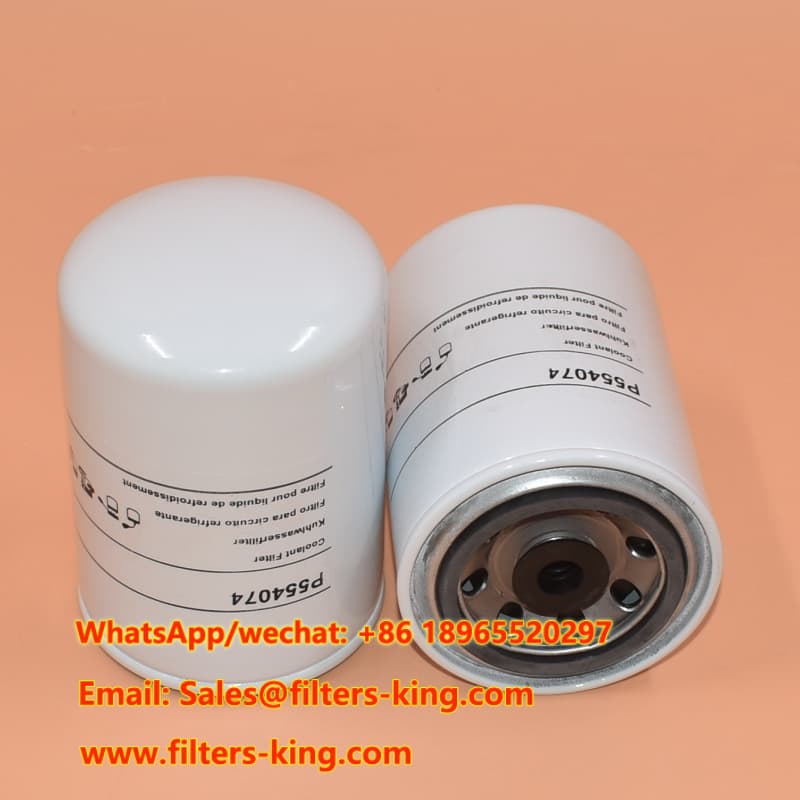

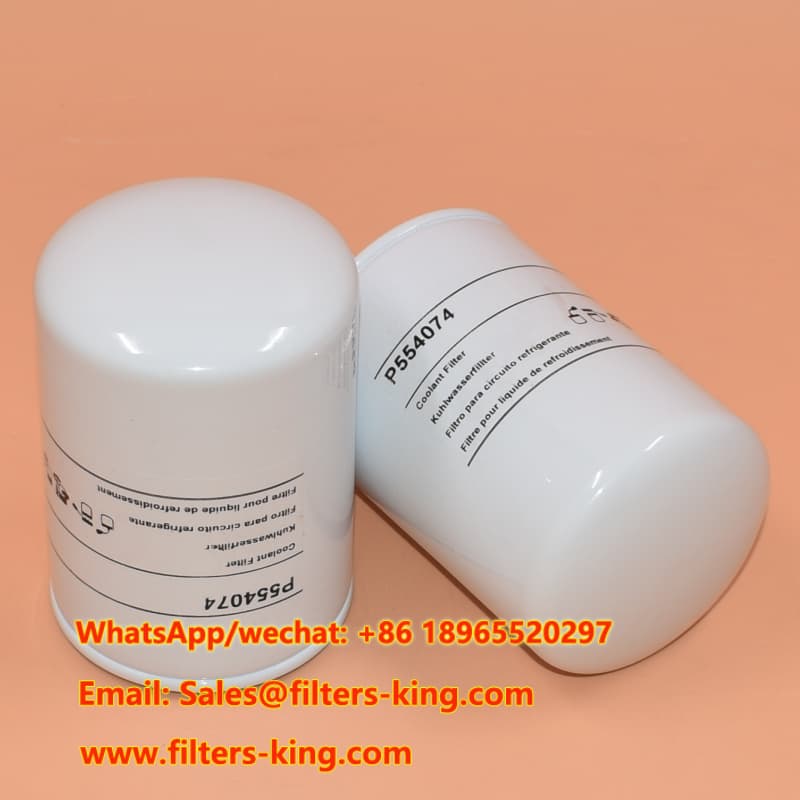

The P554074 Coolant Filter is designed as a reliable replacement for Donaldson coolant filtration systems and is widely used in heavy duty engines, construction equipment, industrial machinery, agricultural equipment, and commercial vehicles.
This spin-on coolant filter helps maintain clean engine coolant circulation by removing harmful contaminants, rust particles, and impurities from the cooling system. With stable filtration performance and durable construction, the P554074 Engine Coolant Filter provides an effective solution for distributors, wholesalers, repair service providers, and filter shops looking for dependable aftermarket products.
The P554074 Coolant Filter is manufactured according to OEM replacement standards. It features a spin-on design for convenient installation and maintenance, making it suitable for professional service applications where filtration reliability and replacement efficiency are important.
Reliable Engine Protection:
The High Efficiency Coolant Filter helps reduce coolant contamination and supports stable cooling system performance. Clean coolant circulation can help protect engine components and improve equipment reliability.
Professional Aftermarket Solution:
For distributors and maintenance companies, the P554074 provides a cost-effective alternative to original filter brands while maintaining consistent quality and filtration performance.
Wide Application Compatibility:
This Heavy Duty Coolant Filter is suitable for various diesel engines and equipment applications, including construction machinery, mining equipment, agricultural machines, and industrial power systems.
For global filter suppliers and aftermarket businesses, choosing P554074 coolant filter replacement products provides several advantages:
| Parameter | Specification |
|---|---|
| Part Number | P554074 |
| Filter Type | Spin-on Coolant Filter |
| Brand | Donaldson Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 11/16-16 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.40 inch (61 mm) |
The P554074 Industrial Coolant Filter is widely used in applications requiring reliable coolant filtration and engine protection.
Compatible equipment brands include Cummins, Case IH, Doosan, Hitachi, Hyundai, John Deere, Komatsu, Liebherr, New Holland, Volvo, XCMG and other heavy equipment manufacturers.
The following cross reference numbers are provided for identification purposes only. The P554074 Coolant Filter is manufactured as an aftermarket replacement compatible with various OEM filter brands. Please verify filter specifications before ordering.
| Brand | Cross Reference Part Number |
|---|---|
| Agco | 72509505 |
| Alaska Diesel | 2414802 |
| Baldwin | BW5140 |
| Case IH | J100307 / S302030 / 1815588C1 |
| Cummins | 1303540 / 3831133 / 3316053 / 3315114 / 3310752 / 3100307 |
| Daewoo | 91008147 |
| Dongfeng Motor | C3100307 |
| Doosan | K1008147 / 91008147 |
| Euclid-Hitachi | E12968663 |
| Fiat Hitachi | 76580325 / 71495751 |
| Fiatallis | 9901570 |
| Fleetguard | WF2074 |
| Ford | 861361 / E8HN8A424AA / E7HZ8A424C |
| General Motors | 23507189 / 25012897 |
| HiFi Filter | WE2074 |
| Hitachi | E12968663 / 12968663 / L4299640 / E12975524 / 4299640 / 42996401 |
| Hyundai | 11NA70210 / 11LB70010 / 11LB70010PB |
| IHC | 1815588C1 |
| Ingersoll-Rand | 22345748 |
| JCB | 2910551A / 2910551 |
| John Deere | 4299640 / AT280321 |
| Kalmar | 800039116 |
| Komatsu | CUWF2074 / 6742013990 / 6004111420 / 129263H1 |
| Liebherr | 7367935 |
| Manitou | 4136240 |
| Mann | WA 940/7 |
| McCormick | 707155A1 |
| New Holland | 861361 / 80861361 / 76580325 / 47601183 |
| Orenstein & Koppel | 1461583 |
| PPM | N6150534 |
| Sakura | WC-5712 |
| SDMO | 330560058 |
| Sisu | 1696300441 |
| Terex / Terex Advance | 15270826 |
| Volvo | 991216053 / 12968663 / 129686630 |
| Wirtgen | 20718 |
| Wix | 24074 |
| XCMG | 384601373 |
