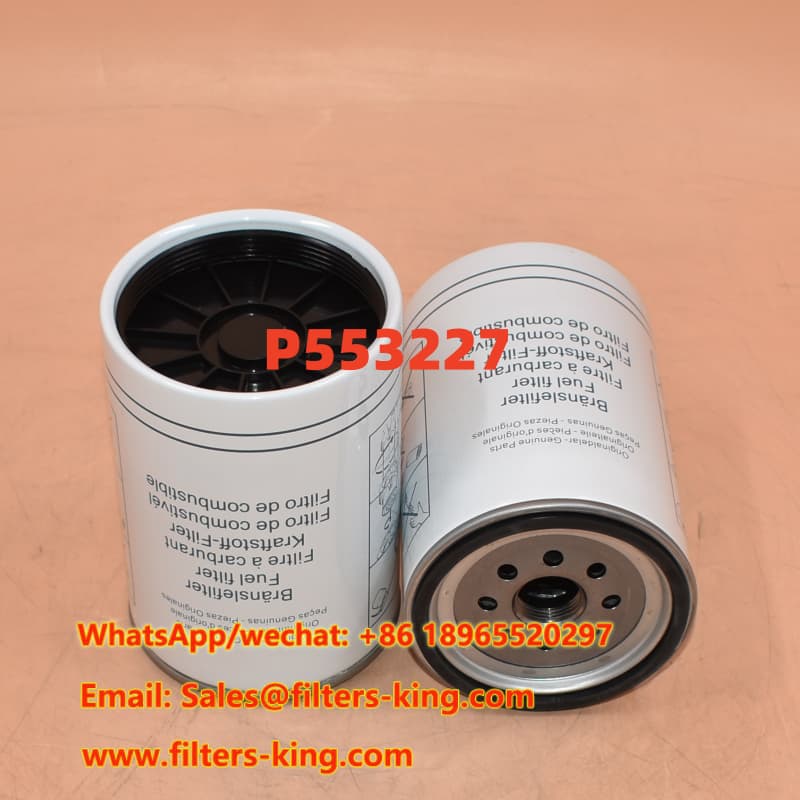

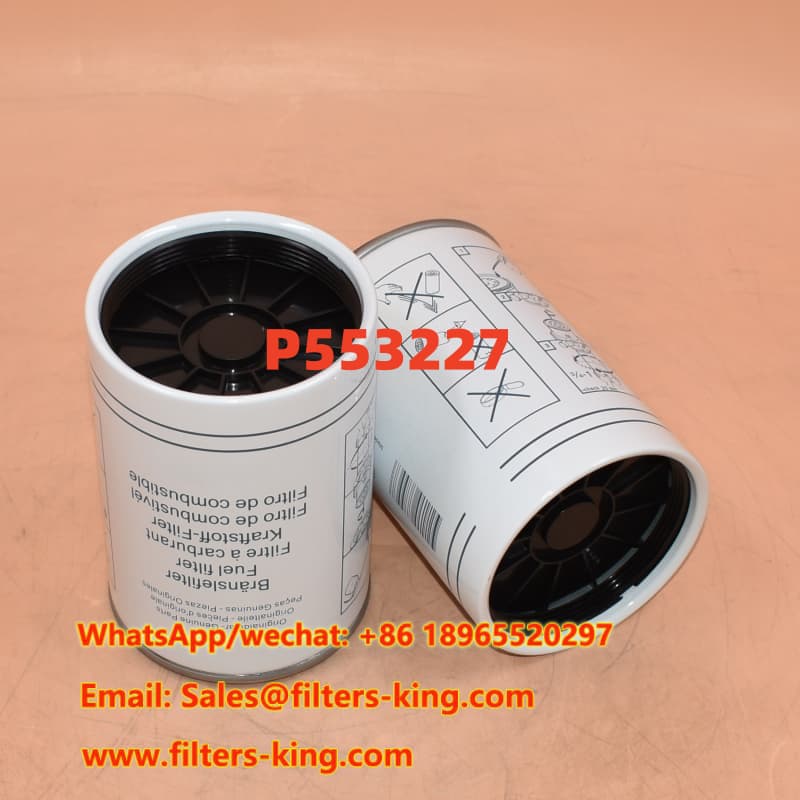

The P553227 Fuel Water Separator is a high-efficiency Donaldson replacement designed for diesel fuel filtration and water separation applications. It is a practical choice for retailers, aftermarket service providers, wholesalers, and filter stores that need a dependable replacement part with broad cross-reference coverage. This spin-on fuel water separator helps remove water and contaminants from diesel fuel before they can reach sensitive fuel system components. Its replacement design supports easier routine maintenance and helps reduce service downtime. For bulk buyers, we offer a minimum order quantity of 60 pieces, with OEM, ODM, and custom filter solutions available.
Water and solid contaminants in diesel fuel can affect fuel system reliability and accelerate wear. The P553227 replacement is designed as a fuel water separator to support cleaner fuel delivery and better protection of downstream components. For heavy-duty equipment and diesel-powered systems, effective separation can help support stable operation and routine maintenance.
The spin-on configuration is convenient for scheduled filter replacement. It is suitable for maintenance teams and aftermarket service companies that need to replace used filters efficiently. The design also supports applications using compatible bowls, drain valves, and water-in-fuel components.
This P553227 replacement is commonly cross-referenced with part numbers from Caterpillar, Doosan Daewoo, Fleetguard, Hifi, Keestrack, MANN, Perkins, Renault, SF Schupp, Volvo and other filtration systems. This makes it easier for distributors and filter stores to match replacement demand across different equipment and service markets.
We supply this fuel water separator for wholesale and aftermarket distribution. A 60-piece MOQ supports regular stocking programs, while OEM and ODM services are available for buyers who require customized filter specifications, packaging, labeling, or product development.
| Item | Specification |
|---|---|
| Part Number | P553227 |
| Part Type | Fuel Water Separator |
| Brand | Donaldson Replacement |
| Outer Diameter | 4.37 inch (110.99 mm) |
| Thread Size | 1-14 UN |
| Length | 6.23 inch (158.24 mm) |
| Gasket OD | 4.12 inch (104.7 mm) |
| Gasket ID | 3.72 inch (94.5 mm) |
| Bowl Thread | 3 3/4-10 UN |
| MOQ | 60 pcs |
Buyers searching for a Donaldson Fuel Water Separator Filter Cross Reference can use the following commonly referenced part numbers to check replacement requirements. Always confirm the complete filter dimensions, thread, gasket, bowl connection, and equipment application before ordering.
| Brand | Cross Reference Part Number |
|---|---|
| Caterpillar | 460-0310 |
| Doosan Daewoo | 40050400084 |
| Fleetguard | FS20112 FS19798 |
| Hifi | SN 909120 |
| Keestrack | 100782 880346 |
| Mann | WK11038Z WK11042Z |
| Perkins | 4600311 |
| Renault | 7421538977 7121538977 |
| SF Schupp | SK 48741 |
| Volvo | 21538975 VOE21538977 |
The P553227 replacement is suitable for diesel fuel filtration applications where water separation is required. It can be supplied to distributors and service companies supporting construction equipment, heavy-duty machinery, generators, industrial engines, transportation equipment, and other diesel-powered systems.
For procurement teams, the broad cross-reference range makes this part useful when managing multiple replacement brands. Instead of maintaining a separate stock for every filter brand, buyers can use verified part-number matching to identify suitable aftermarket supply options. Please provide your equipment model, existing filter number, or complete filter dimensions when application confirmation is required.
Ethan Parker
Procurement Manager
“The cross-reference information made it easier for our team to identify the replacement filter. The bulk supply option also fits our regular aftermarket purchasing program.”
James Mitchell
Aftermarket Parts Buyer
“We needed a diesel fuel water separator with several matching part numbers. The technical confirmation and product specifications were clear and useful for our purchasing team.”
Daniel Cooper
Wholesale Filter Distributor
“The product is a good fit for our replacement filter business. We appreciate the OEM and ODM options and the support for larger-volume orders.”
In addition to standard replacement filters, CHINA EVERLASTING PARTS CO., LIMITED provides OEM ODM Fuel Water Separator solutions for distributors and equipment-related businesses. If you need a custom fuel water separator, please send your target part number, drawing, sample, technical specification, required filtration performance, or application information.
We can discuss customized dimensions, filtration media, labeling, packaging, and other product requirements according to your project. Our goal is to provide a stable aftermarket supply solution for professional buyers rather than individual consumers.
Commonly referenced alternatives include Caterpillar 460-0310, Doosan Daewoo 40050400084, Fleetguard FS20112, Hifi SN 909120, MANN WK11038Z, Renault 7421538977, SF Schupp SK 48741, and Volvo 21538975. Application and dimensional confirmation is recommended before ordering.
The MOQ for this product is 60 pieces. Please contact us for bulk purchasing requirements and quantity-based quotations.
Yes. We support OEM and ODM fuel water separator projects. Custom product specifications, packaging, labeling, and other requirements can be discussed according to the project.
Send us the original filter part number, equipment model, application information, or complete filter dimensions. Our sales team can check the available cross-reference information before quotation.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer serving global B2B buyers. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.
We support retailers, after-sales service providers, wholesalers, and filter stores with aftermarket replacement filters and customized filtration solutions. OEM and ODM projects are welcome. Our team focuses on product matching, cross-reference support, bulk supply, and practical filtration solutions for professional procurement customers.
Looking for a Diesel Fuel Water Separator Replacement in bulk? Contact CHINA EVERLASTING PARTS CO., LIMITED for P553227 replacement filters, cross-reference checking, OEM ODM service, and custom fuel water separator solutions.
