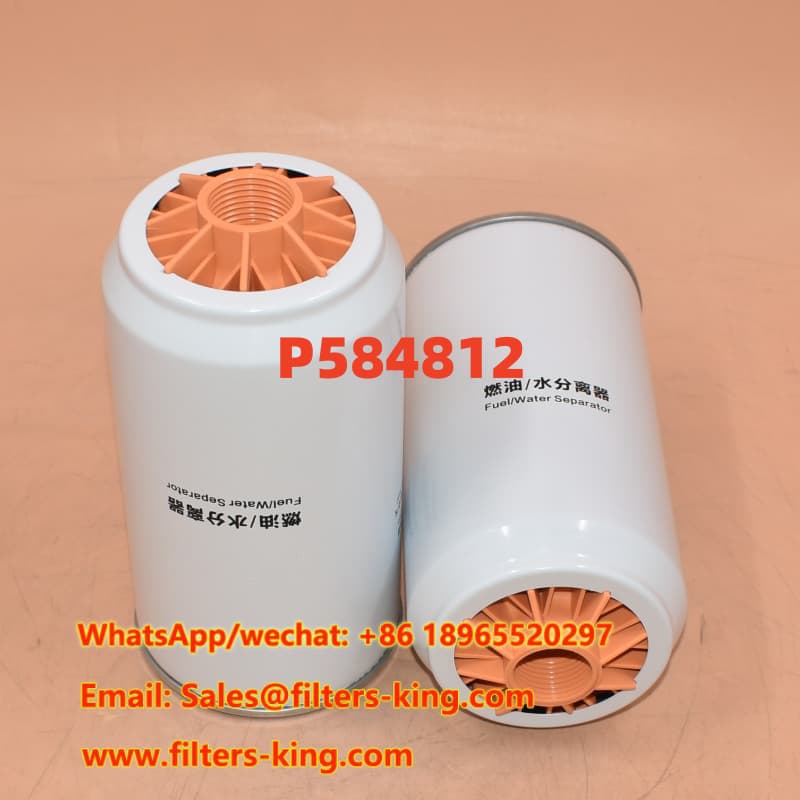

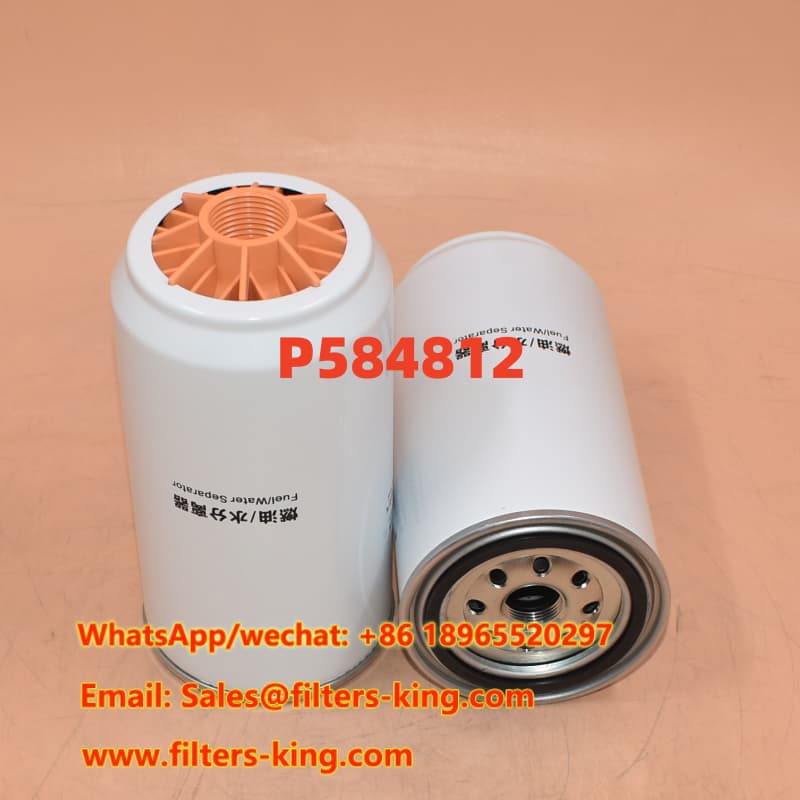

OEM ODM Fuel Water Separator P584812 | Donaldson Fuel Water Separator
The P584812 Fuel Water Separator is a Donaldson replacement filter designed for diesel fuel filtration systems that require effective water and contaminant separation. It is a practical aftermarket solution for professional buyers who need dependable filtration products for equipment maintenance, fleet service and replacement filter distribution.
With its spin-on fuel filtration design, the P584812 supports convenient replacement during routine service. This product is also suitable for buyers searching for a Donaldson Fuel Water Separator replacement, cross-reference solution or Custom Fuel Water Separator program for wholesale and aftermarket applications.
The filter is designed to help separate water and unwanted contaminants from diesel fuel before they reach sensitive fuel-system components. Better control of fuel contamination can support cleaner fuel delivery and more reliable equipment operation.
P584812 is intended for commercial equipment, diesel engines, fleet maintenance and aftermarket filter supply. Its application-focused design makes it suitable for service companies and parts distributors that need consistent replacement filtration.
The replacement filter is designed for routine fuel-system maintenance. A properly scheduled Fuel Water Separator Change can help maintain filtration performance and reduce the risk of excessive water or dirt accumulation in the fuel system.
Buyers with private-label or application-specific requirements can discuss a Custom Fuel Water Separator program with our team. OEM and ODM services can support customized products, packaging and recurring B2B supply requirements.
| Parameter | Specification |
|---|---|
| Part Number | P584812 |
| Part Type | Fuel Water Separator |
| Brand | Donaldson Replacement |
| MOQ | 60 pcs |
| Outer Diameter | 108 mm / 4.25 inch |
| Thread Size | 1-14 UN |
| Length | 213 mm / 8.39 inch |
| Gasket OD | 90 mm / 3.54 inch |
| Gasket ID | 80 mm / 3.15 inch |
| Bowl Thread | 1 1/4-10 UN |
The following part numbers are provided for professional cross-reference and product identification. Cross-reference numbers may vary by equipment model or filtration system, so buyers should confirm the application before purchasing.
| Brand | Cross Reference Part Numbers |
|---|---|
| Cummins | 5300515 |
| Doosan Daewoo | 40050400383 |
| Fleetguard | FS36216 |
| Hifi Filter | SN40727 |
| Liugong | 53C0574 53C0574P02 |
| Sakura | SFC-57200 |
| Scania | 2756880 |
| SF Schupp | SK48828 |
| Weichai | CLX240A 612630080088 |
| Yuchai Eng Machinery | 612630080088 612630081335 |
Proper Fuel Water Separator Maintenance is important for diesel equipment operating in demanding environments. Water, dirt and other contaminants can accumulate in the fuel filtration system over time. Regular inspection and timely filter replacement can help maintain fuel-system cleanliness.
Inspect the separator according to the equipment manufacturer's service schedule. Signs of excessive contamination, water accumulation or reduced fuel flow should be addressed as part of normal maintenance.
Service intervals depend on fuel quality, operating conditions, equipment usage and the manufacturer's maintenance recommendations. Heavy-duty equipment operating in dusty or demanding environments may require more frequent inspection.
When replacement is required, use a compatible filter and inspect the sealing area before installation. After completing a Fuel Water Separator Change, follow the equipment manufacturer's priming and bleeding procedures where applicable.
P584812 can be supplied as an aftermarket fuel water separator for diesel equipment and engine filtration applications. The listed cross-reference range covers applications associated with Cummins, Doosan Daewoo, Fleetguard, Hifi Filter, Liugong, Sakura, Scania, SF Schupp, Weichai and Yuchai.
The product is particularly suitable for filter retailers, after-sales service providers, wholesalers, filter stores and professional diesel parts distributors that need replacement filters for recurring service requirements.
1. Professional Filter Manufacturer: We specialize in a wide range of replacement filtration products for diesel and industrial applications.
2. Extensive Filter Range: Our products include fuel filters, fuel water separators, oil filters, hydraulic filters, air filters, air dryers, breather filters and air oil separators.
3. Cross-Reference Support: We help B2B buyers identify replacement products by part number and application requirements.
4. OEM and ODM Capability: We welcome private-label, customized packaging and application-specific filter projects.
5. B2B-Focused Service: We supply retailers, after-sales service companies, wholesalers and filter stores with professional product and order support.
“The P584812 cross-reference information helped our purchasing team confirm the replacement quickly. Communication was clear and professional.”
Carlos — Filter Distribution Manager
“We were looking for a consistent fuel water separator supply for our service customers. The product information made ordering much easier.”
Steven — After-Sales Service Buyer
“The supplier understood our wholesale requirements and provided useful support for part-number matching and repeat orders.”
Markus — Wholesale Filter Buyer
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator and Filters Assembly.
We focus on aftermarket replacement filtration products and welcome OEM and ODM cooperation. Our products and services are designed for professional buyers including retailers, after-sales service providers, wholesalers and filter stores. We can also support cross-reference matching and customized filter sourcing according to customer requirements.
P584812 is a fuel water separator filter and is supplied by China Everlasting Parts as a Donaldson replacement for compatible diesel fuel filtration applications.
Common references supplied for this product include Cummins 5300515, Fleetguard FS36216, Hifi SN40727, Liugong 53C0574 and 53C0574P02, Sakura SFC-57200, Scania 2756880, SF Schupp SK48828, Weichai CLX240A and 612630080088, and Yuchai 612630080088 and 612630081335.
The replacement interval depends on the equipment manufacturer's maintenance schedule, fuel quality and operating conditions. Regular inspection is recommended, especially for equipment operating under heavy-duty conditions.
Yes. We welcome OEM and ODM projects and can discuss customized filter specifications, private labeling, packaging and long-term B2B supply programs.
The current MOQ for P584812 is 60 pieces. Please contact us for bulk pricing, packaging options, delivery time and customized order requirements.
