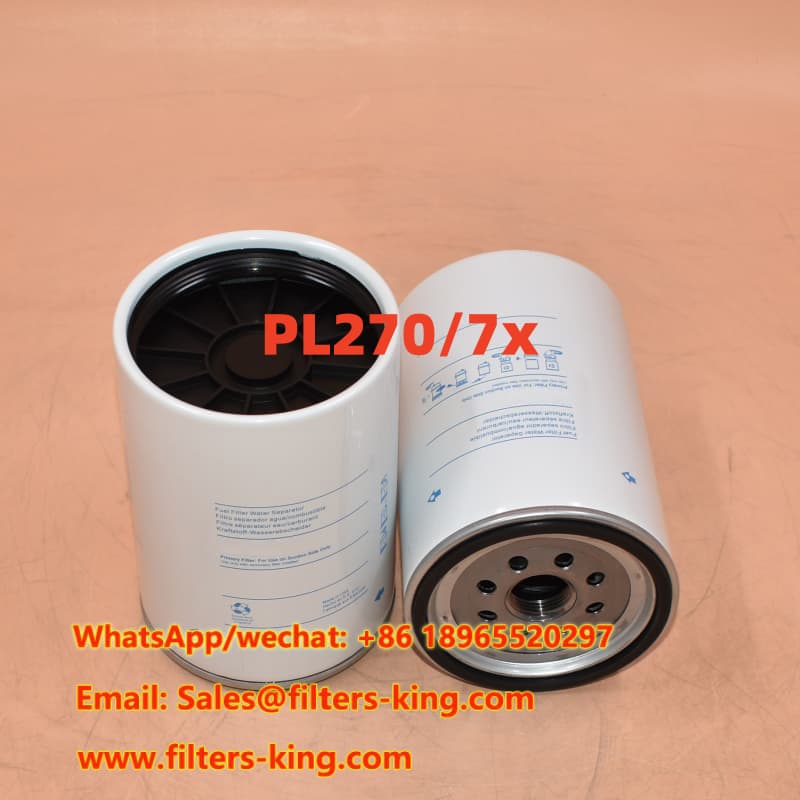

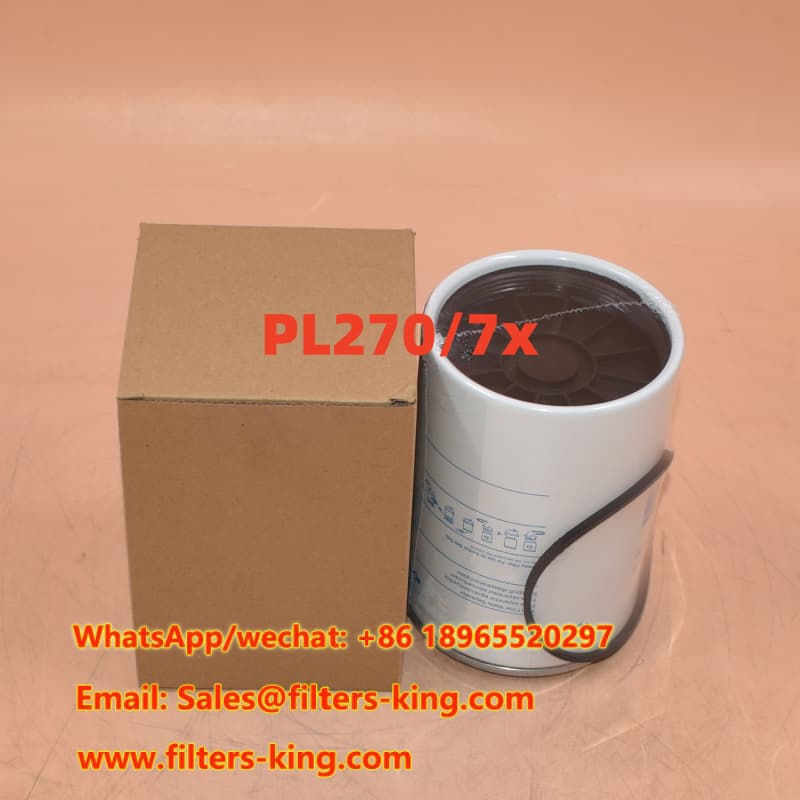

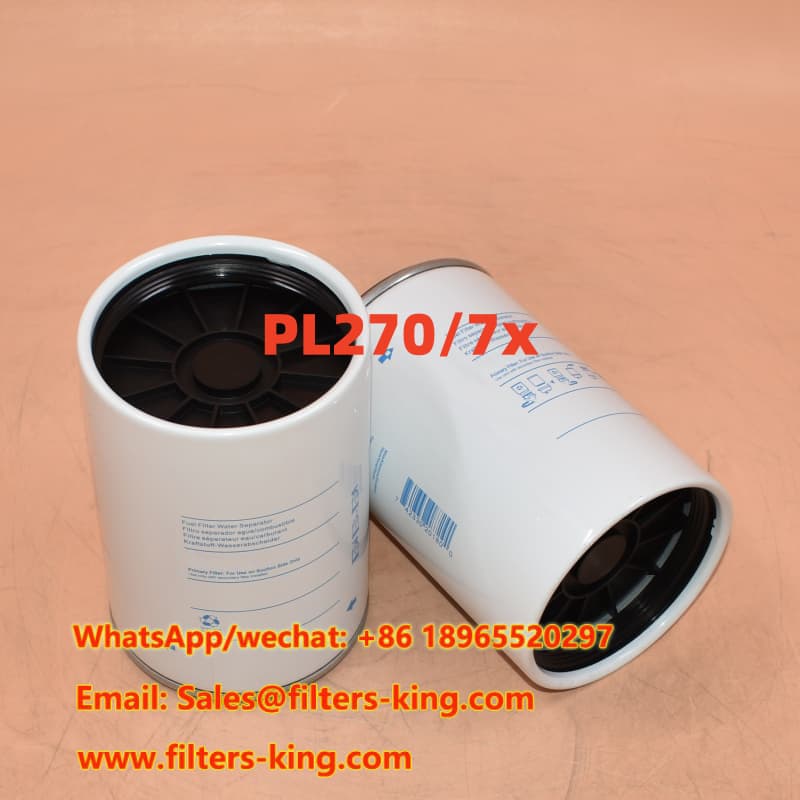

The PL270/7x Fuel Water Separator is a Mann replacement filter designed for diesel fuel filtration systems that require dependable water separation and contaminant control. It helps protect fuel system components by removing water and unwanted particles before contaminated fuel reaches sensitive engine components. For retailers, wholesalers, filter stores, and after-sales service providers, this replacement solution offers a practical option for maintaining diesel equipment while supporting stable aftermarket supply.
CHINA EVERLASTING PARTS CO., LIMITED supplies OEM, ODM, and aftermarket filtration solutions for professional buyers. The PL270/7x can be supplied as a replacement fuel water separator for customers looking for consistent quality, competitive sourcing, and flexible order support.
The filter is designed to separate water from diesel fuel and help reduce the risk of moisture-related problems in the fuel system. Better water control can support more stable fuel delivery and help protect downstream components.
A well-designed filtration structure helps capture common fuel contaminants before they enter sensitive engine and injection components. This makes the PL270/7x suitable for demanding diesel service environments where fuel cleanliness is important.
Built for professional replacement applications, this fuel water separator is suitable for heavy-duty diesel equipment and commercial maintenance programs. It provides filter distributors with an aftermarket option for routine replacement and service requirements.
In addition to standard replacement filters, CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM projects. Buyers can discuss custom filtration requirements, packaging, labeling, and product specifications for different distribution markets.
| Specification | Details |
|---|---|
| Part Number | PL270/7x |
| Part Type | Fuel Water Separator |
| Brand | Mann Replacement |
| Outer Diameter | 4.27 inch (108.5 mm) |
| Thread Size | 1-14 UN |
| Length | 6.22 inch (158 mm) |
| Gasket OD | 3.96 inch (100.5 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| Bowl Thread | 3 3/4-10 UN |
| MOQ | 60 pcs |
The following part numbers can be used as cross-reference information when sourcing a PL270/7x fuel water separator replacement. Buyers should always verify the application, dimensions, thread specifications, and equipment requirements before ordering.
| Brand | Cross Reference Part Number |
|---|---|
| Bosch | F026402039 |
| Caterpillar | 3332364 |
| DAF | 1534669 |
| Doosan | 40040300022 K1006520 K1006530 |
| Fleetguard | FS19907 |
| Hengst | H7091WK10 |
| Hifi | SN 922630 |
| Kamaz | 301105010 |
| Terex / Terex Advance | 541663438 |
| Wix | WF10110 |
The PL270/7x is positioned for professional diesel filtration replacement markets. It can be considered by distributors and service companies that supply replacement filters for commercial and heavy-duty diesel equipment. It is also suitable for filter stores that need cross-reference products covering multiple established filter brands.
For wholesalers and retailers, maintaining reliable replacement inventory can help reduce sourcing delays and support regular maintenance orders. For after-sales service providers, a dependable fuel water separator can simplify routine filter replacement and fleet maintenance programs.
Daniel Carter
Purchasing Manager, Diesel Filter Distributor
“The cross-reference information made it easier for our purchasing team to identify the replacement. Product communication and order support were clear.”
Example testimonial for website template use.
Anthony Brooks
After-Sales Service Manager, Equipment Parts Supplier
“We were looking for a practical aftermarket fuel water separator solution. The supplier provided useful product details and helped us confirm the order information.”
Example testimonial for website template use.
Matthew Wilson
Wholesale Buyer, Industrial Filter Store
“The product specifications and replacement references were useful for our catalog planning. The B2B ordering process was straightforward.”
Example testimonial for website template use.
PL270/7x is a fuel water separator replacement filter designed for diesel fuel filtration applications. It is supplied as a Mann replacement product.
Yes. We supply aftermarket replacement fuel water separators and can help buyers compare part numbers and specifications before placing an order.
Yes. OEM and ODM services are available. Buyers can contact us to discuss custom specifications, packaging, labeling, and other project requirements.
The standard MOQ for PL270/7x is 60 pcs. Please contact our sales team for quantity-based pricing and order details.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.
We focus on providing practical filtration solutions for distributors, retailers, wholesalers, filter stores, and after-sales service companies. Our product range covers replacement and aftermarket applications, while OEM and ODM cooperation is also welcome for customers with specific product or branding requirements.
Looking for a PL270/7x replacement for your filter distribution business? Send us your required quantity, target market, application information, or cross-reference part number. Our team can provide product details, quotation support, and OEM or ODM options for professional B2B buyers.
