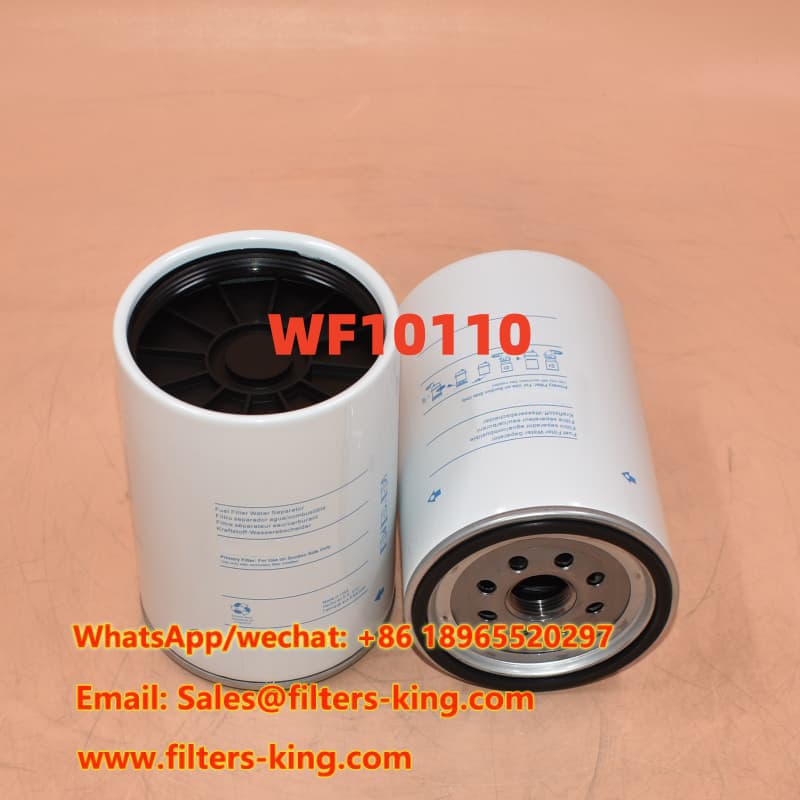

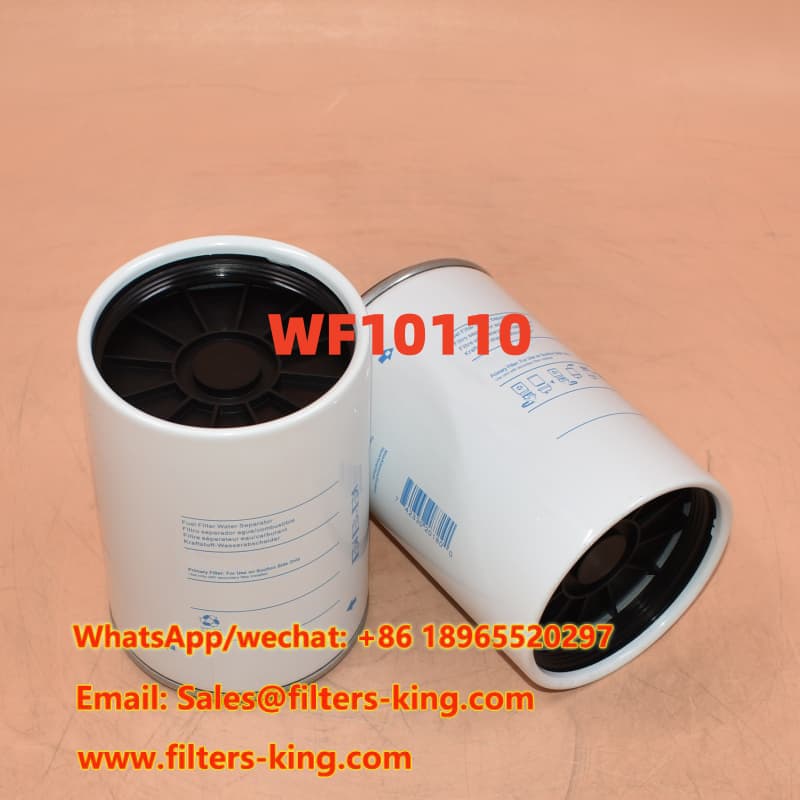

The WF10110 Fuel Water Separator is a high quality aftermarket replacement designed for diesel fuel filtration applications where reliable water separation and contaminant control are important. This product is manufactured for professional B2B buyers, including filter retailers, wholesalers, aftermarket suppliers, repair companies, and filter stores. It is a practical choice for customers searching for a Fuel Water Separator Filter Replacement with stable specifications and multiple cross-reference options.
This WF10110 replacement uses a 1-14 UN thread and is supplied with dimensional specifications suitable for procurement and filter interchange checks. The product can be used as a replacement option for several commonly referenced fuel filter and water separator numbers. Public cross-reference information also connects Fleetguard FS19907 with Bosch F026402039, Caterpillar 3332364, DAF 1534669, Doosan K1006520/K1006530, MANN PL270/7X and Terex 541663438.
| Specification | Details |
|---|---|
| Part Number | WF10110 |
| Product Type | Fuel Water Separator |
| Brand Reference | Wix Replacement |
| Outer Diameter | 4.27 inch (108.5 mm) |
| Thread Size | 1-14 UN |
| Length | 6.22 inch (158 mm) |
| Gasket OD | 3.96 inch (100.5 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| Bowl Thread | 3 3/4-10 UN |
| MOQ | 60 pcs |
Feature: The WF10110 is designed as a fuel water separator for diesel filtration systems. Advantage: Its separation function helps reduce the amount of unwanted water reaching downstream fuel-system components. Benefit: Cleaner fuel can support more reliable operation and help reduce avoidable maintenance caused by fuel contamination.
Feature: WF10110 follows a widely used 1-14 UN connection specification. Advantage: Buyers can compare the part number, dimensions, thread and gasket specifications before placing an order. Benefit: This makes it easier for distributors and filter stores to identify a suitable aftermarket replacement and reduce incorrect purchasing.
The product is supplied with a 60-piece MOQ, making it suitable for wholesalers, retailers, filter stores and aftermarket service providers. Buyers can use the supplied cross-reference information to organize their product catalogs, replacement programs and inventory planning.
The following part numbers are provided as purchasing and interchange references. Always confirm dimensions, thread specifications, bowl configuration and equipment application before installation. Cross-reference information is intended to assist professional buyers with product identification.
| Brand | Reference Part Numbers |
|---|---|
| Bosch | F026402039 |
| Caterpillar | 3332364 |
| DAF | 1534669 |
| Doosan | 40040300022 K1006520 K1006530 |
| Fleetguard | FS19907 |
| Hengst | H7091WK10 |
| Hifi | SN 922630 |
| Kamaz | 301105010 |
| Mann | PL270/7x |
| Terex / Terex Advance | 541663438 |
For distributors and aftermarket brands that need their own filtration program, CHINA EVERLASTING PARTS CO., LIMITED provides Custom Fuel Water Separator and OEM ODM Fuel Water Separator support. Depending on the project requirements, buyers can discuss filter dimensions, connection specifications, filtration construction, packaging and private-label requirements with our sales team.
Custom sourcing is especially useful for wholesalers and filter stores that need consistent replacement products across multiple equipment applications. Our team can review your part number, sample, drawing or specification and help determine a suitable production solution.
WF10110 is positioned for professional aftermarket supply rather than individual consumer use. It can be considered by filter retailers, wholesalers, aftermarket distributors, filter stores and equipment service providers that need fuel filtration replacement products for diesel-powered equipment.
We focus on filtration products and support a broad product range covering fuel filters, oil filters, hydraulic filters, air filters, fuel water separators and related filtration assemblies.
The WF10110 page provides commonly requested reference numbers to help B2B buyers perform catalog matching and replacement research before purchasing.
We welcome OEM, ODM and custom filtration projects for distributors and aftermarket brands that require their own product specifications or packaging programs.
The standard MOQ for this product is 60 pieces, providing a practical starting quantity for professional inventory purchasing.
Send us your part number, required quantity or application information. Our sales team can help check available replacement options and discuss suitable purchasing solutions.
★★★★★
“The cross-reference information made it easier for our purchasing team to match the replacement filter with our existing catalog. The product specifications were clear and useful for our wholesale business.”
— Daniel Carter, Wholesale Filter Distributor
★★★★★
“We were looking for a reliable aftermarket fuel water separator for our service customers. The team responded quickly and provided the information needed for our product evaluation.”
— Marcus Bennett, Equipment Service Manager
★★★★★
“The MOQ works well for our filter store inventory. We also appreciate the OEM and ODM support when discussing products for our aftermarket brand.”
— Ethan Brooks, Aftermarket Filter Store Owner
WF10110 is an aftermarket fuel water separator replacement identified for professional diesel filtration applications. It is supplied as a replacement product for B2B filter distribution and service markets.
The specified main thread size is 1-14 UN. The supplied bowl thread specification is 3 3/4-10 UN.
The standard MOQ is 60 pieces. Contact us for project-specific OEM, ODM or custom quantity requirements.
Yes. We welcome custom filtration projects and can discuss OEM, ODM, private-label and specification-based requirements with professional buyers.
Send us your original part number, dimensions, application or sample. Our sales team can review the information and help identify a suitable replacement option. Buyers should verify the final dimensions and application before installation.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator and Filters Assembly. We also welcome OEM and ODM cooperation.
We focus on providing practical aftermarket filtration solutions for distributors, retailers, wholesalers, filter stores and after-sales service companies. Customers can contact us with part numbers, cross-reference requirements, specifications or custom filtration projects.
Need WF10110 Fuel Water Separator Replacement?
Send us your required quantity, part number or application. We can support cross-reference checks, bulk purchasing, custom filter projects and OEM ODM requirements.
Contact CHINA EVERLASTING PARTS CO., LIMITED for your fuel filtration sourcing requirements.
