LAF5569 Air Filter OEM ODM

Part Number:LAF5569
Part Type:Air Filter
Brand:Luberfiner  Replacement
MOQ:20pcs
  • Details

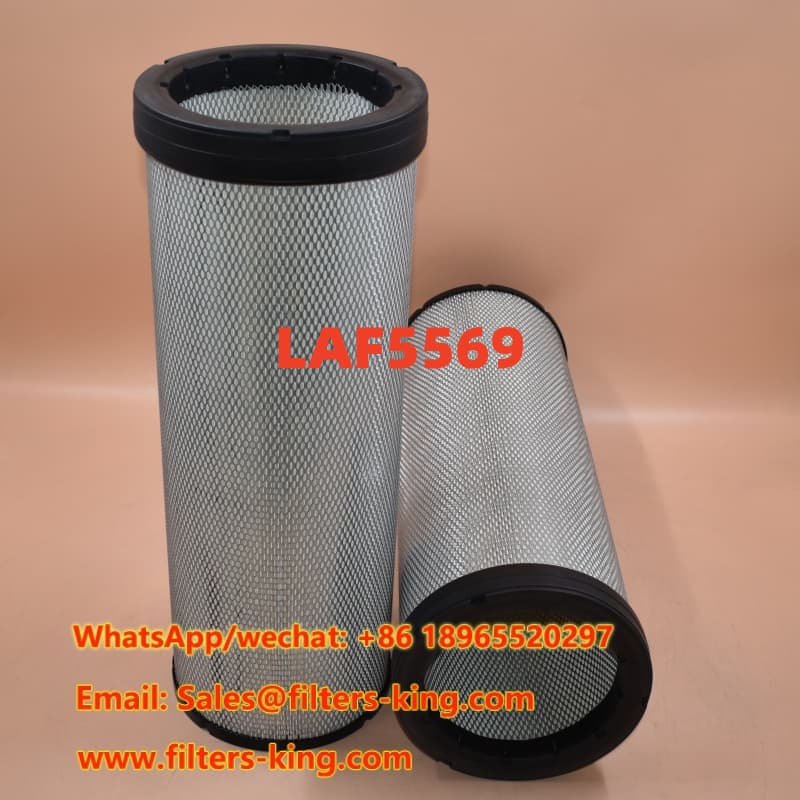

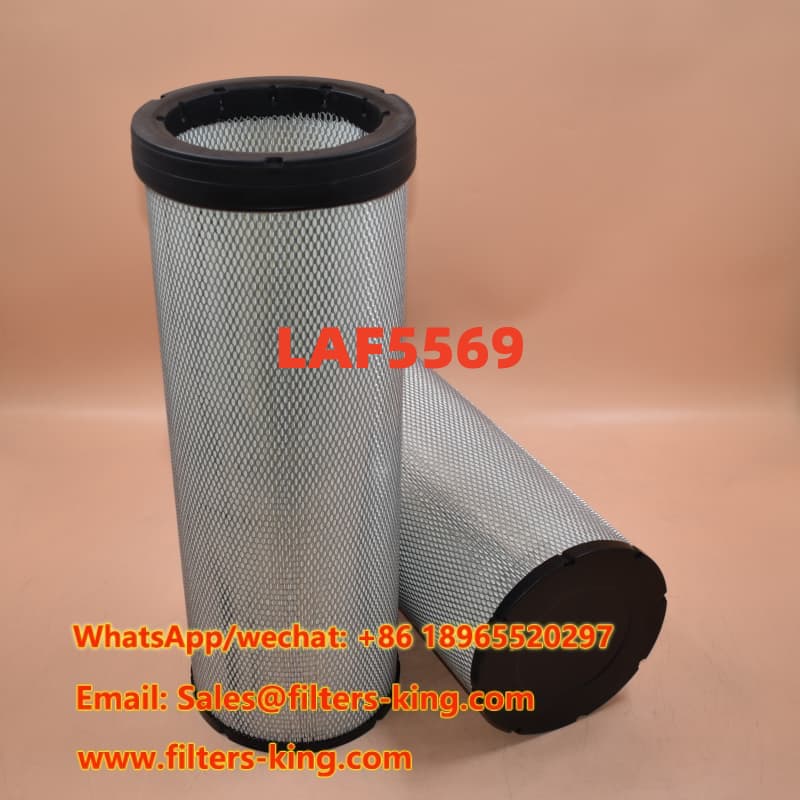

LAF5569 Air Filter OEM ODM


The LAF5569 Air Filter is an aftermarket replacement designed for heavy-duty engine air intake systems. It is suitable for distributors, wholesalers, filter stores, retailers, and equipment service providers looking for a dependable replacement filter with broad cross-reference coverage. This filter is commonly associated with Luberfiner LAF5569 and can be cross-referenced with several widely used aftermarket and equipment part numbers, including Baldwin RS4629, Fleetguard AF26208, MANN CF 23 550/2 and Donaldson P781102. Public cross-reference data also connects this filter family with applications from John Deere, Case IH, Caterpillar, New Holland, Volvo, Sandvik and other equipment manufacturers.

CHINA EVERLASTING PARTS CO., LIMITED supplies this replacement as an OEM ODM filtration solution for B2B buyers. We support bulk orders, private-label projects, custom air filter requirements and aftermarket replacement programs. With a MOQ of 20 pieces, the LAF5569 is suitable for both regular inventory replenishment and larger distribution orders.


Key Features and Benefits


Reliable Engine Air Protection

The filter is designed to help reduce the amount of airborne dust and particulate matter entering the engine intake system. Cleaner intake air supports stable engine operation and helps protect critical engine components from contamination.

Durable Long Life Air Filter Design

A robust replacement construction makes this air filter suitable for demanding diesel engine and heavy-equipment environments. Its radial-seal style is associated with the LAF5569 filter family, providing a practical replacement option for maintenance programs where dependable sealing and filtration are important.

Broad Cross-Reference Coverage

Buyers searching for a Luberfiner Air Filter Cross Reference can use the part-number list below as a convenient starting point. Cross-reference sources identify LAF5569 with multiple replacement numbers, including RS4629, AF26208, CF23550/2, P781102 and 42848. Always verify the original part number, equipment model and filter dimensions before ordering.

OEM ODM and Custom Air Filter Supply

For distributors and filter manufacturers, we provide OEM and ODM support for replacement filtration projects. Buyers can discuss custom branding, packaging, filter specifications and production requirements with our sales team. This makes the product suitable for companies building their own aftermarket filter programs.


Technical Specifications

Specification Details
Part Number LAF5569
Part Type Air Filter
Brand Reference Luberfiner Replacement
Overall Length 24.57 inch (624 mm)
Length 24.57 inch (624 mm)
Outer Diameter 9.09 inch (230.9 mm)
Inner Diameter 6.94 inch (176.3 mm)
MOQ 20 pcs
Supply Type Aftermarket Replacement / OEM / ODM


LAF5569 Air Filter Cross Reference

The following part numbers are provided as cross-reference information for purchasing and identification. Cross-reference listings can vary by application, production series and equipment configuration, so professional buyers should confirm the required part number and dimensions before placing an order. Several independent parts databases list LAF5569 together with RS4629, AF26208, P781102, CF23550/2 and other equivalents.

Brand Cross Reference Part Numbers
Atlas Copco 1606663504
Baldwin RS4629
Bell Equipment 221378
Case IH 84819118 87417043 87417041 84530498
Caterpillar 4256237 2466085 2465010
Cetco Inc 867010442
Compair 4311311 CZ4311322
Cummins CDD001428
Doosan MX511952
Dresser 867010486
Dynapac 4700950172
FG Wilson 160428
Fleetguard AF26208
Grove 9304220010
Guascor 7650285
Hengst E1697LS
Hifi Filter SA 16354
Hitachi E12983130
Hyundai 11ND20230
John Deere AH174196A TT221378 AH174196
Mack 5839AF26208
Manitou A060170
Manitowoc 9304220010
MANN CF23550/2


Applications and Replacement Use

LAF5569 is associated with a wide range of heavy equipment and diesel engine applications. Public parts data lists applications and cross references involving John Deere equipment, Case IH, Caterpillar, New Holland, Volvo, Sandvik, Dynapac and other machinery. For example, LAF5569 is listed for John Deere references AH174196 and TT221378, while related cross-reference data includes Case, Caterpillar and New Holland numbers.

For procurement teams, this broad reference coverage can simplify filter identification and inventory planning. Before purchase, compare the original filter number, application and physical specifications to ensure the replacement is appropriate for the intended equipment.


Why Choose Our LAF5569 Replacement Air Filter?

  • Broad Compatibility: Multiple cross-reference numbers help purchasing teams identify suitable replacement options.
  • B2B MOQ: 20 pcs supports regular stock replenishment and wholesale purchasing.
  • OEM ODM Support: Suitable for private-label and customized filtration programs.
  • Heavy-Duty Application: Designed as a replacement solution for demanding diesel engine and equipment environments.
  • Professional Supply: CHINA EVERLASTING PARTS CO., LIMITED specializes in a broad range of industrial and engine filtration products.


Customer Testimonials

★★★★★

“The cross-reference information made it easier for our purchasing team to identify the replacement filter. The 20-piece MOQ also works well for our regular inventory.”

— Ethan Miller, Wholesale Filter Distributor

Example testimonial template

★★★★★

“We were looking for an aftermarket air filter for our service business. The OEM ODM support and flexible order quantity were useful for our procurement plan.”

— Daniel Brooks, Equipment Service Manager

Example testimonial template

★★★★★

“The LAF5569 reference list is helpful when matching different filter brands. We can use the part numbers to organize our aftermarket inventory more efficiently.”

— Nathan Carter, Filter Store Buyer

Example testimonial template


Frequently Asked Questions


What is the LAF5569 air filter?

LAF5569 is a radial-seal air filter reference associated with Luberfiner and multiple aftermarket replacement numbers. It is used in heavy-duty engine air filtration applications.

What are common LAF5569 cross references?

Commonly listed cross references include Baldwin RS4629, Fleetguard AF26208, MANN CF23550/2, Donaldson P781102 and Wix 42848. Other equipment-specific numbers are listed in the cross-reference table above.

Can you supply a custom air filter?

Yes. We provide OEM and ODM services for B2B buyers and can discuss custom specifications, packaging and private-label requirements according to the project.

What is the MOQ?

The MOQ for this LAF5569 replacement air filter is 20 pieces.


Company Introduction

CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main product range includes Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator and Filters Assembly. We also welcome OEM and ODM projects.

We focus on providing practical aftermarket filtration solutions for distributors, wholesalers, retailers, filter stores and after-sales service providers. Our product portfolio supports different equipment and engine applications, while our OEM ODM service allows customers to develop customized filtration products for their own markets.


Contact Information

Looking for a Luberfiner Air Filter Cross Reference, OEM Engine Air Filter or Custom Air Filter supplier? Contact CHINA EVERLASTING PARTS CO., LIMITED for current pricing, availability, bulk orders and OEM ODM requirements. Please provide your required part number, quantity and application so our sales team can help confirm the correct replacement solution.
