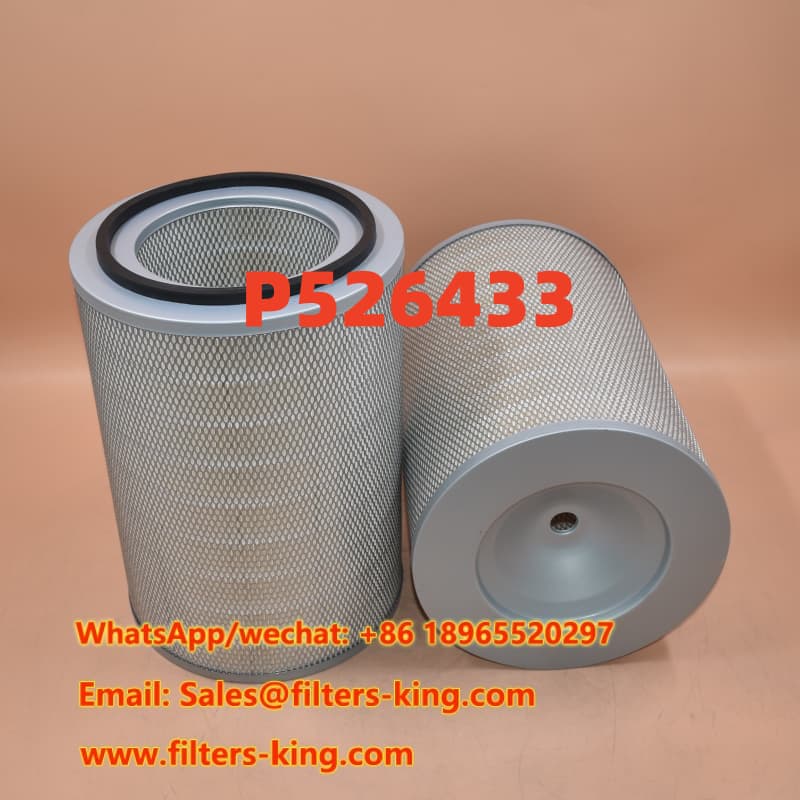

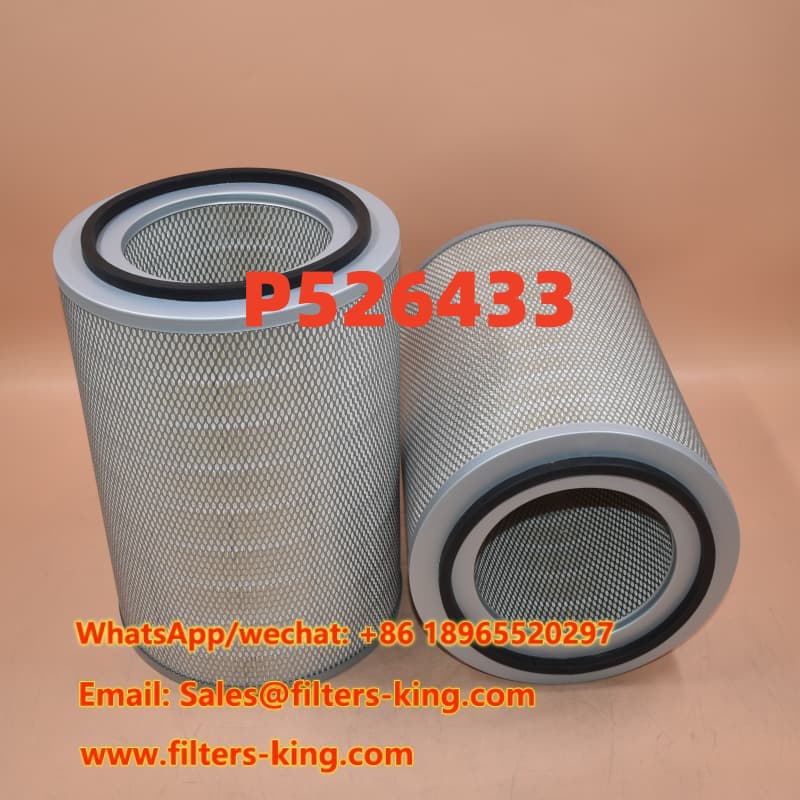

The P526433 Heavy Duty Equipment Air Filter is a replacement air filter element designed for demanding diesel engine and heavy equipment applications. It is manufactured for buyers who need dependable filtration, consistent dimensions, stable supply, and competitive wholesale pricing. This replacement element is suitable for distributors, filter shops, retailers, maintenance companies, and other professional B2B buyers.
As a professional Custom Air Filter Factory, CHINA EVERLASTING PARTS CO., LIMITED provides flexible Air Filter OEM ODM services for customers with different specifications, packaging requirements, and private-label programs. With a minimum order quantity of 20 pieces, this product is suitable for both regular inventory replenishment and project-based purchasing.
P526433 is built as a round primary air filter element for heavy-duty applications. Its cylindrical structure provides a large filtration surface while maintaining a practical installation size. The design is intended for equipment operating in demanding working environments where engine air intake protection is important.
A properly matched Diesel Engine Air Filter helps reduce the amount of dust and airborne contamination entering the engine intake system. Cleaner intake air supports stable engine operation and helps protect sensitive engine components from abrasive particles. For heavy equipment operating at construction sites, industrial facilities, mining areas, and other dusty environments, regular filter replacement is an important part of preventive maintenance.
The P526433 replacement is designed for buyers looking for a Durable Long Life Air Filter solution. Consistent manufacturing, accurate dimensions, and appropriate filter media selection help support dependable service performance. Actual replacement intervals should always be determined according to equipment operating conditions, dust loading, maintenance schedules, and the original equipment manufacturer's recommendations.
| Parameter | Specification |
|---|---|
| Part Number | P526433 |
| Part Type | Air Filter Element |
| Product Type | Primary Round Air Filter |
| Brand Reference | Donaldson Replacement |
| Overall Length | 15.50 inch (393.8 mm) |
| Outer Diameter | 10.85 inch (275.7 mm) |
| Inner Diameter | 6.50 inch (165.1 mm) |
| Length | 15.00 inch (381.1 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| MOQ | 20 pcs |
For professional purchasing, cross-reference numbers can make replacement sourcing easier. The P526433 number is associated in public filter catalogs with several equivalent or interchangeable references. However, cross-reference information should be used as a purchasing aid rather than as a substitute for checking the actual filter dimensions and equipment application.
| Brand / Manufacturer | Cross Reference Number |
|---|---|
| Baldwin | PA2577 |
| Donaldson | P134353 |
| Fleetguard | AF4903 |
| GMC | 94048864 |
| Hifi | SA 11812 |
| Hitachi | 4288963 |
| Isuzu | 1-14214-126-0 |
| John Deere | T52223 |
| Kobelco | 2446U191-S3 |
| Micro | AC7480 |
| Mitsubishi | ME063130 / 3123033200 |
| Nissan | 16546-96071 |
| PMC | PE7147 |
| Terex / Terex Advance | 74524503 |
| Timberjack | 8410616 |
| Wix | 46544 |
This P526433 replacement air filter is a practical sourcing option for companies serving heavy equipment and diesel engine maintenance markets. It is especially suitable for filter retailers, aftermarket service providers, wholesalers, filter shops, equipment parts distributors, and maintenance companies.
For distributors carrying multiple filter numbers, the cross-reference range can also help simplify product sourcing and inventory planning. Buyers should confirm the part number, dimensions, sealing arrangement, and equipment application before placing a bulk order.
If you are looking for a Custom Air Filter Factory for your private-label filtration business, CHINA EVERLASTING PARTS CO., LIMITED can support OEM and ODM projects. We can discuss product specifications, packaging requirements, branding, labels, and order quantities according to your market needs. This makes the product suitable not only for standard replacement sales but also for distributors developing their own filter product lines.
★★★★★
Sample Testimonial – Ethan Caldwell
“The P526433 replacement has been a convenient addition to our heavy equipment filter range. The cross-reference information and consistent dimensions make purchasing easier for our service customers.”
★★★★★
Sample Testimonial – Marcus Bennett
“We were looking for a reliable aftermarket air filter source with a practical MOQ. The OEM and ODM options are useful for our wholesale business and private-label projects.”
★★★★★
Sample Testimonial – Olivia Hartwell
“The product information is clear and useful for our filter shop team. Being able to check dimensions and cross-reference numbers before ordering helps reduce sourcing mistakes.”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer specializing in filtration products for industrial, automotive, diesel engine, and heavy equipment applications. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators, and Filter Assemblies. We also welcome OEM and ODM cooperation for distributors, wholesalers, retailers, filter shops, and professional aftermarket customers.
