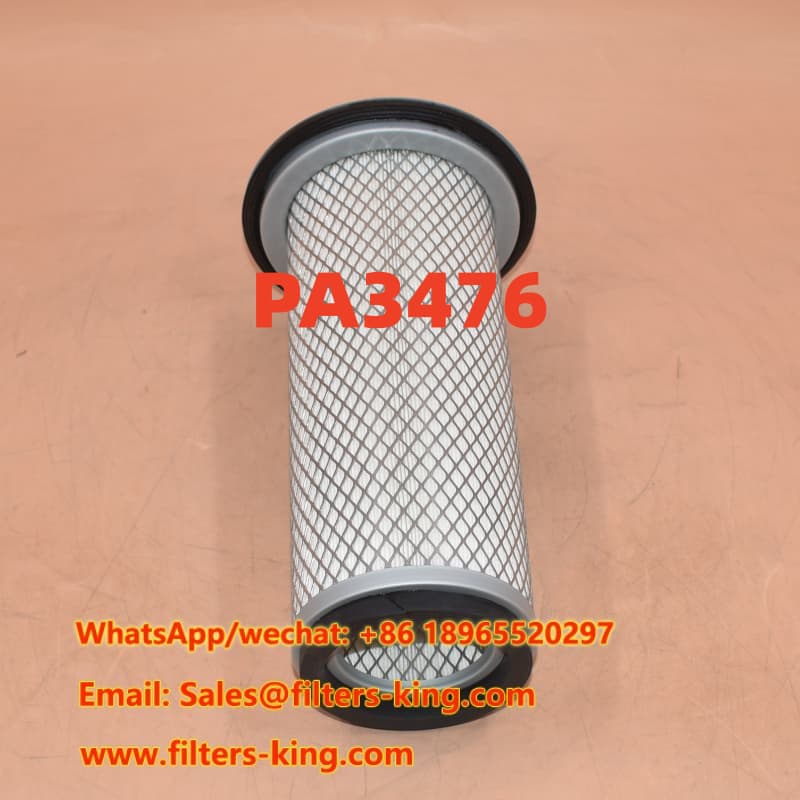

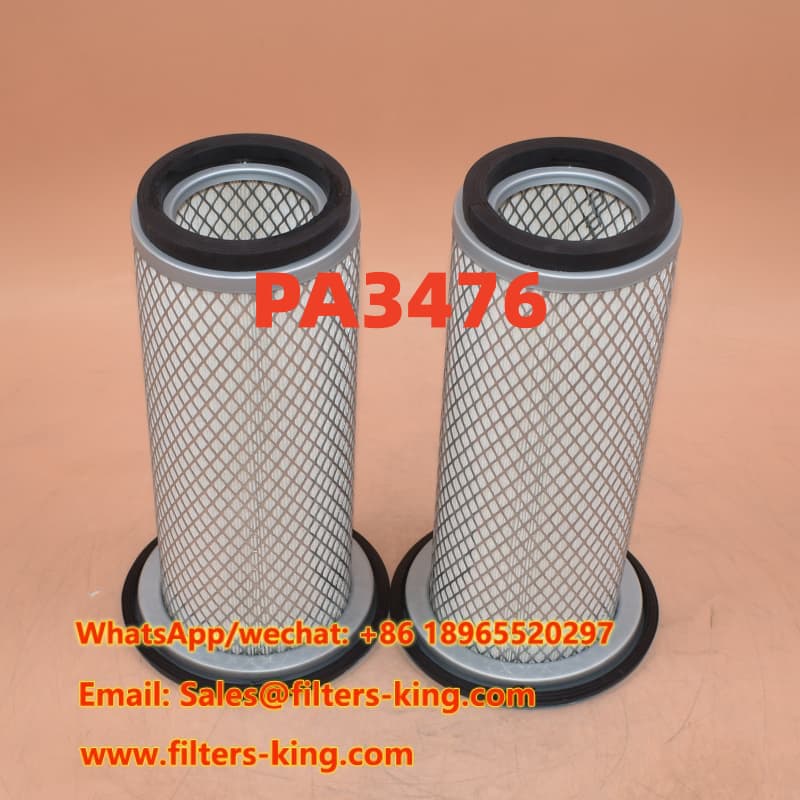

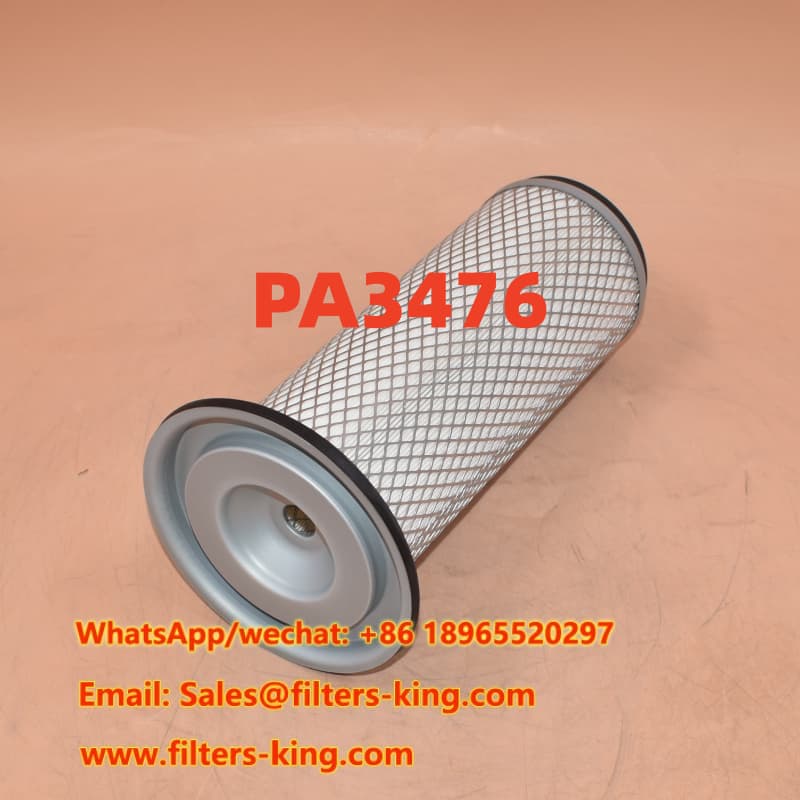

The Diesel Engine Air Filter PA3476 is a replacement engine air filter designed for diesel-powered equipment and demanding off-road applications. It is suitable for distributors, retailers, filter shops, equipment service companies and aftermarket parts suppliers that need a dependable replacement filter with broad cross-reference coverage.
This PA3476 replacement is developed around commonly used dimensions and application requirements. Public cross-reference data connects Baldwin PA3476 with part numbers from Bobcat, Case IH, Donaldson, Hengst, Hifi, Iseki, Komatsu, Kubota, Mann, Sakura and Wix. Always verify the equipment application, dimensions and sealing configuration before installation.
A quality engine air filter helps reduce the amount of dust, dirt and airborne particles entering the engine intake system. For excavators, compact equipment, agricultural machinery and other diesel equipment working in dusty environments, proper air filtration can support cleaner engine operation and help protect sensitive engine components.
The PA3476 replacement can be used as a cross-reference option for a range of commonly searched filter numbers. This makes it easier for aftermarket buyers to consolidate inventory and offer replacement solutions to their customers.
With a minimum order quantity of 20 pieces, this product is suitable for wholesale purchasing, filter shop inventory, equipment maintenance suppliers and regional distributors. Bulk packaging and private-label options can also be discussed for qualified OEM and aftermarket programs.
| Parameter | Specification |
|---|---|
| Part Number | PA3476 |
| Part Type | Air Filter |
| Brand Type | Baldwin Replacement |
| Overall Length | 10.51 inch (267 mm) |
| Outer Diameter | 4.09 inch (104 mm) |
| Inner Diameter | 2.48 inch (62.9 mm) |
| Length | 10.13 inch (257.3 mm) |
| Bolt Hole Diameter | 0.27 inch (6.8 mm) |
| MOQ | 20 pcs |
| Service | OEM & ODM |
For purchasing and inventory purposes, the following numbers are commonly associated with PA3476. Cross-reference numbers are provided as a purchasing reference only. Buyers should confirm dimensions, equipment model and filter configuration before ordering.
| Manufacturer / Brand | Cross Reference Number |
|---|---|
| Bobcat | 6682494 |
| Case IH | 200045A1 |
| Donaldson | P535362, P778340 |
| Hengst | E1496L |
| Hifi | SA 10021 |
| Iseki | 15601032024, 15601032025, 156010320250, 156010320240 |
| Komatsu | Z760125830, 3EC0125830, 3EB0125830 |
| Kubota | 81574111081, 1574111083, 1574111081, 1574111080 |
| Mann | C11004 |
| Prins Motoren | P101574111080 |
| Sakura | A-5665 |
| Wix | 46496 |
The PA3476 replacement is intended for diesel engine air intake applications where the correct filter dimensions and configuration are required. It can be considered by suppliers serving excavators, compact construction equipment, agricultural machinery, industrial engines and other mobile equipment.
When customers compare an Excavator Air Filter Price, purchasing cost should not be the only consideration. Consistent dimensions, filtration media quality, supply stability, packaging and replacement compatibility are also important for professional buyers. Our B2B supply model is designed to help customers balance product quality with competitive wholesale pricing.
CHINA EVERLASTING PARTS CO., LIMITED provides Custom Air Filter manufacturing and replacement filter solutions for international customers. Buyers can discuss private labeling, customized packaging, product specifications and bulk supply requirements with our sales team.
For companies developing their own filtration product line, our OEM Engine Air Filter service can support aftermarket distribution programs. We also welcome Air Filter OEM ODM projects where customers require customized product identification, packaging or other agreed specifications.
★★★★★ – Ethan Carter, Aftermarket Parts Distributor
“PA3476 was a useful addition to our engine filter range. The cross-reference coverage makes it easier for our sales team to handle replacement inquiries.”
★★★★★ – Olivia Bennett, Heavy Equipment Service Buyer
“We needed a stable source for replacement air filters. The product specifications were clear, and the supplier provided useful support for our purchasing requirements.”
★★★★★ – Marcus Reed, Filter Wholesale Manager
“The MOQ works well for our aftermarket inventory. We are also interested in developing customized filter products for our regional customers.”
Yes. This product is offered as a replacement air filter for applications using PA3476 and compatible cross-reference numbers. Buyers should verify the dimensions and application before installation.
Yes. We support customized filtration solutions for qualified B2B customers, including private-label and OEM/ODM projects.
The standard MOQ for this product is 20 pieces. Larger wholesale quantities can be discussed according to your purchasing plan.
Yes. CHINA EVERLASTING PARTS CO., LIMITED welcomes OEM and ODM projects and can discuss customized products, packaging and private-label requirements.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving B2B customers in international markets. Our main products include Air Filters, Air Cleaner Filters, Air Dryers, Ventilation Filters, Breather Filters, Oil Filters, Fuel Filters, Hydraulic Filters, Fuel Water Separators, Air Oil Separators and Filter Assemblies.
We focus on providing practical replacement filtration solutions for retailers, aftermarket service providers, wholesalers and filter stores. In addition to standard replacement filters, we welcome OEM and ODM cooperation for customers developing their own filtration product lines.
For PA3476 pricing, cross-reference verification, bulk orders or OEM/ODM projects, please contact our sales team:
