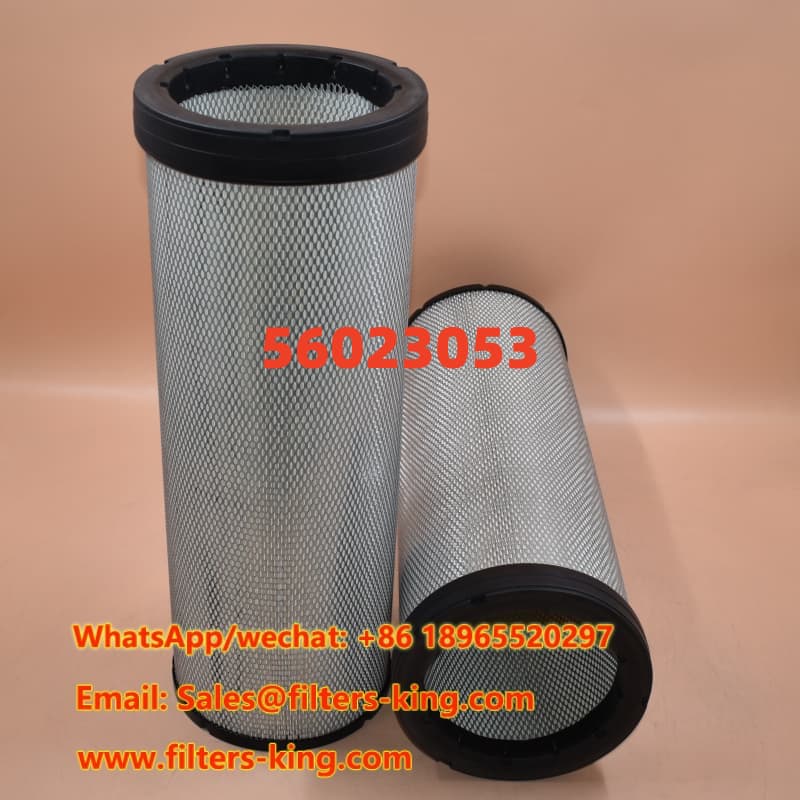

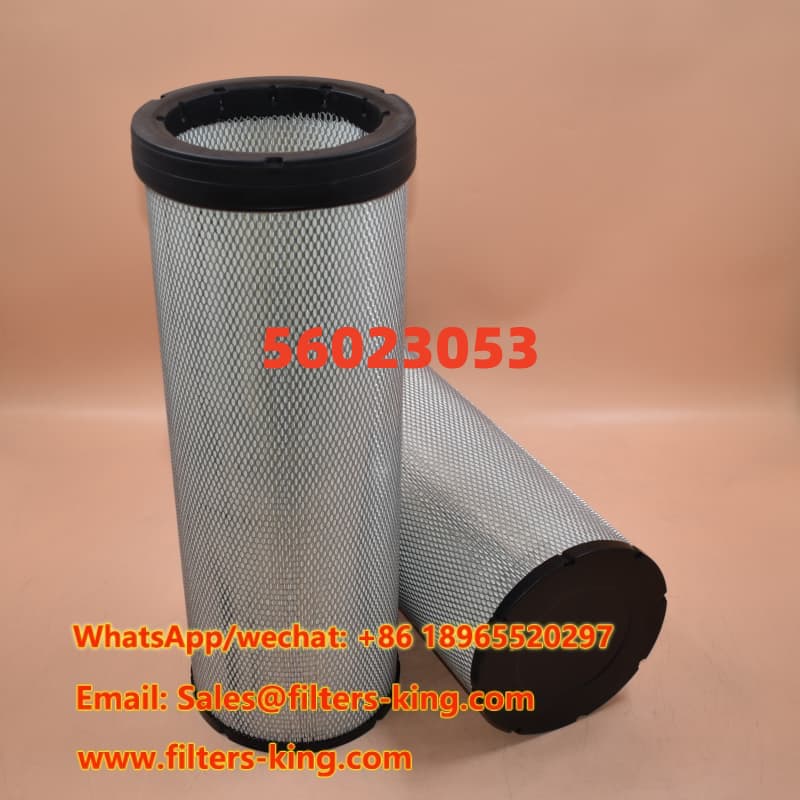

The Air Filter 56023053 504774 is an aftermarket replacement filter designed for Sandvik UH440I and UJ440I crushing equipment. It is built for demanding working conditions where clean intake air is important for engine performance and equipment reliability. This replacement filter is suitable for distributors, wholesalers, filter stores, retailers, and aftermarket service providers looking for a dependable Crusher Air Filter with OEM replacement capability.
CHINA EVERLASTING PARTS CO., LIMITED supplies this filter with OEM and ODM support, making it suitable for both standard replacement orders and customized filtration programs. With a minimum order quantity of 20 pieces, it provides a practical sourcing option for professional B2B buyers.
Feature: The filter is designed as a replacement air filtration element for heavy equipment applications.
Advantage: Effective filtration helps reduce the amount of dust and airborne contaminants entering the engine air intake system.
Benefit: Cleaner intake air supports stable engine operation and helps protect important engine components during demanding crushing and construction work.
Feature: The 56023053 replacement filter is designed for equipment operating in demanding industrial environments.
Advantage: Its application-focused construction makes it suitable for crusher and heavy equipment service conditions.
Benefit: Maintenance teams can use a dependable replacement element to help maintain filtration performance between scheduled service intervals.
Feature: The product is supplied as a Sandvik replacement air filter and supports OEM/ODM sourcing requirements.
Advantage: Buyers can source standard replacement quantities or discuss customized filtration requirements with the manufacturer.
Benefit: This helps wholesalers, retailers, and aftermarket suppliers simplify their filter purchasing and build flexible product lines.
| Item | Specification |
|---|---|
| Part Number | 56023053 |
| Alternative Number | 504774 |
| Part Type | Air Filter |
| Brand | Sandvik Replacement |
| Overall Length | 24.57 inch (624 mm) |
| Outer Diameter | 9.09 inch (230.9 mm) |
| Inner Diameter | 6.94 inch (176.3 mm) |
| Length | 24.57 inch (624 mm) |
| MOQ | 20 pcs |
This heavy-duty equipment air filter is specified for Sandvik UH440I and Sandvik UJ440I applications. These crusher applications can operate in dusty environments, making proper air filtration an important part of routine equipment maintenance.
For professional buyers, application verification should be completed by matching the equipment model, existing filter number, dimensions, and installation requirements before ordering. If you are searching by an alternative reference number, our team can help check the available Sandvik Air Filter Cross Reference information.
The following cross-reference numbers can help buyers identify equivalent or replacement filtration options. Cross-reference information should be verified against the actual equipment and filter specifications before purchase.
| Brand | Cross Reference Part Numbers |
|---|---|
| Atlas Copco | 1606663504 |
| Baldwin | RS4629 |
| Bell Equipment | 221378 |
| Case IH | 84819118 87417043 87417041 84530498 |
| Caterpillar | 4256237 2466085 2465010 |
| Cetco Inc | 867010442 |
| Compair | 4311311 CZ4311322 |
| Cummins | CDD001428 |
| Doosan | MX511952 |
| Dresser | 867010486 |
| Dynapac | 4700950172 |
| FG Wilson | 160428 |
| Fleetguard | AF26208 |
| Grove | 9304220010 |
| Guascor | 7650285 |
| Hengst | E1697LS |
| Hifi | SA 16354 |
| Hitachi | E12983130 |
| Hyundai | 11ND20230 |
| John Deere | AH174196A TT221378 AH174196 |
| Luberfiner | LAF5569 |
| Mack | 5839 AF26208 |
| Manitou | A060170 |
| Manitowoc | 9304220010 |
| Mann | CF23550/2 |
| Moxy | 511952 |
| MTU | XP52712100006 |
| Neuson | 1000192124 |
| New Holland | 6901180 87417043 84818003 84530498 87417045 84819118 84432504 |
| Sakura | A-7626 |
| SDMO | 330570120AVI30500 330570120 |
| Sullair | 2250155692 |
| Tec-Fil | ASR607 |
| Vermeer | 180013046 |
| Volvo | 21386706 56025291 VOE56025291 |
| Wirtgen | 194180 |
| Wix | 42848 |
| XCMG | KNL07002 |
This product is intended for professional B2B customers rather than individual consumers. It is suitable for filter retailers, aftermarket service providers, wholesalers, filter stores, machinery parts distributors, and equipment maintenance companies. Buyers who need recurring supply can also discuss OEM packaging, ODM requirements, product customization, and larger-volume purchasing programs.
★★★★★
Daniel Foster
Aftermarket Parts Distributor
“The cross-reference information makes this filter easy for our sales team to identify. The 20-piece MOQ also fits our regular purchasing plan.”
★★★★★
Kevin Mitchell
Heavy Equipment Service Company
“We were looking for a practical replacement option for crusher equipment. The product information was clear and helped our purchasing team confirm the application.”
★★★★★
Andrew Collins
Filter Store Manager
“The OEM and ODM support gives us more flexibility when planning replacement filter orders for our customers.”
The 56023053 air filter is a Sandvik replacement filter for UH440I and UJ440I crushing equipment applications.
Common cross-reference numbers include Baldwin RS4629, Fleetguard AF26208, Mann CF23550/2, Luberfiner LAF5569, Hengst E1697LS, Hifi SA 16354, Sakura A-7626, Wix 42848 and other references listed above. Please verify the specific application before ordering.
Yes. CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM cooperation for professional filter buyers, including customized product requirements and packaging solutions.
The MOQ for this air filter is 20 pieces. Larger quantities can be discussed according to the buyer's purchasing requirements.
Send us your equipment model, current filter part number, or filter dimensions. Our sales team can help compare the available reference information before quotation.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.
We focus on replacement filtration products for industrial equipment, diesel engines, construction machinery, and other demanding applications. Our product programs are designed to support wholesalers, retailers, filter stores, aftermarket service providers, and professional parts distributors. We also welcome OEM and ODM cooperation for customers who need customized filtration products or private-label solutions.
Send us your part number, equipment model, required quantity, and any available specifications. Our team can help with cross-reference checking, OEM/ODM requirements, quotation, and B2B supply arrangements.
