3600079 Air Oil Separator Interchange

Part Number:3600079
Part Type:Air Oil Separator
Brand:VMAC Replacement
MOQ:20pcs
  • Details

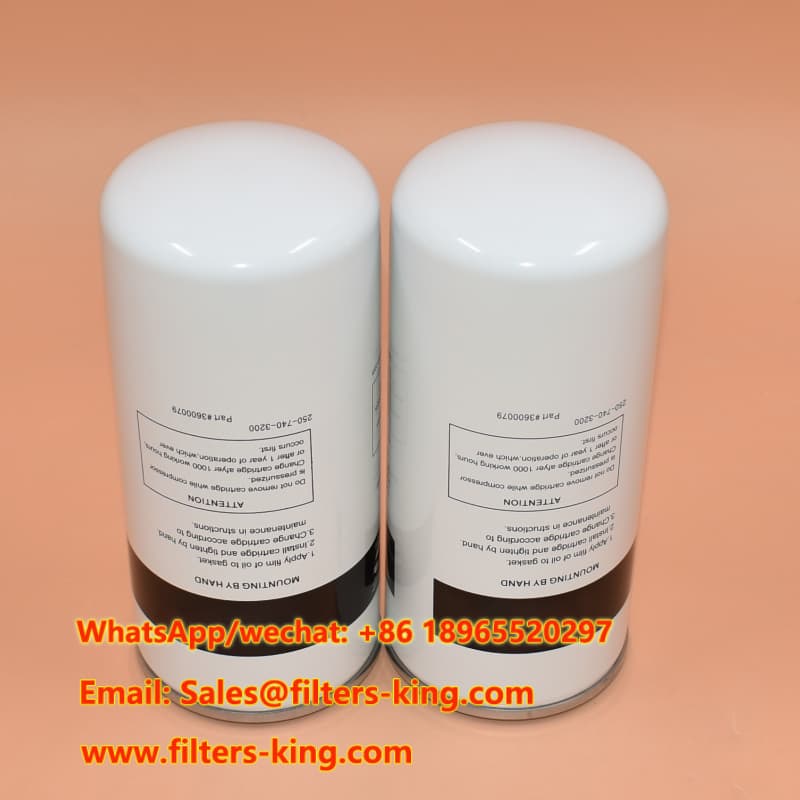

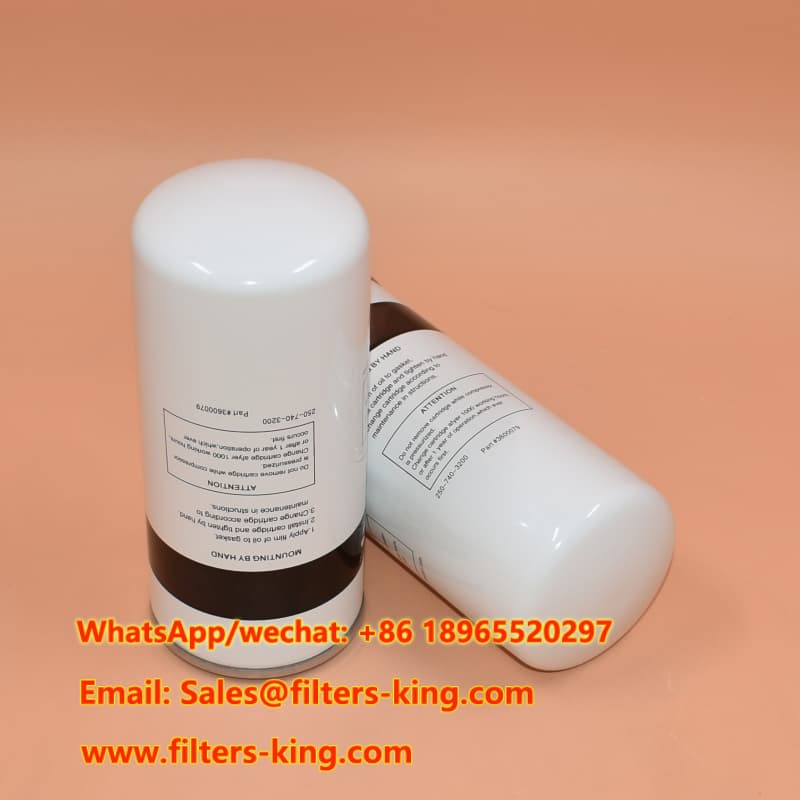

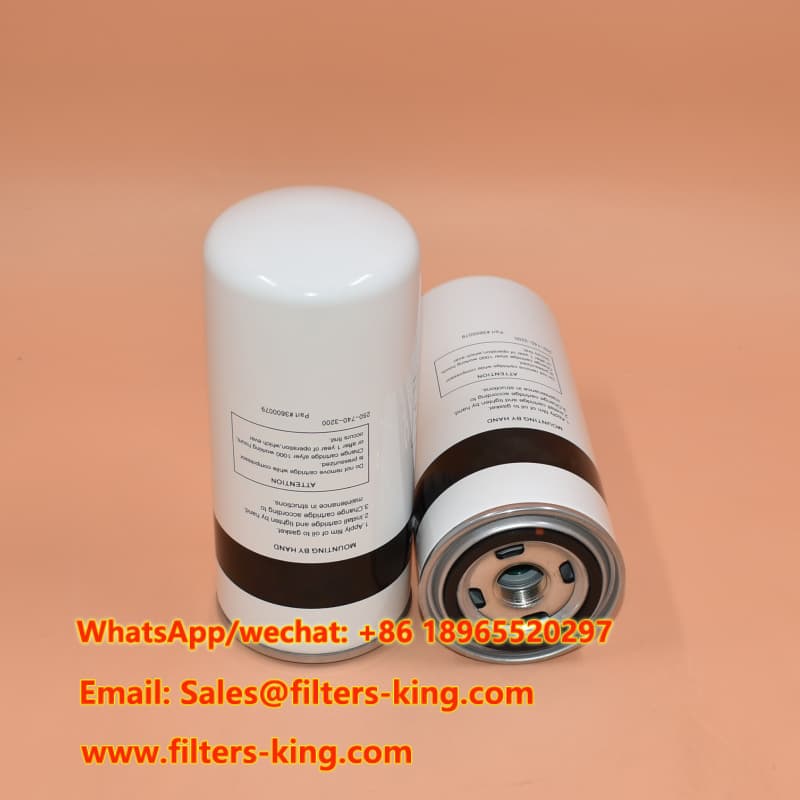

3600079 Air Oil Separator Product Overview


The 3600079 Air Oil Separator is a replacement filter designed for compressor air and oil separation applications. It is suitable for distributors, wholesalers, filter retailers, and aftermarket service providers looking for a reliable alternative to the original VMAC filter. With a MOQ of 20 pieces, this product is also suitable for regular B2B stocking and replacement orders.

This compressor air oil separator helps separate oil from compressed air before the air returns to the air system. Proper separation can help reduce oil carryover, support cleaner compressed air, and protect downstream components. It is available as an Air Oil Separator Replacement and can also support OEM, ODM, and custom filter requirements.

Parameter Specification
Part Number 3600079
Part Type Air Oil Separator
Brand VMAC Replacement
MOQ 20 pcs
Outer Diameter 3.86 inch (98 mm)
Thread Size M24 x 1.5
Length 8.27 inch (210 mm)
Gasket OD 2.80 inch (71 mm)
Gasket ID 2.44 inch (62 mm)


3600079 Air Oil Separator Features and Benefits


Effective Oil Separation

The separator is designed to remove oil from compressed air during compressor operation. Effective oil separation can help reduce oil carryover and maintain cleaner compressed air for downstream equipment.

Reliable Replacement Solution

The 3600079 provides a practical aftermarket option for buyers who need to replace an existing compressor separator. It is suitable for distributors and service companies that need consistent replacement inventory without depending on a single supply channel.

B2B-Friendly MOQ

With a minimum order quantity of 20 pieces, this product supports filter stores, wholesalers, retailers, and compressor maintenance companies. Buyers can also contact us for larger-volume purchasing and customized supply programs.

OEM, ODM and Custom Support

For buyers with special requirements, we provide OEM Air Oil Separator, ODM, and Custom Air Oil Separator solutions. Specifications, packaging, labeling, and other product requirements can be discussed according to the project.


VMAC Air Oil Separator Cross Reference

When purchasing a replacement compressor separator, checking the part number and technical specifications is important before ordering. The following cross-reference list provides commonly used equivalent or interchangeable reference numbers for the 3600079 application. Buyers should confirm dimensions, thread, gasket specifications, and application before final installation.

Brand Reference Part Number(s)
ABAC 9056292
Alup 17251001
Atlas Copco 2903087100 1622087100 1622024500
Baldwin OAS99048
Blitz Schneider 758160
Boge 575000102
Bottarini 221046
Chicago Pneumatic 2205406508
Chinook 11700720
Compair 98262215
Demag CK4050335 10533574
Donaldson P783499
Ecoair 410151022 F410151022
Fiac 7211960000
Fini 48287000
Fleetguard AS2451
Gardner 2118520
Hifi OV 6073
Ingersoll-Rand 39930193
Irmer & Elze 754501 4001226
Komsan 456040
Man 4930658131 4930658101
Mann LB962
Power System 490009
Rotorcomp R7432 R7032 R27432 R12476
Tec-Fil PSAO962/2
Wix P02AX767
Worthington 6221347850 6221347800

Compressor Air Oil Separator Replacement for B2B Buyers

For compressor maintenance businesses, choosing the right separator is more than simply matching a part number. Buyers need stable supply, suitable specifications, reasonable order quantities, and dependable communication. Our replacement solution is designed around these procurement needs.

Whether you are looking for a Compressor Air Oil Separator for regular maintenance or an Aftermarket Air Oil Separator for resale, we can support repeat orders and bulk purchasing. Product specifications can be reviewed before shipment to help reduce compatibility risks.


Five Reasons for Choosing China Everlasting Parts

  1. Professional Filter Manufacturing: We focus on filtration products for industrial and equipment applications.
  2. Wide Product Range: Our product range includes air filters, oil filters, fuel filters, hydraulic filters, air oil separators, breather filters, and fuel water separators.
  3. B2B Order Support: Our MOQ and supply process are designed for wholesalers, retailers, filter stores, and service providers.
  4. OEM and ODM Capability: We support custom products, private labeling, packaging, and project-based requirements.
  5. Aftermarket Flexibility: We provide replacement filtration solutions for customers seeking alternatives to original filters.


Customer Testimonials

★★★★★

James Carter

“The cross-reference information made it easier for our purchasing team to identify the replacement. Communication was clear and the order process was smooth.”

★★★★★

Mark Wilson

“We needed an aftermarket compressor separator for our service inventory. The 20-piece MOQ worked well for our first order and the product specifications were clearly provided.”

★★★★★

Daniel Brooks

“We are a filter distributor and regularly compare replacement part numbers. The broad reference list helped us evaluate this separator for our customers.”


Frequently Asked Questions


What is 3600079?

3600079 is an air oil separator replacement associated with VMAC applications and has multiple cross-reference numbers for compressor filtration applications.

What is the MOQ for 3600079?

The standard MOQ is 20 pieces. Please contact our sales team for larger quantities or specific purchasing requirements.

Can you provide a custom air oil separator?

Yes. We welcome OEM, ODM, and custom filtration projects. Please provide drawings, samples, specifications, or reference part numbers for evaluation.

How can I confirm the correct replacement?

Please compare the original part number, application, thread, gasket dimensions, and other technical specifications before ordering. Our sales team can also help review the information you provide.


Company Introduction

CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.

We work with retailers, after-sales service providers, wholesalers, and filter stores that need dependable aftermarket filtration products. We also welcome OEM and ODM cooperation and can discuss custom specifications and packaging for long-term business projects.
