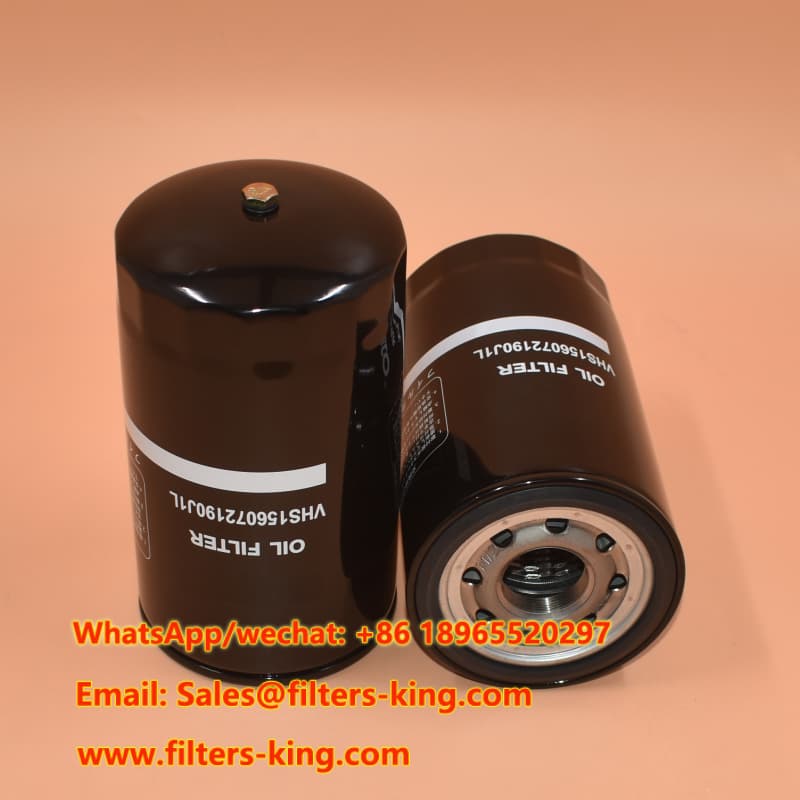

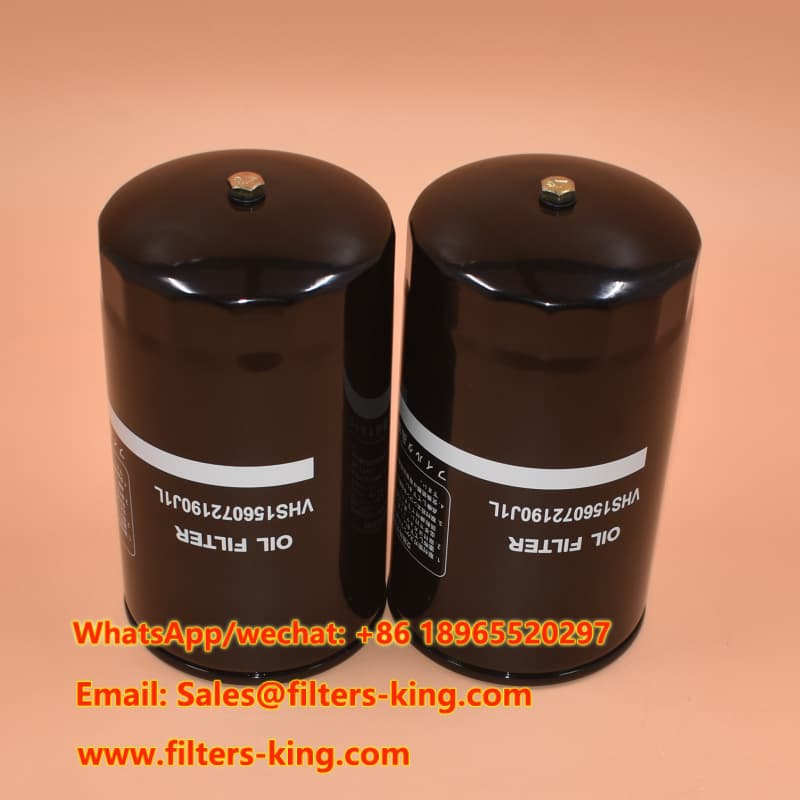

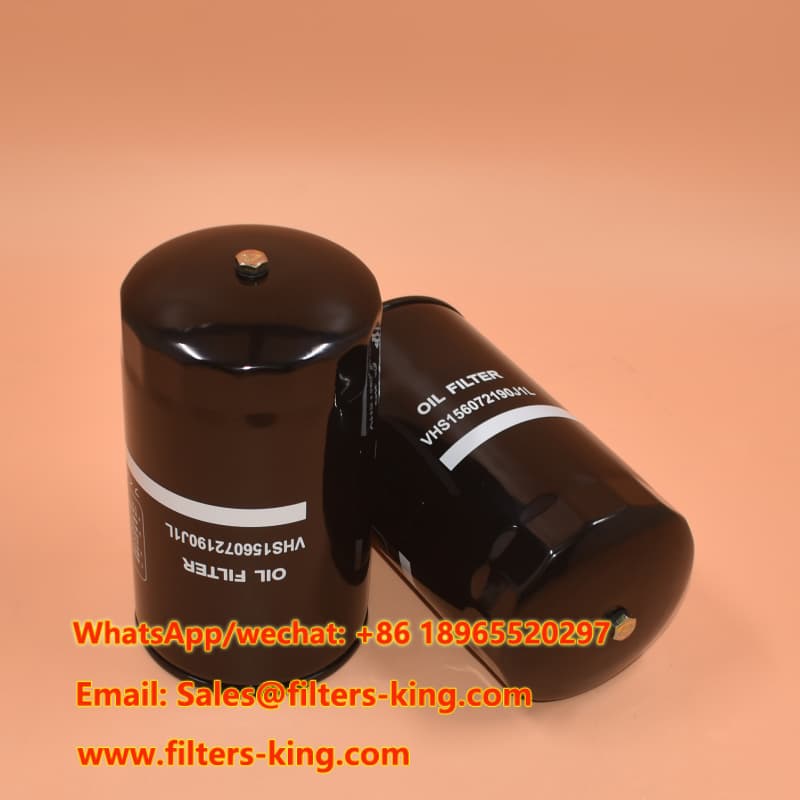

The VHS156072190J1L Oil Filter is a spin-on replacement filter developed for compatible Kobelco excavator applications. With a 1 1/2-16 UNF 2B thread, 4.74-inch maximum outside diameter and 8.09-inch height, this filter is designed for heavy-duty engine oil filtration where dependable fitment and consistent maintenance performance are important. It is a practical choice for distributors, aftermarket parts wholesalers, filter shops and professional service providers looking for a reliable Kobelco Engine Oil Filter replacement.
Engine oil carries heat and lubricates critical moving components, while contaminants generated during operation can affect the cleanliness of the lubrication system. A properly matched oil filter helps separate unwanted particles from engine oil before continued circulation. The VHS156072190J1L is supplied as a Kobelco replacement spin-on oil filter for compatible excavator applications.
For B2B buyers, the product offers a straightforward replacement format and a defined dimensional specification. The standard MOQ is 60 pieces, making it suitable for inventory replenishment, scheduled maintenance programs and aftermarket distribution. Buyers can also contact us for Custom Oil Filter Solutions, including OEM and ODM requirements.
| Item | Specification |
|---|---|
| Part Number | VHS156072190J1L |
| Product Type | Oil Filter, Spin-On |
| Brand | Kobelco Replacement |
| MOQ | 60 pcs |
| Application | Compatible Kobelco Excavator Applications |
| Thread Size | 1 1/2-16 UNF 2B |
| Largest Outside Diameter | 4.74 in / 120.40 mm |
| Gasket Outside Diameter | 4.36 in / 110.74 mm |
| Height | 8.09 in / 205.49 mm |
| Gasket Inside Diameter | 3.87 in / 98.30 mm |
| Seam Outside Diameter | 4.74 in / 120.27 mm |
The spin-on configuration supports convenient replacement during routine engine maintenance. Its defined thread, gasket and housing dimensions help professional buyers verify compatibility before ordering.
With a 60-piece MOQ, this Heavy Machinery Oil Filter is suitable for wholesalers, aftermarket distributors, filter stores and equipment maintenance companies that need repeatable supply rather than single-unit consumer purchases.
The large housing dimensions and full-size spin-on construction make this model suitable for compatible heavy-duty lubrication applications. Buyers should always confirm thread, gasket dimensions and equipment application before installation rather than relying on the part number alone.
The following numbers are provided as cross-reference information to help purchasing teams identify equivalent or related replacement options. Cross-reference data should be verified against the actual application, dimensions and installation requirements before bulk purchasing.
| Brand | Cross Reference Part Numbers |
|---|---|
| Case IH | VHS156072190J1M, VHS156072190 |
| Fiat Kobelco | YN30T01001P1 |
| Fleetguard | LF16110 |
| HIFI Filter | SO12039 |
| Hino | 15613EV034, 156129999999999990627593392010398007296, S156072190, S156072330, 15613E0030, 156130030, 156072190, 156072190A |
| Isuzu | 5865003760 |
| Kobelco | VHS156072190J1L, YN30T01001P1, VHS156072190, VHS156072190A, VH156072190, VH156072190C |
| MANN | W12003 |
| New Holland | VHS156072190J1M, VHS156072190, VH156072190A |
| Nissan | BF209Z5008, 15209Z500D, 15209Z5001 |
| Toyota | S156072190 |
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filter manufacturer supplying a wide range of filtration products, including air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators and filter assemblies. We also welcome OEM and ODM projects.
For distributors and aftermarket buyers, our Custom Oil Filter Solutions can support different sourcing requirements, packaging needs and product specifications. If you are building a private-label filter range or need regular supply of heavy equipment filtration products, send us your part number, application and expected quantity for evaluation.
★★★★★ — Daniel Mercer, Aftermarket Parts Distributor
“The part-number matching information made it easier for our purchasing team to identify the filter we needed. The supplier also provided clear specifications for bulk-order verification.”
★★★★★ — Olivia Bennett, Heavy Equipment Service Company
“We were looking for a dependable Kobelco excavator filter replacement for our maintenance inventory. The dimensional information helped our team confirm the application before ordering.”
★★★★★ — Marcus Ellison, Filter Wholesale Buyer
“The cross-reference options are useful for aftermarket sourcing. We also appreciate the OEM and ODM support when planning larger filter programs.”
Our focus is on supplying filtration products for professional B2B customers. We understand that wholesalers, retailers, filter shops and after-sales service companies need accurate part-number information, stable supply and clear technical specifications. From standard replacement filters to Custom Oil Filter Solutions, we aim to provide practical sourcing support for long-term business cooperation.
Contact our sales team for VHS156072190J1L oil filter pricing, MOQ, availability, OEM/ODM requirements and cross-reference verification. Please provide your required part number, quantity and application so our team can recommend the appropriate filter solution.
