High Performance Fuel Water Separator John Deere RE526557
The RE526557 can replace Fleetguard FS19978, Stanadyne 37013, Baldwin BF9808-D. Part Number:RE526557 Parts Name:Fuel Water Separator Brand:John Deere
+8618144082725
Part Number:SP212799 Part Type:Fuel Filter Element Brand:Liugong Replacement MOQ:60pcs Compatibility:Liugong Equipment.
Part Number:13074774 Part Type:Air Filter Kit Brand:Weichai Replacement MOQ:20pcs
Part Number:G130097(Mounting Band P013722,Cover Assembly P538259,Clip P776033) Part Type:Air Filter Assembly Brand:Donaldson Replacement MOQ:20pcs
Part Number:TM720D-400 Part Type:Reverse Osmosis Element Brand:Toray Replacement MOQ:60pcs
Part Number:03254375 Part Type:Cabin Air Filter Brand:Manitowoc Replacement MOQ:20pcs
Part Number:6B924 Part Type:Pleated Air Filter MERV Rating:8 Brand:Air Handler Replacement MOQ:20pcs
Vacuum Oil Purifier with Complete Accessories The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification. Technical Specifications Product Type Vacuum Oil Purifier Accessories Complete Accessories Included Flow Rate 50 L/min Working Pressure 0.6 MPa Vacuum Level ≤ -0.095 MPa Residual Water Content 5–10 ppm Residual Air Content ≤ 0.2% First-Stage Filtration 100 μm Second-Stage Filtration 10–20 μm Third-Stage Filtration 1–3 μm Voltage 380 V AC Frequency 50 Hz Phase Three Phase Motor Power 36 kW Heating Power 24 kW Control System PLC Control Efficient Vacuum Dehydration and Degassing The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment. Three-Stage Precision Filtration The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination. Powerful Heating and High Processing Capacity Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications. PLC Automatic Control The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification. ...

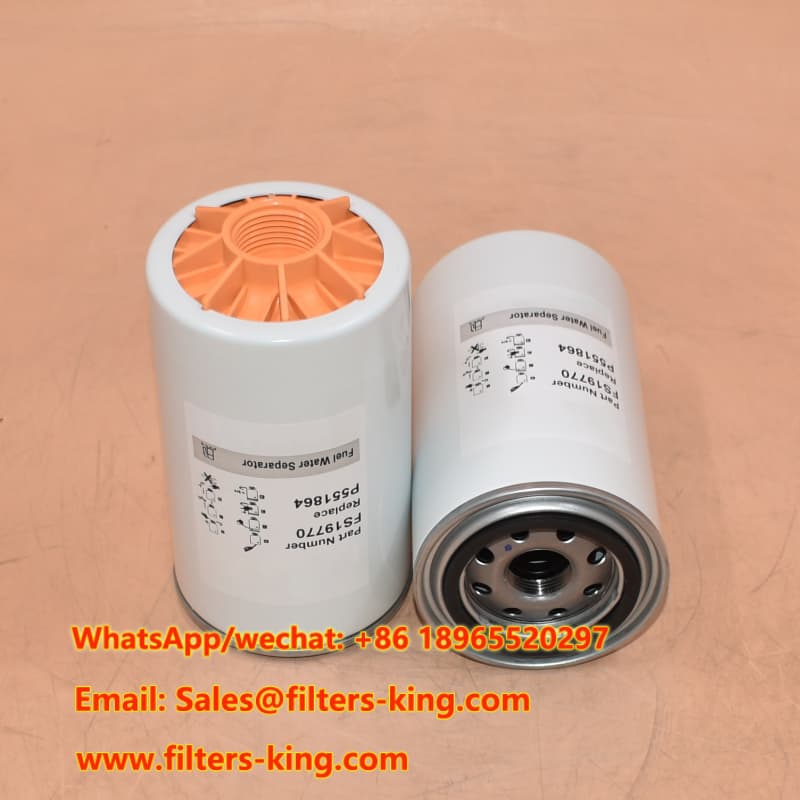

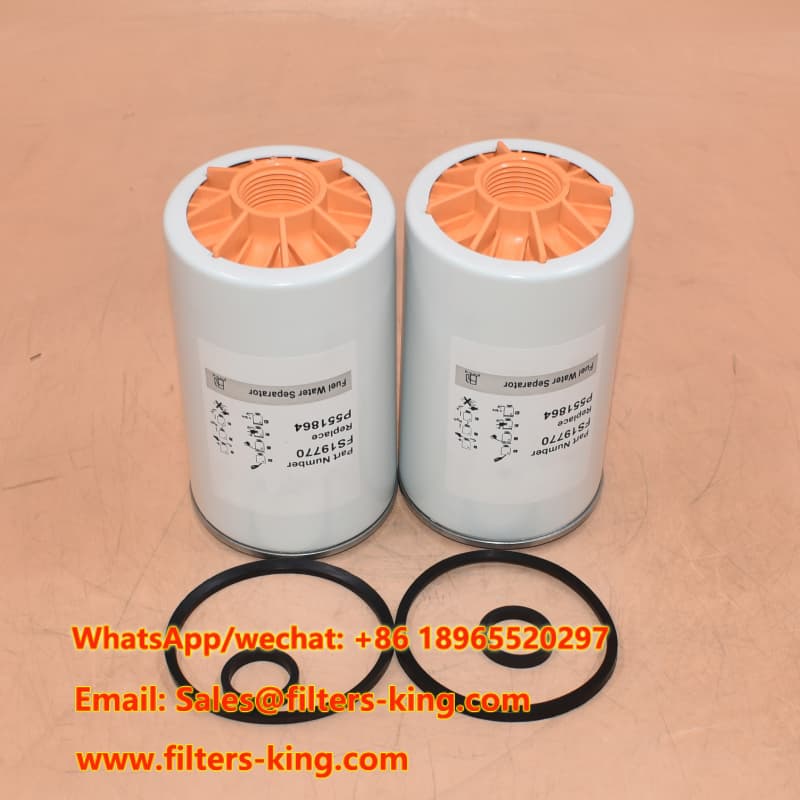

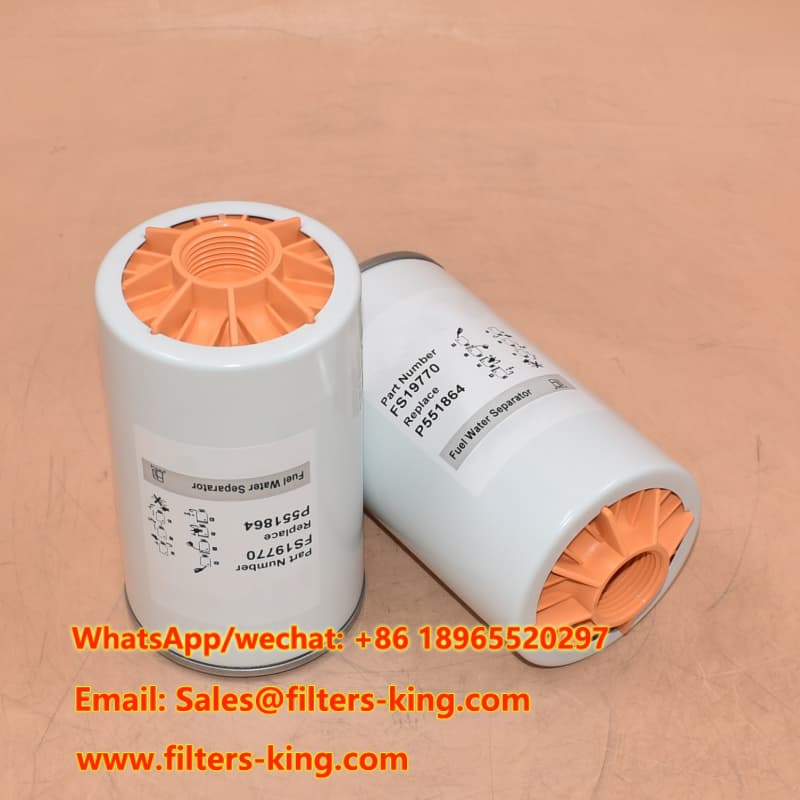

The FS19770 Spin-On Fuel Water Separator is a high-performance filtration component designed for diesel engines requiring reliable fuel system protection. Manufactured as a Fleetguard Fuel Water Separator Filter replacement, this model ensures efficient removal of water and contaminants from fuel, improving engine reliability and extending service life. It is widely used in heavy-duty vehicles, construction machinery, and industrial engines where fuel cleanliness is critical.
As a professional solution for Fuel Water Separator Replacement, FS19770 is engineered with high sealing performance and stable filtration efficiency, making it suitable for demanding operating environments.
FS19770 features a spin-on design, precision filtration media, and high water separation efficiency. It supports standard thread compatibility and ensures fast installation without special tools.
Compared with general filters, this High Efficiency Fuel Water Separator provides improved separation capacity, reducing injector wear and fuel system corrosion. Its robust construction ensures stable performance under vibration and pressure fluctuations.
End users benefit from longer engine life, reduced maintenance cost, and improved fuel efficiency. Fleet operators can significantly reduce downtime caused by fuel contamination issues.
FS19770 is widely cross-referenced with major global brands including Baldwin, Donaldson, Mann, Wix, and Sakura, proving its strong compatibility in aftermarket applications.
| Item | Specification |
|---|---|
| Part Number | FS19770 |
| Type | Spin-On Fuel Water Separator |
| Brand | Fleetguard Replacement |
| Outer Diameter | 3.70 inch (94 mm) |
| Thread Size | 1-14 UN |
| Length | 6.14 inch (156 mm) |
| Gasket OD | 2.80 inch (71 mm) |
| Gasket ID | 2.46 inch (62.5 mm) |
| Bowl Thread | 1 1/4-10 UN |
| MOQ | 60 pcs |
FS19770 is fully compatible with multiple OEM and aftermarket part numbers, making it a reliable solution for global distributors and maintenance providers.
Cross Reference List:
Baldwin BF1249-O
Donaldson P551864
Hengst H527WK D630
Hifi SN 25120
Fiat Kobelco VA32G6200100
TRP DAF 1500607
Kobelco 47555456
Komatsu 6003193620 / 6003193610 / 6003113620 / 6003113610
Mann WK9052x / WK940/36x
Sakura SFC-19100
Wix 33242
Our company CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filter manufacturer. We focus on delivering reliable filtration solutions including Fuel Water Separator Maintenance products for global B2B customers. OEM and ODM services are available to support custom requirements for wholesalers and distributors.
With strict quality control and stable production capability, we ensure every Fuel Water Separator Cross Reference product meets industrial performance standards.
★★★★★
Excellent Quality & Fit
"We replaced our old Fleetguard unit with FS19770. Perfect fit and stable performance in heavy trucks." – USA Distributor
★★★★★
Reliable Supplier
"Consistent quality and fast delivery. This fuel water separator works great for our repair shop customers." – Canada Service Center
★★★★★
High Efficiency Performance
"Water separation efficiency is excellent. Reduced fuel system failures significantly." – Germany Wholesaler
WhatsApp/Wechat: +86 18965520297
WhatsApp/Wechat: +86 18144082725
Email: Sales@filters-king.com
We support global distributors, filter retailers, aftermarket service providers, and wholesale buyers with stable supply and OEM customization.
CHINA EVERLASTING PARTS CO., LIMITED – Your Trusted Filter Manufacturer Partner.
The RE526557 can replace Fleetguard FS19978, Stanadyne 37013, Baldwin BF9808-D. Part Number:RE526557 Parts Name:Fuel Water Separator Brand:John Deere
The Fuel Water Separator RE521248 Replacement OEM Part Number BF9874DM 35948 FS19984 P551434,Application For John Deere 4045DFM; 4045TFM. Stone TR34(Hatz 2G40 eng)
The Fuel Water Separator 117-4089 can replaces Fleetguard FS19555, Baldwin BF7679-D, Donaldson P551430, John Deere RE62424.
The 2010SM can replace Fleetguard FS20101, Baldwin BF598, Donaldson P552013. Part name :RACOR Part Number:2010SM Brand: Parker
The 2010TM can replace Fleetguard FS20102, Baldwin BF598-10, Donaldson P552010. Part name :RACOR Part Number:2010TM Brand: Parker
The Fuel Water Separator 26560145 Equivalent to 10000-51231 FS19811 33729 6671649,Application For Bobcat Melroe 963 (Perkins 1004.40T eng). T2566 (Perkins 1004.40T eng).FG Wilson P150E (Perkins 1006 eng). P65E (Perkins 1004 eng). Forus HB171 . Massey Ferguson 6270 . 6280 . 6480 . Perkins Phaser 1000 . SMC 60220JD (John Deere eng). Valtra Valmet 800
