Part Number:SP212799 Part Type:Fuel Filter Element Brand:Liugong Replacement MOQ:60pcs Compatibility:Liugong Equipment.
Part Number:13074774 Part Type:Air Filter Kit Brand:Weichai Replacement MOQ:20pcs
Part Number:G130097(Mounting Band P013722,Cover Assembly P538259,Clip P776033) Part Type:Air Filter Assembly Brand:Donaldson Replacement MOQ:20pcs
Part Number:TM720D-400 Part Type:Reverse Osmosis Element Brand:Toray Replacement MOQ:60pcs
Part Number:03254375 Part Type:Cabin Air Filter Brand:Manitowoc Replacement MOQ:20pcs
Part Number:6B924 Part Type:Pleated Air Filter MERV Rating:8 Brand:Air Handler Replacement MOQ:20pcs
Vacuum Oil Purifier with Complete Accessories The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification. Technical Specifications Product Type Vacuum Oil Purifier Accessories Complete Accessories Included Flow Rate 50 L/min Working Pressure 0.6 MPa Vacuum Level ≤ -0.095 MPa Residual Water Content 5–10 ppm Residual Air Content ≤ 0.2% First-Stage Filtration 100 μm Second-Stage Filtration 10–20 μm Third-Stage Filtration 1–3 μm Voltage 380 V AC Frequency 50 Hz Phase Three Phase Motor Power 36 kW Heating Power 24 kW Control System PLC Control Efficient Vacuum Dehydration and Degassing The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment. Three-Stage Precision Filtration The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination. Powerful Heating and High Processing Capacity Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications. PLC Automatic Control The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification. ...

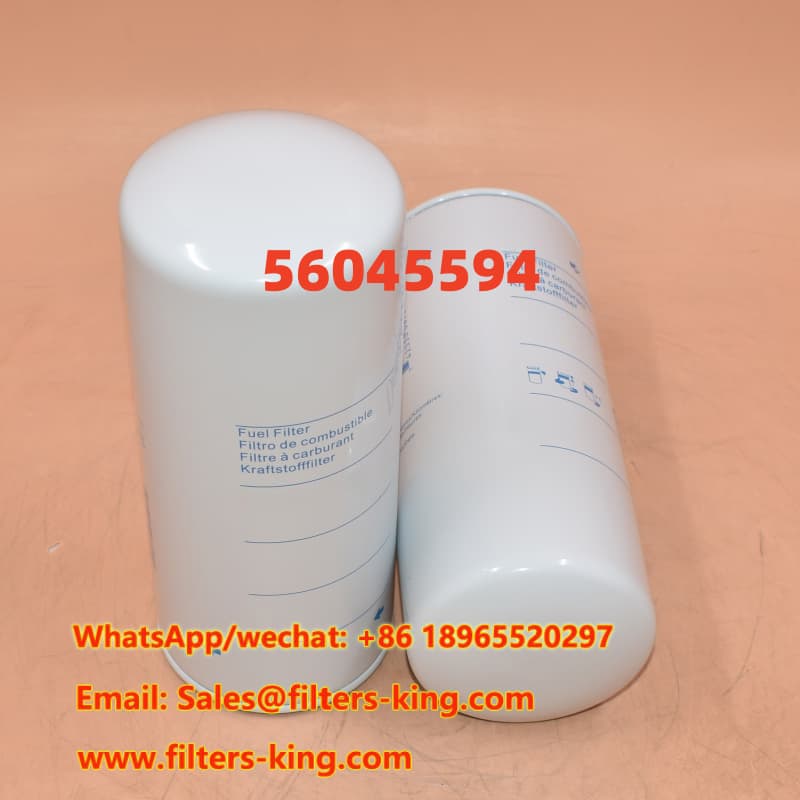

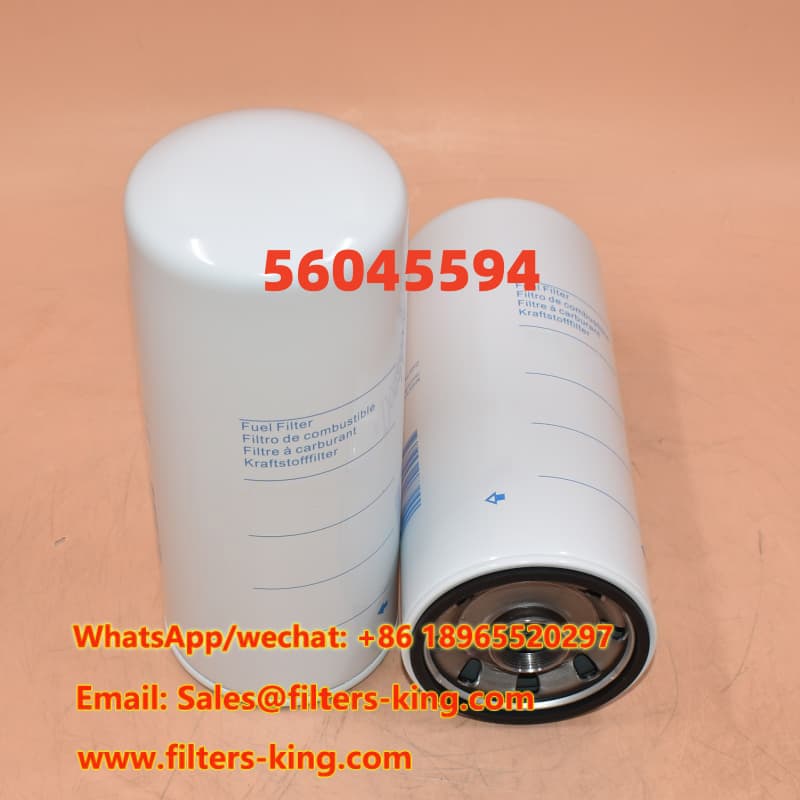

The 56045594 Spin On Diesel Fuel Filter is an aftermarket replacement designed for demanding diesel fuel filtration applications. It is listed for Sandvik LH410 and UJ440I applications and is suitable for professional filter distributors, wholesalers, retailers, filter stores, and after-sales service providers. With a robust spin-on design and a large filtration body, this replacement filter is developed for stable fuel flow, dependable contamination control, and efficient routine maintenance.
For buyers researching a Sandvik Fuel Filter Cross Reference, part number 56045594 can be cross-referenced with several widely used filter numbers, including Atlas Copco 2914984900, Baldwin BF46161, Fleetguard FF5507, Hengst H200WDK, Hifi SN 70201, Luberfiner LFF8059, Mahle Knecht KC251 and KC300, and Mann WDK11102 series numbers. Always verify the filter dimensions, thread, gasket specifications, and equipment requirements before ordering.
| Item | Specification |
|---|---|
| Part Number | 56045594 |
| Part Type | Fuel Filter |
| Brand | Sandvik Replacement |
| Filter Style | Spin-On Diesel Fuel Filter |
| Overall Length | 10.39 inch (264 mm) |
| Outer Diameter | 4.23 inch (107.5 mm) |
| Length | 10.31 inch (262 mm) |
| Thread Size | M32 x 1.5 |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| MOQ | 60 pcs |
This 56045594 replacement is associated with the following commonly searched filter numbers. The cross-reference list is intended for identification and sourcing support. Buyers should confirm the application and physical specifications before placing an order.
| Brand | Cross Reference Part Numbers |
|---|---|
| Atlas Copco | 2914984900 |
| Baldwin | BF46161 |
| DAF | 1517416 1533834 1534378 |
| Fleetguard | FF5507 FF254 |
| Hengst | H200WDK |
| Hifi | SN 70201 |
| Kalmar | 923976347 J018288 |
| Konecranes | 52609435 |
| Luberfiner | LFF8059 |
| Mahle Knecht | KC251 KC300 |
| Mann | WDK11102/13 WDK11102/24 WDK11102/28 |
| Renault | 5001868493 7420541381 7420972291 7420976001 7485116634 |
| Sakura | FC-7108 |
| SDMO | 330560689 |
| SF Schupp | SK 3320 |
The listed applications include Sandvik LH410 and UJ440I. This product is positioned for B2B buyers who need a dependable replacement filter for regular maintenance, aftermarket distribution, and equipment service. The combination of a large filtration body, spin-on configuration, and widely referenced part numbers can help distributors simplify product sourcing and support customers who search by either the original part number or an alternative filter number.
For wholesalers and filter stores, the 60-piece MOQ supports regular inventory purchasing. Retailers and after-sales service providers can also use the cross-reference information to identify potential replacement options more efficiently. For larger purchasing programs, CHINA EVERLASTING PARTS CO., LIMITED can discuss OEM and ODM requirements, packaging options, and customized filter specifications.
★★★★★
James Carter — Aftermarket Parts Distributor
Example/template testimonial: “The cross-reference information makes it easier for our sales team to identify replacement fuel filters for our customers.”
★★★★★
Andrew Wilson — Heavy Equipment Service Supplier
Example/template testimonial: “We look for stable supply, clear specifications, and practical packaging for our service inventory. This product fits those purchasing requirements.”
★★★★★
Thomas Bennett — Industrial Filter Wholesaler
Example/template testimonial: “Having several alternative part numbers listed helps our purchasing team handle different customer inquiries more efficiently.”
Q: What is the part number of this diesel fuel filter?
A: The primary part number is 56045594, supplied as a Sandvik replacement filter.
Q: Which Sandvik equipment is this filter listed for?
A: The supplied application information lists Sandvik LH410 and UJ440I. Please confirm your equipment and filter specifications before ordering.
Q: What is the MOQ?
A: The standard MOQ for this product is 60 pcs.
Q: Can you provide OEM or ODM service?
A: Yes. CHINA EVERLASTING PARTS CO., LIMITED welcomes OEM and ODM projects and can discuss customized requirements with qualified B2B buyers.
Q: How can I check the correct replacement?
A: Compare the part number, thread size, gasket dimensions, filter dimensions, and equipment application before purchasing. If you provide your original filter number and application details, our sales team can help check the available replacement option.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving global B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We support OEM and ODM cooperation and focus on supplying practical filtration solutions for distributors, wholesalers, retailers, filter stores, and after-sales service providers.
WhatsApp / Wechat: +86 18965520297
WhatsApp / Wechat: +86 18144082725
Email: Sales@filters-king.com
Request a Quote: Send us your required part number, quantity, application, and packaging requirements. Our team can help check the replacement specification and provide a B2B quotation for the 56045594 fuel filter.
The 1R-0762 is equivalent to Fleetguard FF5624, Donaldson P550625, Baldwin BF7753, Hengst H264WK. Part Number:1R-0762,1R0762 Part Name:Fuel Filter Brand:Caterpillar
The Fuel Filter Element 30 Microns 2040PM Reference Cross FS20403 P552044 3827507 E7040KP30,Application For Claas Jaguar 950; Jaguar 960 (Mercedes eng). Jaguar 970; Jaguar 980 (Mercedes OM460LA eng). Volvo Penta TAMD122A.
The Fuel Filter 320/07155 Reference Cross Part Number P765325 SK3104 SP1293 PS10106,Application For JCB 1110 Robot; 1110T Robot(JCB444 Dieselmax Engine), 190 Robot; 190T Robot(JCB444 Dieselmax Engine), 2CX(JCB444 Dieselmax Engine), 3C(JCB444 Dieselmax Tier 2 Turbo Tier 3 Engine), 3CX(JCB Engine Engine) From 2010, 3CX, 3CX(JCB444 Dieselmax Tier 2 Turbo Tier 3 Engine), 3CX; 4CX(444 Diesel Max Engine) From 2005, 411 Agri; 411HT(JCB444 Dieselmax Engine), 412S(JCB444 Dieselmax Tier 2 Engine)
The FF5485 can replace Baldwin BF7628, Donaldson P550448, Carrier 30-01090-01
The Fuel Filter FF5765 Cross Reference P506036 19246644 F-11131 23390-51020 23390-51070 Application For Toyota Truck, light truck.
The 1R-0756 is equivalent to Fleetguard FF5323, Donaldson P561317, Baldwin BF7655, Caterpillar 4J6064. Part Number:1R-0756,1R0756 Part Name:Fuel Filter Brand:Caterpillar
