RACOR Fuel Water Separator Assembly 751000FHX

The RACOR 751000FHX replace filter element include 2020SM- OR,2020TM- OR,2020PM- OR.

Part Number:751000FHX

Part Name:Fuel Water Separator Assembly

Brand:RACOR

Contact Now

Details

RACOR Fuel Water Separator Assembly 751000FHX

Fuel Water Separator Assembly 751000FHX Parameter：

Part Number	751000FHX
Parts Name	Fuel Water Separator Assembly
Brand	RACOR

Fuel Water Separator Assembly 751000FHX Specifications:

Basic Models	751000FHX
Maximum Flow Rate: (one unit online) (two units online) (three units online)	180 GPH (681 LPH) 360 GPH (1363 LPH) N/A






Port Size	7/8”- 14 UNF (SAE J514 male threads)
Min. Service Clearance (above assembly) (below assembly)	10.0 in. (25.4 cm) 2.0 in. (5.1 cm)




Replacement Element: (2 micron) (10 micron) (30 micron)	(2 Per Assembly) 2020SM- OR 2020TM- OR 2020PM- OR






Height	22.0 in. (55.9 cm)
Depth	11.0 in. (27.9 cm)
Width	18.8 in. (47.8 cm)
Weight (dry)	30.0 lb (13.6 kg)
Clean Pressure Drop	3.7 PSI (25.5 kPa)
Maximum Pressure1	15 PSI (1 bar)
Water In Bowl Capacity (per bowl)	10.3 oz (305 ml)


Available Options:2 (water detection kit) (12 or 24 vdc heater) (vacuum gauge)	Yes Yes Yes


Operating Temperature	--40oto +255oF /-40oto +121oC

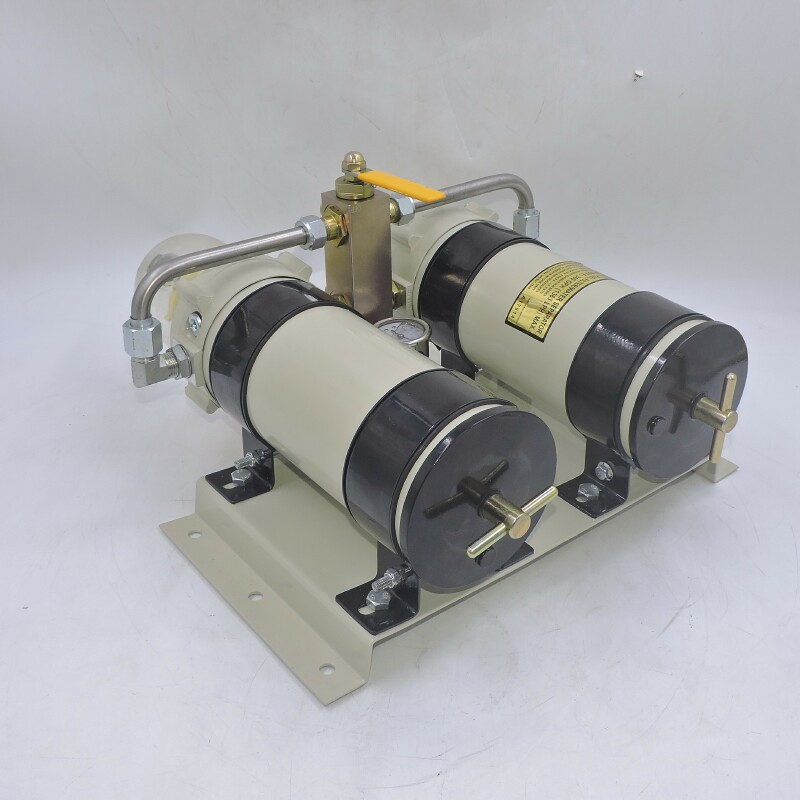

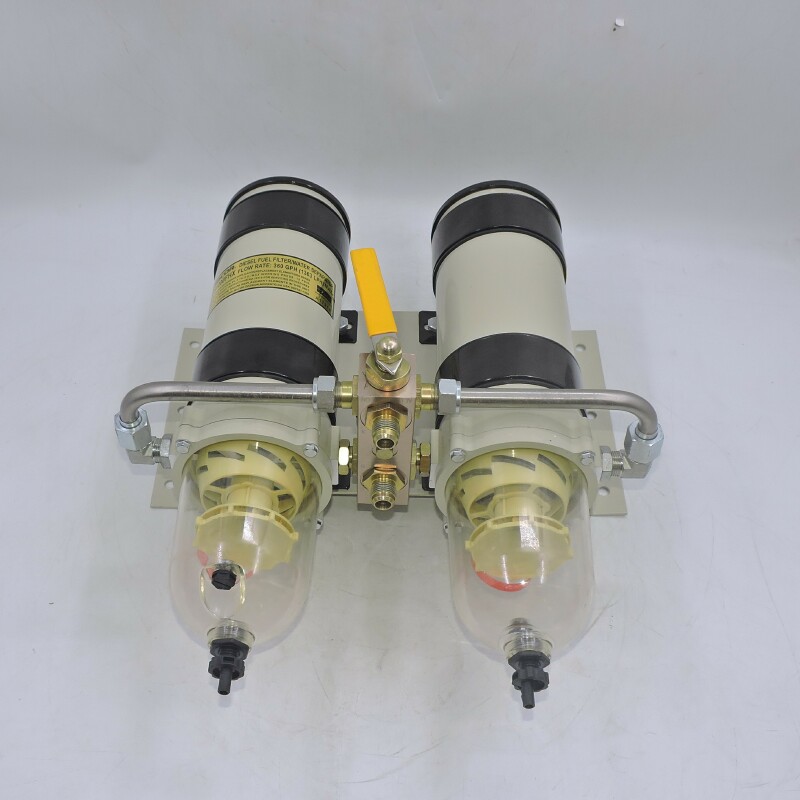

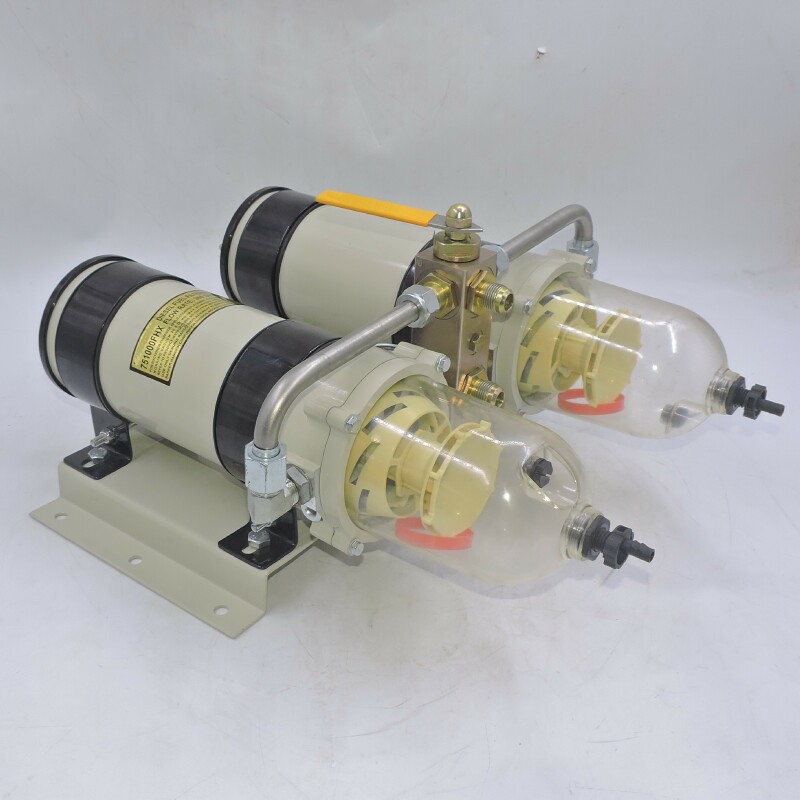

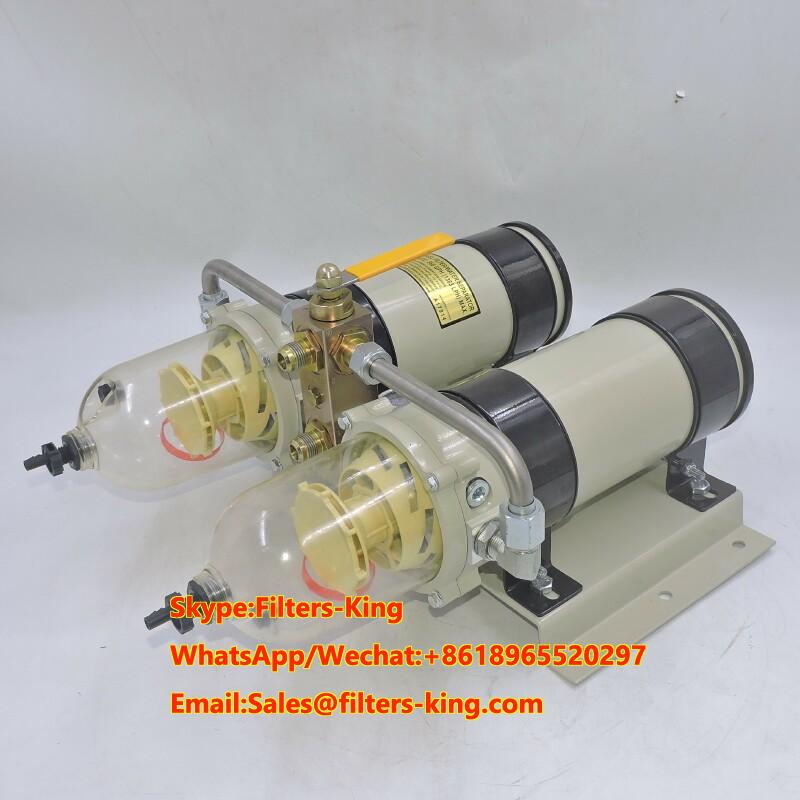

Fuel Water Separator Assembly 751000FHX Picture:

Tags RACOR 751000FHX Filter Assembly 751000FHX racor filter housing Filters 2020 series RACOR Fuel Water Assembly
