2019-01-03Turbine Series filter assemblies are designed to be installed on the vacuum side of the fuel transfer pump for best efficiency and protect precision engine components from dirt, rust, algae, asphaltines, varnishes, and especially water, which is prevalent in engine fuels.
The RACOR 500FG and 75500FGX replace filter element include 2010SM- OR,2010TM- OR,2010PM- OR.
The RACOR 900FG and 75900FGX replace filter element include 2040SM- OR,2040TM- OR,2040PM- OR.
The RACOR 1000FG and 751000FHX replace filter element include 2020SM- OR,2020TM- OR,2020PM- OR.
RACOR 500FG, 900FG and 1000FG specifications:
|
Basic Models |
500FG |
900FG |
1000FG |
|
Maximum Flow Rate: |
60 GPH (227 LPH) |
90 GPH (341 LPH) |
180 GPH (681 LPH) |
|
Port Size |
3/4”- 16 UNF (SAE J1926) |
7/8”- 14 UNF (SAE J1926) |
7/8”- 14 UNF (SAE J1926) |
|
Min. Service Clearance (above assembly) (below assembly) |
5.0 in. (12.7 cm) |
7.5 in. (19.1 cm) |
10.0 in. (25.4 cm) |
|
Replacement Element: |
(1 Per Assembly) |
(1 Per Assembly) |
(1 Per Assembly) |
|
Height |
11.5 in. (29.2 cm) |
17.0 in. (43.2 cm) |
22.0 in. (55.9 cm) |
|
Depth |
4.8 in. (12.2 cm) |
7.0 in. (17.8 cm) |
7.0 in. (17.8 cm) |
|
Width |
5.8 in. (14.7 cm) |
6.0 in. (15.2 cm) |
6.0 in. (15.2 cm) |
|
Weight (dry) |
4.0 lb (1.8 kg) |
6.0 lb (1.8 kg) |
10.0 lb (4.5 kg) |
|
Clean Pressure Drop |
0.25 PSI (1.7 kPa) |
0.3 PSI (2.1 kPa) |
0.43 PSI (3.0 kPa) |
|
Maximum Pressure1 |
15 PSI (1 bar) |
15 PSI (1 bar) |
15 PSI (1 bar) |
|
Water In Bowl Capacity |
3.7 oz (110 ml) |
10.3 oz (305 ml) |
10.3 oz (305 ml) |
|
Available Options:2 (water detection kit) (12 or 24 vdc heater) (vacuum gauge) |
Yes Yes Yes |
Yes Yes Yes |
Yes Yes Yes |
|
Operating Temperature |
--40oto +255oF /-40oto +121oC |
--40oto +255oF /-40oto +121oC |
--40oto +255oF /-40oto +121oC |

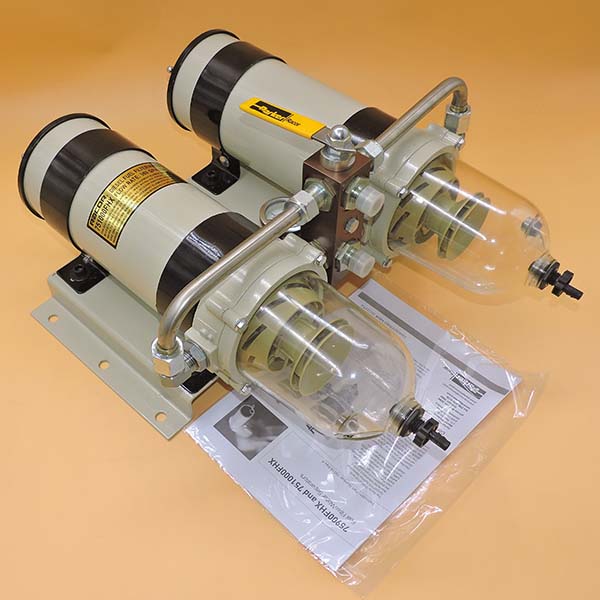

RACOR 75500FGX, 75900FGX and 751000FHX specifications:
|
Basic Models |
75500FGX |
75900FGX |
751000FHX |
|
Maximum Flow Rate: |
60 GPH (227 LPH) |
90 GPH (341 LPH) |
180 GPH (681 LPH) |
|
Port Size |
3/4”- 16 UNF (SAE J1926 female threads) |
7/8”- 14 UNF (SAE J514 male threads) |
7/8”- 14 UNF (SAE J514 male threads) |
|
Min. Service Clearance (above assembly) (below assembly) |
5.0 in. (12.7 cm) |
7.5 in. (19.1 cm) |
10.0 in. (25.4 cm) |
|
Replacement Element: |
(2 Per Assembly) |
(2 Per Assembly) |
(2 Per Assembly) |
|
Height |
11.5 in. (29.2 cm) |
17.0 in. (43.2 cm) |
22.0 in. (55.9 cm) |
|
Depth |
9.5 in. (24.1 cm) |
11.0 in. (27.9 cm) |
11.0 in. (27.9 cm) |
|
Width |
14.5 in. (36.8 cm) |
18.8 in. (47.8 cm) |
18.8 in. (47.8 cm) |
|
Weight (dry) |
17.0 lb (7.7 kg) |
23.0 lb (10.4 kg) |
30.0 lb (13.6 kg) |
|
Clean Pressure Drop |
0.7 PSI (4.8 kPa) |
1.7 PSI(11.7 kPa) |
3.7 PSI (25.5 kPa) |
|
Maximum Pressure1 |
15 PSI (1 bar) |
15 PSI (1 bar) |
15 PSI (1 bar) |
|
Water In Bowl Capacity |
3.7 oz (110 ml) |
10.3 oz (305 ml) |
10.3 oz (305 ml) |
|
Available Options:2 (water detection kit) (12 or 24 vdc heater) (vacuum gauge) |
Yes Yes Yes |
Yes Yes Yes |
Yes Yes Yes |
|
Operating Temperature |
--40oto +255oF /-40oto +121oC |
--40oto +255oF /-40oto +121oC |
--40oto +255oF /-40oto +121oC |
