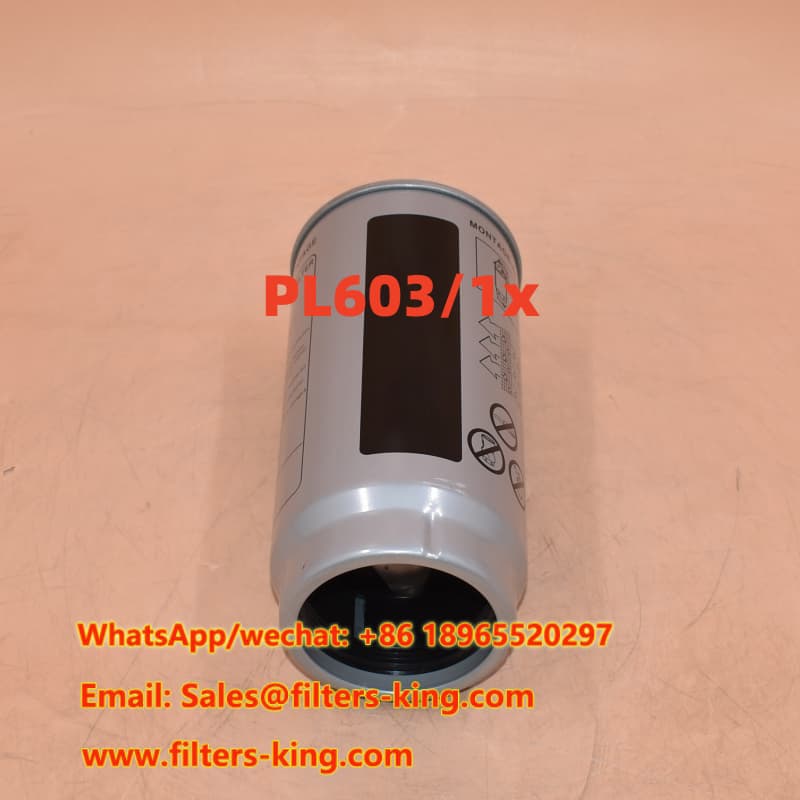

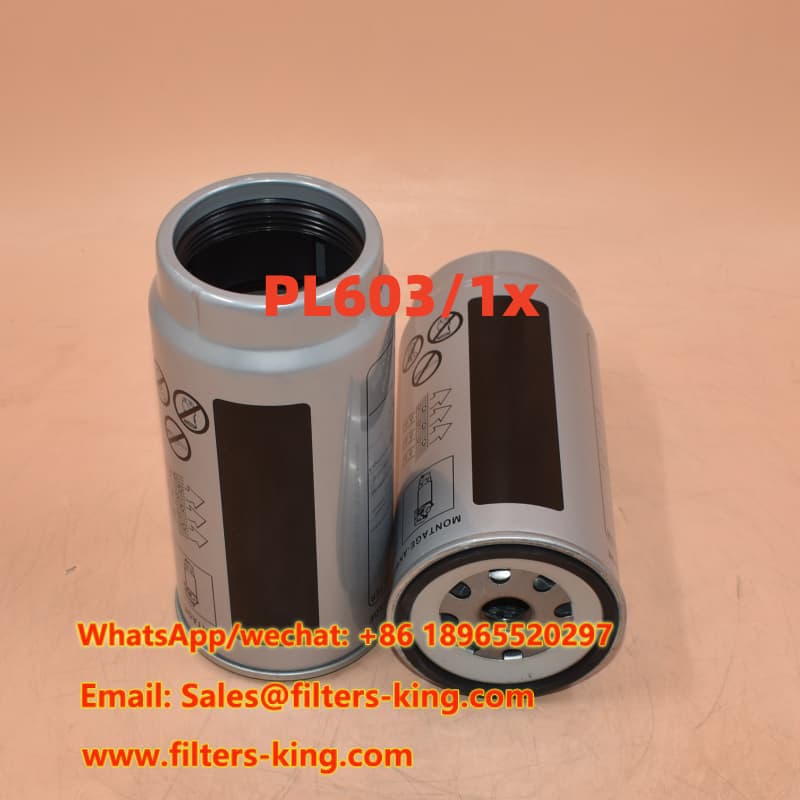

The PL603/1x Fuel Water Separator is a heavy-duty diesel fuel filtration solution designed for applications where reliable separation of water and fuel contaminants is important. This MANN replacement filter is available for distributors, wholesalers, filter stores, retailers, and after-sales service companies looking for a dependable Diesel Fuel Water Separator Replacement for their customers.
Built for professional replacement applications, this filter combines fuel filtration and water separation in a spin-on design. It helps protect sensitive fuel system components from harmful water and contamination while supporting stable fuel flow. MANN-FILTER identifies PL 603/1 x as a water separator with a gasket, with applications including Mercedes-Benz and EVOBUS/Setra vehicles.
For B2B buyers, the PL603/1x provides a practical option for maintaining diesel fuel systems without changing the original installation concept. Its spin-on construction supports efficient replacement during routine service, while the water-separating function helps reduce the risk of water reaching downstream fuel system components.
This product is suitable for businesses that need consistent aftermarket supply rather than one-off consumer purchases. With a 60-piece MOQ, it can be supplied for wholesale programs, service networks, filter shops, and regular maintenance orders. Custom packaging, private-label requirements, and OEM/ODM projects can also be discussed according to order volume.
| Item | Specification |
|---|---|
| Part Number | PL603/1x |
| Part Type | Fuel Water Separator |
| Brand | MANN Replacement |
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1-14 UN |
| Length | 231.4 mm (9.11 inch) |
| Gasket OD | 103 mm (4.06 inch) |
| Gasket ID | 93 mm (3.66 inch) |
| MOQ | 60 pcs |
If you are searching for a Mann Fuel Water Separator Cross Reference, the following part numbers can be used as cross-reference information for procurement and replacement matching. Buyers should always verify dimensions, thread, gasket configuration, and application before installation.
| Brand | Cross Reference Part Number |
|---|---|
| Donaldson | P959081 |
| Fleetguard | FS20425 |
| Hengst | H824WK D718 |
| Hifi | SN 70553 |
| MANN | PL603/1x |
| Mercedes-Benz | A9604770503001 9604770503 |
| SF Schupp | SK 48946 |
Diesel fuel can contain water, dust, rust particles, and other contaminants that may affect fuel system performance. A properly selected fuel water separator provides an important filtration stage before contaminated fuel reaches downstream components. The PL603/1x replacement is designed for professional diesel service applications where dependable filtration and water separation are part of routine maintenance.
For wholesalers and filter distributors, offering a compatible Heavy Duty Diesel Fuel Separator can help cover replacement demand across commercial vehicle and equipment maintenance markets. For after-sales service providers, the product provides a practical replacement option when customers need a filter matching the required part number and installation specifications.
The separator function is designed to help remove water from diesel fuel, supporting cleaner fuel delivery and helping reduce exposure of downstream components to water contamination.
The spin-on replacement format is suitable for regular maintenance programs. It allows service teams to replace the filter as part of scheduled fuel system maintenance.
A 60-piece MOQ makes this product suitable for professional purchasing. Neutral packaging or customized packaging can be discussed for different distribution requirements.
CHINA EVERLASTING PARTS CO., LIMITED supports customers looking for a Custom Fuel Water Separator or private-label filtration program. OEM and ODM cooperation can be developed according to the customer's technical requirements, application, packaging needs, and expected order volume.
For filter wholesalers and retailers, customized packaging can help create a consistent product line. For service companies, custom specifications may be discussed when a standard replacement does not fully meet a specific application. Please provide the original part number, dimensions, application information, or sample when requesting a customized quotation.
Jason Miller — Purchasing Manager
“The cross-reference information made it easy for our purchasing team to match the replacement filter. The product was supplied with good packaging and clear specifications.”
Thomas Reed — Filter Distributor
“We needed a bulk replacement option for diesel fuel service customers. The PL603/1x specification was easy for our team to check and order.”
Daniel Brooks — After-Sales Service Buyer
“The supplier provided useful replacement information and responded clearly to our technical questions. This helped us prepare the filter for our regular maintenance orders.”
PL603/1x is a fuel water separator used in diesel fuel filtration applications. It is listed by MANN-FILTER as a water separator and is associated with various Mercedes-Benz and EVOBUS/Setra applications.
Common cross-reference numbers provided for this replacement include Donaldson P959081, Fleetguard FS20425, Hengst H824WK D718, Hifi SN 70553, Mercedes-Benz A9604770503001 / 9604770503, and SF Schupp SK 48946. Always confirm the filter dimensions and application before installation.
The standard MOQ for this PL603/1x replacement is 60 pieces. Larger repeat orders and customized purchasing requirements can be discussed with our sales team.
Yes. We welcome OEM and ODM projects for fuel water separators and other filtration products. Please provide your required specifications, target application, quantity, and packaging requirements for evaluation.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main product range includes Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.
We focus on replacement filtration products for professional buyers and support OEM and ODM cooperation. Our customer base includes retailers, after-sales service providers, wholesalers, and filter stores that need stable product supply, cross-reference support, and flexible purchasing solutions.
Need bulk pricing, cross-reference confirmation, custom packaging, or OEM/ODM service? Contact CHINA EVERLASTING PARTS CO., LIMITED with your required quantity and application details.
