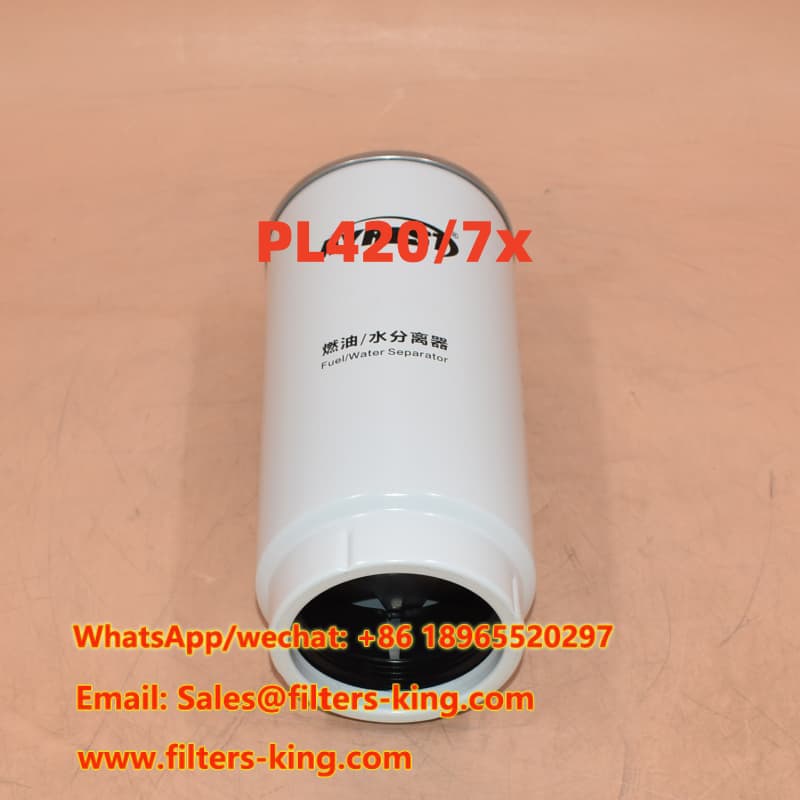

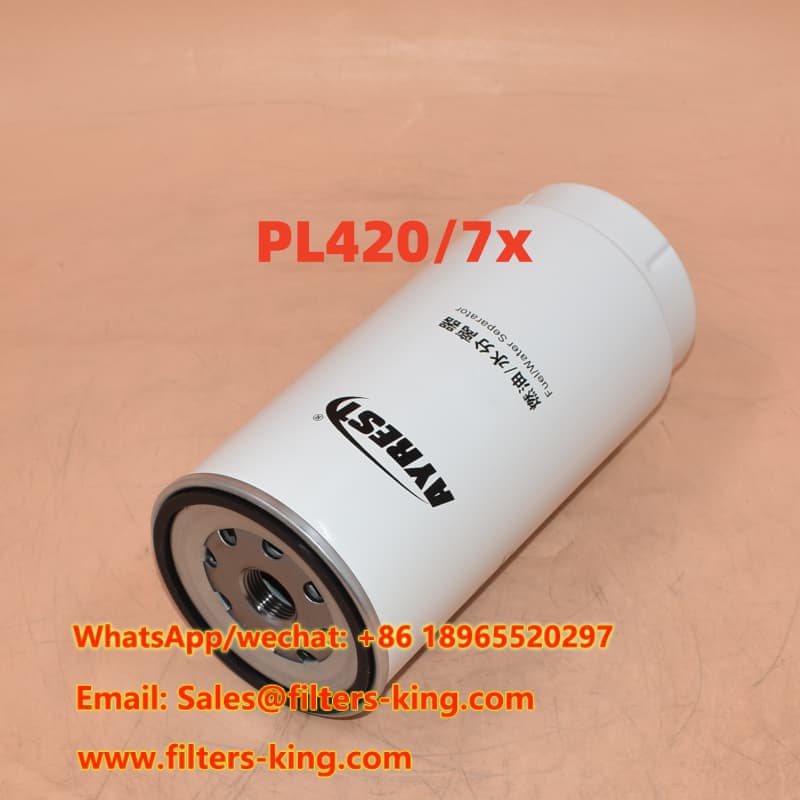

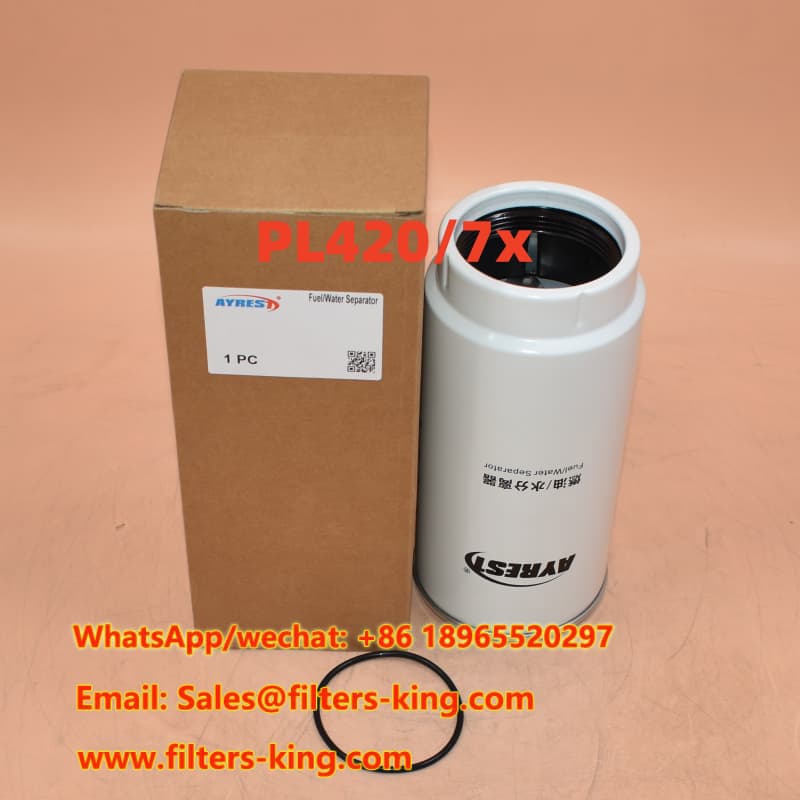

The PL420/7x Fuel Water Separator is a Mann replacement filter designed for diesel fuel systems that require effective separation of water and solid contaminants. For distributors, filter stores, wholesalers, and after-sales service providers, this replacement filter offers a practical option for maintaining fuel system cleanliness and stable engine operation. With a wide range of cross-reference numbers, it can support different equipment and replacement requirements. If you are looking to Buy Fuel Water Separator Filter in bulk, our PL420/7x replacement is available for regular aftermarket supply, OEM/ODM cooperation, and customized packaging.
Built for professional B2B sourcing, this Spin On Fuel Water Separator Filter combines a convenient replacement design with dependable filtration performance. Its extended filter body provides useful filtration capacity for diesel applications, while the standardized thread and gasket configuration help simplify product matching. Buyers can also use the listed cross-reference numbers to check compatibility before placing an order.
Feature: The PL420/7x is designed as a fuel water separator for diesel fuel systems.
Advantage: It helps separate water and capture unwanted particles before contaminated fuel reaches sensitive fuel system components.
Benefit: Cleaner fuel can help support consistent fuel delivery and reduce the risk associated with water and contaminant buildup.
Evidence: The filter is supplied as a Mann replacement and is matched with multiple recognized aftermarket and equipment reference numbers.
Feature: The PL420/7x uses a spin-on filter configuration.
Advantage: This design supports straightforward filter replacement during scheduled maintenance.
Benefit: Service teams can simplify routine filter changes and reduce unnecessary installation work.
Evidence: The product uses a 1-14 UN thread and a defined gasket configuration for professional filter matching.
Feature: The PL420/7x corresponds to a broad selection of commonly searched replacement numbers.
Advantage: Distributors can use cross-reference information to identify potential replacement applications more efficiently.
Benefit: This makes the product useful for mixed aftermarket inventories and different customer sourcing requests.
Evidence: Cross-reference numbers include Donaldson P551026, Fleetguard FS19769, Hengst H710WK, Hifi SN 70207, Baldwin BF1383-O, and other application numbers listed below.
| Specification | Details |
|---|---|
| Part Number | PL420/7x |
| Part Type | Fuel Water Separator |
| Brand | Mann Replacement |
| Outer Diameter | 4.22 inch (107.3 mm) |
| Thread Size | 1-14 UN |
| Length | 9.59 inch (243.6 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| MOQ | 60 pcs |
The following numbers can be used as a reference when checking potential replacement applications for PL420/7x. Because equipment configurations can vary by model, production year, and application, professional buyers should confirm the original filter number and physical specifications before ordering.
| Brand | Cross Reference Part Numbers |
|---|---|
| Agco | ACP0287890 |
| Baldwin | BF1383-O |
| Baudouin | 1001044161 |
| Bosch | F026402038 |
| Case IH | 84303715 |
| Claas | 0001442310 144231 1442310 240210 |
| DAF | 1433649 1535474 2169185 |
| Daewoo | K1006529 91006529 |
| Deutz-Fahr | 2934715 |
| Donaldson | P551026 |
| Doosan | 40040300021 K1006519 |
| Fleetguard | FS19769 |
| Ford | 3C469176BA |
| Hengst | H710WK |
| Hifi | SN 70207 |
| Iveco | 5801312864 |
| Kamaz | 6660659520 |
| Knorr-Bremse | K165033N50 |
| Liebherr | 10032291 |
| Lovol | T75004243AB |
| MAN | 5112501726 51125017260 51125017283 51125017288 51125030052 |
| New Holland | 84303715 84394226 84394227 |
| Renault | 5021185714 |
Our PL420/7x replacement is intended for professional buyers who need stable aftermarket filter supply. The standard MOQ is 60 pieces, making the product suitable for wholesalers, filter distributors, retail suppliers, and service companies that purchase replacement filters in quantity. If you need a Fuel Water Separator Filter Price for a specific order quantity, contact our sales team with your required volume and destination.
We support neutral packaging as well as customized packaging for qualified B2B orders. OEM and ODM cooperation is also available for customers developing their own filter programs. Before placing a bulk order, buyers can provide an original part number, equipment information, sample, or technical requirements for product matching.
★★★★★ Daniel Brooks — Purchasing Manager, Diesel Parts Distributor
“The cross-reference information made it easier for our purchasing team to confirm the filter we needed. The bulk ordering process was clear and efficient.”
Example testimonial for website use.
★★★★★ Ethan Miller — Service Coordinator, Heavy Equipment Aftermarket Service
“We needed a replacement fuel water separator for our service inventory. The part-number matching support helped us prepare our order with confidence.”
Example testimonial for website use.
★★★★★ James Carter — Owner, Commercial Filter Store
“The product is a useful addition to our aftermarket filter range. We appreciate the B2B communication and flexible packaging options.”
Example testimonial for website use.
PL420/7x is a Mann replacement fuel water separator filter designed for diesel fuel filtration applications.
The standard MOQ for this product is 60 pieces.
Yes. Buyers can send an original part number, product photo, dimensions, or application information so our sales team can help check a potential replacement.
Yes. CHINA EVERLASTING PARTS CO., LIMITED welcomes OEM and ODM cooperation for qualified B2B projects, including customized products and packaging.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving international B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We welcome retailers, wholesalers, filter stores, after-sales service providers, and other professional buyers to discuss long-term supply programs. OEM and ODM cooperation is also welcome.
Send us your required quantity, cross-reference number, or application details for product confirmation and a B2B quotation.
