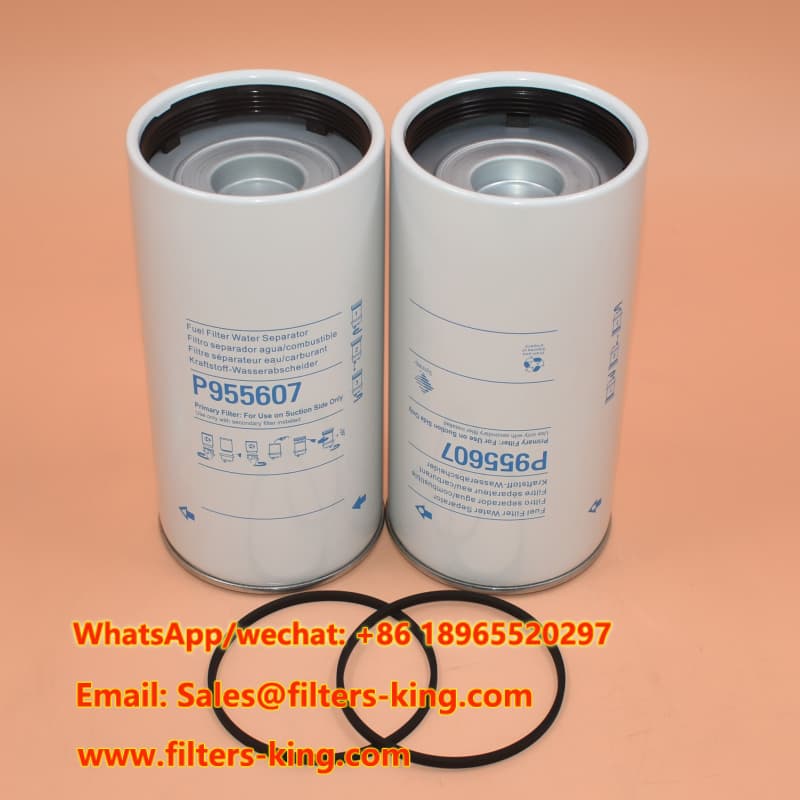

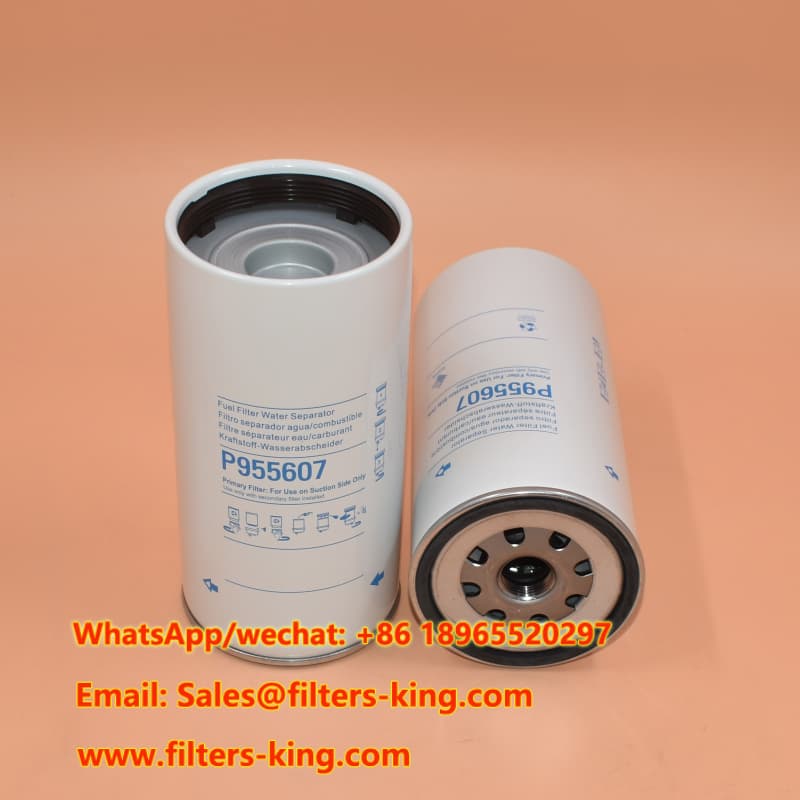

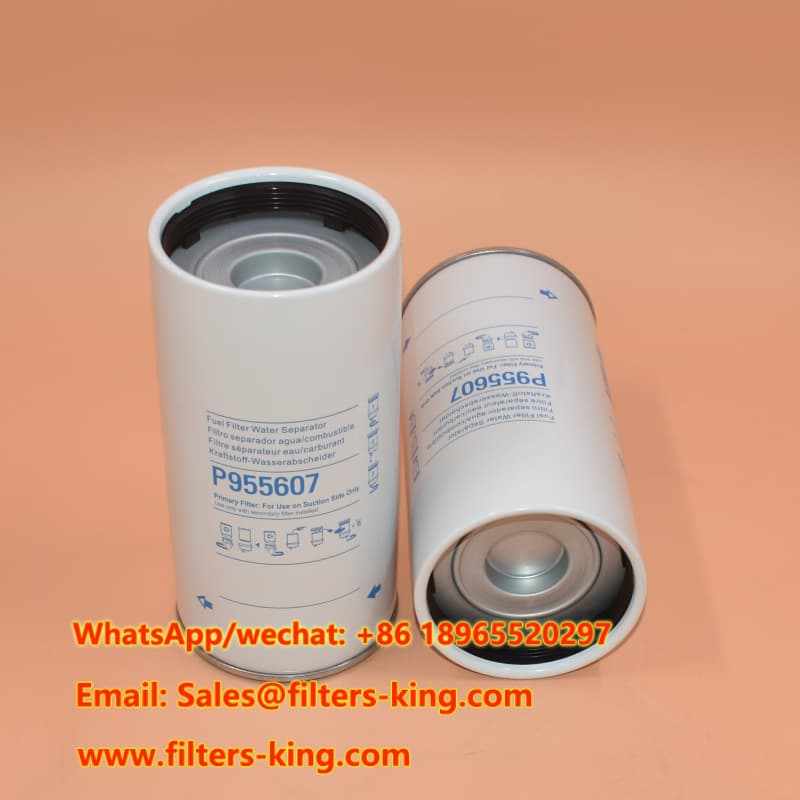

P955607 Fuel Water Separator Filter Exporter
The P955607 is a fuel water separator spin-on filter developed as a practical replacement solution for diesel fuel filtration applications. It is suitable for retailers, aftermarket distributors, filter stores, wholesalers, and after-sales service providers looking for a dependable replacement filter with multiple cross-reference options.
As an Aftermarket Fuel Water Separator, P955607 helps separate water and contaminants from diesel fuel before they reach sensitive fuel system components. Effective fuel filtration can help support cleaner fuel delivery, reduce contamination-related risks, and maintain stable engine operation. The spin-on design also supports convenient replacement during routine maintenance.
For buyers researching a Donaldson Fuel Water Separator Cross Reference, P955607 provides a useful alternative with a wide range of commonly referenced part numbers. This makes it easier for distributors and service companies to identify a suitable replacement according to the original filter number, application requirements, and purchasing needs.
| Parameter | Specification |
|---|---|
| Part Number | P955607 |
| Part Type | Fuel Water Separator Spin-On |
| Brand | Donaldson Replacement |
| Outer Diameter | 4.25 inch (107.9 mm) |
| Thread Size | 1-14 UN |
| Length | 8.52 inch (216.4 mm) |
| Gasket OD | 4.06 inch (103 mm) |
| Gasket ID | 3.66 inch (93 mm) |
| Bowl Thread | 3 3/4-10 UN |
| MOQ | 60 pcs |
The filter is designed to help remove water and unwanted particles from diesel fuel. This supports cleaner fuel entering downstream components and provides an important filtration stage for diesel-powered equipment.
The spin-on construction provides a practical maintenance solution for professional service teams. It is suitable for routine filter replacement and can help simplify inventory management for distributors handling common diesel filtration products.
The P955607 reference is associated with multiple industry part numbers. This makes it a useful Fuel Water Separator Alternative for buyers who need replacement options across different equipment and vehicle applications.
With a minimum order quantity of 60 pieces, this product is positioned for commercial purchasing rather than individual retail use. It can support wholesalers, filter stores, service companies, and aftermarket distributors that need repeat stock availability.
The following numbers are provided as commonly referenced alternatives for P955607. Buyers should confirm dimensions, thread specifications, gasket details, bowl configuration, and equipment requirements before ordering.
| Brand | Cross Reference Part Numbers |
|---|---|
| Agco | 557871D1 |
| Bosch | F026402138 |
| DAF | 1517545 1533901 1535516 |
| Dynapac | 4700945950 945950 |
| Fleetguard | FS19737 |
| Hengst | H7160WK30 |
| HiFi | SN 916030 |
| Iveco | 504142827 504143664 504166113 42554067 5801620130 5801774731 |
| Mann | WK1080/6x |
| Massey Ferguson | 3905873M91 |
| Mercedes-Benz | 4771702 A0004771702 |
| Renault | 7421380500 7424993623 |
| Scania | 1780730 |
| Volvo | 21380500 |
P955607 is suitable for procurement programs that require a High Quality Fuel Water Separator Filter for diesel filtration applications. It can be considered by aftermarket distributors, equipment maintenance companies, filter wholesalers, and filter stores that need cross-reference products for different customer requirements.
For buyers looking for an OEM Diesel Fuel Water Separator Replacement, checking the original filter number together with the physical specifications is recommended before purchase. Our team can also assist B2B customers with product identification, bulk orders, packaging requirements, and replacement filter sourcing.
Daniel Cooper
“The cross-reference information helped our purchasing team identify the replacement quickly. The filters were packed well and arrived ready for warehouse distribution.”
Martin Reynolds
“We needed a stable aftermarket fuel filtration source for our service customers. The P955607 replacement was easy for our team to match and order in bulk.”
Jonathan Miller
“Good communication and clear product specifications made the purchasing process simple. We appreciate the support for our wholesale filter business.”
P955607 is a fuel water separator spin-on filter offered as an aftermarket replacement solution for diesel fuel filtration applications.
The minimum order quantity is 60 pieces, making it suitable for wholesale, distribution, retail, and professional service requirements.
Yes. CHINA EVERLASTING PARTS CO., LIMITED welcomes OEM and ODM cooperation and can discuss customized filtration products and packaging according to project requirements.
Please compare the original part number, outer diameter, thread size, length, gasket dimensions, and bowl thread with the P955607 specifications before placing an order.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer and supplier serving global B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We also welcome OEM and ODM projects for distributors, wholesalers, retailers, filter stores, and after-sales service providers.
Our goal is to provide practical filtration solutions with clear specifications, competitive supply options, and professional customer support. For P955607 and other fuel filtration products, buyers can contact us for cross-reference confirmation, bulk purchasing, replacement sourcing, and customized requirements.
