Oil Filter 90915-20004 9091520004 For Forklift 02-5FG18

Part Number:90915-20004
Part Type:Oil Filter
Brand:Toyota Replacement
MOQ:60pcs
Compatibility:Toyota 02-5FG18 02-8FDF18 DZ-EC FDZN30 SAS25 SAS30 Tonero15 Tonero25.
  • Details

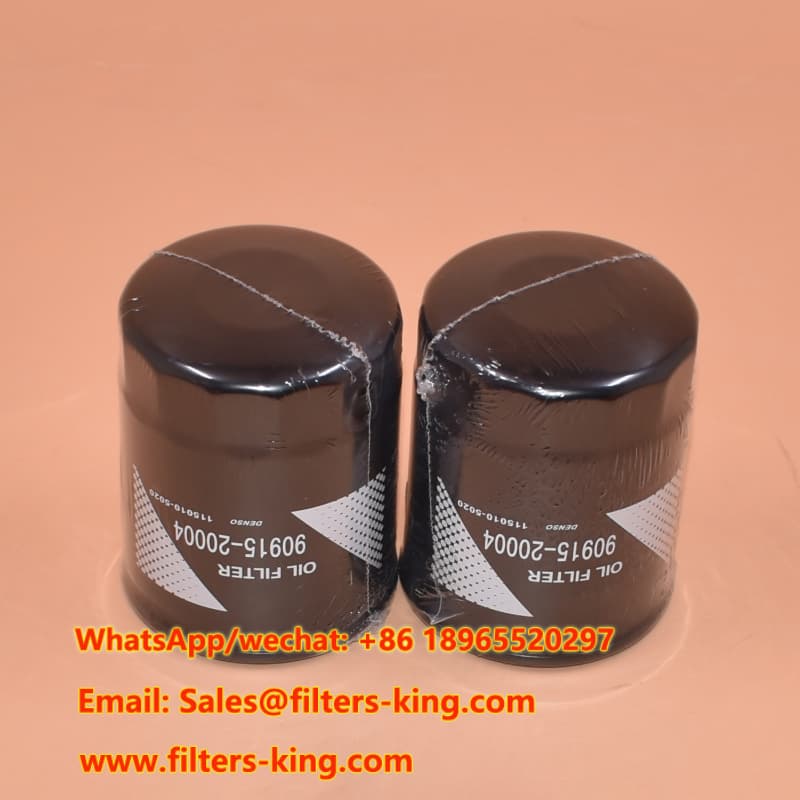

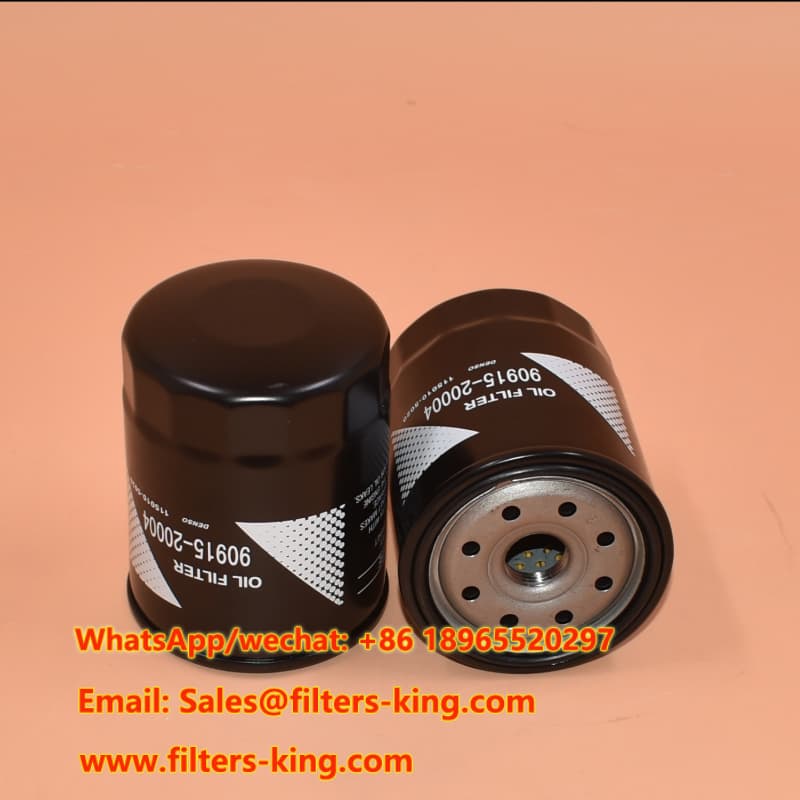

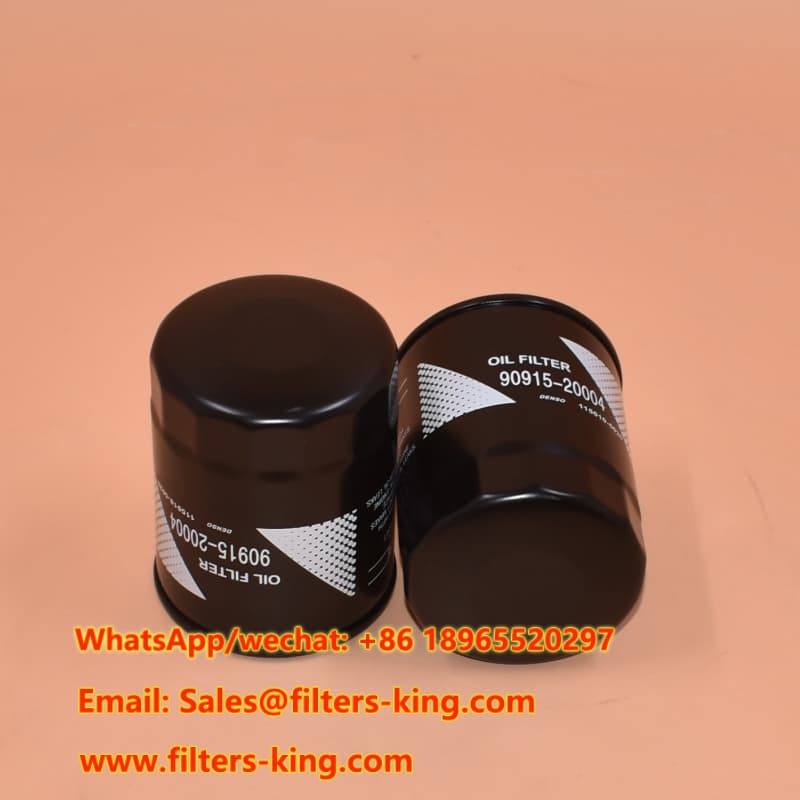

Toyota 90915-20004 Oil Filter | Toyota Forklift Oil Filter Replacement



The 90915-20004 Oil Filter is an aftermarket replacement solution developed for Toyota forklift and engine applications. It is designed for professional buyers looking for a reliable Toyota Forklift Oil Filter with stable filtration performance, consistent fit, and dependable supply for maintenance and aftermarket programs.

This filter is listed for applications including Toyota 02-5FG18, 02-8FDF18, DZ-EC, FDZN30, SAS25, SAS30, Tonero15 and Tonero25. The part number is also widely cross-referenced with aftermarket filter numbers from brands such as Baldwin, Fleetguard, Donaldson, Mann, Wix, Sakura, Hengst, Bosch and others. Cross-reference numbers should be verified against the original filter, equipment model and application before ordering.


Key Features and Purchasing Benefits


Reliable Engine Oil Filtration

The filter is designed to remove harmful particles from engine oil and help maintain cleaner lubrication during normal operating conditions. Cleaner oil supports stable lubrication and helps protect engine components from contamination.

Stable Replacement Fit

The 90915-20004 reference gives professional buyers a clear starting point when performing a Toyota Oil Filter Lookup. The specified thread and gasket dimensions help buyers compare the replacement filter with the filter currently installed on their equipment.

Suitable for B2B Aftermarket Supply

With a minimum order quantity of 60 pieces, this product is intended for distributors, wholesalers, filter shops, retailers and equipment service providers rather than individual consumers. Bulk purchasing can simplify inventory planning for recurring maintenance demand.

OEM Replacement and Custom Production

CHINA EVERLASTING PARTS supports OEM and ODM programs. Buyers can discuss packaging, branding, filtration media, product specifications and other requirements for OEM Replacement Engine Oil Filter programs or Custom Made Oil Filter projects.


Technical Specifications

Parameter Specification
Part Number 90915-20004 / 9091520004
Part Type Oil Filter
Brand Toyota Replacement
Outer Diameter 2.99 inch (76 mm)
Thread Size 3/4-16 UN
Length 3.39 inch (86 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.36 inch (60 mm)
MOQ 60 pcs


Toyota Forklift Compatibility

This replacement oil filter is specified for the following Toyota forklift and equipment applications:

Brand Application / Model
Toyota 02-5FG18, 02-8FDF18, DZ-EC, FDZN30, SAS25, SAS30, Tonero15, Tonero25

For purchasing accuracy, compare the old filter's part number, thread, gasket dimensions and overall specifications before placing a bulk order.


Toyota 90915-20004 Oil Filter Cross Reference

The following cross-reference list is provided as a purchasing and identification guide. Different equipment applications may require different specifications, so buyers should verify the original filter before confirming an order.

Brand Cross Reference Part Numbers
AC Delco ACF201 ACD000184
Agco 5205002S 5205002 330083836
Atlas M54
Atlas Copco 10320882
Aveling Barford GA603015 GAT603015
Baldwin B1405
Bobcat 6652366 6513601
Bomag 332145564
Bosch 72161 OF161 P2044 986452044 451103073
Case IH 86546618CDS 86546618DS C26191 X8560184
Caterpillar 3I1171 9Y4493 817003 3659419 2201523
Chrysler 4105409AC P4452889 P4349745 P4349744 MD108063 4417562 4417561 4105409 4105404
Clark Equipment 6513601
Cummins L335
Denso 1153100261 1150105400 BT1150105351 1150105671
Detroit Diesel L335
Donaldson P550335
Dynapac 4700376554 376554
Eaton Yale & Towne 927788400
Fiat 41218000 4126434
Fleetguard LF3335
Ford BE8Z6731AB 81SM6714A4A 81SM6714A3A 81SM6714A2A 6066096 6066094 1S7Z6731DA
Ford Finiscode 6066095
General Motors 21000872 25014441
Gehl 88361
Giesse CLH308
Hengst H14W32
Hifi SO 1641
Holden 165108301
IHC 394100R91 3055228
International L335
JCB 2630935 2630935A
JLG Industries 70001403
John Deere LG491056
Joy A355834
Kalmar 8761343
Kohler 52 050 02 5205002S 5205002
Komatsu OKR62189
Kubota E719432110
Lexus 90915YZZD1
Lister Petter 350766
Lpm 13504996
Manitou 702577
Mann W712/83
Mazda WE0114302 WLY414302
Melroe 6513601
Miller Electric 65251
Minnpar 6800312
Mitsubishi MD308302 MD129809
Mp Products C33445
New Holland 86546618CDS
Nissan 31Z25L1000
Onan 1220679
Paccar L335
Perkins 915155 140517000
Rexroth OF161 72161 P2044
Sakura C-1126
Suzuki 1651085FA0 1651083012 1651083010 1651083001 1651083000
Thermo King 127345 1989082 1989052 117345
Toyota 90915TB001 90915YZZD4 90915YZZD2 892202011 1560113051
Vmc HF550335 HF550589 LF550335 LF550589
Volvo VOE7897321 VOE20377706 VOE8343378 20377706 8343378
Wacker Neuson 2804639
Wix 51348 51348XP


Five Reasons for Choosing China Everlasting Parts

  1. Professional Filter Manufacturing: We specialize in air, oil, fuel, hydraulic, fuel water separator, breather and air oil separator filters.
  2. Wide Cross-Reference Coverage: Our product range supports many aftermarket part numbers for equipment maintenance and replacement programs.
  3. B2B Bulk Supply: The 60-piece MOQ is suitable for wholesalers, retailers, filter stores and service providers.
  4. OEM and ODM Support: We can discuss customized specifications, packaging and branding for qualified business projects.
  5. Procurement Support: Our sales team can help buyers check part numbers, specifications and replacement requirements before order confirmation.


B2B Customer Testimonials

★★★★★

Mark – Forklift Parts Distributor

“The cross-reference information made it easier for our purchasing team to identify the replacement filter. The bulk supply option also works well for our regular inventory needs.”

★★★★★

James – Industrial Service Supplier

“We needed a Toyota replacement oil filter for several maintenance projects. The part number and specification information helped us confirm the product before ordering.”

★★★★★

Daniel – Aftermarket Filter Wholesaler

“The wide cross-reference coverage is useful for our aftermarket catalog. We can source multiple filter references from one professional supplier.”


Frequently Asked Questions


What is Toyota 90915-20004?

90915-20004 is a Toyota oil filter part number. This page provides an aftermarket replacement option for professional maintenance and distribution applications.

How can I perform a Toyota Oil Filter Lookup?

Start with the original filter part number, then compare the thread size, gasket dimensions, filter size and equipment application. For this product, buyers can use 90915-20004 or 9091520004 as the primary reference.

Is this a Toyota Forklift Oil Filter replacement?

Yes. The supplied application data covers Toyota 02-5FG18, 02-8FDF18, DZ-EC, FDZN30, SAS25, SAS30, Tonero15 and Tonero25. Buyers should confirm the original filter and equipment details before purchasing.

Can you provide a Custom Made Oil Filter?

Yes. OEM and ODM cooperation is welcome. Contact our sales team with your required specifications, annual demand, packaging requirements and target application.

What is the MOQ?

The MOQ for this 90915-20004 replacement oil filter is 60 pcs.
