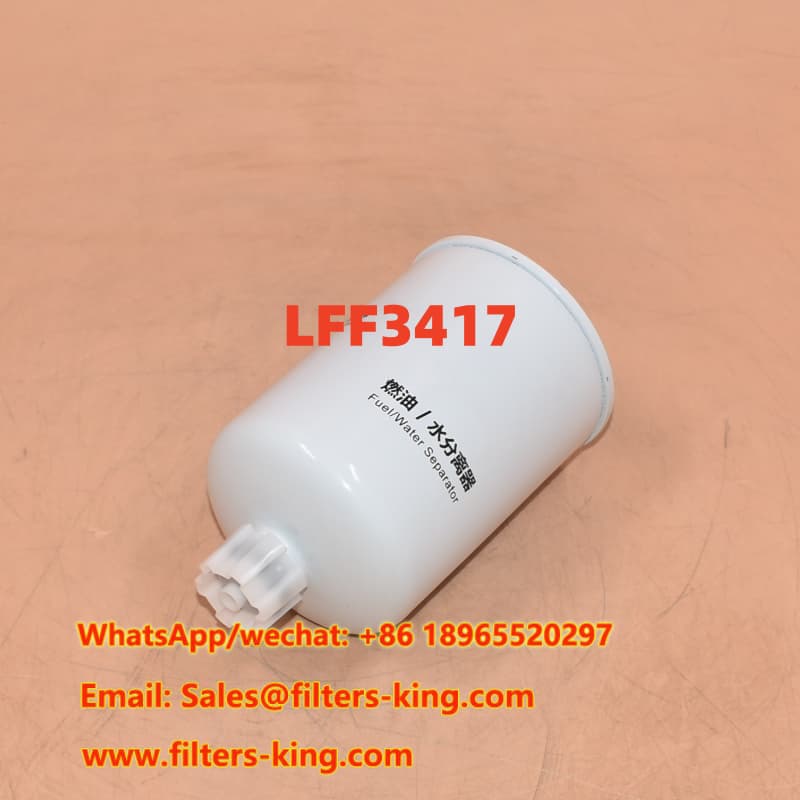

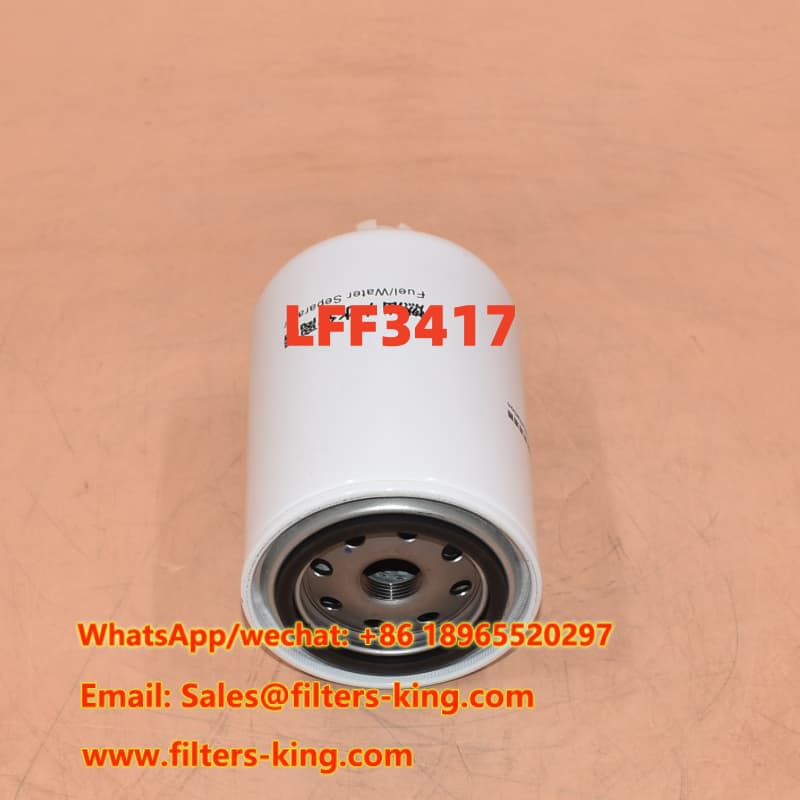

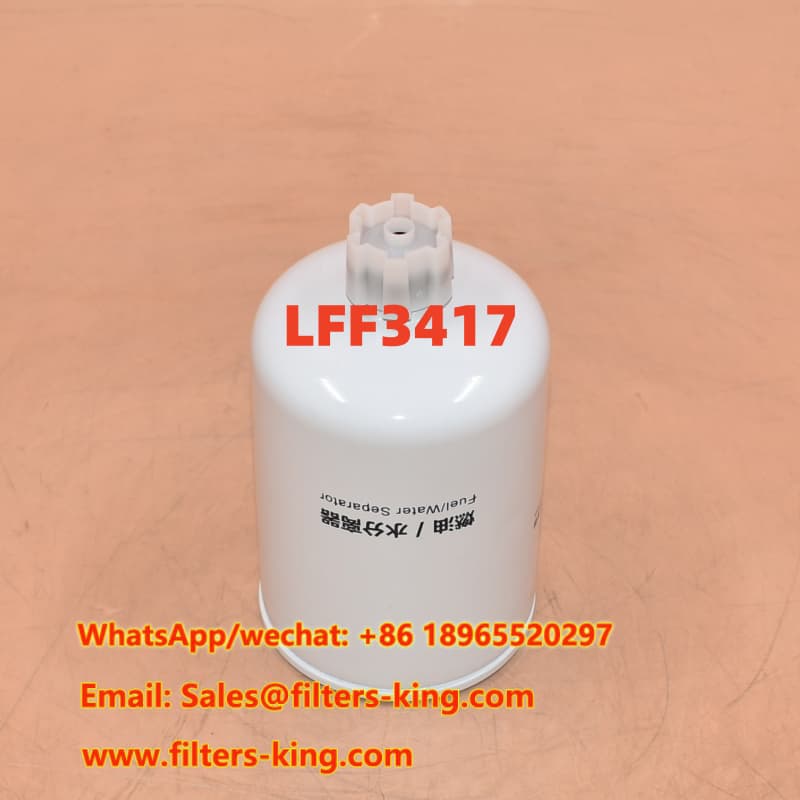

LFF3417 Diesel Fuel Water Separator Replacement
The LFF3417 Diesel Fuel Water Separator Replacement is designed for professional diesel fuel filtration applications where reliable contaminant and water separation is important. This aftermarket replacement uses a spin-on construction for convenient servicing and is available for wholesalers, retailers, filter stores, and after-sales service providers. With a minimum order quantity of 60 pieces, it is suitable for regular B2B inventory supply and bulk purchasing.
Our LFF3417 replacement fuel water separator provides a practical aftermarket solution for diesel fuel systems using the Luberfiner LFF3417 reference. It is developed for buyers who need a dependable replacement filter with stable dimensions, a standard threaded connection, and convenient spin-on installation. The product can also be matched against commonly used cross-reference numbers to help purchasing teams identify the correct replacement option.
For distributors and filter retailers, this product offers a straightforward way to expand diesel filtration inventory without requiring a large initial order. For service companies, the spin-on format supports efficient routine filter replacement and Fuel Water Separator Maintenance.
The separator is designed to help remove unwanted contaminants from diesel fuel before they can move further through the fuel system. Cleaner fuel can help support the normal operation of fuel pumps and injection components.
The spin-on configuration provides a practical replacement method for service technicians. When routine maintenance is required, the filter can be replaced as a complete unit instead of requiring separate replacement of internal filter media.
With a 60-piece MOQ, this replacement is suitable for wholesalers, distributors, retailers, filter stores, and aftermarket service companies that need regular stock for diesel equipment maintenance.
Buyers looking for a Custom Fuel Water Separator can discuss private-label packaging, product specifications, packaging requirements, and other OEM or ODM projects with our sales team.
| Specification | Details |
|---|---|
| Part Number | LFF3417 |
| Part Type | Fuel Water Separator |
| Brand | Luberfiner Replacement |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 13/16-18 UN |
| Length | 6.11 inch (155.3 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| MOQ | 60 pcs |
The following numbers are supplied as purchasing cross-reference information. Cross-reference numbers can vary by application, equipment configuration, and supplier catalog. Buyers should confirm the original filter number, dimensions, thread, gasket, and application before ordering.
| Brand | Cross Reference Part Numbers |
|---|---|
| Agco | 3903410 AG709936 72501531 |
| Atlas Copco | 71029 1310032245 |
| Bomag | 31780219 31780206 |
| Bosch | 986450713 9455080008 |
| Case IH | 84476807 180412 903410 1310729H1 J390942 E156170 J903410 J930942 J925274 |
| Caterpillar | 3L1178 3I1178 |
| Clark Equipment | 913556 |
| Claas | 341771 3417710 |
| Cummins | 1492250 5296139 5268934 4093730 3935274 3930942 3925274 3903410 3890706 |
| Donaldson | P551329 |
| Dongfeng Motor | 1125N010 |
| Dynapac | 900827 4700900827 212374 211032 |
| Fiat Hitachi | 76192505 76107829 |
| Fiatallis | 75208274 |
| Fleetguard | FS1280 |
| Ford | V88833 F3HZ9162A BF5T9155AB |
| General Motors | 25012001 |
| Grove | 9414101066 9414100805 9414100789 |
| Hifi | SN 5038 |
| Hitachi | 76107829 76192505 L76107829 |
| Hyundai | YUBP00225 39003410 11E170210PB 11E170210 |
| Ingersoll-Rand | 57150849 88122551 59728196 35374669 |
| JCB | 02910150A 2910150A 2910150 |
| JLG Industries | 7019674 |
| John Deere | F413331 |
| Kamaz | 4811170010 |
| Kobelco | YN50VU0001D2 |
| Koehring | 8320253 207840 |
| Komatsu | CU3903410 CUFS1280 6742015065 6732716120 161623 |
| Manitou | 473728 473725 4133930 |
| Massey Ferguson | 3621278M1 1072418M1 1076748M1 1076748M2 |
| Volvo | VOE991203410 VOE43923093 VOE36846 991203410 43923093 36846 |
In addition to standard replacement filters, CHINA EVERLASTING PARTS CO., LIMITED supports OEM ODM Fuel Water Separator projects for professional buyers. If your business requires a different filter specification, private-label packaging, custom carton design, or a dedicated supply program, our team can review your requirements and provide a suitable production solution.
Our production support is suitable for distributors and filter brands that need consistent aftermarket products for long-term purchasing programs. Buyers can provide an original part number, sample, drawing, filter dimensions, application information, or packaging requirements for evaluation.
Regular Fuel Water Separator Maintenance helps maintain a cleaner fuel supply. Service intervals depend on the engine, fuel quality, operating environment, and equipment manufacturer's recommendations. During filter replacement, professional technicians should check the filter connection, sealing gasket, housing, and surrounding fuel lines for signs of leakage or damage.
If equipment shows symptoms such as hard starting, reduced engine response, or suspected fuel contamination, the fuel filtration system should be inspected according to the applicable service procedure.
“The cross-reference information made it easier for our purchasing team to confirm the replacement before placing a bulk order.”
James Carter — Procurement Manager“We needed a stable aftermarket source for diesel filtration products. The communication and product details were clear and useful.”
Daniel Brooks — Filter Distributor“The replacement filter specifications were easy to check, and the bulk purchasing option works well for our service business.”
Kevin Miller — After-Sales Service ManagerLFF3417 is a Luberfiner-referenced spin-on diesel fuel filtration part. This page provides an aftermarket replacement option for professional buyers.
Common cross-reference numbers include Donaldson P551329, Fleetguard FS1280, Baldwin BF1280, FRAM P3401, and other application-specific numbers. Buyers should verify fitment before ordering. Public cross-reference catalogs also list LFF3417 with these major replacement references.
Yes. OEM and ODM projects are welcome. Customers can discuss custom specifications, packaging, private labeling, and production requirements with our sales team.
The MOQ is 60 pieces. Please contact us for current production and shipping details based on your required quantity.
It is intended for professional B2B customers, including retailers, after-sales service providers, wholesalers, filter stores, distributors, and machinery parts suppliers.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We support professional aftermarket supply as well as OEM and ODM cooperation.
We work with B2B customers who need reliable filtration products, competitive purchasing solutions, cross-reference support, and long-term supply cooperation. Our product range covers filtration requirements for diesel engines, industrial equipment, construction machinery, agricultural equipment, and other applications.
Looking for a LFF3417 replacement, bulk fuel water separators, or an OEM ODM filtration project? Send us your required quantity, application, or part number for product confirmation and quotation.
