Part Number:SP212799 Part Type:Fuel Filter Element Brand:Liugong Replacement MOQ:60pcs Compatibility:Liugong Equipment.
Part Number:13074774 Part Type:Air Filter Kit Brand:Weichai Replacement MOQ:20pcs
Part Number:G130097(Mounting Band P013722,Cover Assembly P538259,Clip P776033) Part Type:Air Filter Assembly Brand:Donaldson Replacement MOQ:20pcs
Part Number:TM720D-400 Part Type:Reverse Osmosis Element Brand:Toray Replacement MOQ:60pcs
Part Number:03254375 Part Type:Cabin Air Filter Brand:Manitowoc Replacement MOQ:20pcs
Part Number:6B924 Part Type:Pleated Air Filter MERV Rating:8 Brand:Air Handler Replacement MOQ:20pcs
Vacuum Oil Purifier with Complete Accessories The Vacuum Oil Purifier is a high-performance industrial oil purification system designed to remove solid particles, moisture, dissolved water, and air from lubricating oil, hydraulic oil, transformer oil, and other industrial fluids. Supplied with complete accessories, this purification unit provides an efficient solution for oil maintenance, oil regeneration, and contamination control in demanding industrial applications. With a processing capacity of 50 liters per minute, it is suitable for workshops, equipment maintenance centers, power plants, hydraulic systems, and other facilities that require reliable oil purification. Technical Specifications Product Type Vacuum Oil Purifier Accessories Complete Accessories Included Flow Rate 50 L/min Working Pressure 0.6 MPa Vacuum Level ≤ -0.095 MPa Residual Water Content 5–10 ppm Residual Air Content ≤ 0.2% First-Stage Filtration 100 μm Second-Stage Filtration 10–20 μm Third-Stage Filtration 1–3 μm Voltage 380 V AC Frequency 50 Hz Phase Three Phase Motor Power 36 kW Heating Power 24 kW Control System PLC Control Efficient Vacuum Dehydration and Degassing The purifier operates with a vacuum level of ≤ -0.095 MPa, creating an effective environment for removing moisture and air from contaminated oil. After treatment, the residual water content can be reduced to approximately 5–10 ppm, while the residual air content is controlled to ≤ 0.2%. This helps improve oil cleanliness and reduce the negative effects of moisture and air on lubrication performance, hydraulic components, pumps, valves, bearings, and other critical equipment. Three-Stage Precision Filtration The Vacuum Oil Purifier uses a three-stage filtration process for progressive contaminant removal. The first stage uses a 100-micron filter to capture larger solid particles and protect the downstream filtration system. The second stage provides 10–20 micron filtration for finer contamination control. The third stage uses a high-precision 1–3 micron filter to remove very small particles and achieve a higher level of oil cleanliness. This multi-stage design supports stable purification performance and helps protect critical components from particulate contamination. Powerful Heating and High Processing Capacity Equipped with a 24 kW heating system, the purifier provides effective heating during the oil treatment process. Controlled heating helps improve moisture separation and supports efficient vacuum purification. With a 50 L/min flow rate and 0.6 MPa working pressure, the system is designed for high-capacity industrial oil purification and continuous maintenance applications. PLC Automatic Control The system features PLC control for organized and automated operation. Its electrical configuration is 380 V AC, 50 Hz, three phase, with a 36 kW motor. PLC-based operation helps simplify system management, improve process consistency, and reduce the need for frequent manual adjustments during purification. ...

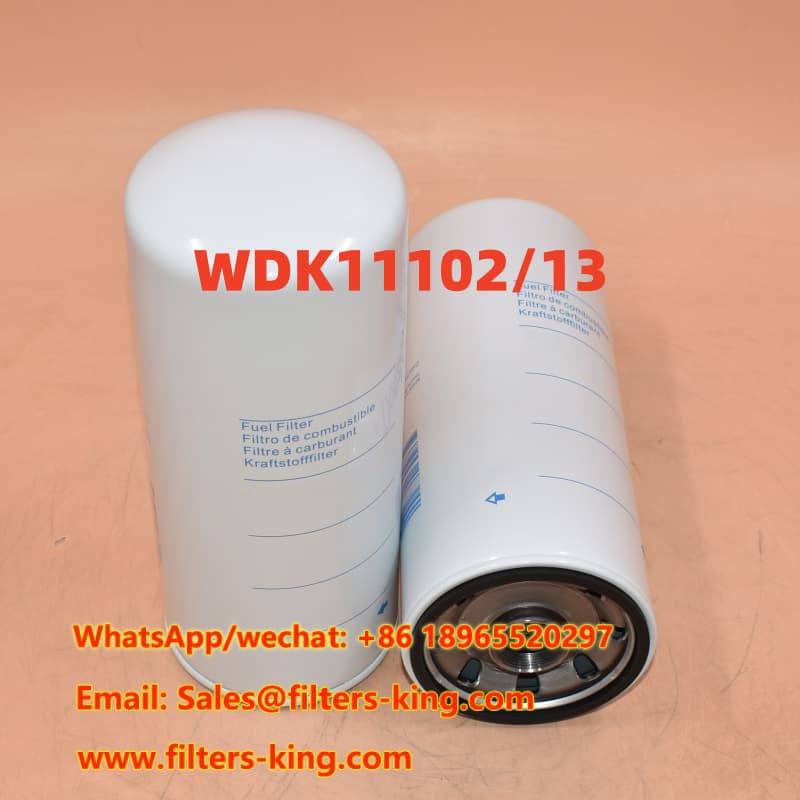

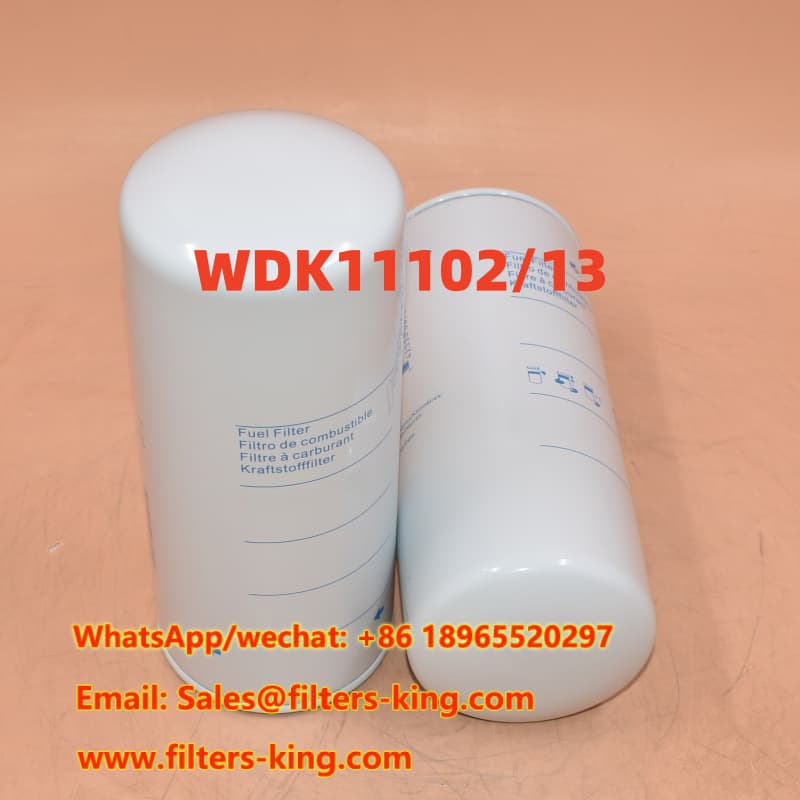

The WDK11102/13 and WDK11102/28 are heavy-duty diesel fuel filter replacements developed for demanding industrial and off-road applications. They are suitable for professional buyers looking for a dependable OEM-quality fuel filter for construction machinery, diesel engines, generators, trucks, and other heavy equipment. The filter design supports reliable fuel cleaning and helps protect fuel system components from harmful contaminants during normal operation.
For distributors and filter stores, this product also provides a practical option when customers search for a Mann Fuel Filter Cross Reference or need a Mann Fuel Filter Lookup by part number. The supplied cross-reference numbers include Baldwin BF46161, Fleetguard FF5507 and FF254, Hengst H200WDK, Hifi SN 70201, Luberfiner LFF8059, Mahle Knecht KC251 and KC300, Sakura FC-7108, SF Schupp SK 3320, and other commonly searched replacement numbers.
For wholesalers and filter retailers, choosing a replacement filter with a broad cross-reference range can simplify product sourcing and inventory management. WDK11102/13 and WDK11102/28 provide buyers with a flexible aftermarket option for applications where customers may identify their required filter through different brand numbers.
For after-sales service providers, the filter can help support scheduled maintenance of diesel-powered machinery. For construction equipment service companies, a dependable fuel filter for construction machinery is important because contaminated fuel can affect fuel system performance and maintenance intervals. A suitable replacement filter helps maintenance teams keep equipment service programs organized and reduces the need to source different filter designs for every application.
The product is also suitable for customers searching for an industrial diesel fuel filter for heavy equipment, diesel engines, generators, and related industrial applications. Buyers should always confirm the filter dimensions, thread, gasket configuration, and equipment application before ordering.
| Item | Specification |
|---|---|
| Part Number | WDK11102/13 |
| Alternative Part Number | WDK11102/28 |
| Part Type | Fuel Filter |
| Brand | Mann Replacement |
| Overall Length | 10.39 inch (264 mm) |
| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | M32 x 1.5 |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| MOQ | 60 pcs |
The following part numbers are provided as cross-reference information for professional purchasing and filter lookup purposes. Cross-reference numbers should be verified against the actual equipment, filter dimensions, thread specification, gasket configuration, and application before ordering.
| Brand | Cross Reference Part Numbers |
|---|---|
| Atlas Copco | 2914984900 |
| Baldwin | BF46161 |
| DAF | 1517416 1533834 1534378 |
| Fleetguard | FF5507 FF254 |
| Hengst | H200WDK |
| Hifi | SN 70201 |
| Kalmar | 923976347 J018288 |
| Konecranes | 52609435 |
| Luberfiner | LFF8059 |
| Mahle Knecht | KC251 KC300 |
| Renault | 5001868493 7420541381 7420972291 7420976001 7485116634 |
| Sakura | FC-7108 |
| Sdmo | 330560689 |
| SF Schupp | SK 3320 |
| Tamrock | 56045594 |
| Volvo | 22480372 |
| Wix | 33721 |
This replacement fuel filter is intended for professional maintenance and aftermarket supply applications. Potential application areas include construction machinery, crawler excavators, articulated dump trucks, wheel loaders, diesel-powered generators, heavy trucks, industrial engines, and other equipment using compatible fuel filter specifications. The MANN-FILTER product information for the corresponding WDK 11 102 series identifies applications involving Volvo Construction Equipment, Volvo Penta, Volvo Trucks, generators, and other diesel equipment. Always confirm the specific application before purchase.
CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM projects for professional filter buyers. If you need private-label packaging, customized filter specifications, large-volume purchasing, or a replacement filter based on an existing sample or part number, our sales team can review your requirements and provide a suitable solution. We welcome inquiries from distributors, wholesalers, maintenance companies, filter shops, and equipment service providers.
“The cross-reference information made it easier for our purchasing team to match the required filter numbers. The communication and packaging were also convenient for our wholesale business.”
— Daniel Brooks Purchasing Manager, Heavy Equipment Parts Distributor Example testimonial template“We were looking for an aftermarket fuel filter with several common cross-reference numbers. The product information was clear and helped our service team check the replacement before ordering.”
— Ethan Miller Service Coordinator, Construction Equipment Aftermarket Supplier Example testimonial template“The filter is a good option for our inventory because several part numbers can be checked against the same replacement family. We also appreciate the support for bulk orders and OEM/ODM projects.”
— Jonathan Reed Product Buyer, Industrial Filter Store Example testimonial templateThey belong to the same WDK 11102 fuel filter family and share the M32 x 1.5 thread specification, but their listed part numbers and application details can differ. Buyers should confirm the complete specifications and equipment application before ordering.
Yes. Buyers can use WDK11102/13, WDK11102/28, or the cross-reference part numbers listed above as a starting point for product lookup. Final compatibility should be confirmed against the actual equipment and filter specifications.
The standard MOQ for this fuel filter is 60 pieces. Please contact us for current bulk-order requirements, packaging options, and OEM/ODM projects.
It is mainly intended for B2B customers such as filter retailers, wholesalers, after-sales service providers, filter stores, equipment maintenance companies, and industrial parts distributors.
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer serving global B2B customers. Our main filter products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly. We focus on aftermarket filter solutions for professional distributors, wholesalers, retailers, filter stores, and equipment service companies. OEM and ODM cooperation is also welcome.
Our goal is to provide practical replacement filter solutions with consistent specifications, professional service, flexible supply options, and competitive B2B purchasing support. For buyers who need cross-reference assistance or customized filter sourcing, our team can review the required part number and application information.
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
The 1R-0762 is equivalent to Fleetguard FF5624, Donaldson P550625, Baldwin BF7753, Hengst H264WK. Part Number:1R-0762,1R0762 Part Name:Fuel Filter Brand:Caterpillar
The Fuel Filter Element 30 Microns 2040PM Reference Cross FS20403 P552044 3827507 E7040KP30,Application For Claas Jaguar 950; Jaguar 960 (Mercedes eng). Jaguar 970; Jaguar 980 (Mercedes OM460LA eng). Volvo Penta TAMD122A.
The Fuel Filter 320/07155 Reference Cross Part Number P765325 SK3104 SP1293 PS10106,Application For JCB 1110 Robot; 1110T Robot(JCB444 Dieselmax Engine), 190 Robot; 190T Robot(JCB444 Dieselmax Engine), 2CX(JCB444 Dieselmax Engine), 3C(JCB444 Dieselmax Tier 2 Turbo Tier 3 Engine), 3CX(JCB Engine Engine) From 2010, 3CX, 3CX(JCB444 Dieselmax Tier 2 Turbo Tier 3 Engine), 3CX; 4CX(444 Diesel Max Engine) From 2005, 411 Agri; 411HT(JCB444 Dieselmax Engine), 412S(JCB444 Dieselmax Tier 2 Engine)
The FF5485 can replace Baldwin BF7628, Donaldson P550448, Carrier 30-01090-01
The Fuel Filter FF5765 Cross Reference P506036 19246644 F-11131 23390-51020 23390-51070 Application For Toyota Truck, light truck.
The 1R-0756 is equivalent to Fleetguard FF5323, Donaldson P561317, Baldwin BF7655, Caterpillar 4J6064. Part Number:1R-0756,1R0756 Part Name:Fuel Filter Brand:Caterpillar
