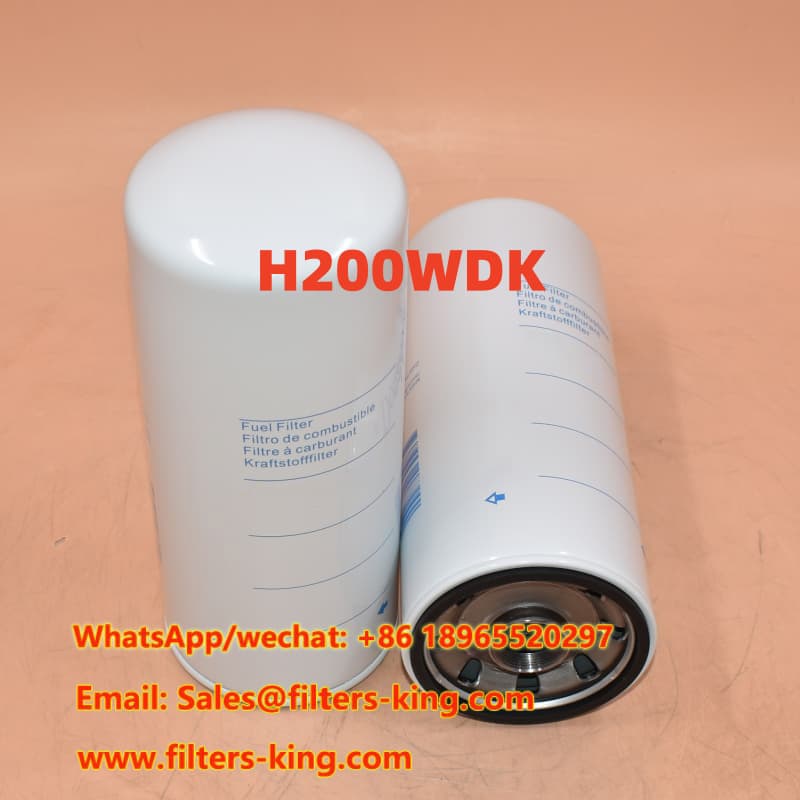

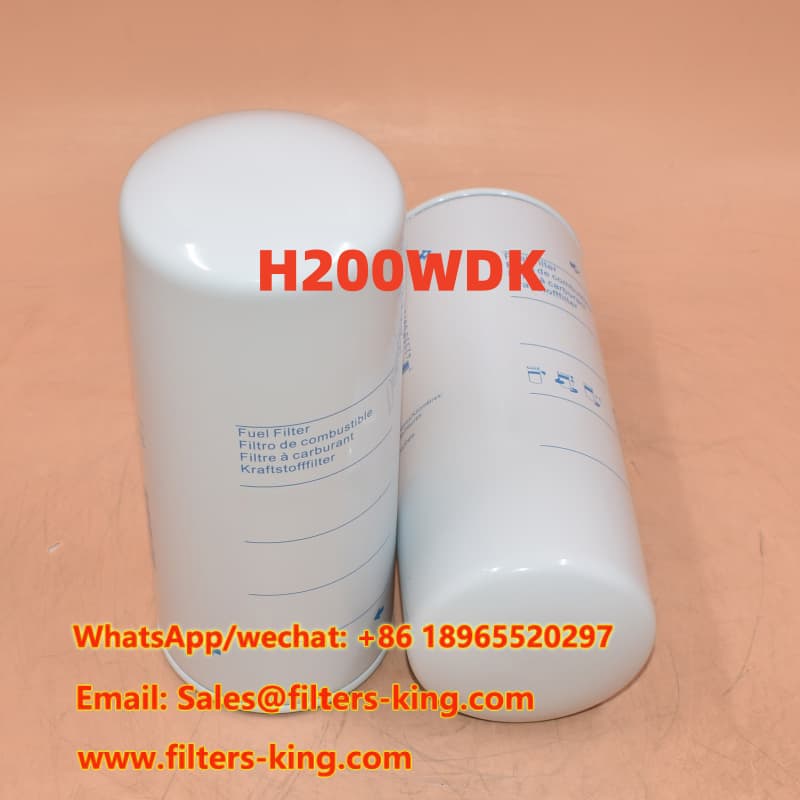

The H200WDK OEM Fuel Filter Alternative is a spin-on diesel fuel filter designed for professional replacement applications in diesel engines, commercial vehicles, generators, and heavy equipment. This aftermarket fuel filter is developed for buyers who need a dependable replacement option with consistent fitment and stable supply. Part number H200WDK is associated with Hengst fuel filter applications and can be used as a reference when sourcing replacement filters for multiple equipment and engine platforms.
For wholesalers, retailers, filter stores, and after-sales service companies, this product provides a practical sourcing solution for regular maintenance programs. The filter is supplied with a M32 x 1.5 thread and is manufactured for demanding diesel fuel filtration applications. Hengst's official catalog identifies H200WDK as a spin-on fuel filter, with reference applications including Volvo, Renault, Mack, and other commercial and industrial equipment.
| Item | Specification |
|---|---|
| Part Number | H200WDK |
| Part Type | Fuel Filter / Spin-on Fuel Filter |
| Brand Reference | Hengst Replacement |
| Thread Size | M32 x 1.5 |
| Overall Length | 10.39 inch (264 mm) |
| Length | 10.31 inch (262 mm) |
| Outer Diameter | 4.23 inch (107.5 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| MOQ | 60 pcs |
The filter is designed to help remove dirt and unwanted contamination from diesel fuel before it reaches sensitive fuel-system components. Proper filtration helps support clean fuel delivery and stable engine operation. Hengst describes the H200WDK application as a fuel filter designed to remove dirt particles and water from fuel, including fuel conditions that may vary across different operating environments.
For B2B buyers, an aftermarket replacement can simplify sourcing when the original filter is unavailable, costly, or requires a different purchasing channel. H200WDK can be cross-checked against multiple industry part numbers to support purchasing and inventory planning.
This product is suitable for professional maintenance environments where diesel engines operate for extended periods. It can be supplied to filter distributors, equipment service companies, wholesalers, and retailers that need repeatable aftermarket filter sourcing.
With a minimum order quantity of 60 pieces, this H200WDK replacement is positioned for commercial purchasing rather than individual consumer orders. Bulk purchasing can help distributors maintain stock for routine service requirements and customer replacement orders.
The following reference numbers are supplied for cross-reference and sourcing purposes. Cross-reference numbers can vary by application, engine configuration, and market. Buyers should verify dimensions, thread, gasket specifications, and equipment application before placing an order.
| Brand | Reference Part Numbers |
|---|---|
| Atlas Copco | 2914984900 |
| Baldwin | BF46161 |
| DAF | 1517416 1533834 1534378 |
| Fleetguard | FF5507 FF254 |
| Hifi | SN 70201 |
| Kalmar | 923976347 J018288 |
| Konecranes | 52609435 |
| Luberfiner | LFF8059 |
| Mahle Knecht | KC251 KC300 |
| Mann | WDK11102/13 WDK11102/24 WDK11102/28 |
| Renault | 5001868493 7420541381 7420972291 7420976001 7485116634 |
| Sakura | FC-7108 |
| Sdmo | 330560689 |
| SF Schupp | SK 3320 |
| Tamrock | 56045594 |
| Volvo | 22480372 |
| Wix | 33721 |
The H200WDK reference is used across a wide range of diesel-powered equipment and commercial vehicle applications. Official Hengst catalog information includes applications for Volvo and Renault commercial vehicles, as well as Mack and other industrial platforms. For example, the catalog identifies H200WDK in applications including Volvo 8700, Volvo 9700, Volvo 9900 and Renault Premium-related applications.
Depending on the equipment, this product may be considered for diesel engine fuel filter replacement, commercial vehicle maintenance, generator service, mining equipment, construction machinery, and other heavy-duty applications. Always confirm the exact application and filter specifications before installation.
James Carter
Fleet Parts Distributor
“The cross-reference information makes it easier for our team to match replacement fuel filters with customer requirements.”
Example testimonial / template
Daniel Brooks
Heavy Equipment Service Company
“The product information is clear, and the bulk supply option fits our regular maintenance purchasing needs.”
Example testimonial / template
Michael Turner
Industrial Filter Wholesaler
“Having multiple reference numbers available helps our purchasing team identify suitable aftermarket filter alternatives faster.”
Example testimonial / template
H200WDK is a spin-on fuel filter reference. Hengst's official catalog identifies the product as EDP 688200000 and lists it as an available fuel filter.
The specified thread size is M32 x 1.5. This specification is also confirmed in Hengst's official catalog.
H200WDK is associated with various commercial and industrial diesel applications. For heavy equipment, buyers should verify the exact equipment model, engine, mounting dimensions, thread and gasket specifications before ordering.
Yes. Our MOQ for this product is 60 pieces. Please send the required quantity, target market, reference part number and any packaging requirements to our sales team for a quotation.
