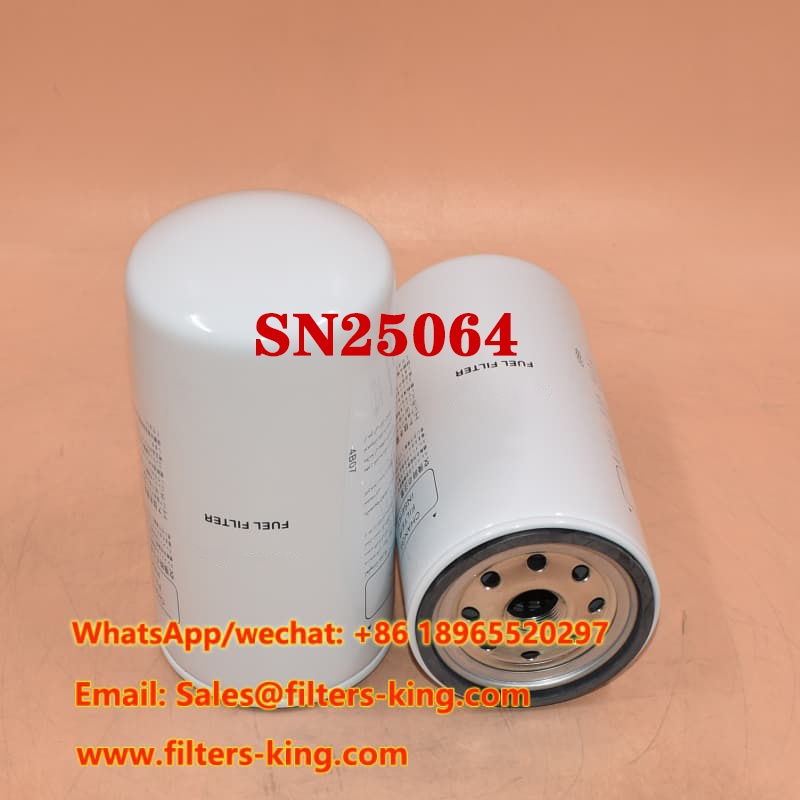

Fuel Filter SN25064 FC-55240 is a high-quality fuel filtration solution manufactured by CHINA EVERLASTING PARTS CO., LIMITED, a professional high quality filters manufacturer serving global B2B customers. This product is designed as a dependable Hifi fuel filter replacement and OEM fuel filter equivalent, widely used in diesel engines, construction machinery, trucks, and industrial equipment.
As a proven Sakura fuel filter cross reference, SN25064 / FC-55240 ensures consistent fuel cleanliness, protects fuel injection systems, and helps reduce engine wear caused by contaminants such as dust, rust, and water particles.
Compared with standard aftermarket filters, Fuel Filter SN25064 FC-55240 offers better structural strength and filtration consistency. As an OEM fuel filter equivalent, it meets the dimensional and performance requirements of original equipment, making it ideal for professional buyers who need reliable interchangeability.
Its wide cross reference compatibility helps distributors, wholesalers, and filter stores reduce inventory pressure while expanding coverage across multiple brands and engine models.
| Parameter | Specification |
|---|---|
| Part Number | SN25064 / FC-55240 |
| Part Type | Fuel Filter |
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1-14 UN |
| Length | 210 mm (8.27 inch) |
| Gasket OD | 101 mm (3.98 inch) |
| Gasket ID | 90 mm (3.54 inch) |
| MOQ | 60 pcs |
This fuel filter replacement is compatible with the following part numbers:
Baldwin BF9844 · Donaldson P502466 · Fleetguard FF5688 · Sakura FC-55240 · Hengst H565WDK · Case IH VH23390E0020 · New Holland VH23390E0020 · Hino 23390E0020 · Kobelco UH23390E0020T · SF Schupp SK 3095 · Sinotruck VG1540080110 · Weichai VG1540080110 · Yuchai T90001105140 · Daewoo Doosan 65125035033
Wholesale Distributor, Southeast Asia:
“We have been sourcing Fuel Filter SN25064 FC-55240 for over two years. The quality consistency and cross reference accuracy make it easy for us to supply multiple brands with one reliable solution.”
Aftermarket Service Provider, Middle East:
“This Hifi fuel filter replacement performs reliably in high-temperature environments. Installation fit is precise, and failure rates are extremely low.”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high quality filters manufacturer specializing in air filters, oil filters, fuel filters, hydraulic filters, fuel water separators, and filter assemblies. We support OEM and ODM projects and supply stable, cost-effective filtration solutions for global B2B customers.
