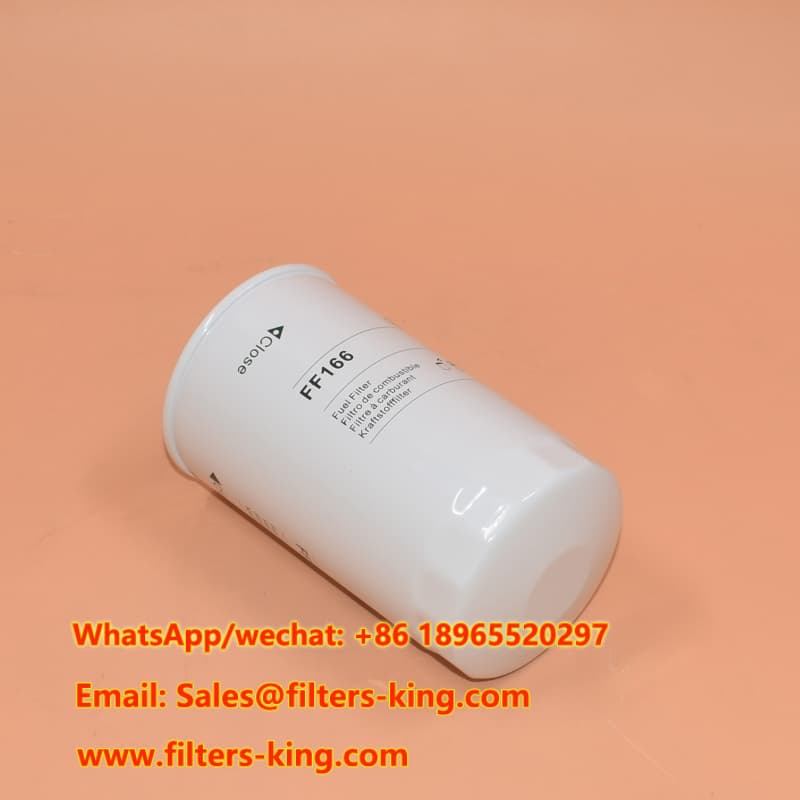

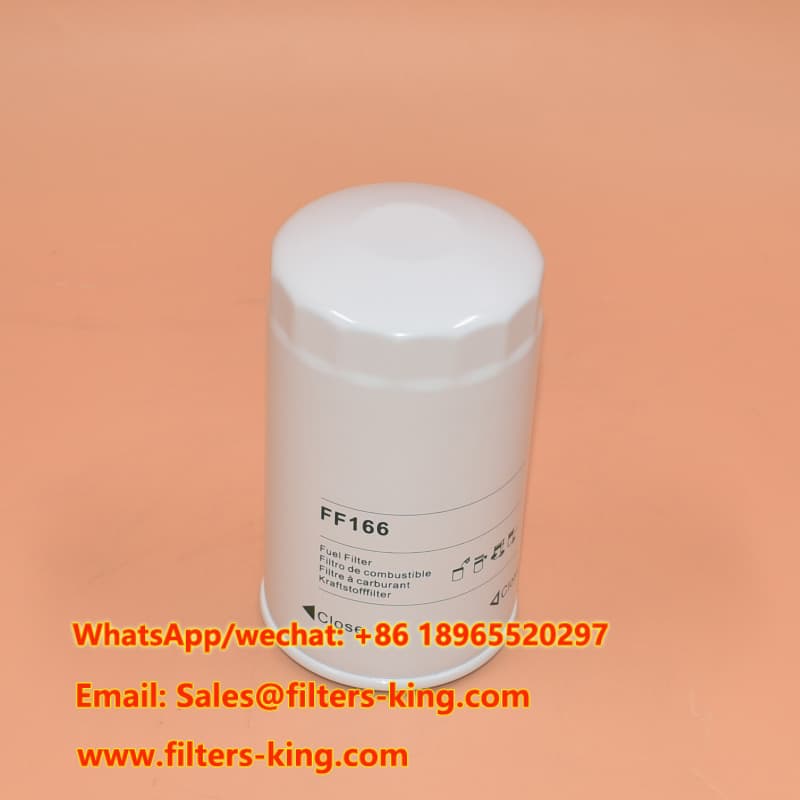

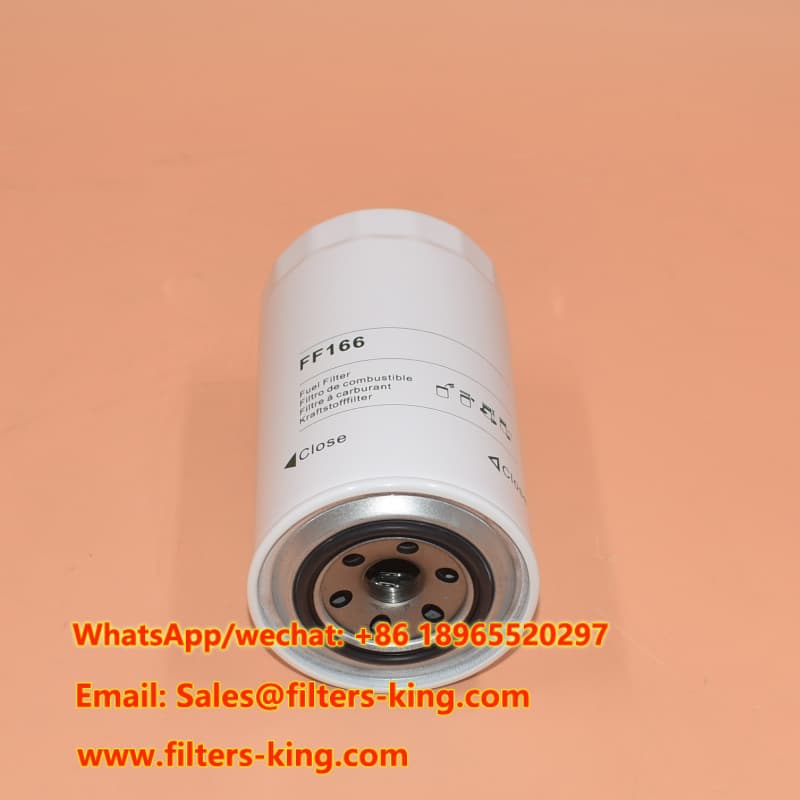

The FF166 Fuel Filter Replacement is a spin-on fuel filter designed for heavy-duty equipment, agricultural machinery, construction equipment and other diesel-powered applications. This replacement filter is manufactured for buyers looking for a practical Fleetguard Fuel Filter Cross Reference solution with reliable filtration performance and stable dimensions.
For distributors, retailers, filter shops and aftermarket service companies, FF166 provides a convenient Fuel Filter By Part Number purchasing option. The filter uses an M20 x 1.5 thread and has a 3.68-inch outer diameter and 6.33-inch length. Publicly available product data also identifies FF166 as a spin-on fuel filter and lists several equivalent reference numbers, including Baldwin BF7907 and Donaldson P550643.
MOQ: 60 pcs. OEM and ODM cooperation is available for qualified B2B customers.
| Item | Specification |
|---|---|
| Part Number | FF166 |
| Product Type | Fuel Filter Spin-On |
| Brand | Fleetguard Replacement |
| Outer Diameter | 3.68 inch (93.4 mm) |
| Thread Size | M20 x 1.5 |
| Length | 6.33 inch (160.7 mm) |
| Gasket OD | 2.72 inch (69.2 mm) |
| Gasket ID | 2.33 inch (59.15 mm) |
| MOQ | 60 pcs |
Published specifications for FF166 from other industry sources also confirm the spin-on design, M20 x 1.5 thread and approximately 162 mm overall height. Some catalogs report dimensional differences for gasket measurements, so buyers should verify the filter head and original part number before placing a bulk order.
The following cross-reference list is provided for purchasing identification. Part numbers are used by different equipment manufacturers and filter brands. Customers should confirm the original filter number, thread, gasket dimensions and application before installation.
| Brand | Cross Reference Part Number |
|---|---|
| Agco | 4217710M2 |
| Baldwin | BF7907 |
| Case IH | 47668559 |
| CNH | 48145977 |
| Dieci | BHC5047 |
| Donaldson | P550643 |
| Doosan | 40050800055, 40040300031 |
| Hengst | H641WK |
| Hifi | SN25031 |
| Hitachi | 4658695 |
| Hyundai | XJAU01070, XJAU00949 |
| Hyundai Construction Equipment | XJBT03931 |
| JCB | 02971620 |
| Komatsu | 12390755800, 12390755801, YM12390755801, YM12390755800, 2390755800 |
| Kubota | 1K94743171, 1G39043172, 1G39043171, 1K94743172, 1G39043170 |
| Lekang | 53041 |
| Manitou | 898983M, 898983 |
| Mann | WK9065 |
| McCormick | 4217710M1 |
| Merlo | 89310 |
| New Holland | 84497558 |
| Volvo | 15711010, VOE15711010, VOE11713240, VOE14520578, VOE14520542, 14520578, 14520542, 11713240 |
| Wix | 33840 |
| Yanmar | 12390755810, 12990755810, 12390755800 |
Independent parts catalogs also list FF166 against BF7907, P550643, SN25031, WK9065, XJAU00949, XJBT03931 and several Komatsu, Kubota, Volvo and Yanmar numbers.
This Aftermarket Fuel Filter Replacement is developed for professional buyers who need dependable replacement inventory rather than individual consumer quantities. It is suitable for retailers, aftermarket distributors, maintenance companies, wholesale importers and filter shops.
For purchasing teams, using the part number is often the fastest way to identify the required filter. Search terms such as Fuel Filter By Part Number, FF166 replacement and Fleetguard cross reference can help narrow the purchasing target before checking physical dimensions and application requirements.
The spin-on construction makes routine replacement straightforward when the filter is matched to the correct filter head. A properly selected Heavy Duty Fuel Filter can help support clean fuel delivery and protect downstream fuel-system components from harmful contaminants. Industry product listings identify FF166 for construction-equipment applications and report a 17-micron rating for the referenced design.
CHINA EVERLASTING PARTS CO., LIMITED supplies aftermarket filtration products for international B2B customers. Our product range includes air filters, air cleaner filters, air dryers, ventilation filters, breather filters, oil filters, fuel filters, hydraulic filters, fuel water separators, air oil separators and filter assemblies.
For distributors and filter wholesalers, our OEM Fuel Filter Alternative program can support private-label requirements, packaging customization and product development. OEM and ODM projects are welcome. Buyers can provide an original sample, part number, drawing or technical requirements for evaluation.
For customers seeking a Long Life Fuel Filter solution, we recommend confirming the required filtration performance, service interval, operating environment and application before selecting the final specification. This helps ensure that the replacement filter is correctly matched to the equipment and maintenance program.
★★★★★ Verified Customer – Christopher Bennett
“The FF166 replacement matched our purchasing requirements well. We received clear part-number support and useful cross-reference information.”
★★★★★ Verified Customer – Daniel Carter
“The product was supplied for our aftermarket filter business. The cross-reference list made it easier for our sales team to identify customer requirements.”
★★★★★ Verified Customer – Robert Miller
“Good communication for our wholesale inquiry. We were able to discuss MOQ, specifications and OEM/ODM requirements directly with the supplier.”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer. Our main products include Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator and Filters Assembly. We support OEM and ODM cooperation and work with international distributors, wholesalers, retailers and aftermarket service companies.
WhatsApp / WeChat: +86 18965520297
WhatsApp / WeChat: +86 18144082725
Email: Sales@filters-king.com
Contact us for FF166 fuel filter replacement cost, bulk pricing, cross-reference confirmation, OEM/ODM requirements or other fuel filter sourcing needs.
