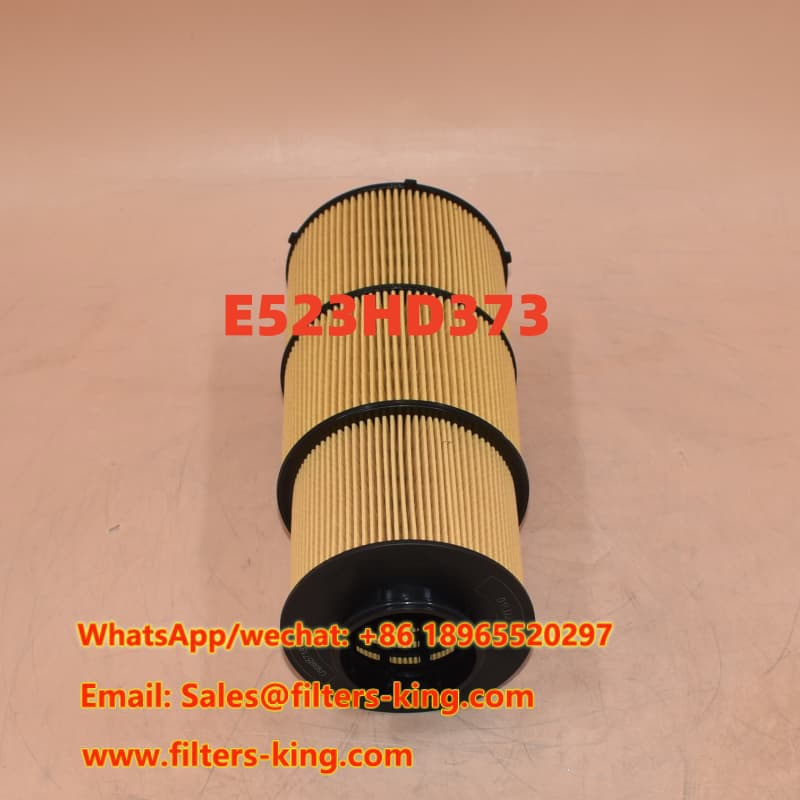

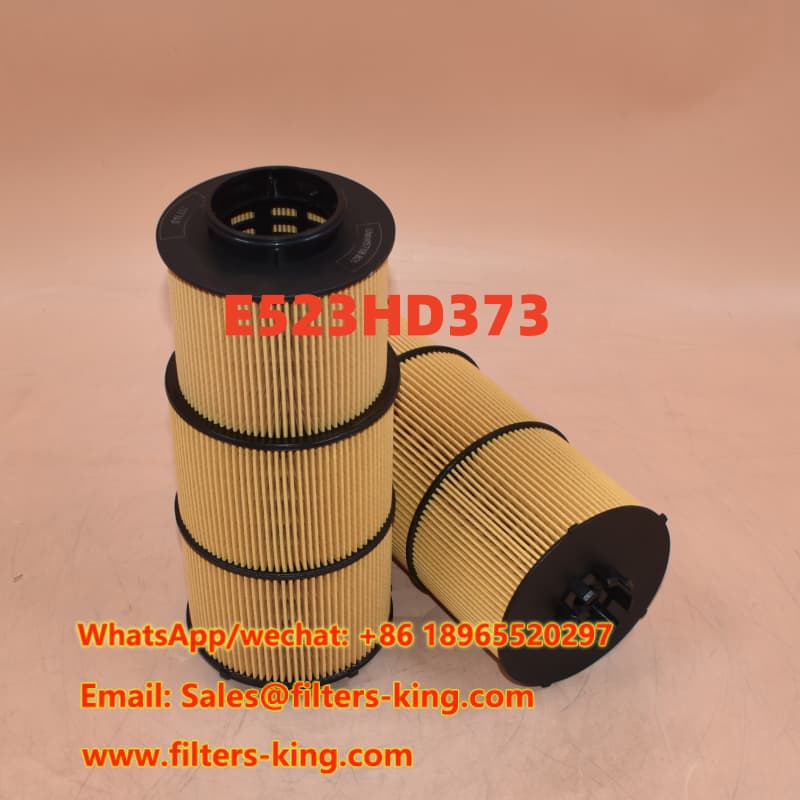

Looking for a reliable E523HD373 Oil Filter Price for wholesale, aftermarket, or service applications? CHINA EVERLASTING PARTS CO., LIMITED supplies a Hengst replacement oil filter designed for professional buyers who need stable quality, consistent fit, and competitive bulk pricing. The E523HD373 is suitable for distributors, retailers, filter stores, wholesalers, and after-sales service providers.
This oil filter is developed as a replacement option for a wide range of commonly referenced filter numbers, including Baldwin P41000, Donaldson P959264, Fleetguard LF17810, Hifi SO7319, MANN HU12021Z, SF Schupp SO97111, and Wix WL10663. Buyers can use the cross-reference information to simplify product lookup, but the part number, dimensions, sealing surface, and application should always be confirmed before ordering.
The E523HD373 replacement is designed for oil filtration applications where stable oil circulation is important. A suitable High Flow Oil Filter can help support consistent lubrication by removing contaminants from engine oil while maintaining efficient oil flow during operation.
A properly selected filter helps protect engine lubrication systems from dirt and other particles. For buyers looking for an Extended Life Oil Filter, product selection should be based on the actual engine, oil type, operating environment, service interval, and manufacturer's maintenance requirements.
Multiple aftermarket and OEM reference numbers make this filter easier for professional buyers to identify. If you are performing a Hengst Oil Filter Lookup, you can send us your existing part number, product photo, equipment information, or dimensions. Our sales team can help check the available replacement option before bulk purchasing.
For distributors and filter brands that need private-label products, we also support Custom Made Oil Filter solutions, including customized packaging, labeling, specifications, and OEM/ODM cooperation according to project requirements.
| Parameter | Specification |
|---|---|
| Part Number | E523HD373 |
| Part Type | Oil Filter |
| Brand | Hengst Replacement |
| MOQ | 60 pcs |
| Overall Length | 277.7 mm (10.93 inch) |
| Outer Diameter | 117 mm (4.61 inch) |
| Inner Diameter | 52.5 mm (2.07 inch) |
| Length | 249 mm (9.80 inch) |
| Gasket OD | 64.7 mm (2.55 inch) |
The following part numbers are provided for replacement identification and purchasing reference. Because specifications can vary between applications, buyers should confirm the filter against the original part before installation.
| Brand | Reference Part Numbers |
|---|---|
| Baldwin | P41000 |
| Claas | 0019863920 |
| Detroit Diesel | DDE A4711800209 A4721842425 A4721842025 A4721841725 A4711800009 |
| Donaldson | P959264 |
| Fleetguard | LF17810 |
| Hifi | SO7319 |
| MANN | HU12021Z |
| Mercedes-Benz | A4721842725 A4721842925 A4721842525 A4721842325 4721841825 4721842125 A4721842125 A4721841825 A4731800509 4731800509 4731800809 A4731800809 |
| SF Schupp | SO97111 |
| Wix | WL10663 |
Oil Filter Maintenance is important for keeping an engine lubrication system working properly. Professional service teams should replace the filter according to the engine manufacturer's recommended service schedule and actual operating conditions. Heavy dust, high loads, long operating hours, frequent starts, or severe working environments may require closer maintenance attention.
When replacing an oil filter, inspect the sealing area and compare the replacement filter with the original part. Check the part number, dimensions, gasket condition, and application before installation. Proper installation and the correct engine oil are also important for reliable filtration performance.
The E523HD373 replacement oil filter is suitable for professional aftermarket supply chains where buyers need dependable replacement filtration products. It can be supplied to filter retailers, wholesalers, distributors, repair companies, after-sales service providers, and filter stores.
With a 60-piece MOQ, this product is suitable for businesses that purchase filters in regular batches rather than individual consumer quantities. Buyers can also discuss packaging requirements, private-label projects, OEM/ODM cooperation, and customized supply programs with our sales team.
| Reason | B2B Buyer Benefit |
|---|---|
| Professional Filter Supply | Focused on air, oil, fuel, hydraulic, breather, air dryer, and other filtration products. |
| Wide Cross-Reference Support | Helps buyers identify replacement options using common industry part numbers. |
| Bulk Order Service | MOQ and supply programs are designed for distributors, wholesalers, and aftermarket businesses. |
| OEM & ODM Support | Supports customized packaging, labeling, product specifications, and private-label projects. |
| Direct Communication | Sales support is available for part-number checking, quotations, samples, and bulk-order discussions. |
Carlos Mendes
Purchasing Manager, Filter Distributor
“The cross-reference support made it easier for our team to confirm the replacement filter before placing a bulk order. Communication was clear and efficient.”
Ahmed Rahman
Aftermarket Service Buyer
“We needed a dependable oil filter replacement for our service business. The product information and ordering support helped us move quickly.”
Peter Novak
Wholesale Filter Buyer
“The product range and OEM/ODM support are useful for our aftermarket filter business. We can discuss quantities and packaging directly with the supplier.”
CHINA EVERLASTING PARTS CO., LIMITED is a professional high-quality filters manufacturer and supplier. Our main product range includes Air Filter, Air Cleaner Filter, Air Dryer, Ventilation Filter, Breather Filter, Oil Filter, Fuel Filter, Hydraulic Filter, Fuel Water Separator, Air Oil Separator, and Filters Assembly.
We focus on supporting global B2B customers with replacement filters and customized filtration solutions. OEM and ODM cooperation is welcome. Our team works with retailers, wholesalers, distributors, filter stores, and after-sales service companies that need stable product sourcing and long-term cooperation.
E523HD373 is a Hengst replacement oil filter reference used in heavy-duty engine filtration applications. It is supplied by CHINA EVERLASTING PARTS CO., LIMITED for professional aftermarket and B2B buyers.
Common reference numbers include Baldwin P41000, Claas 0019863920, Donaldson P959264, Fleetguard LF17810, Hifi SO7319, MANN HU12021Z, SF Schupp SO97111, and Wix WL10663, together with the Mercedes-Benz and Detroit Diesel numbers listed above.
The standard MOQ is 60 pieces. For special projects, buyers can contact our sales team to discuss supply requirements.
Yes. OEM and ODM services are available for qualified B2B projects, including customized specifications, packaging, labeling, and private-label requirements.
Send us the original part number, equipment or engine information, product photo, dimensions, and required quantity. Our team can help check the available replacement option before you place a bulk order.
Contact us for current bulk pricing, MOQ confirmation, packaging options, OEM/ODM requirements, and cross-reference verification. Send your required part number and quantity to receive a professional quotation.
For wholesale inquiries, replacement filter sourcing, and custom filter projects, contact CHINA EVERLASTING PARTS CO., LIMITED today.
