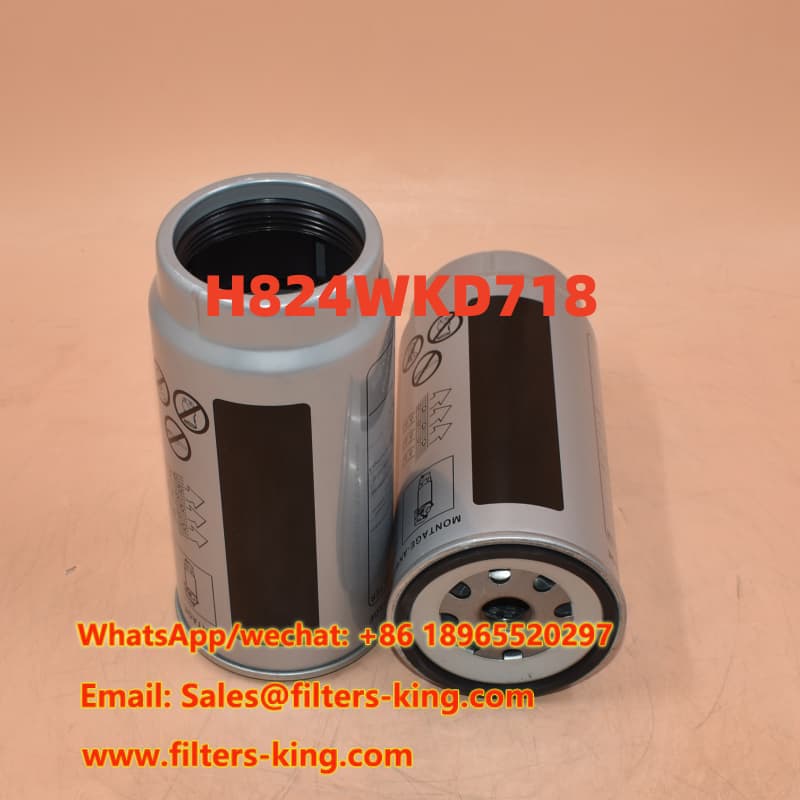

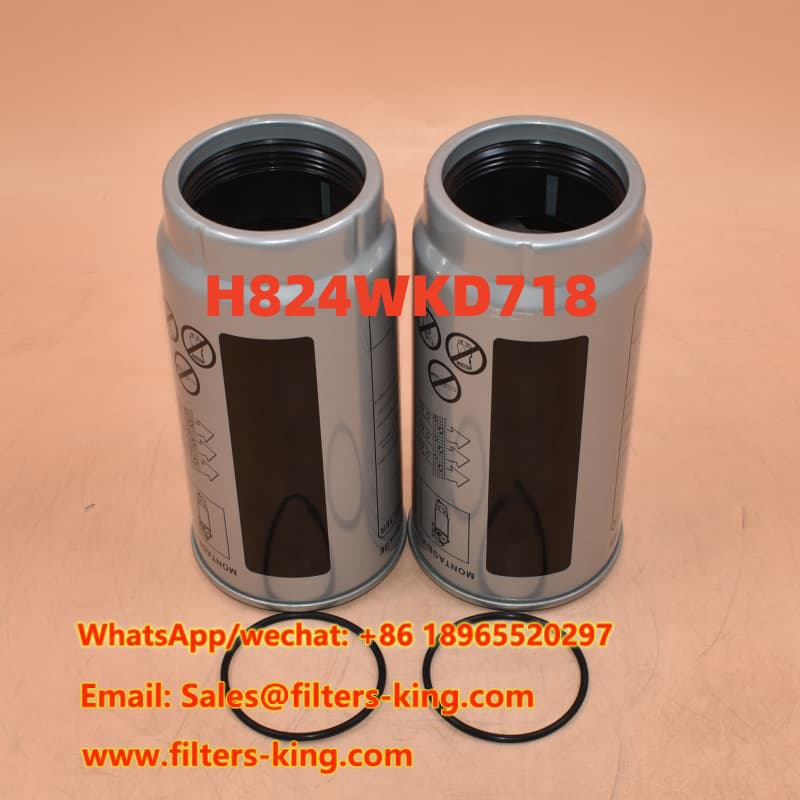

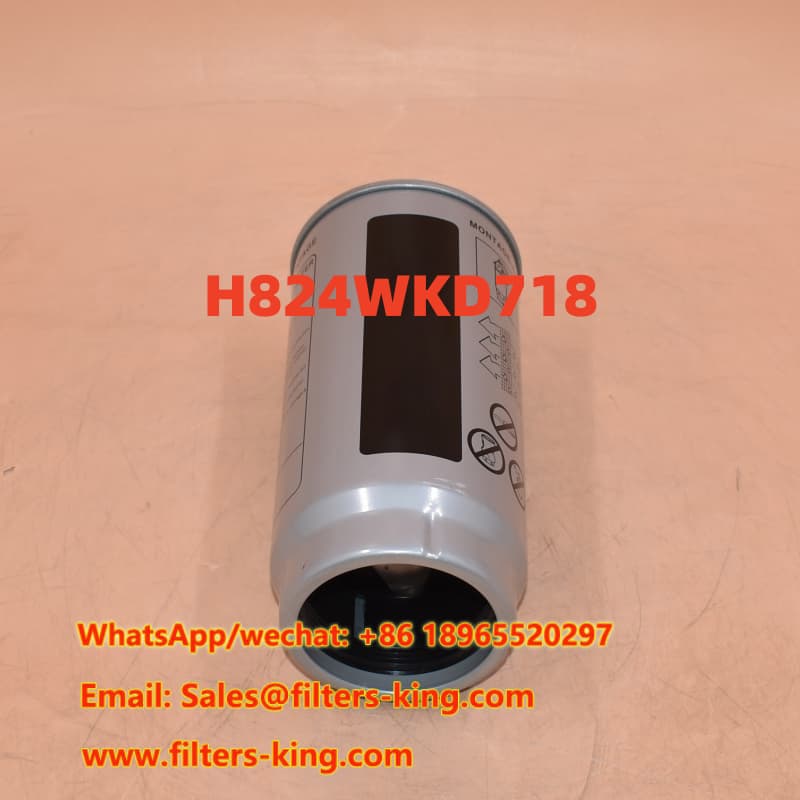

Direct Replacement Fuel Water Separator H824WKD718 | Hengst Cross Reference
The H824WKD718 is a direct replacement fuel water separator designed for diesel fuel filtration applications. It is a practical aftermarket option for professional buyers who need a dependable replacement for the Hengst reference number H824WKD718. Public cross-reference information connects this part with Donaldson P959081, Fleetguard FS20425, Hifi SN70553, MANN PL603/1X and Mercedes-Benz 9604770503 series references. MANN's published European truck and bus guide also lists H824WKD718 against PL 603/1 x.
For wholesalers, filter stores, retailers and after-sales service providers, this diesel fuel water separator replacement provides a convenient sourcing option for regular maintenance demand. The spin-on design and standardized connection specifications support efficient replacement when the original filter reaches its service interval.
| Item | Specification |
|---|---|
| Part Number | H824WKD718 |
| Part Type | Fuel Water Separator Filter |
| Brand | Hengst Replacement |
| Outer Diameter | 108 mm (4.25 inch) |
| Thread Size | 1-14 UN |
| Length | 231.4 mm (9.11 inch) |
| Gasket OD | 103 mm (4.06 inch) |
| Gasket ID | 93 mm (3.66 inch) |
| MOQ | 60 pcs |
A fuel water separator helps remove water and unwanted particles from diesel fuel before they reach sensitive fuel-system components. This supports cleaner fuel delivery and helps reduce contamination-related service issues.
The H824WKD718 replacement follows the supplied fitment specifications and cross-reference numbers, making it easier for professional buyers to identify a suitable aftermarket option during routine filter replacement.
With an MOQ of 60 pieces, this product is suitable for distributors, wholesalers, filter stores and service companies that need to maintain inventory for recurring diesel filtration demand.
Buyers with private-label requirements or special filtration projects can discuss OEM, ODM and custom fuel water separator solutions with our sales team. Product details, packaging and sourcing requirements can be reviewed according to the project.
The following cross-reference list is provided to help professional buyers identify equivalent or related replacement numbers. Always verify the application, thread, gasket and dimensions before placing an order. Public reference sources list H824WKD718 with several of the part numbers below.
| Brand | Cross Reference Part Number |
|---|---|
| Donaldson | P959081 |
| Fleetguard | FS20425 |
| Hengst | H824WKD718 |
| Hifi | SN70553 |
| MANN | PL603/1X |
| Mercedes-Benz | 9604770503 A9604770503 A9604770503001 |
| SF Schupp | SK48946 |
1. Professional Filter Manufacturing – Our product range covers fuel filters, fuel water separators, air filters, oil filters, hydraulic filters, air dryers, breather filters and other filtration products.
2. B2B-Focused Supply – We serve retailers, after-sales service providers, wholesalers and filter stores rather than focusing only on individual consumers.
3. Cross-Reference Support – We help buyers identify replacement filter numbers and compare product specifications before ordering.
4. OEM and ODM Service – Private-label, custom and project-based filtration requirements can be discussed with our sales team.
5. Flexible Bulk Purchasing – Standard products and repeat orders can be arranged according to quantity, packaging and customer requirements.
Thomas Reed – Filter Distributor
The cross-reference information made it easy for our purchasing team to match the Hengst replacement with our existing filter numbers. The bulk order process was straightforward.
Daniel Foster – After-Sales Service Manager
We needed a consistent diesel fuel filter replacement for service orders. The specifications were clear, and the supplier provided useful support before we confirmed the quantity.
Kevin Marshall – Wholesale Buyer
The H824WKD718 replacement is a useful addition to our diesel filtration range. We appreciate the OEM, ODM and custom sourcing options for future orders.
This product is intended for professional B2B buyers who manage filter inventory or provide equipment maintenance services. Typical customers include filter retailers, aftermarket parts wholesalers, diesel service companies, filter stores and after-sales service providers.
If you are looking to buy fuel water separator filter products in bulk, the H824WKD718 replacement can be considered as part of your regular diesel filtration product range. Contact us with your required quantity and application information for quotation and product confirmation.
Common cross-reference numbers include Donaldson P959081, Fleetguard FS20425, Hifi SN70553, MANN PL603/1X, Mercedes-Benz 9604770503, A9604770503 and SF Schupp SK48946. MANN's published guide also lists H824WKD718 with PL 603/1 x.
Yes. H824WKD718 is identified as a fuel filter / fuel water separator reference and is used in diesel fuel filtration applications.
The MOQ for this product is 60 pieces, making it suitable for wholesale and regular B2B purchasing.
Yes. CHINA EVERLASTING PARTS CO., LIMITED supports OEM and ODM cooperation. Contact our sales team to discuss custom specifications, packaging and private-label requirements.
